产品介绍

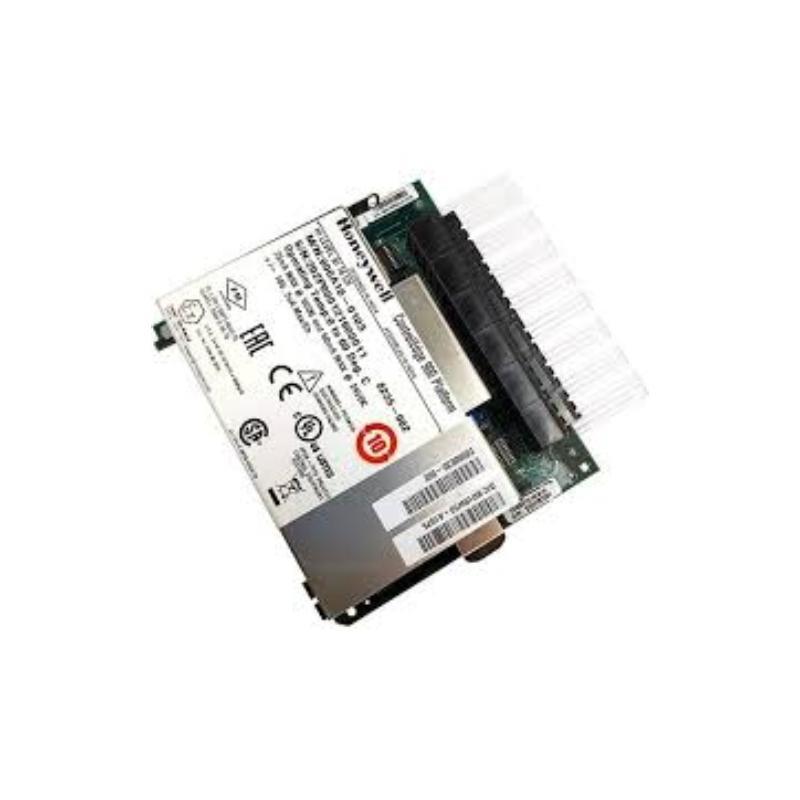

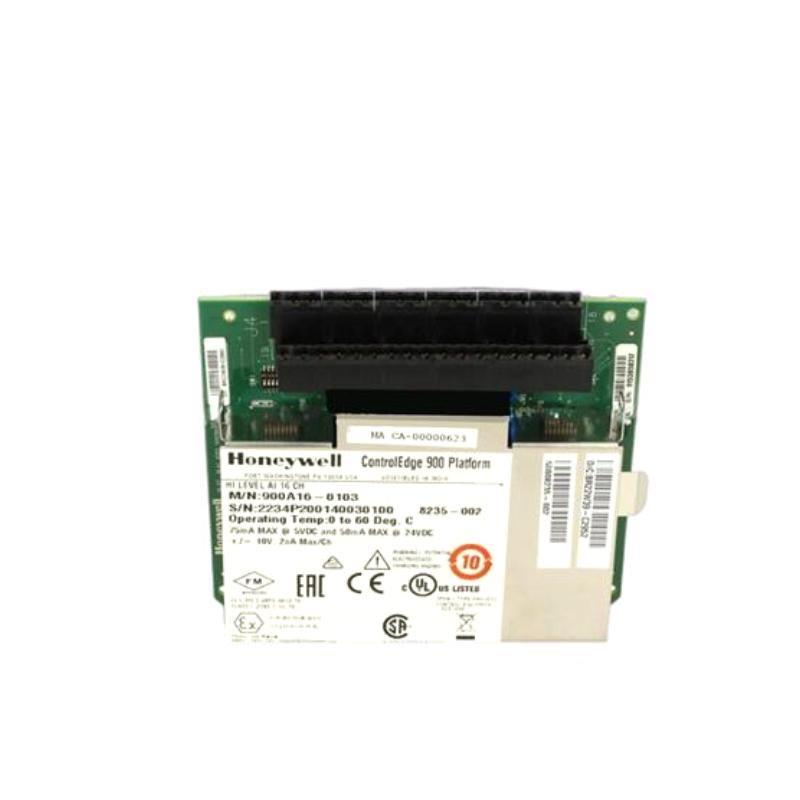

The Honeywell 900A16-0103 is a 16-Channel High-Level Analog Input Module, designed for use in Honeywell’s Experion Process Knowledge System (PKS) and C300/C200 controllers. As part / the Series 900 I/O platform, this module is engineered to interface with high-level analog signals, enabling reliable data acquisition from various field devices in complex industrial automation systems.
Built to operate in critical and high-availability process environments such as oil refineries, chemical plants, and power generation stations, the 900A16-0103 supports robust signal conditioning, fast data conversion, and high-resolution input processing. It plays a central role in accurate and safe process control.
With 16 channels in a compact form factor, support for a wide input voltage range, and compatibility with redundant architectures, the module is ideal for applications that demand precision, stability, and long-term operational reliability.
产品规格
| Parameter | Details |
|---|---|
| 型号 Number | 900A16-0103 |
| 制造商 | Honeywell |
| Module Type | High-Level Analog Input Module |
| Channels | 16 |
| Input Signal Type | High-Level Analog (e.g., 0–10 V DC, ±10 V DC, 1–5 V, etc.) |
| Input Impedance | ≥ 250 kΩ |
| Input Accuracy | ±0.1% / span at 25°C |
| Resolution | 16-bit |
| Update Rate | Configurable per channel; typically <10 ms |
| Diagnostics | Input signal diagnostics, module health status, wiring fault detection |
| Power Supply Voltage | Supplied via Series 900 I/O baseplate (typically 24 V DC) |
| Isolation | Channel-to-bus isolation and channel-to-channel protection |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 70°C |
| Humidity | 5–95% RH non-condensing |
| Shock & Vibration | IEC 60068-2 compliant |
| Dimensions (W × H × D) | 137 x 35.6 mm |
| 重量 | 0.397 kg |
| Mounting | Mounted on a DIN rail or in a rack with Series 900 baseplate |
| Compliance & Certifications | CE, UL, CSA, RoHS, FCC Class A |
| System Compatibility | Honeywell Experion PKS, C300, C200, Safety Manager |
Product Applications
-
Oil & Gas Industry
Acquisition / analog process variables such as flow, pressure, and temperature from transmitters in upstream, midstream, and downstream operations. -
Petrochemical Plants
Used in reactor control, heat exchanger monitoring, and distillation tower instrumentation. -
Power Generation
Suitable for turbine control systems, generator monitoring, and heat recovery systems. -
Water & Wastewater Treatment
Measures pH, flow, turbidity, and chemical dosing from analog sensors. -
Pulp and Paper Manufacturing
Used for monitoring temperature, pressure, and flow in various processing 件s. -
Pharmaceutical Industry
Ensures cleanroom monitoring and precise environmental controls in validated processes.
Product Advantages
-
High Channel Density
Offers 16 channels in a single module, reducing panel space and overall system cost. -
Accurate Signal Processing
Delivers 16-bit resolution and ±0.1% accuracy to meet precise process demands. -
Wide Signal Compatibility
Accepts multiple signal types including bipolar/unipolar voltage ranges. -
Robust Diagnostics
Integrated fault detection and health indicators for proactive maintenance. -
Seamless Integration
Fully compatible with Honeywell’s Experion PKS architecture and Safety Manager system. -
Redundancy 支持
Can be used in redundant configurations for high availability applications. -
Fast Update Rates
Real-time monitoring with configurable scan speeds per channel. -
Industrial Reliability
Designed for 24/7 operations in harsh process environments. -
Flexible Mounting Options
DIN rail and backplane compatibility streamline installation. -
Regulatory Compliance
Meets stringent industrial certifications for safety and electromagnetic compatibility.
常见问题 (FAQ)
-
What kind / signals does the 900A16-0103 accept?
It supports high-level analog signals like 0–10 V DC, ±10 V, and other voltage ranges. -
Is it compatible with Honeywell’s Experion system?
Yes, it integrates seamlessly with Experion PKS and C300/C200 controllers. -
Can I use this module for both unipolar and bipolar signals?
Yes, it supports both signal types through configuration. -
How many analog inputs does the module support?
It supports 16 independent analog input channels. -
Does the module /fer channel isolation?
Yes, it includes channel-to-bus isolation and overvoltage protection. -
What’s the update speed for inputs?
Input update rate is configurable, typically under 10 milliseconds per channel. -
Can it detect faulty wiring or signal issues?
Yes, the module includes diagnostics for signal validation and fault detection. -
Is this module suitable for safety systems?
Yes, it’s compatible with Honeywell’s Safety Manager in safety-critical environments. -
Does it require external power supply?
No, it draws power from the Series 900 I/O baseplate, typically 24 V DC. -
What’s the lifespan / this module in continuous operation?
Designed for industrial-grade longevity, many 件s operate reliably for 10+ years under proper conditions.
Related or Same-Series 型号s (Series 900 / Analog I/O)
| 型号 | 描述 | Type | Channels | System |
|---|---|---|---|---|
| 900A16-0102 | 16-Channel Low-Level Analog Input Module | Low-Level Analog Input | 16 | Experion PKS |
| 900B16-0101 | 16-Channel Analog Output Module | Analog Output | 16 | C300/C200 |
| 900C32-0101 | 32-Channel Digital Input Module | Digital Input | 32 | Experion PKS |
| 900R24-0101 | 24-Channel Relay Output Module | Digital Output (Relay) | 24 | Safety Manager |
| 900RTD-0101 | 8-Channel RTD Input Module | Temperature (RTD) | 8 | C300 |
| 900P01-0101 | Power Supply Module for Series 900 I/O Base | Power Supply | N/A | All Series 900 Modules |
Popular Honeywell Modules (其他 Product Lines)
| 型号 | 描述 | Type | Compatibility | Key Use |
|---|---|---|---|---|
| CC-TDIL01 | Digital Input Module | Digital Input | Experion, C300 | High-speed input detection |
| CC-PAIH01 | Analog Input Module (HART) | AI with HART | Experion | Advanced HART signal support |
| CC-PDOB01 | Digital Output Module (24V DC) | Digital Output | C300 | Field control and actuation |
| CC-TDOR01 | Relay Output Module | Relay Output | C300, Safety Manager | For safety interlocks and relays |
| FC-SDO-0824 | Digital Output Module | DO (Fail-safe) | Safety Manager | Emergency shutdown operations |
| MC-PD1X02 | Power Supply Module | Redundant Power | Experion PKS | Redundant field power solutions |
