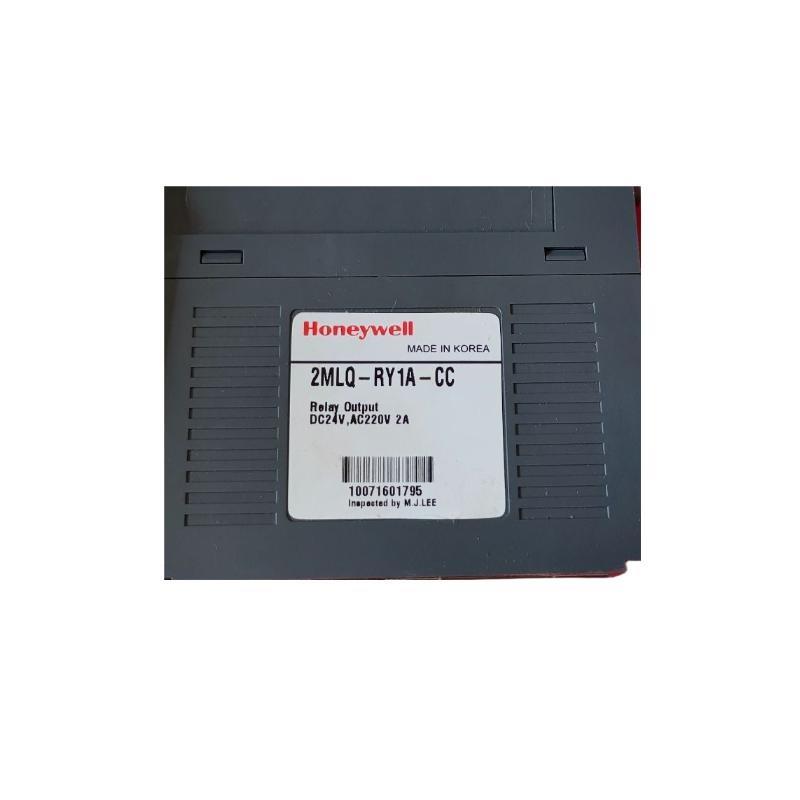

The Honeywell 2MLQ-RY1A-CC Relay Digital Output Module is an industrial-grade relay output device engineered for use in Honeywell’s process automation systems. It provides a reliable interface between the control system and field devices that require relay-based switching, such as motors, solenoids, alarms, interlocks, and lighting systems.
This module is part / Honeywell’s MLQ Series, known for its rugged design and compatibility with distributed control systems (DCS) and safety systems. With 16 isolated relay outputs, built-in diagnostics, and flexible mounting options, the 2MLQ-RY1A-CC helps ensure process integrity in industries where uptime, reliability, and safety are non-negotiable.
产品规格
| Parameter | Specification |
|---|---|
| Product Name | Honeywell 2MLQ-RY1A-CC Relay Digital Output Module |
| 型号 Number | 2MLQ-RY1A-CC |
| Series | MLQ Series |
| Function | Digital Output – Relay |
| Output Type | SPDT (Form C) relay contacts |
| Number / Output Channels | 16 |
| Relay 联系我们 Rating | 2 A @ 30 VDC / 250 VAC resistive |
| Output Isolation | 1500 V RMS between field and system sides |
| Coil Voltage | 24 VDC nominal |
| Switching Time (On/Off) | < 10 ms |
| On-状态 Leakage Current | None (mechanical relay) |
| Minimum Load | 10 mA @ 5 VDC |
| Protection Features | Relay wear compensation, surge suppression |
| Diagnostics | Channel status LEDs, onboard fault monitoring |
| Power Supply | 24 VDC nominal |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -20°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN-rail or panel mount |
| Dimensions (H x W x D) | 114 × 48 × 127 mm |
| 重量 | 0.13 kg |
| Certifications | CE, UL, CSA |
Product Applications
The Honeywell 2MLQ-RY1A-CC Relay Digital Output Module is designed for broad use in industries requiring reliable control / electromechanical devices, including:
-
Oil & Gas Industry
For actuation / emergency shutdown valves, fire & gas alarms, blowdown valves, and compressors. -
Power Generation
Relay control / auxiliary equipment, generators, switchgear, and plant alarms. -
Chemical and Petrochemical Plants
Control / batch equipment, agitators, process pumps, emergency alarms, and interlocks. -
Water and Wastewater Treatment
Automated relay control / pumps, blowers, gates, and monitoring systems. -
Pharmaceutical Industry
For validated relay-based control / cleanroom equipment, HVAC systems, and alarms. -
Food & Beverage Production
Control / packaging machinery, conveyors, process skids, and safety interlocks.
Product Advantages
-
Industrial-Grade Reliability
Heavy-duty mechanical relays with wear compensation ensure longevity even under frequent switching cycles. -
High Channel Density
Provides 16 individually isolated relay outputs in a compact form factor. -
优秀 Isolation
High electrical isolation (1500 V RMS) protects the control system from field transients. -
Fast Switching
Typical response time / <10 ms ensures quick actuation / field devices. -
Built-In Diagnostics
LED indicators and fault monitoring simplify troubleshooting and improve system transparency. -
Flexible Mounting
支持s DIN rail and panel mounting, suitable for most industrial enclosures. -
Certified for Global Use
Fully certified to CE, UL, and CSA standards, making it suitable for international projects. -
Minimal Maintenance
Designed for extended service life with minimal maintenance intervention.
常见问题 (FAQ)
-
What is the main function / the 2MLQ-RY1A-CC module?
It delivers 16 relay-based digital outputs to control field devices such as alarms, motors, and valves. -
Is the module compatible with Honeywell Experion PKS systems?
Yes, it integrates seamlessly with Honeywell’s Experion PKS, TPS, and other control platforms. -
What is the switching capacity / each relay output?
Each channel supports up to 2 A at 30 VDC or 250 VAC (resistive load). -
Does it provide feedback on output status?
Yes, each relay channel has an individual LED status indicator. -
How fast does the module switch?
The on//f response time is typically less than 10 ms. -
What isolation is provided between channels and the system?
Isolation / 1500 V RMS is provided for enhanced system protection. -
Can this module be DIN rail mounted?
Yes, it supports both DIN rail and panel mounting options. -
Does the module support diagnostic features?
Yes, it includes LED status indicators and built-in fault monitoring. -
What certifications does this module carry?
It is CE, UL, and CSA certified. -
What are the operating temperature limits for this module?
The module operates reliably between 0°C to +60°C.
Recommended Related 型号s
| 型号 Number | 描述 |
|---|---|
| 2MLQ-DI1A | Digital Input Module |
| 2MLQ-DO1A | Solid-状态 Digital Output Module |
| 2MLQ-AI1A | Analog Input Module |
| 2MLQ-AO1A | Analog Output Module |
| 2MLQ-PT1A | Temperature Input Module (RTD / Thermocouple) |
| 2MLQ-COM1A | Serial Communication Interface Module |
Popular Honeywell 型号s
| 型号 Number | 描述 |
|---|---|
| CC-TDIL01 | Digital Input Module |
| CC-TDOB01 | Digital Output Module (Solid-状态) |
| CC-PDIL01 | Pulse Digital Input Module |
| MC-PAOY22 | Analog Output Module |
| FC-TSDI-1624 | 16 Channel Digital Input Module |
| FC-TSRO-0824 | 8 Channel Relay Output Module |
