产品介绍

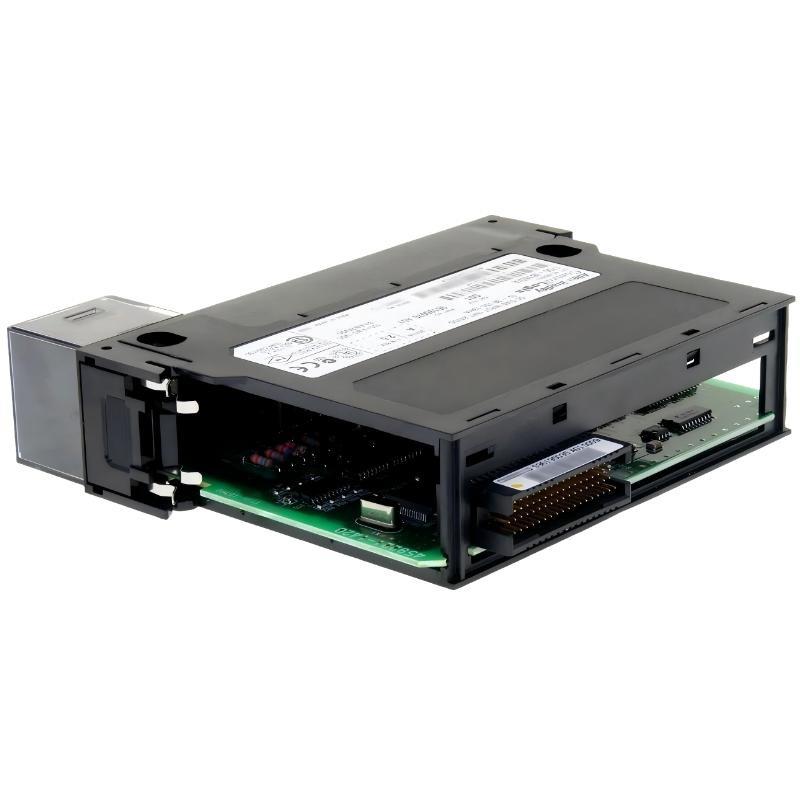

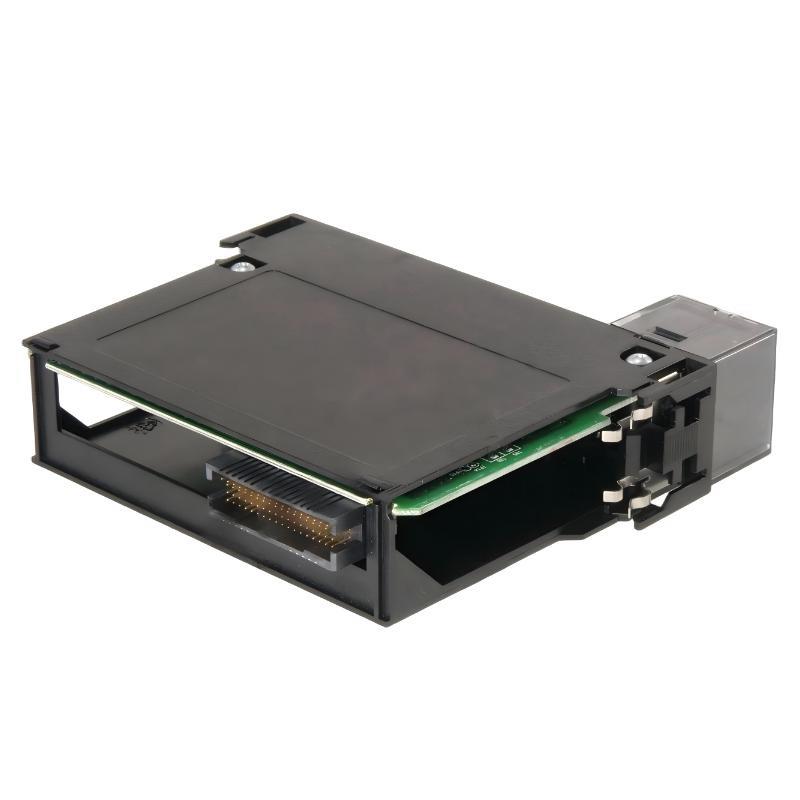

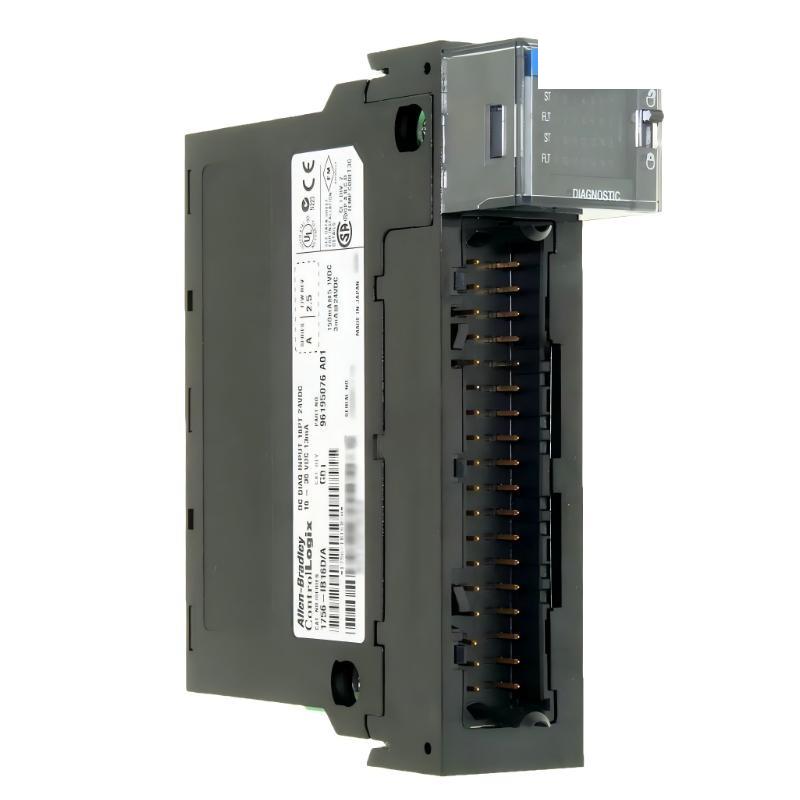

The Allen Bradley 1756-IB16DK is a diagnostic digital input module designed for the ControlLogix automation platform. It provides 16 sinking DC input channels for monitoring industrial field devices such as sensors, switches, relays, and push buttons.
The module supports 12–24 V DC input signals and delivers reliable signal acquisition in demanding industrial environments. Built-in diagnostic functions help identify wiring faults and abnormal signal conditions, improving maintenance efficiency and reducing system downtime.
Its compact design allows easy installation inside ControlLogix chassis systems while maintaining stable communication through the backplane. The module is widely used in manufacturing, process control, power systems, and automated production equipment.
产品规格
| Parameter | Value |
|---|---|
| Product Name | Allen Bradley 1756-IB16DK |
| Product Type | ControlLogix Diagnostic Input Module |
| Input Channels | 16 Points |
| Input Type | Digital DC Sink Input |
| Operating Voltage | 12–24 V DC Sink |
| Voltage Range | 10–30 V DC |
| Minimum Operating Current | 2 mA at 10 V DC |
| Maximum Operating Current | 13 mA at 30 V DC |
| Current per Point | 1.5 mA per Point |
| Diagnostic Function | Built-In Channel Diagnostics |
| Communication Method | ControlLogix Backplane |
| Installation Type | Chassis Mounted |
| Dimensions | 144.57 × 22 × 105.42 mm |
| 重量 | 0.45 kg |
Applications
• Factory Automation Systems
Used for monitoring switches, proximity sensors, and digital field devices in automated production lines.
• Process Control Systems
Suitable for valve status monitoring, alarm signals, and industrial process equipment.
• Power and Utility Systems
Applied in electrical monitoring systems requiring reliable digital input collection.
• Material Handling Equipment
Commonly used in conveyor systems, packaging machines, and warehouse automation.
• Industrial Machinery
Provides stable signal monitoring for heavy-duty manufacturing equipment.
Advantages
• Diagnostic Monitoring
Helps identify wiring problems and abnormal input conditions quickly.
• Reliable Signal Processing
Maintains stable operation in industrial electrical environments.
• Compact Structure
保存s panel space inside ControlLogix cabinets.
• Easy System Integration
Fully compatible with ControlLogix controllers and communication modules.
• Industrial-Grade Design
Built for continuous operation in demanding factory environments.
• Low Maintenance Requirement
Simplifies troubleshooting and improves maintenance efficiency.
