产品介绍

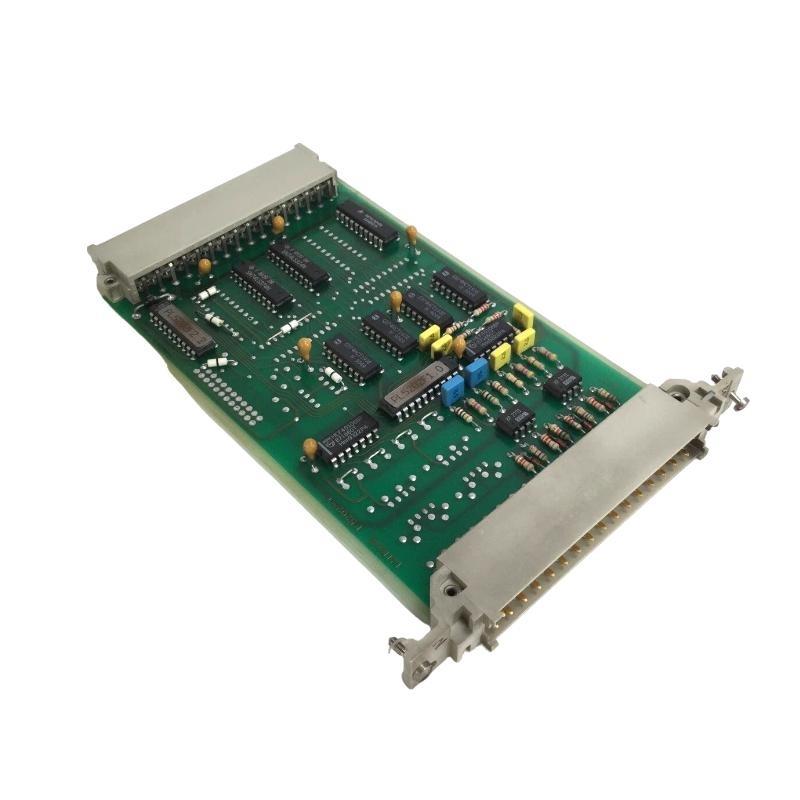

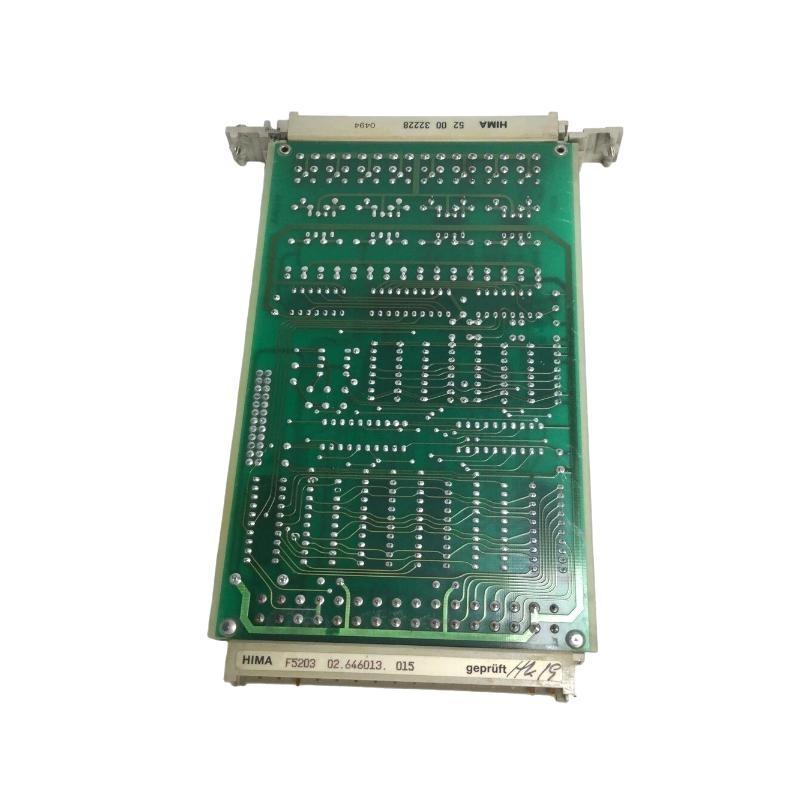

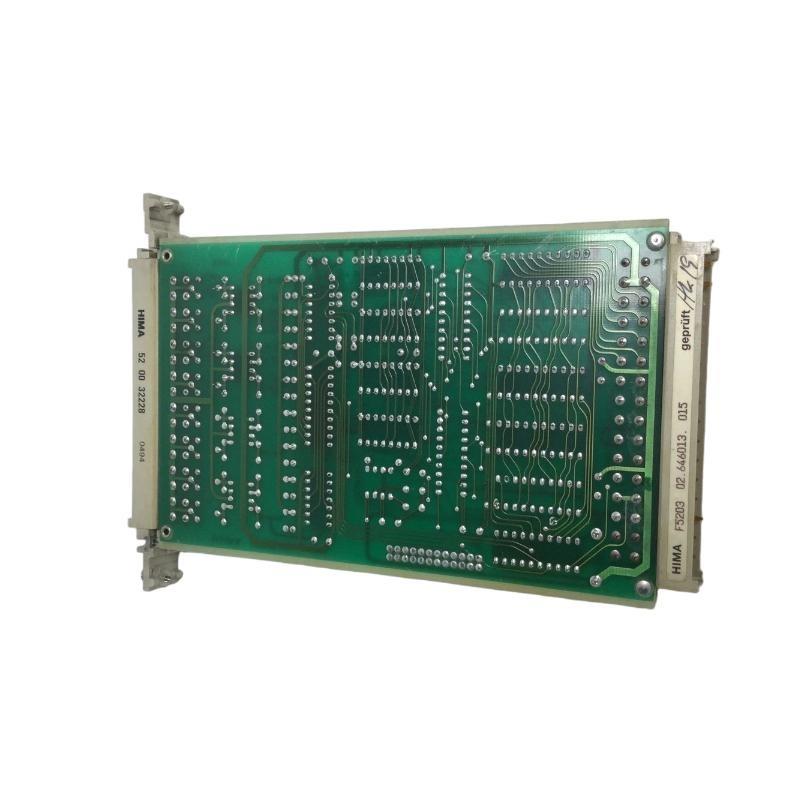

The HIMA F5203 Control Panel is a robust and high-performance module designed to operate within HIMA’s safety and automation platform. It is specifically engineered to provide reliable control, monitoring, and safety functions in critical process applications. With a strong emphasis on system integrity and fault tolerance, the F5203 integrates seamlessly with other HIMA modules to create a scalable and flexible automation solution.
The 件 supports advanced I/O processing, diagnostic capabilities, and redundancy concepts, making it well-suited for industries that demand the highest levels / safety, such as oil and gas, petrochemical, power generation, and industrial manufacturing.
Product Parameters
| Parameter | 描述 |
|---|---|
| Product 型号 | HIMA F5203 Control Panel |
| Function | Control and safety panel for HIMA automation systems |
| Input Channels | Up to 32 configurable inputs (digital/analog depending on system setup) |
| Output Channels | Up to 32 configurable outputs (digital/relay/analog supported) |
| Communication Interfaces | Redundant bus communication, Modbus, Pr/ibus, Ethernet |
| Power Supply | 24 VDC (typical) |
| Operating Temperature | -20°C to +70°C |
| Cooling Method | Natural convection or rack-mounted forced air |
| Diagnostic Features | Built-in self-test, error logging, channel fault detection |
| Redundancy 支持 | Yes, supports hot-standby redundancy and failover |
| Mounting Type | 19-inch rack mounting |
| Dimensions (H × W × D) | 200 × 100 × 30 mm |
| 重量 | 0.2 kg |
Product Applications
The HIMA F5203 Control Panel is widely applied in industries where process safety and precise control are mandatory. Typical application areas include:
-
Oil & Gas: Monitoring drilling operations, pipeline safety systems, and wellhead control.
-
Petrochemical Plants: Ensuring safe shutdown procedures, flare management, and reactor safety.
-
Power Generation: Turbine control, emergency shutdown, and auxiliary systems monitoring.
-
Transportation: Safety management systems for railways and industrial transport equipment.
-
Manufacturing: Process automation, machine safety, and production line fault handling.
-
Energy Distribution: Monitoring and control / substations, renewable energy plants, and critical infrastructure.
Product Advantages
-
High Reliability: Engineered for continuous operation in demanding environments with minimal downtime.
-
Advanced Safety Features: Integrated diagnostic tools and redundancy concepts ensure safe operations.
-
Flexibility: Configurable inputs and outputs for a wide range / control scenarios.
-
Scalability: Works seamlessly with other HIMA modules to expand system capacity.
-
Redundancy 支持: Hot-swappable and redundant architecture to maximize uptime.
-
Compliance: Designed to meet international safety standards such as IEC 61508 (SIL-rated systems).
-
Ease / Integration: Compatible with multiple industrial communication protocols for seamless connectivity.
FAQ
-
What type / inputs and outputs does the F5203 support?
The module supports both digital and analog signals, configurable based on process requirements. -
Does the F5203 support redundant operation?
Yes, it supports hot-standby redundancy, ensuring uninterrupted operation in case / module failure. -
How does the module perform diagnostics?
It has built-in self-test routines, continuous error monitoring, and channel-specific fault detection. -
Which communication protocols are supported?
The module supports Modbus, Pr/ibus, and Ethernet, along with HIMA’s proprietary safety communication bus. -
Can the module be hot-swapped during operation?
Yes, the F5203 can be replaced without shutting down the entire system, minimizing downtime. -
What is the maximum number / I/O points that can be connected?
The module supports up to 64 combined I/O points depending on configuration. -
Is the F5203 compatible with legacy HIMA systems?
Yes, it is backward compatible with selected older HIMA rack systems, ensuring upgrade flexibility. -
How does the F5203 handle fault isolation?
Faulty channels are isolated automatically, preventing system-wide disruptions. -
Does the control panel support safety-certified applications?
Yes, it is suitable for SIL-rated safety applications under IEC 61508 standards. -
What are the cooling requirements for the module?
It relies on natural convection under normal conditions but can also be installed with forced rack ventilation for higher-density systems.
Recommended Related 型号s (Same Series or Similar)
| 型号 | 描述 |
|---|---|
| HIMA F5221 | Digital Input Module |
| HIMA F5222 | Digital Output Module |
| HIMA F3236 | Analog Input Module |
| HIMA F8627X | Communication Interface Module |
| HIMA F3330 | Analog Output Module |
| HIMA F6705 | Power Supply Module |
Recommended Popular 型号s (Same 品牌 – HIMA)
| 型号 | 描述 |
|---|---|
| HIMA F7133 | Digital Output Module with diagnostics |
| HIMA F4204 | Analog Input Module for process signals |
| HIMA K9203B | Rack Cooling Fan 单位 |
| HIMA F3109 | High-density Analog Input Module |
| HIMA F8627X | Advanced Communication Gateway |
| HIMA F3331 | Analog Output Module with redundancy |
