Product Name:

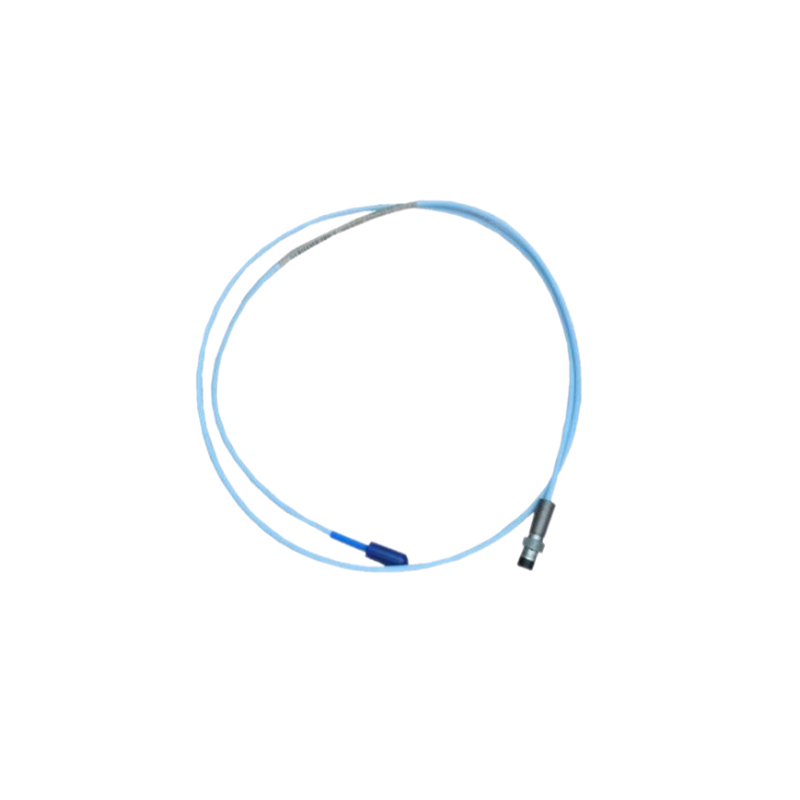

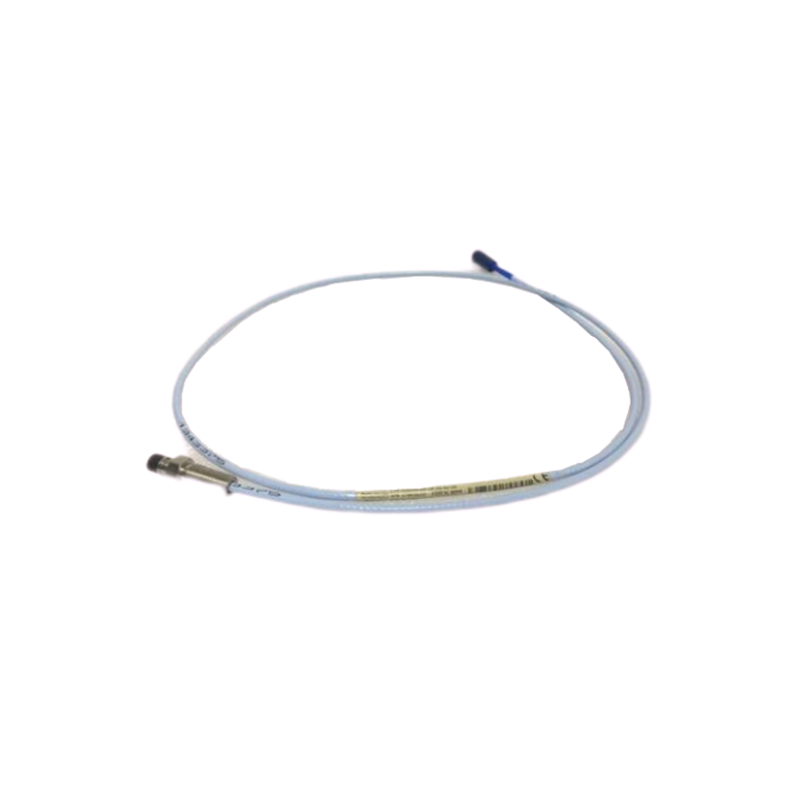

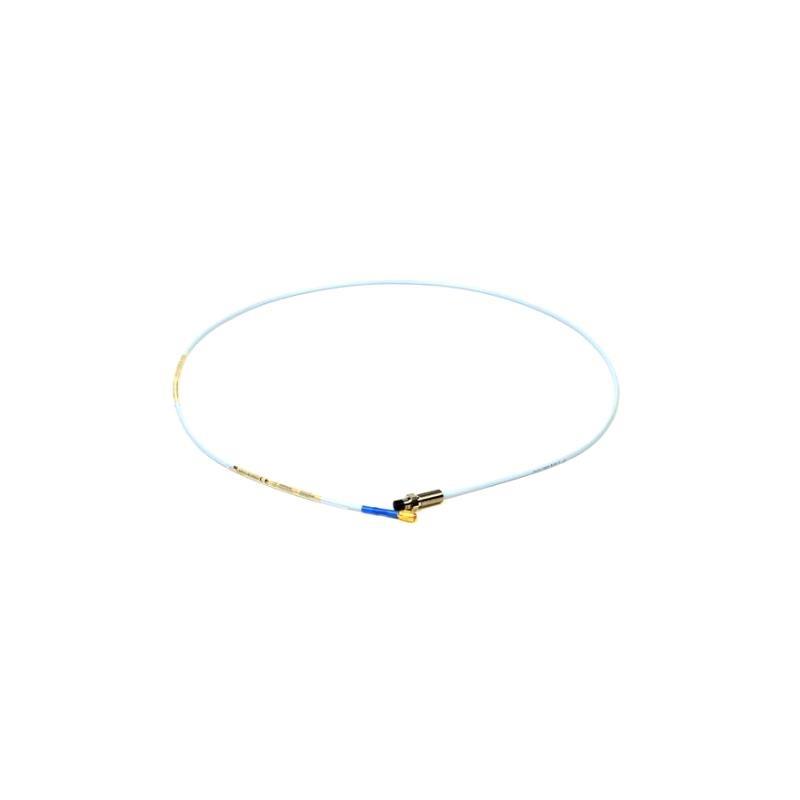

Bently Nevada 330195-02-12-05-05
产品介绍
The Bently Nevada 330195-02-12-05-05 is a high-performance extension cable used in proximity sensing systems, specifically in conjunction with Bently Nevada’s 3300 XL series proximity transducers and probes. It serves as a critical signal transmission link between the proximity probe and the proximitor sensor. Manufactured with industrial-grade shielding, robust insulation, and high-precision connectors, this cable ensures optimal electrical integrity in harsh industrial environments. It plays a vital role in machinery protection and condition monitoring by supporting accurate, real-time vibration and position measurements.
Technical Specifications
| Parameter | Details |
|---|---|
| 型号 Number | 330195-02-12-05-05 |
| Cable Type | Extension Cable for Proximity Probe Systems |
| Application Compatibility | 3300 XL Proximity Transducer System |
| Connector A | MIL-C-5015 Circular Connector |
| Connector B | BNC or Custom Configured |
| Cable Jacket Material | PFA or Tefzel (high-temp & chemical-resistant) |
| Shielding | Braided Copper Shield (for noise rejection) |
| Maximum Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Electrical Resistance | ≤ 0.26 ohms/meter |
| Dielectric Strength | ≥ 1000 VDC |
| RoHS Compliance | Yes |
| Cable length | 0.5 m |
| 重量 | 0.323kg |
| Color | Standard Blue (unless specified otherwise) |
| Country / Origin | USA |
Product Applications
The 330195-02-12-05-05 cable is widely used across industries where Bently Nevada’s condition monitoring systems are deployed. Its main application areas include:
-
Turbomachinery Monitoring: For gas turbines, steam turbines, and compressors.
-
Rotating Equipment Diagnostics: Motors, generators, pumps.
-
Nuclear and Fossil Power Plants: As part / safety-critical vibration and displacement monitoring.
-
Oil & Gas Refineries: Harsh environments with high thermal or chemical exposure.
-
Paper Mills & Chemical Plants: High reliability in corrosive or vibration-intensive areas.
-
Industrial Automation Systems: Ensures accurate signal fidelity over extended distances.
Product Advantages
-
High Signal Fidelity: Maintains precise signal transmission over long distances without degradation.
-
Robust Construction: The cable is designed for high resistance against thermal, chemical, and mechanical stress.
-
Reliable in Harsh Environments: Operates reliably in temperatures up to 177°C.
-
Compatibility: Seamless integration with 3300 XL Proximity Transducer Systems.
-
Noise Resistance: Braided shielding provides superior protection against EMI/RFI interference.
-
Ease / Installation: Pre-configured connectors reduce installation time and errors.
-
Low Maintenance: Durable materials reduce the frequency / replacement or repair.
-
Proven Track Record: Trusted globally across critical industries for predictive maintenance systems.
常见问题 (FAQ)
Q1: What is the function / the 330195-02-12-05-05 cable in a Bently Nevada system?
A1: It connects the proximity probe to the proximitor sensor, enabling accurate signal transmission for vibration and displacement measurement.
Q2: Is this extension cable compatible with all 3300 XL series probes?
A2: Yes, it is designed specifically for use with the 3300 XL Proximity Transducer Systems.
Q3: Can the cable withstand chemical exposure in a refinery environment?
A3: Absolutely. Its jacket material is chemically resistant, ideal for harsh industrial applications.
Q4: What is the standard length / this cable?
A4: This version comes with a 12-foot length, but other lengths can be customized if needed.
Q5: Does the cable come with pre-terminated connectors?
A5: Yes, it features factory-installed MIL-C-5015 and BNC connectors for plug-and-play use.
Q6: Is there any signal degradation over 12 feet?
A6: No, the cable is designed with low-resistance shielding to prevent signal loss over this distance.
Q7: Can the cable operate in high-temperature zones like turbine casings?
A7: Yes, it supports continuous operation at temperatures up to 177°C.
Q8: Is this cable suitable for vertical cable runs in motor applications?
A8: Yes, the jacket and internal construction provide strength and flexibility for such configurations.
Q9: Is this product certified under any standards?
A9: It complies with RoHS standards and Bently Nevada’s rigorous internal quality checks.
Q10: What is the typical lifespan / this cable in continuous operation?
A10: While actual lifespan depends on the environment, in controlled industrial conditions, it /ten exceeds 5–7 years without failure.
Recommended Related or Same-Series 型号s (6 单位s)
-
330195-02-12-05-00 – 12-ft cable, standard connectors
-
330195-02-12-10-05 – 12-ft cable with alternate connector configuration
-
330195-01-10-05-05 – 10-ft extension, same series
-
330130-040-00-00 – 3300 XL Proximity Probe (used with this cable)
-
330180-91-00 – 3300 XL Proximitor Sensor
-
330104-00-10-10-02-00 – Full probe + cable + proximitor assembly
Popular Bently Nevada 型号s (Same 品牌, 6 单位s with Specs)
| 型号 | Function | Length/Size | 重量 | Voltage |
|---|---|---|---|---|
| 330104-00-10-10-02-00 | Proximity Probe Assembly | 10 mm tip, 5 m cable | 0.3 kg | N/A |
| 330180-90-00 | 3300 XL Proximitor Sensor | Module enclosure | 0.45 kg | 24 VDC |
| 330130-045-00-00 | 3300 XL Proximity Probe | 4 mm tip, 5 m cable | 0.28 kg | N/A |
| 330106-05-30-10-02-00 | High-temperature Probe Assembly | 8 mm tip, 3 m cable | 0.4 kg | N/A |
| 330103-00-05-10-02-00 | Standard Probe + Cable Assembly | 5 m length | 0.35 kg | N/A |
| 330850-90-05 | 3300 XL NSv Proximitor Sensor | Narrow-gap application | 0.48 kg | 24 VDC |
