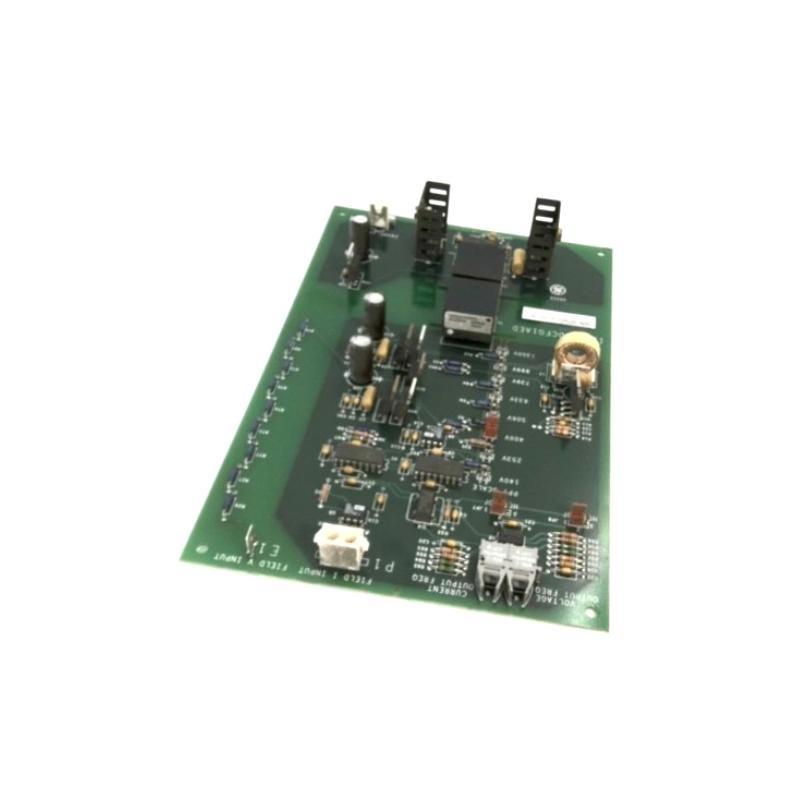

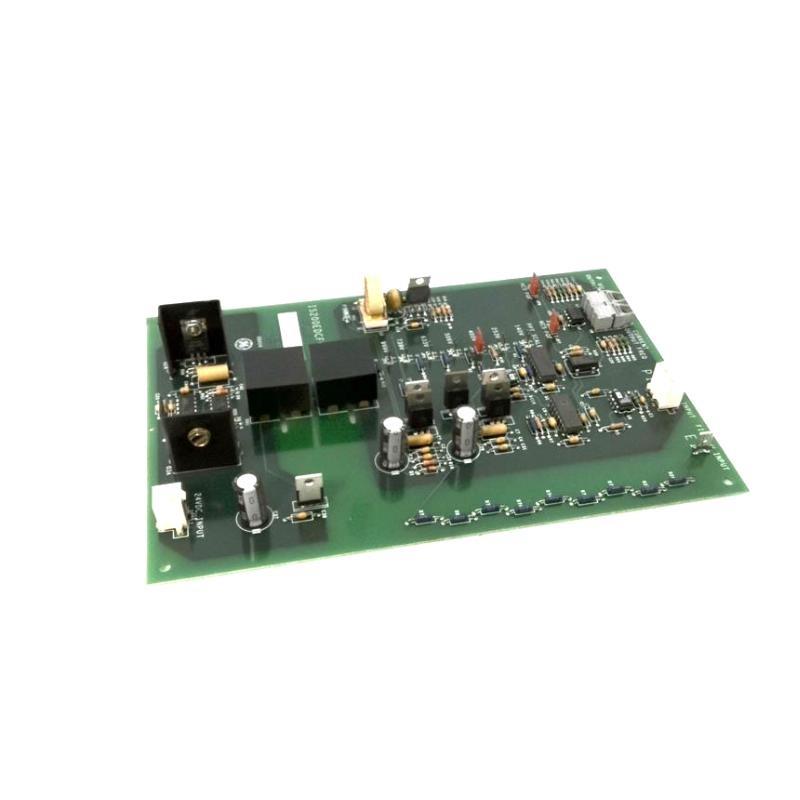

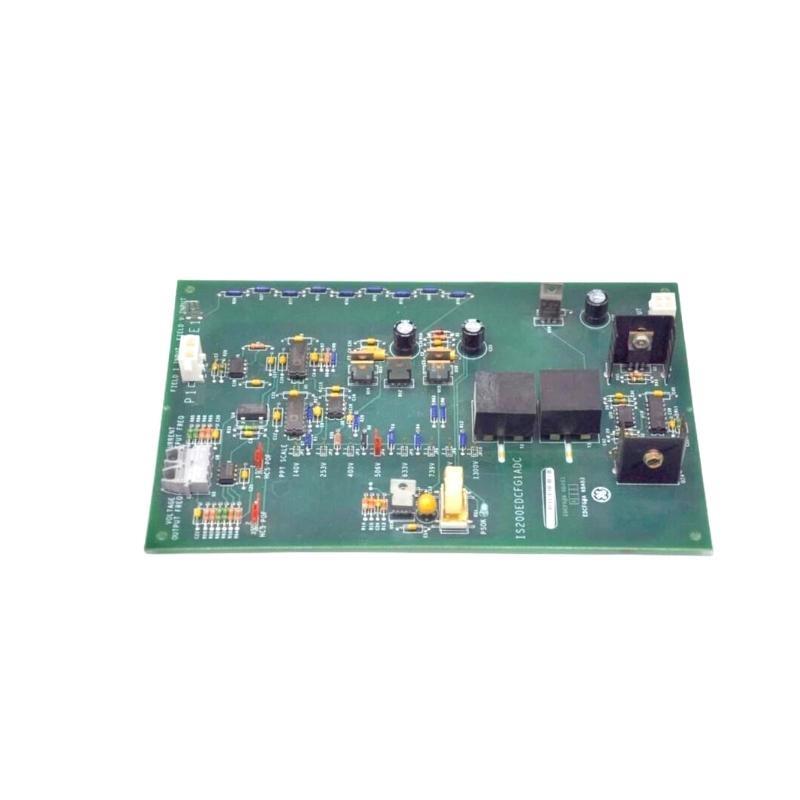

GE IS200EDCFG1A EX21000 Series Exciter DC Feedback Board
The GE IS200EDCFG1A is a high-reliability DC feedback board designed for the EX21000 series excitation control system. It monitors and feeds back DC parameters, ensuring precise control and stable operation / generators in power plants and industrial applications. Its compact and robust design makes it suitable for demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| 型号 | IS200EDCFG1A |
| Series | EX21000 |
| Function | Exciter DC Feedback Board |
| Dimensions (H × W × D) | 38 × 330 × 250 mm |
| 重量 | 0.7 kg |
| Mounting | Rack-mounted |
| Operating Voltage | As per EX21000 system spec |
| Feedback Signals | DC voltage and current |
| Environment | Industrial, controlled |
| Temperature Range | 0°C to +60°C |
Applications
The IS200EDCFG1A is used primarily in:
-
Generator excitation control systems
-
Power plants
-
Large-scale industrial generators
-
Systems requiring accurate DC feedback for stability
Advantages
-
High measurement accuracy for DC parameters
-
Compact and lightweight for easy integration
-
Reliable performance in harsh industrial conditions
-
Essential for maintaining generator voltage stability
-
Proven GE quality and durability
FAQ
Q1: What is the main function / the IS200EDCFG1A?
A1: It provides DC voltage and current feedback to the EX21000 exciter system.
Q2: Is it compatible with all EX21000 systems?
A2: Yes, it is specifically designed for the EX21000 series.
Q3: Can it be replaced in the field?
A3: Yes, it is field-replaceable and designed for ease / maintenance.
Q4: What type / signals does it handle?
A4: It handles DC voltage and current feedback signals.
Q5: How much does the board weigh?
A5: Approximately 0.7 kg.
Q6: What are the physical dimensions / the board?
A6: 38 × 330 × 250 mm.
Q7: Is it suitable for outdoor use?
A7: It is intended for controlled indoor environments.
Q8: Does it require calibration?
A8: Calibration may be required per maintenance schedule.
Q9: What is the typical operating temperature range?
A9: 0°C to +60°C.
Q10: Is it part / a redundant system design?
A10: It can be used in systems with redundancy depending on configuration.
Recommended Related 型号s (Same or Related Series)
| 型号 | Function 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| IS200EDCFG1B | Updated DC feedback board | 38 × 330 × 250 | 0.7 kg |
| IS200EISBG1A | Exciter Interface Signal Board | 38 × 330 × 250 | 0.65 kg |
| IS200EACFG2A | AC Feedback Board | 38 × 330 × 250 | 0.7 kg |
| IS200EGPAG1A | Exciter Ground Protection Assembly | 38 × 330 × 250 | 0.8 kg |
| IS200EPDMG1A | Exciter Power Distribution Module | 38 × 330 × 250 | 0.75 kg |
| IS200EXHSG1A | Exciter High-Speed Gate Driver Board | 38 × 330 × 250 | 0.72 kg |
Popular GE 型号s
| 型号 | Function 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| IS200DSPXH1D | Digital Signal Processor Board | 38 × 330 × 250 | 0.7 kg |
| IS200TRLYH1B | Relay Output Board | 38 × 330 × 250 | 0.7 kg |
| IS200TBTCH1C | Terminal Board | 38 × 330 × 250 | 0.68 kg |
| IS200VCRCH1B | Voltage Control Relay Board | 38 × 330 × 250 | 0.7 kg |
| IS200VTCCH1C | Voltage Transducer Board | 38 × 330 × 250 | 0.7 kg |
| IS200ESELH1A | Exciter Selector Board | 38 × 330 × 250 | 0.7 kg |
