产品介绍

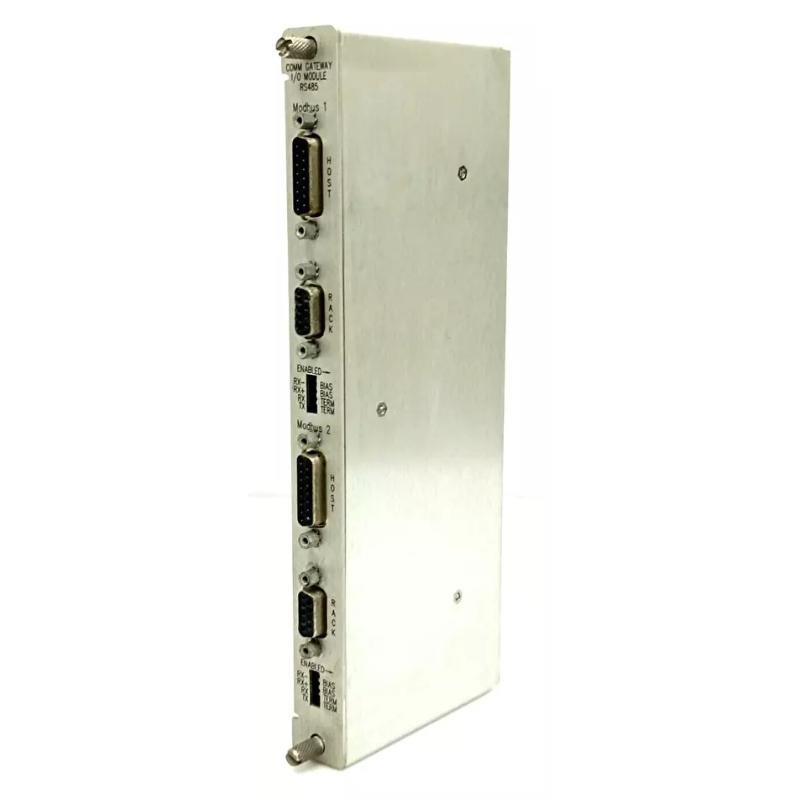

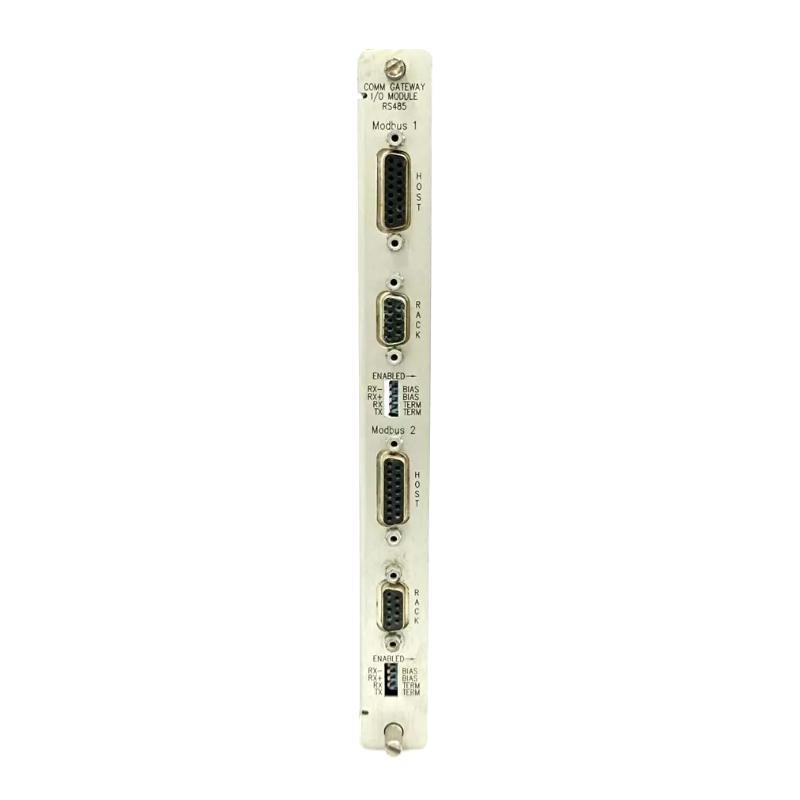

The Bently Nevada 3500/92-02-01-00 133323-01 Communication Gateway Module is an advanced solution designed to facilitate communication between the Bently Nevada 3500 Series machinery protection and condition monitoring systems and external systems such as Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), or supervisory control systems. By providing seamless data transfer capabilities, this module allows operators to remotely monitor, control, and receive diagnostic information from machinery and equipment in real time.
The 3500/92 Communication Gateway supports multiple communication protocols, including Modbus, Ethernet, and industrial network protocols, making it highly versatile and adaptable to different industrial environments. Whether used in power generation, oil and gas, or manufacturing, the module helps to enhance plant efficiency, reduce downtime, and improve safety through real-time data visibility and system integration.
With a compact design, rugged construction, and ease / integration, the 3500/92 ensures that critical machine health data is communicated efficiently, enabling quicker response times to potential issues and better maintenance planning.
Product Parameters
| Parameter | Value |
|---|---|
| 型号 | 3500/92-02-01-00 |

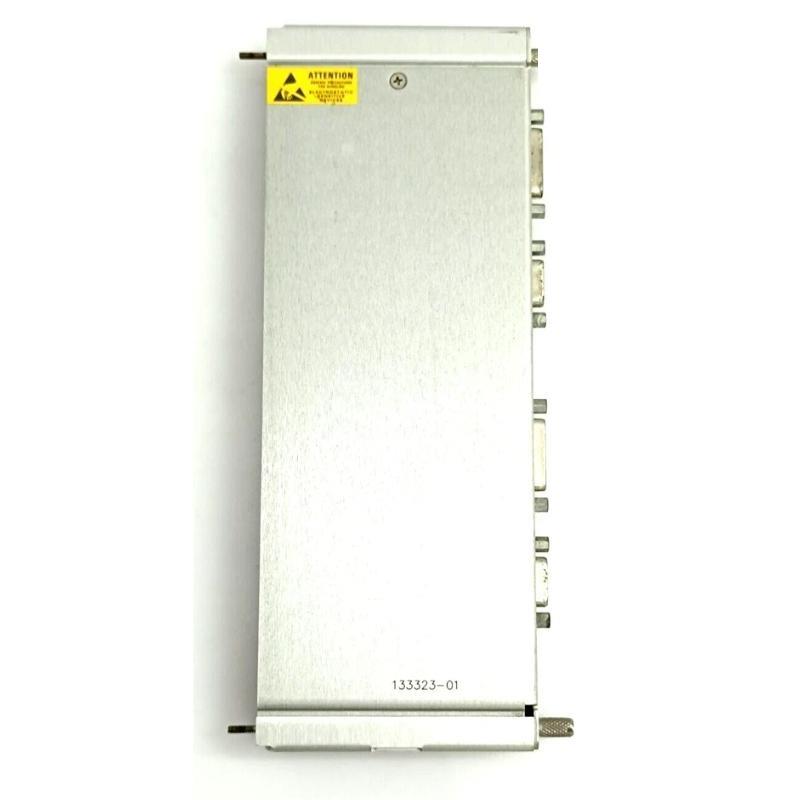

| 零件号 | 133323-01 |
| Dimensions | 241 x 24.4 x 99.1 mm |
| 重量 | 0.44 kg |
| Communication Protocols | Modbus, Ethernet, Industrial Network |
| Input/Output Channels | 2 Ethernet Ports, 1 RS-485 Port |
| Power Consumption | < 5 W |
| Mounting | 3500 Series Rack Slot |
| Operating Temperature | –40 °C to +70 °C |
| Humidity | 0–95% non-condensing |
| EMI/RFI Protection | Yes, meets industrial electromagnetic interference (EMI) standards |
| Compliance | CE, UL, IEC 61000 compliant |
| Data Rate | 10/100 Mbps Ethernet, 9600 bps RS-485 |
Product Applications
The 3500/92-02-01-00 Communication Gateway is designed to integrate seamlessly into a wide range / applications across various industries:
-
Machinery Protection Systems: Enables the integration / machinery condition monitoring systems into central control systems, allowing remote monitoring and data access.
-
Industrial Automation: Facilitates communication between the 3500 monitoring system and industrial automation devices, supporting predictive maintenance and real-time monitoring.
-
Oil & Gas Industry: Ensures reliable communication between /fshore platforms, refineries, and onshore monitoring stations, improving operational safety.
-
Power Generation Plants: 支持s communication between turbine and generator monitoring systems and DCS for better control and performance tracking.
-
Manufacturing Plants: Provides remote access to machinery health data, improving decision-making and reducing unplanned downtime.
-
Chemical and Petrochemical Plants: Facilitates real-time machinery condition monitoring, ensuring safety and reducing the risk / operational disruptions.
Product Advantages
-
Wide Communication Protocol 支持 – 支持s Modbus, Ethernet, and industrial network protocols, making it adaptable to various system configurations.
-
Real-Time Data Monitoring – Enables real-time monitoring / machinery health, improving the ability to detect issues before they result in unplanned downtime.
-
Compact and Space-Efficient – The module is designed to occupy a single rack slot, minimizing space usage while maintaining high functionality.
-
Easy Integration – Seamlessly integrates into existing DCS and PLC systems, allowing for efficient data transfer and system connectivity.
-
Durability and Reliability – Built to withstand harsh industrial environments, /fering high resistance to EMI and RFI interference.
-
Low Power Consumption – With a power consumption / less than 5 watts, the module is energy-efficient, reducing operational costs.
-
Flexible Configuration Options – Offers customizable settings and alarms, allowing users to tailor the system to meet specific application requirements.
-
Enhanced Monitoring – Provides data on the status / machinery, such as vibration, temperature, and pressure, helping to optimize maintenance schedules.
-
High Data Transfer Rate – 支持s Ethernet data rates / 10/100 Mbps, enabling fast and efficient communication.
-
Industry Standard Compliance – Complies with CE, UL, and IEC 61000 standards, ensuring it meets the necessary industrial certifications for use in a wide range / environments.
FAQs
Q1: What communication protocols are supported by the 3500/92-02-01-00 module?
A1: The module supports Modbus, Ethernet, and industrial network protocols.
Q2: How many channels does the module provide for communication?
A2: The module provides 2 Ethernet ports and 1 RS-485 port.
Q3: What is the power consumption / the module?
A3: The power consumption is less than 5 watts.
Q4: Can the module be used for remote monitoring?
A4: Yes, the module enables remote monitoring / machinery health and status by connecting to control systems like DCS or PLC.
Q5: What is the temperature range within which the module operates?
A5: The operating temperature range is –40 °C to +70 °C.
Q6: Is the module compatible with different industrial networks?
A6: Yes, the 3500/92-02-01-00 supports multiple communication protocols, including Modbus and Ethernet, for compatibility with various industrial systems.
Q7: How is the module mounted?
A7: The module is mounted in a standard 3500 Series rack slot.
Q8: What is the data transfer speed / the Ethernet ports?
A8: The Ethernet ports support 10/100 Mbps data transfer speeds.
Q9: Is the module suitable for use in hazardous environments?
A9: Yes, it meets EMI/RFI protection standards, making it suitable for industrial and hazardous environments.
Q10: What industries are most likely to benefit from this communication gateway module?
A10: Industries such as power generation, oil & gas, petrochemicals, manufacturing, and industrial automation can all benefit from this module.
Related Series 型号s
| 型号 | 描述 | Key Features |
|---|---|---|
| 3500/92-01-01-00 | Standard Communication Gateway | Basic communication support for Bently Nevada systems |
| 3500/93 | Display Interface Module | Human-machine interface for the 3500 system |
| 3500/65 | Speed Reference Module | Tachometer input for rotational speed and phase |
| 3500/70M | Reciprocating Compressor Monitor | Monitors rod load and crosshead acceleration |
| 3500/42M | Vibration Monitor Module | Radial and axial vibration monitoring |
| 3500/22M | Transient Data Interface | Captures and logs high-speed events |
Popular Bently Nevada 型号s
| 型号 | 描述 | Key Features |
|---|---|---|
| 3500/92-04-01 | 3500 Series input/output control module with 4 channels | 4 input/output channels, high-speed processing |
| 3500/92-04-01-00 | 3500 Series I/O module with enhanced diagnostics capabilities | Advanced diagnostics, high reliability |
| 3500/92-04-01-02 | 3500 Series I/O control module with input protection features | Protection features, robust input/output handling |
| 3500/92-04-02 | 3500 Series control module with 6 input/output channels | 6 channels, ideal for larger systems |
| 3500/92-05-00 | Multi-channel control module with integrated monitoring | Integrated monitoring, real-time feedback |
| 3500/92-06-00 | High-capacity I/O control module with 8 channels | 8 input/output channels, supports extensive monitoring |
