Hardware Insight

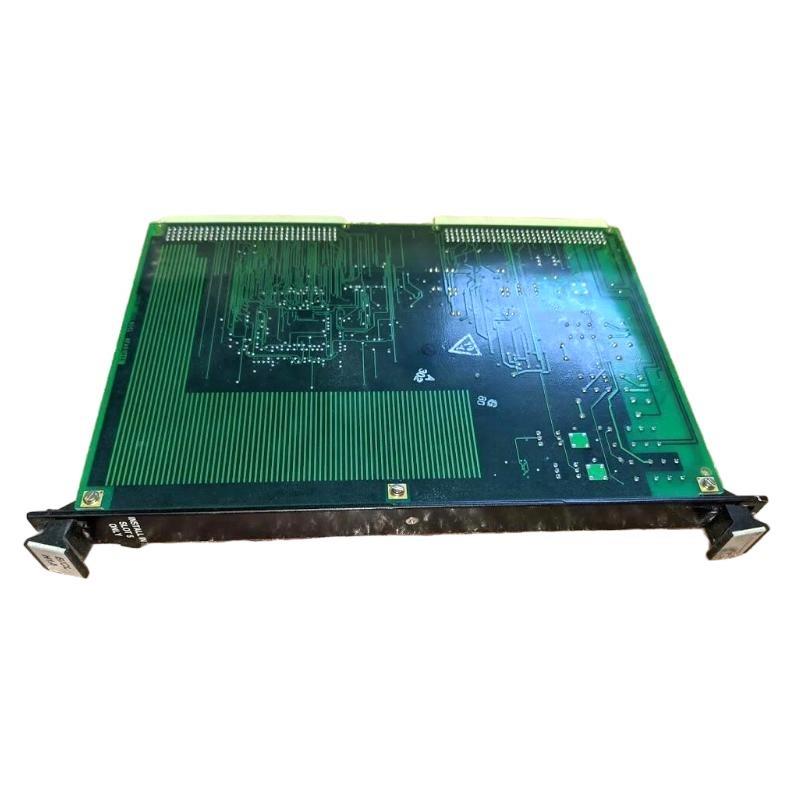

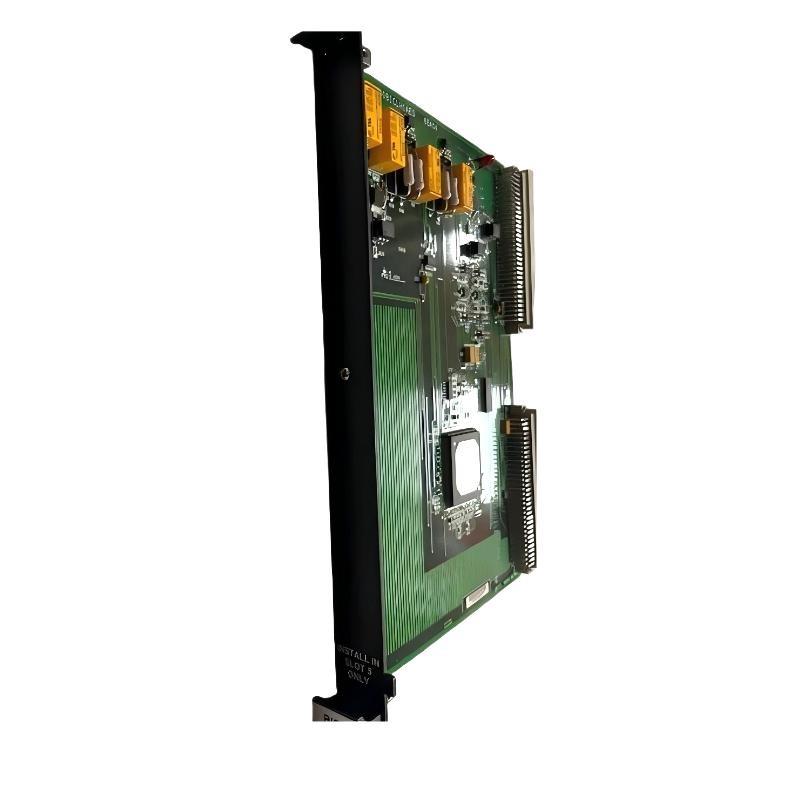

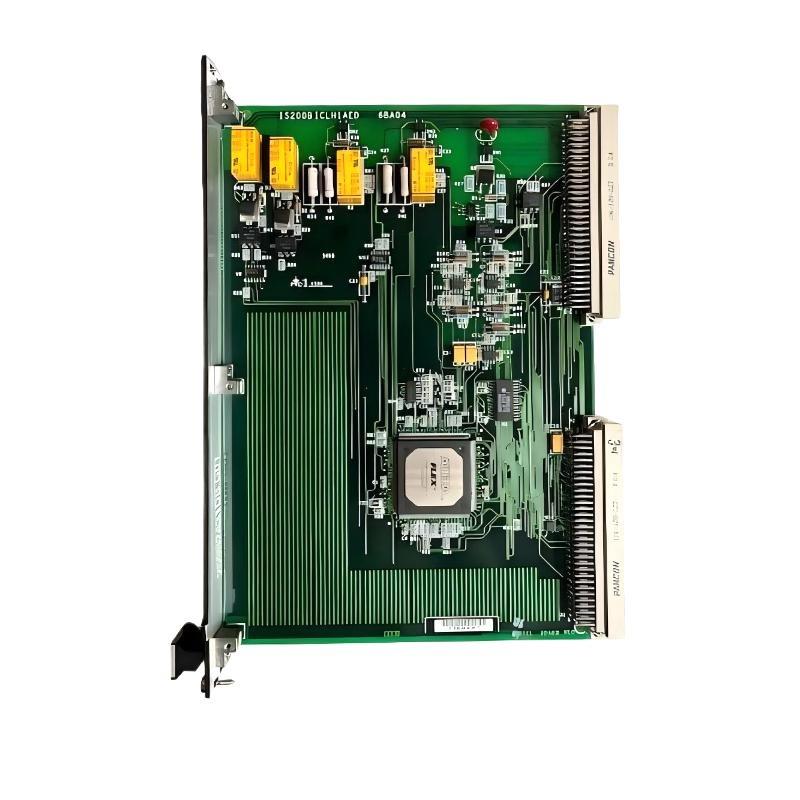

The GE IS200BICLH1BBA is a bus interface and control logic module engineered for systems that rely on clean, deterministic communication between CPU 件s and distributed I/O clusters. In field evaluations, this board demonstrates excellent signal stability even when placed in cabinets experiencing thermal drift or variable electrical loads. Its architecture focuses on minimizing propagation delay while maintaining electrical robustness, resulting in smoother communication cycles and fewer retransmissions during peak activity.
Technical Pr/ile & Physical Characteristics
| Parameter | Details |
|---|---|
| 品牌 | GE |
| Module Type | Bus Interface & Control Logic Module |
| Operating Voltage | 24V DC |
| Communication 支持 | High-speed backplane bus |
| Processing Logic | Integrated FPGA-based timing logic |
| Signal Isolation | Opto-isolated channels |
| Dimensions (L × W × H) | 160 mm × 96 mm × 40 mm |
| 重量 | 0.72 kg |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Noise Imm件y | Up to 2 kV surge protection |
| Mounting | Standard GE rack/backplane |
Where It Fits in Real Systems
The IS200BICLH1BBA is frequently used in architectures that prioritize communication determinism and fault-tolerant timing. Typical use cases include:
-
Distributed turbine control frameworks, where it helps maintain synchronized timing across multiple subsystems.
-
High-speed manufacturing cells, ensuring precise coordination / PLC signals across multiple I/O boards.
-
Energy sector control platforms, particularly those needing secure and isolated bus communications.
-
Critical motion and actuator sequencing, when jitter-free logic transitions are essential.
Its role /ten goes unnoticed, but in practice, it keeps the entire system coherent by ensuring every module receives data at the right moment.
Why It Performs Well
-
FPGA-based logic ensures extremely low latency and consistent timing.
-
Strong electrical isolation shields upstream CPUs from noise spikes that would otherwise degrade communication accuracy.
-
High-grade components improve long-term thermal stability.
-
Compact footprint makes it easy to position near sensitive signal paths.
-
Proper grounding layout reduces resonance and stray interference on dense backplanes.
-
Enhanced surge protection contributes to overall system longevity, especially in high-energy environments.
