产品介绍

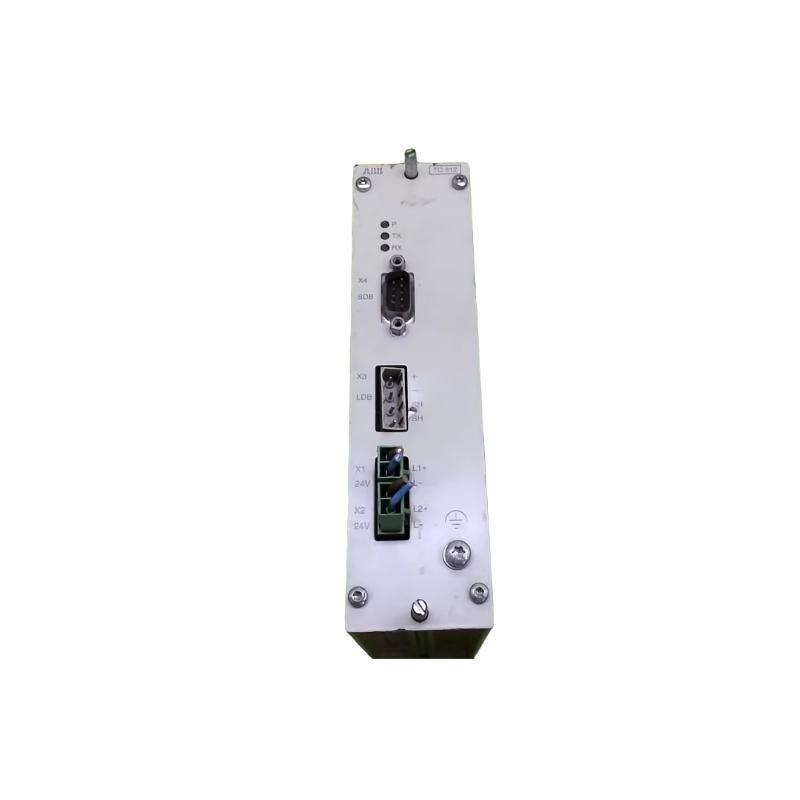

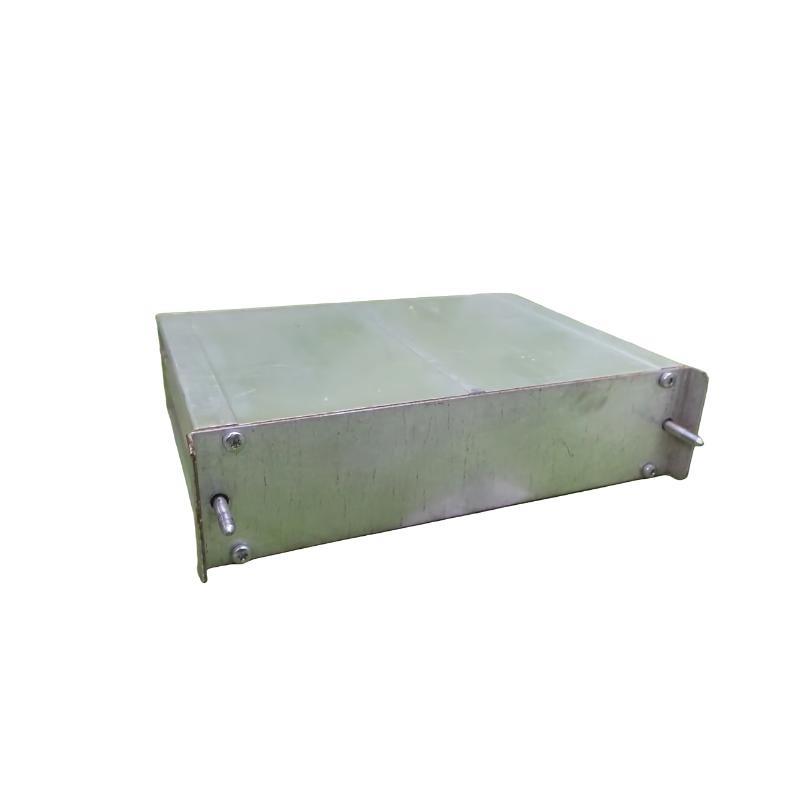

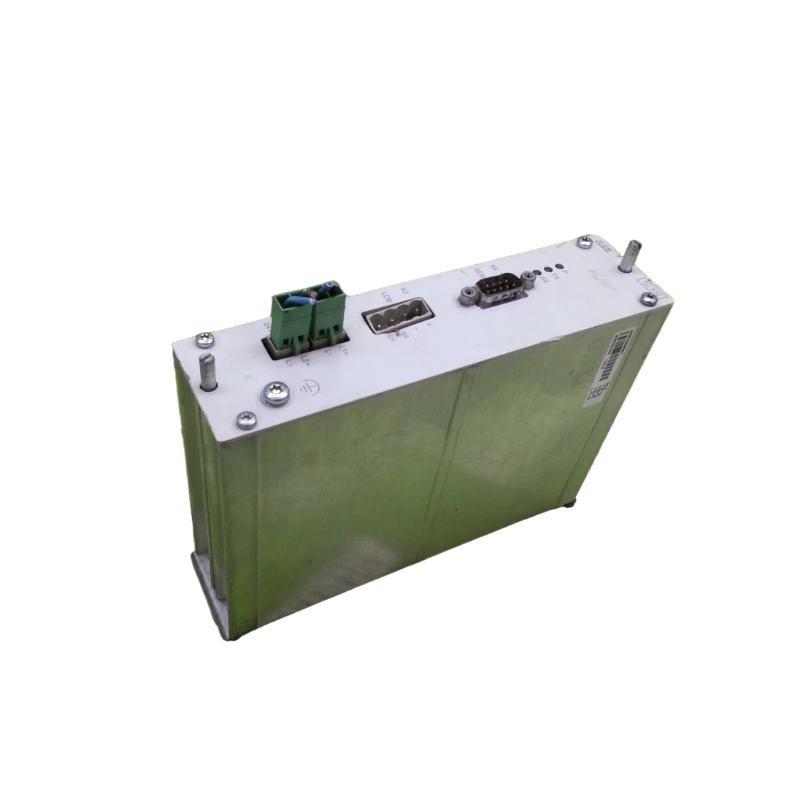

The ABB TC512 3BSE006383R1 is a compact and industrial-grade Twisted Pair Modem, specifically engineered for use within ABB’s Advant Controller 800xA and AC 800M system architectures. Designed to enable long-distance, point-to-point communication between I/O clusters or controller nodes, the TC512 uses RS-485 over twisted pair cabling, ensuring reliable, noise-immune, and electrically isolated signal transmission.
The TC512 modem plays a critical role in systems requiring remote I/O expansion or segmented modular connectivity, /ten where environmental noise or physical separation poses challenges to signal integrity. It is a core component in applications demanding robust industrial communication, such as process plants, oil & gas installations, water treatment facilities, and power generation sites.
With its slim design, DIN-rail mounting capability, and compatibility with ABB’s existing hardware ecosystem, the TC512 is a versatile and reliable modem that helps extend and strengthen the communication backbone / distributed control systems.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 Number | TC512 |
| Order Code | 3BSE006383R1 |
| Function | Twisted Pair RS-485 Modem for ModuleBus |
| Communication Standard | RS-485, point-to-point |
| Operating Voltage | Supplied through ModuleBus (typically 24 VDC) |
| Power Consumption | Approximately 1.2 W |
| Baud Rate | 375 kbps |
| Max Distance | Up to 200 meters using shielded twisted pair |
| Connector Type | 9-pin DSUB male connector |
| Mounting Method | DIN rail |
| Protection Class | IP20 |
| Status Indicators | LED indicators for power, communication (Tx/Rx) |
| Operating Temperature | –25°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Galvanic Isolation | Yes, between communication channels |
| Dimensions (W×H×D) | 152 x 51 x 178 mm |
| 重量 | 0.7 kg |
| Certifications | CE, RoHS, ATEX-compliant (with proper enclosure) |
Product Applications
The ABB TC512 is widely deployed across industries that demand robust and extended communication between modular control 件s or remote I/O banks. Typical applications include:
-
Process Automation in Petrochemical and Refining Plants
Seamlessly connects remote I/O racks in hazardous or spread-out zones. -
Power Generation & Utilities
Facilitates communication between substations or modular turbine control panels. -
Water and Wastewater Treatment Plants
支持s long-range data exchange across remote field enclosures and pump stations. -
Mining and Heavy Industry
Enables control signal transmission in noisy environments over extended cable runs. -
Factory Automation
Assists in linking distributed I/O or machine control 件s across large production floors. -
Oil & Gas (Onshore/Offshore)
Perfect for platform interconnections or pipeline control systems where EMI is an issue.
Product Advantages
-
Reliable Long-Distance Communication
支持s RS-485 over twisted pair cabling for distances up to 200 meters. -
Electrically Isolated Design
Ensures system safety and protects communication hardware from surges or ground loops. -
Industrial-Grade Durability
Designed to operate in harsh industrial environments with wide temperature ranges. -
Compact & Easy Installation
DIN-rail mounting and small footprint make it ideal for dense control panels. -
Low Power Consumption
Efficient design uses minimal power from the ModuleBus supply. -
Plug-and-Play Compatibility
Seamlessly integrates into ABB AC 800M and Advant Controller systems. -
LED Diagnostic Indicators
Built-in LED indicators provide visual feedback for troubleshooting and monitoring. -
CE and RoHS Certified
Meets international standards for safety and environmental compliance. -
ATEX Zone 2 Ready
Can be deployed in hazardous areas with proper protective housing. -
Modular Communication Extension
Allows remote expansion / ABB ModuleBus networks without compromising performance.
常见问题 (FAQ)
-
What is the primary use / the ABB TC512 modem?
It is used to connect and extend ModuleBus networks over RS-485 twisted pair wiring. -
How far can the TC512 transmit data?
Up to 200 meters when using shielded twisted pair cable. -
Can I use TC512 with non-ABB controllers?
It is specifically designed for ABB systems and is not recommended for non-ABB use. -
Does the TC512 require external power?
No, it is powered directly via the ModuleBus. -
Is this modem suitable for ATEX environments?
Yes, when used with certified enclosures, it meets ATEX Zone 2 compliance. -
How do I know if it’s working?
LED indicators show the status / power and communication activity. -
Is the communication galvanically isolated?
Yes, which helps avoid ground loop issues and increases system reliability. -
Can TC512 operate in high-temperature conditions?
Yes, it operates reliably from –25°C to +70°C. -
What is the protection class?
The device is rated IP20 and should be installed in a protected enclosure. -
What happens if communication fails?
Loss / signal will typically be flagged by the system diagnostics; redundancy or replacement is recommended.
Related 型号s (Same Series or Functionally Linked)
| 型号 | Function | System Compatibility | Remarks |
|---|---|---|---|
| TB820 | ModuleBus Cluster Modem | AC 800M / 800xA | Used for point-to-point I/O cluster communication |
| TB810 | ModuleBus Extender | AC 800M / 800xA | Extends the I/O bus for local clusters |
| TC516 | Twisted Pair Modem (Alternate) | AC 800M | Alternative modem with similar functionality |
| TU830V1 | Base Terminal 单位 | AC 800M | DIN-rail terminal for mounting modules |
| CI840A | Communication Interface Module | AC 800M | Interfaces I/O modules to controller |
| AI810 | Analog Input Module | AC 800M | Standard 8-channel input for 4–20 mA signals |
Popular ABB Modules (Same 品牌)
| 型号 | Function | System | Key Features |
|---|---|---|---|
| AC800M PM864AK01 | Controller Module | 800xA | Powerful CPU, redundancy support |
| DI810 | Digital Input Module | 800xA | 16-channel, 24 VDC input |
| DO810 | Digital Output Module | 800xA | 16-channel, 24 VDC output |
| AO810V2 | Analog Output Module | 800xA | 8-channel 4–20 mA analog output |
| CI854AK01 | PROFIBUS-DP Interface Module | 800xA | Master/Slave functionality |
| AI830A | Analog Input Module with HART | 800xA | 8-channel, supports HART communication |
