Engineer’s Insight Overview

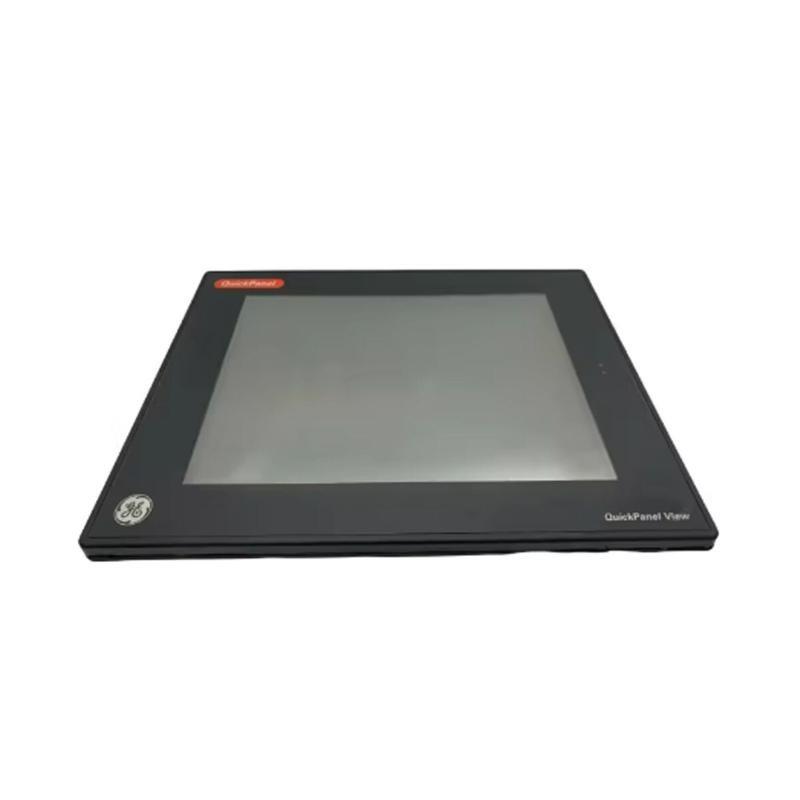

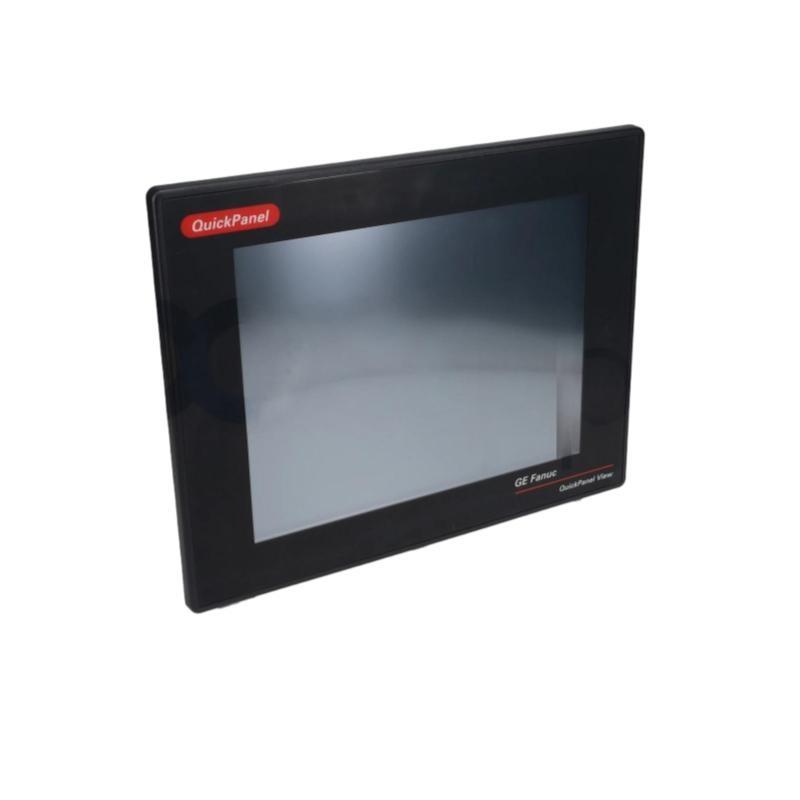

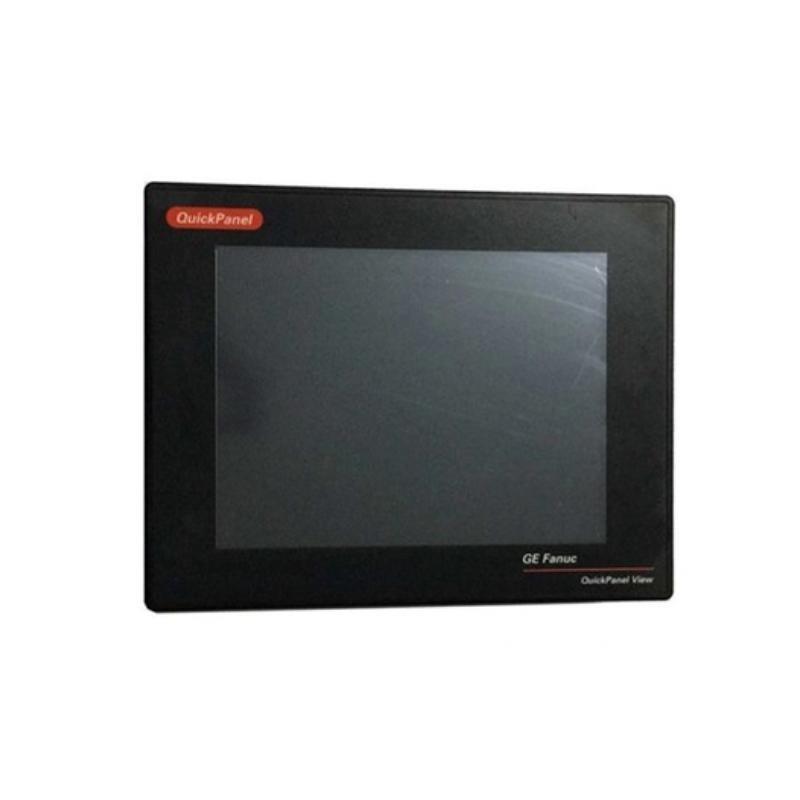

The GE IC754VSI12CTD is a 12-inch color HMI Terminal, part / the QuickPanel View series widely used in industrial automation, process visualization, and equipment-level operator interface systems. From an engineering perspective, this model balances screen clarity, rugged construction, and reliable embedded performance, making it suitable for machine builders and plant operators who require a stable front-end interface for PLC- or SCADA-based control architectures.
Its integrated touchscreen, fanless electronics, and solid-state design minimize field failures and simplify maintenance, especially in applications where continuous operation is essential.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | IC754VSI12CTD |
| 品牌 | GE |
| Module Type | HMI Terminal |
| Display Size | 12.1-inch TFT color display |
| Resolution | 800 × 600 (SVGA) |
| Touchscreen Type | Analog resistive touchscreen |
| Processor | Embedded industrial CPU |
| Memory | Integrated flash + RAM for application runtime |
| Interfaces | Ethernet, Serial (RS-232/RS-485), USB Host/Device |
| Power Supply | 24 VDC |
| Operating Temperature | 0°C to +50°C |
| Protection Rating | Front bezel rated for industrial panel-mount environments |
| Dimensions (H × W × D) | ≈ 260 mm × 330 mm × 70 mm |
| 重量 | ≈ 3.0 kg |
| Mounting | Panel-mounted, gasket-sealed |
Applications / Use Scenarios
-
Machine operator panels for packaging, assembly, and robotics systems
-
Process visualization screens for chemical, water treatment, and utility plants
-
Local equipment diagnostics and maintenance interface
-
SCADA edge terminals for distributed control networks
-
OEM machinery requiring embedded visualization without external PCs
Advantages / Engineering Benefits
-
Stable, fanless industrial design reduces failure points
-
High-clarity 12-inch display suitable for detail-rich visualization
-
Multiple communication ports for flexible PLC integration
-
Rugged front panel suitable for harsh factory environments
-
Low maintenance requirement due to solid-state internal components
-
Consistent performance under continuous operation, ideal for 24/7 facilities
