Product Overview

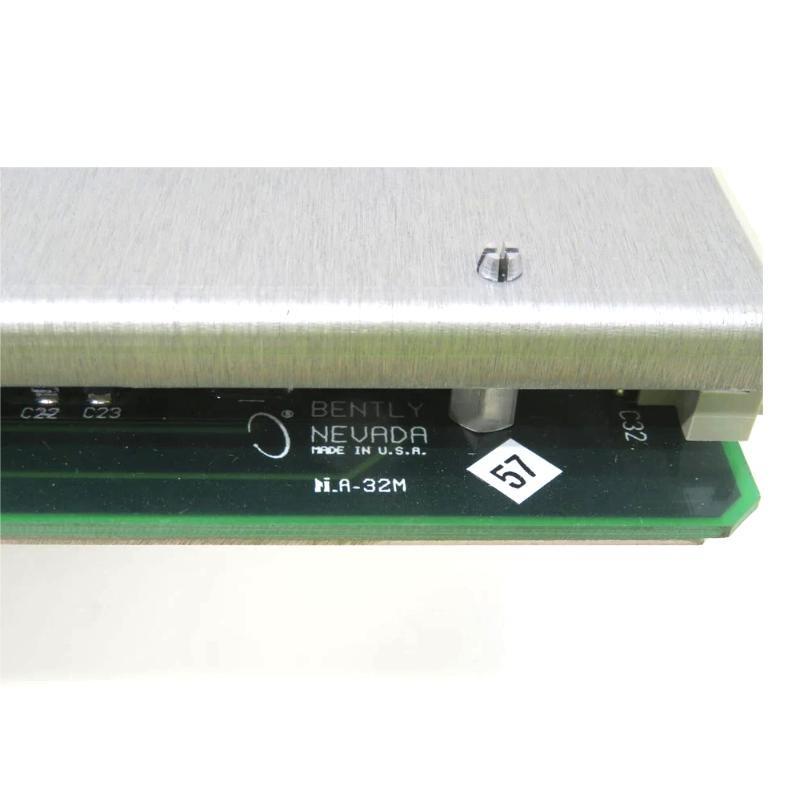

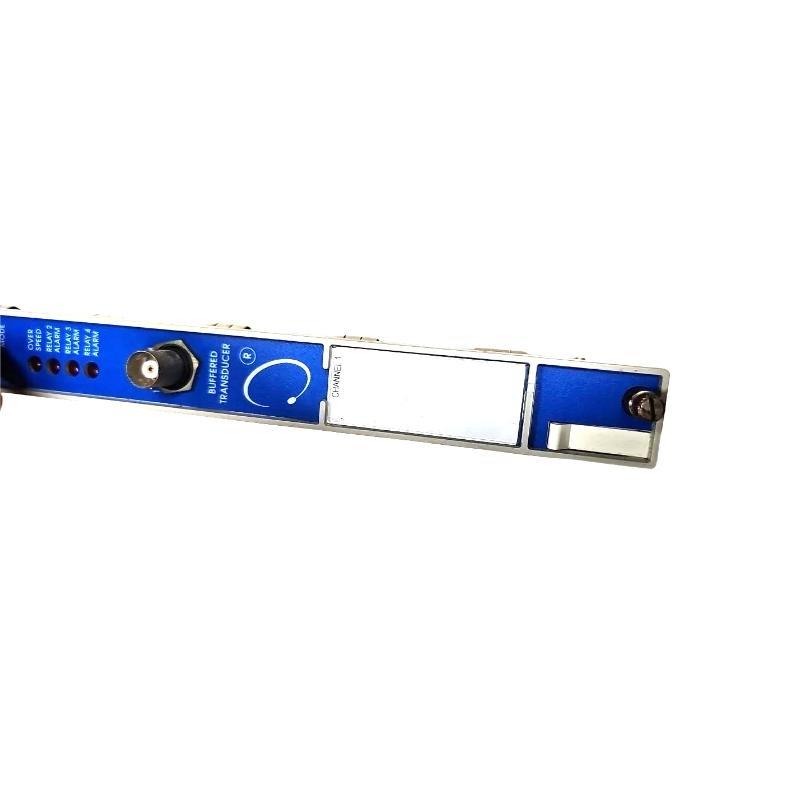

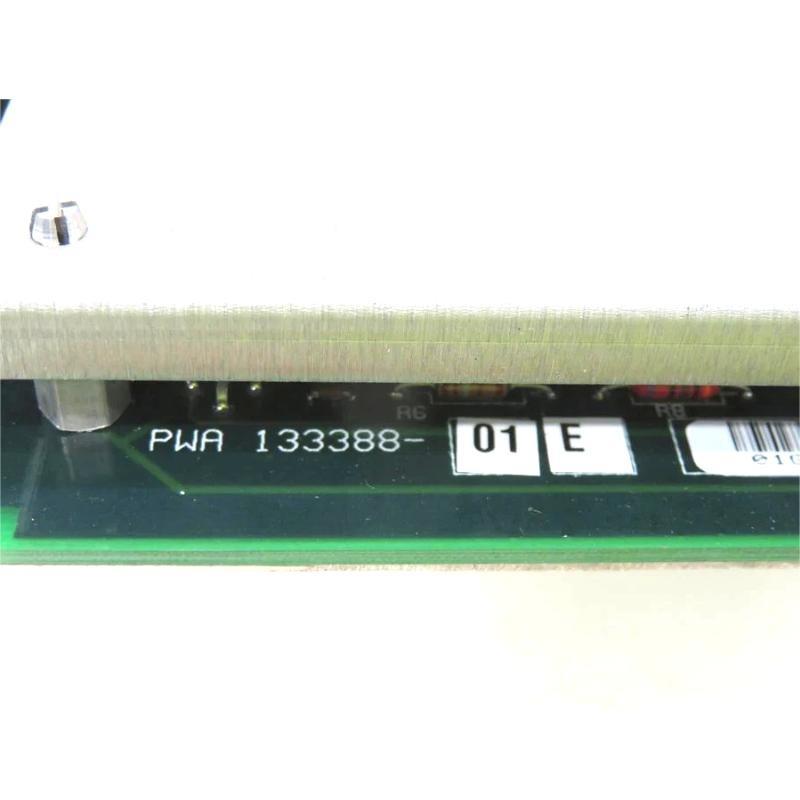

The Bently Nevada 3500/53-02-00 Overspeed Detection Module is a highly reliable and rapid-response module used for overspeed protection in rotating machinery. Compliant with API 670 and API 612 standards, it is an essential part / Bently Nevada’s 3500 Series Monitoring System and supports redundant, fault-tolerant configurations (2-out-/-2 or 2-out-/-3 voting logic).
Applications
-
Steam and gas turbines
-
Critical-speed protected rotating machinery
-
Power generation 件s
-
Oil & gas compressors
-
API 670 compliance installations
Advantages
-
Meets stringent API 670 & 612 standards
-
Redundant architecture enhances safety
-
Rapid fault detection with <30 ms alarm response
-
Buffered transducer outputs for diagnostics
-
Configurable thresholds and voting logic
-
支持s wide transducer compatibility
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Signal Range | +10.0 V to -24.0 V |
| Input Impedance | 20 kΩ |
| Power Consumption | 8.0 W (typical) |
| Transducers 支持ed | 3300/7200 Proximitor, magnetic pickups |
| Relay Type | SPDT, epoxy sealed |
| Max Switching Power | 120 W DC, 600 VA AC |
| Max Switching Current | 5 A |
| Speed Range | Up to 99,999 rpm, max 20 kHz input |
| Speed Accuracy | ±0.1 rpm (<100 rpm), ±1 rpm (100–10,000 rpm), ±0.01% (10k–99.9k) |
| Alarms | Under, Over, Danger levels with <30 ms delay |
| Recorder Output | +4 to +20 mA |
| Operating Temperature | -30 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 95% non-condensing |
| Compliance | CE, CSA/NRTL/C Class I Div 2 Groups A–D |
| Monitor Module Dimensions (HxWxD) | 241.3 x 24.4 x 241.8 mm |
| Monitor Module 重量 | 0.82 kg |
| I/O Module Dimensions (HxWxD) | 241.3 x 24.4 x 99.1 mm |
| I/O Module 重量 | 0.45 kg |
