Product 描述

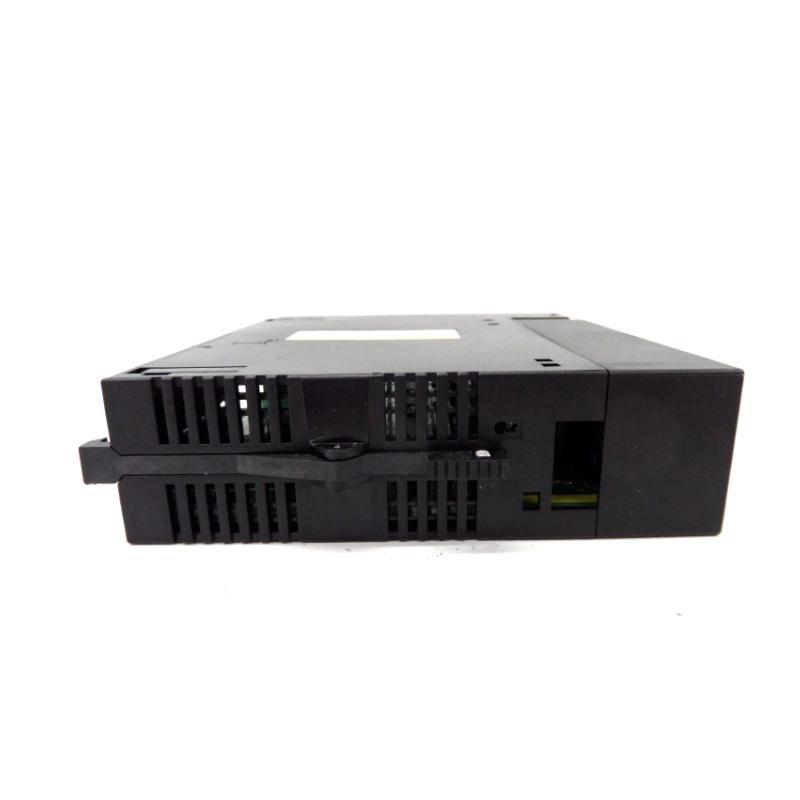

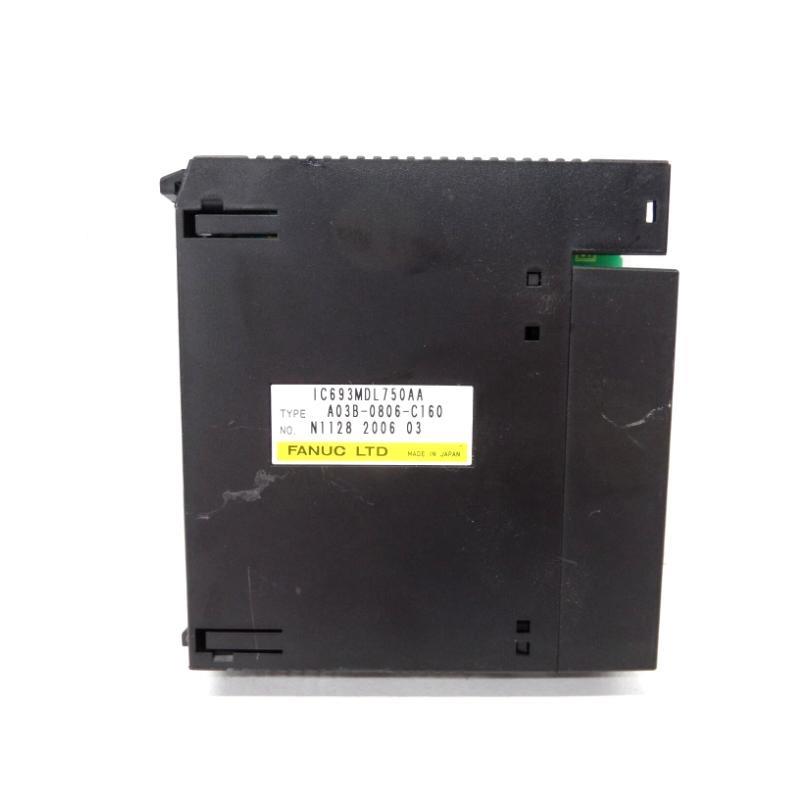

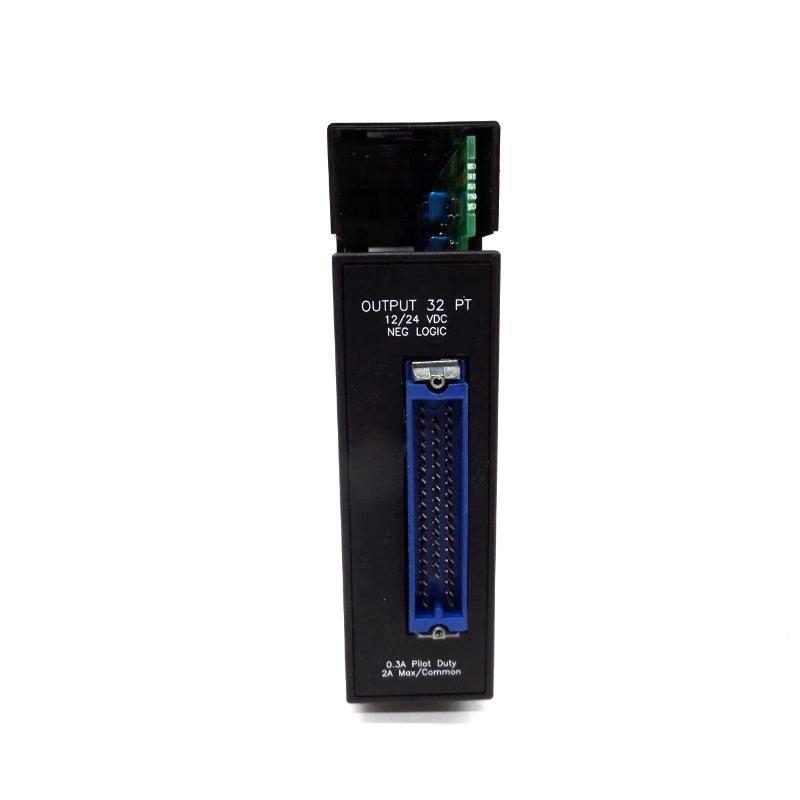

The GE IC693MDL750 is a 32-point negative logic DC output module designed for the Series 90-30 PLC systems. This module provides an efficient means / controlling a wide range / DC devices by sinking current to the load, making it suitable for applications requiring fast switching and reliable digital control. Each / the 32 outputs is grouped into four isolated groups / eight, allowing flexible integration into various industrial systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | DC Output Module (Negative Logic) |
| Output Points | 32 |
| Output Type | Sinking (Negative Logic) |
| Voltage Range | 5 to 30 VDC |
| Output Current | 0.5 A per point, 4 A per group max |
| Isolation | 500V between field side and logic side |
| Response Time | Off to On: 0.1 ms, On to Off: 0.1 ms |
| Internal Power Consumption | 135 mA @ 5 VDC |
| Connector Type | 50-pin female (HE10 type) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (W x H x D) | 142 x 30 x 130 mm |
| 重量 | 0.25 kg |
Applications
-
Industrial automation systems
-
Digital control / relays, solenoids, and lamps
-
Assembly line and conveyor systems
-
Machine control systems
-
Packaging and material handling systems
-
Building automation interfaces
Advantages
-
High-density 32-point output in a compact module
-
Fast response suitable for time-critical operations
-
Electrically isolated groups enhance system protection
-
Low power consumption
-
Designed for seamless integration with GE Series 90-30 PLCs
-
Reduces wiring complexity with grouped output configuration
常见问题 (FAQ)
Q1: What type / logic does the IC693MDL750 use?
A1: It uses negative logic (sinking) outputs.
Q2: Can I connect this module directly to inductive loads?
A2: Yes, but external suppression (snubber or diode) is recommended.
Q3: How are the outputs grouped?
A3: The 32 outputs are divided into 4 groups / 8, each group isolated from the others.
Q4: What is the maximum current for each group?
A4: Each group can handle up to 4 A total current.
Q5: Is the IC693MDL750 hot-swappable?
A5: No, the module is not hot-swappable. Power must be /f during installation/removal.
Q6: What is the recommended wire gauge for connections?
A6: Typically, 18 to 24 AWG wires are recommended for signal connections.
Q7: Does it support diagnostic LEDs?
A7: Yes, each output point has an LED for status indication.
Q8: What connector is used on this module?
A8: A 50-pin female HE10 connector is used.
Q9: Can it be used with other GE modules in the same rack?
A9: Yes, it is fully compatible with other Series 90-30 modules.
Q10: What is the output voltage range supported?
A10: The module supports 5 to 30 VDC output voltage.
Related or Same-Series GE 型号s
| 型号 Number | 描述 | Output Type | Points | Voltage Range | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|---|
| IC693MDL730 | DC Positive Logic Output Module | Sourcing (Positive) | 8 | 5–30 VDC | 142 x 30 x 130 | 0.20 kg |
| IC693MDL740 | DC Positive Logic Output Module | Sourcing (Positive) | 16 | 5–30 VDC | 142 x 30 x 130 | 0.23 kg |
| IC693MDL752 | DC Negative Logic Output Module | Sinking (Negative) | 8 | 5–30 VDC | 142 x 30 x 130 | 0.20 kg |
| IC693MDL931 | Relay Output Module | Relay | 8 | 5–30 VDC / 120 VAC | 142 x 30 x 130 | 0.28 kg |
| IC693MDL940 | Isolated Relay Output Module | Relay | 16 | 5–30 VDC / 120 VAC | 142 x 30 x 130 | 0.30 kg |
| IC693MDL645 | AC Output Module | Triac | 16 | 120/240 VAC | 142 x 30 x 130 | 0.26 kg |
Popular GE 型号s
| 型号 Number | 描述 | Type | I/O Points | Voltage/CPU | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|---|
| IC693CPU374 | CPU Module with Ethernet | CPU | N/A | 5VDC / 25 MHz | 142 x 30 x 130 | 0.35 kg |
| IC693ALG223 | Analog Output Module | Analog Output | 4 | 0–20 mA | 142 x 30 x 130 | 0.27 kg |
| IC693ALG390 | Analog Input Module | Analog Input | 8 | ±10 VDC | 142 x 30 x 130 | 0.28 kg |
| IC693CHS392 | 10-Slot Expansion Baseplate | Chassis | N/A | N/A | 372 x 132 x 70 | 1.50 kg |
| IC693MDL655 | AC Output Module | Discrete Output | 32 | 120/240 VAC | 142 x 30 x 130 | 0.30 kg |
| IC693PWR321 | Power Supply Module | Power Supply | N/A | 120/240 VAC / 125 VDC | 142 x 30 x 130 | 0.40 kg |
