产品介绍

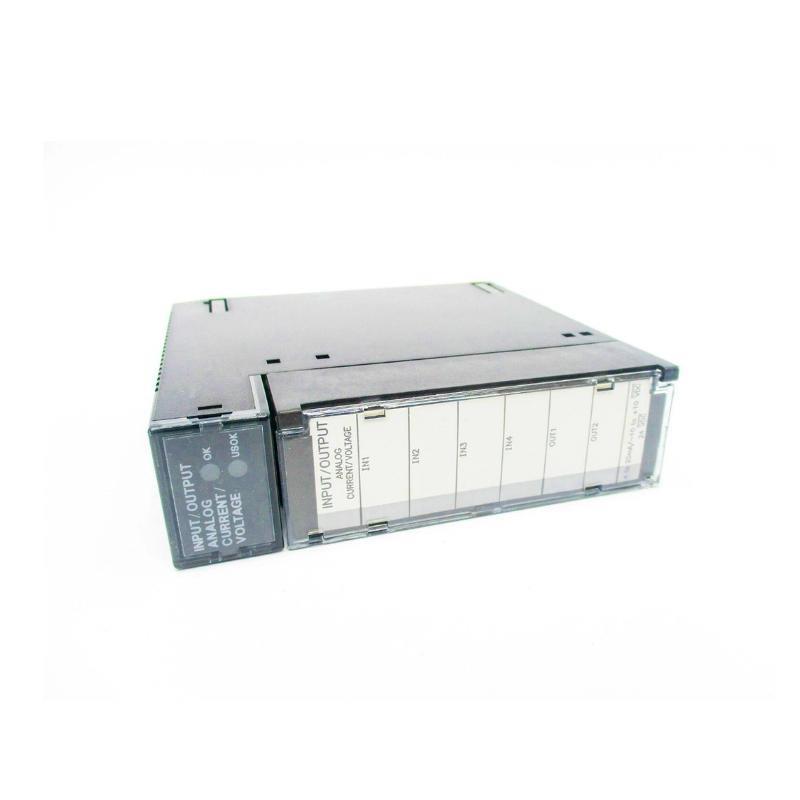

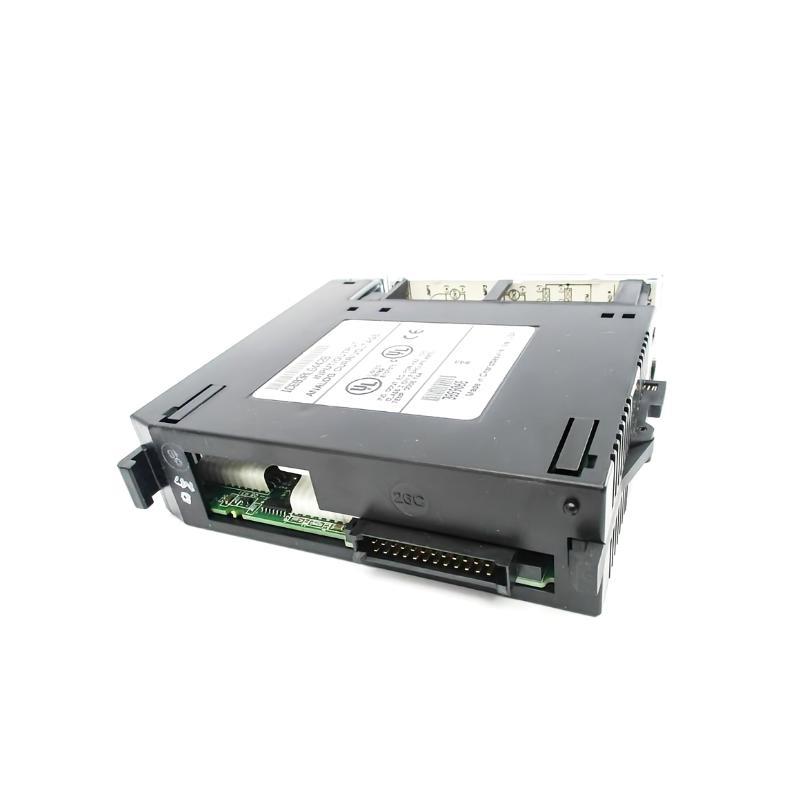

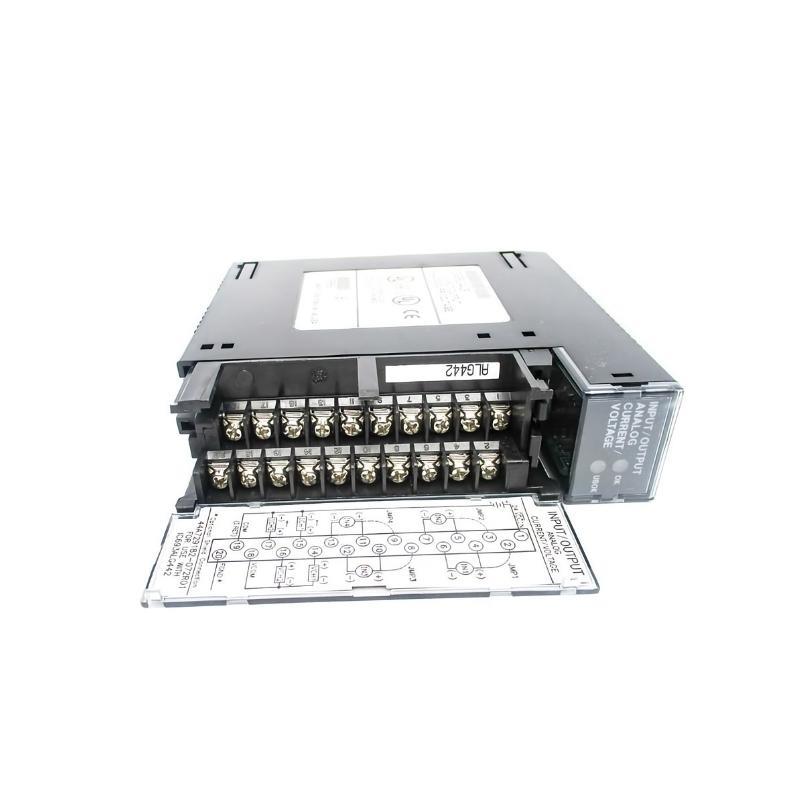

The GE Fanuc IC693ALG442 is an analog input/output module designed for the Series 90-30 Programmable Logic Controller (PLC) systems. This module provides four differential analog input channels and two single-ended analog output channels, supporting both current and voltage signal types. Its high resolution and accuracy make it suitable for precise control and monitoring in various industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| 制造商 | GE Fanuc |
| 零件号 | IC693ALG442 |
| Series Compatibility | Series 90-30 |
| Input Channels | 4 differential |
| Output Channels | 2 single-ended |
| Input Signal Ranges | Voltage: 0 to +10V (unipolar), -10 to +10V (bipolar); Current: 0 to 20 mA, 4 to 20 mA |
| Output Signal Ranges | Voltage: 0 to +10V (unipolar), -10 to +10V (bipolar); Current: 0 to 20 mA, 4 to 20 mA |
| Resolution | Voltage: 0.3125 mV per bit; Current: 0.6 μA per bit |
| Accuracy | ±0.1% / full scale at 25°C |
| Update Rate | 4 milliseconds for all channels |
| Isolation | 500 VDC channel-to-channel and channel-to-backplane |
| Power Consumption | 95 mA from +5 VDC supply; 150 mA from +24 VDC user supply |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Mounting | Plugs into the PLC backplane |
| Dimensions (L x W x H) | 51 x 127 x 127 mm |
| 重量 | 1.5 kg |
Product Applications
The IC693ALG442 module is versatile and can be employed in various industrial sectors, including:
-
Process Control: Monitoring and controlling variables like temperature, pressure, and flow rate.
-
Machine Automation: Interfacing with analog sensors and actuators for optimized machine operations.
-
Data Acquisition: Collecting analog data for real-time monitoring and analysis.
-
Energy Management: Managing and controlling energy consumption in industrial facilities.
-
Water Treatment Plants: Monitoring and controlling chemical dosing and water quality parameters.
-
HVAC Systems: Controlling heating, ventilation, and air conditioning systems for optimal performance.
Product Advantages
-
High Precision: Offers high-resolution measurements for accurate process control.
-
Versatile Signal Compatibility: 支持s a wide range / current and voltage signals.
-
Robust Isolation: Ensures signal integrity by providing isolation between channels and backplane.
-
Compact Design: Facilitates easy integration into existing PLC systems without requiring additional space.
-
Fast Response Time: Quick update rates enable real-time monitoring and control.
-
Reliable Performance: Designed for durability and consistent operation in industrial environments.
-
Flexible Configuration: Allows for customizable input and output ranges to suit specific application needs.
-
Ease / Installation: Simple plug-in design for straightforward installation and replacement.
-
Diagnostic Features: Includes status indicators for module health and power supply monitoring.
-
Cost-Effective Solution: Combines multiple functionalities in a single module, reducing system complexity and cost.
常见问题 (FAQ)
-
Q: What types / signals does the IC693ALG442 support?
A: It supports both current (0-20 mA, 4-20 mA) and voltage (0 to +10V, -10 to +10V) signals for inputs and outputs. -
Q: Can the module be used in high-noise environments?
A: Yes, it features robust isolation and filtering to ensure reliable performance in electrically noisy industrial settings. -
Q: Is the module compatible with other GE 发那科 series?
A: It is specifically designed for the Series 90-30 PLC systems. -
Q: How is the module powered?
A: It draws power from the PLC backplane and requires an external +24 VDC user supply. -
Q: What is the resolution / the analog outputs?
A: The voltage output resolution is 0.3125 mV per bit, and the current output resolution is 0.6 μA per bit. -
Q: Does the module provide any diagnostic features?
A: Yes, it includes status indicators for module health, open wire detection, overload monitoring, and power supply status. -
Q: What is the maximum load for the analog outputs?
A: The maximum output load is 5 mA. -
Q: Can the module be configured for different input/output ranges?
A: Yes, it allows for configurable voltage and current input/output ranges to match specific application requirements. -
Q: What is the typical update rate for all channels?
A: The update rate is 4 milliseconds for all channels. -
Q: Is the module suitable for applications requiring high accuracy?
A: Yes, it /fers an accuracy / ±0.1% / full scale at 25°C, making it suitable for precision applications.
Related 型号s (Same Series or Functionality)
| 型号 | 描述 | Channels | Signal Type |
|---|---|---|---|
| IC693ALG390 | Analog Output Module | 2 | Current |
| IC693ALG391 | Analog Output Module | 2 | Voltage |
| IC693ALG392 | Analog Input Module | 4 | Voltage |
| IC693ALG393 | Analog Input Module | 4 | Current |
| IC693ALG223 | High-Density Analog Input Module | 8 | Voltage/Current |
| IC693ALG221 | High-Density Analog Output Module | 8 | Voltage/Current |
