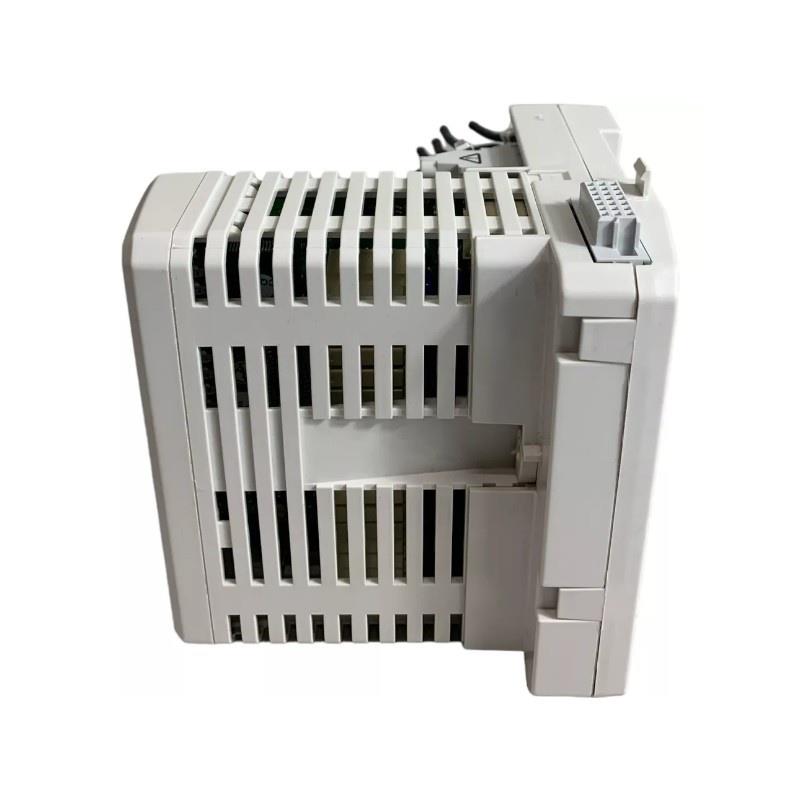

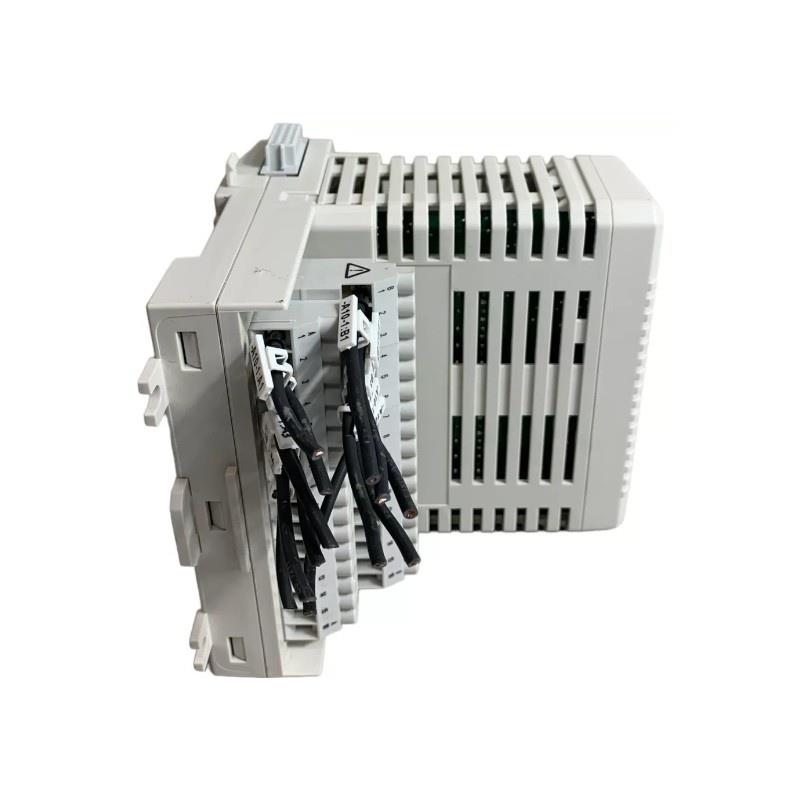

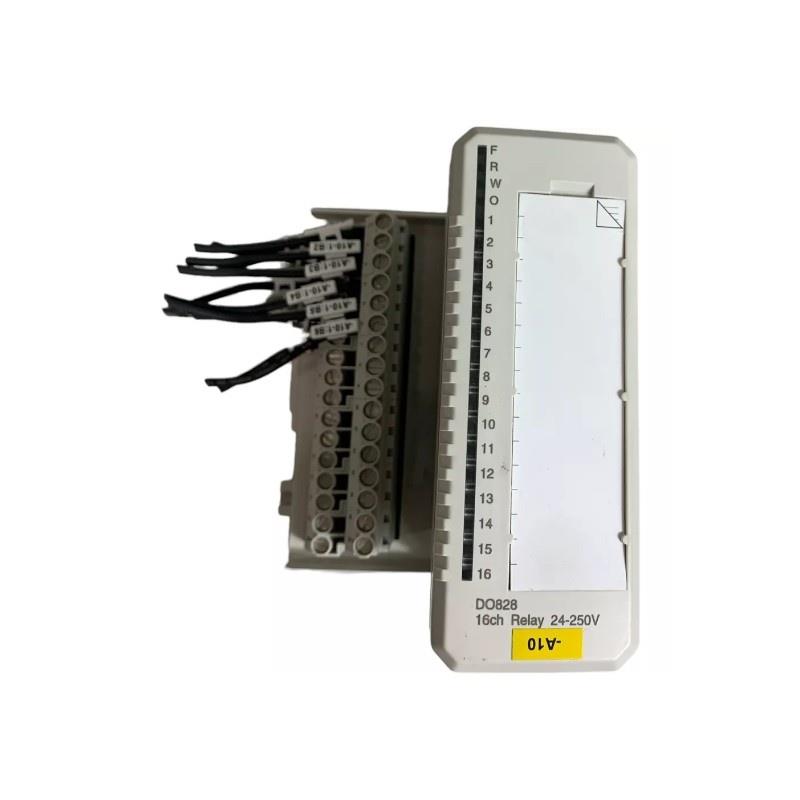

ABB DO828 3BSE069055R1 产品介绍
The ABB DO828 3BSE069055R1 is a high-performance digital output module from ABB’s renowned 800xA control system series. Designed for industrial automation, this module ensures reliable and precise control / output signals in demanding environments. It is widely used in process industries, power generation, and manufacturing, /fering robust performance, flexibility, and seamless integration with ABB’s automation systems.
Product Parameters
| Parameter | Specification |
|---|---|
| 型号 Number | DO828 3BSE069055R1 |
| Type | Digital Output Module |
| Channels | 16 (configurable) |
| Output Type | Relay or Transistor (depending on configuration) |
| Voltage Range | 24V DC / 230V AC |
| Current Rating | 2A per channel (max) |
| Isolation Voltage | 1500V AC (channel-to-channel) |
| Communication | Pr/ibus DP, Ethernet (via 800xA system) |
| Operating Temp. | -20°C to +60°C |
| Dimensions | 45 x 102 x 119mm |
| 重量 | 0.18 kg |
| Protection Class | IP20 (for indoor use) |
| Certifications | CE, UL, IEC 61131-2 compliant |
Product Applications
The ABB DO828 3BSE069055R1 is ideal for a wide range / industrial applications, including:
-
Process Control Systems: Used in chemical, oil & gas, and pharmaceutical industries for precise output control.
-
Power Generation: Ensures reliable switching operations in power plants.
-
Manufacturing Automation: Controls actuators, valves, and motors in production lines.
-
Water & Wastewater Management: Manages pumps and filtration systems.
-
Building Automation: Integrates with HVAC and lighting control systems.
Product Advantages
-
High Reliability: Built with industrial-grade components for long-term durability.
-
Flexible Configuration: 支持s both relay and transistor outputs for diverse applications.
-
Fast Response Time: Ensures quick switching for time-critical operations.
-
Seamless Integration: Compatible with ABB’s 800xA and other automation systems.
-
Robust Isolation: High channel-to-channel isolation prevents signal interference.
-
Easy Maintenance: Hot-swappable design reduces downtime during replacements.
-
Wide Voltage Range: 支持s both low and high voltage applications.
常见问题 (FAQ)
-
What is the maximum load current per channel?
Each channel supports up to 2A for reliable switching. -
Can the DO828 module be used in harsh environments?
It is designed for indoor use (IP20) and operates within -20°C to +60°C. -
Is this module compatible with non-ABB systems?
It is optimized for ABB’s 800xA but can integrate via Pr/ibus DP. -
What is the isolation voltage between channels?
1500V AC isolation ensures safety and noise imm件y. -
Does it support hot-swapping?
Yes, the module can be replaced without shutting down the system. -
What communication protocols are supported?
Primarily Pr/ibus DP, with Ethernet connectivity via 800xA. -
What is the typical response time?
<1ms for transistor outputs, <10ms for relay outputs. -
Can it handle AC and DC loads?
Yes, it supports 24V DC and 230V AC loads. -
Is there a diagnostic feature for fault detection?
Yes, it includes LED indicators for channel status monitoring. -
What certifications does this module have?
It is CE, UL, and IEC 61131-2 certified.
Recommended Similar & Related 型号s
| 型号 Number | 描述 | Key Differences |
|---|---|---|
| DO810 3BSE008508R1 | 8-Channel Digital Output Module | Fewer channels, lower cost |
| DO815 3BSE022366R1 | 16-Channel High-Density Output | Compact design, higher density |
| DI828 3BSE069054R1 | 16-Channel Digital Input Module | Input counterpart to DO828 |
| AO828 3BSE069056R1 | 8-Channel Analog Output Module | For analog signal control |
| DSDO828 3BSE069057R1 | Dual-Channel Safety DO Module | Safety-rated for critical apps |
| CI854 3BSE018105R1 | Communication Interface Module | Adds Ethernet/IP support |
