Product Overview

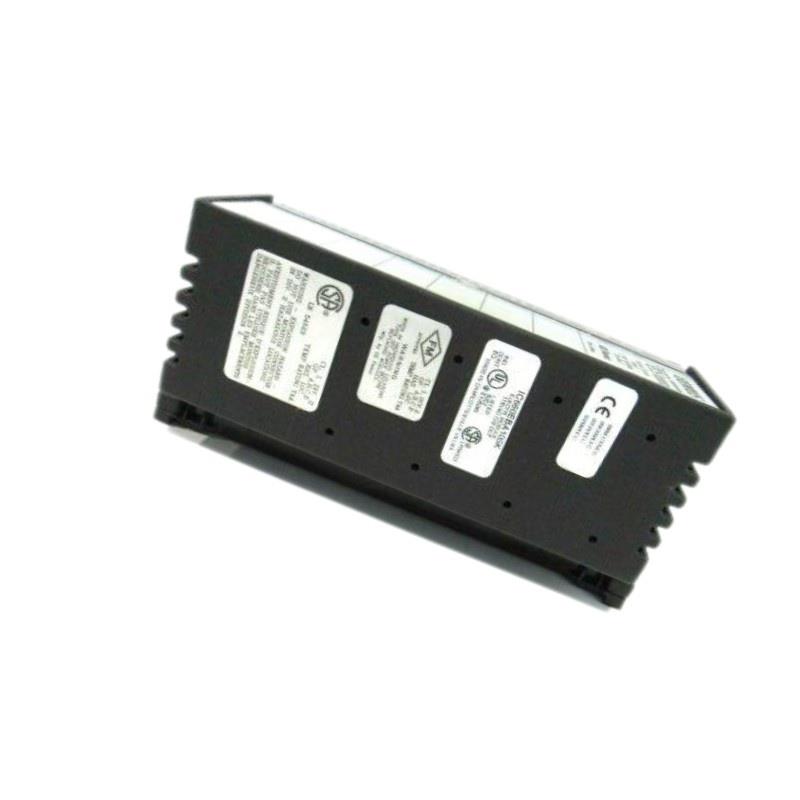

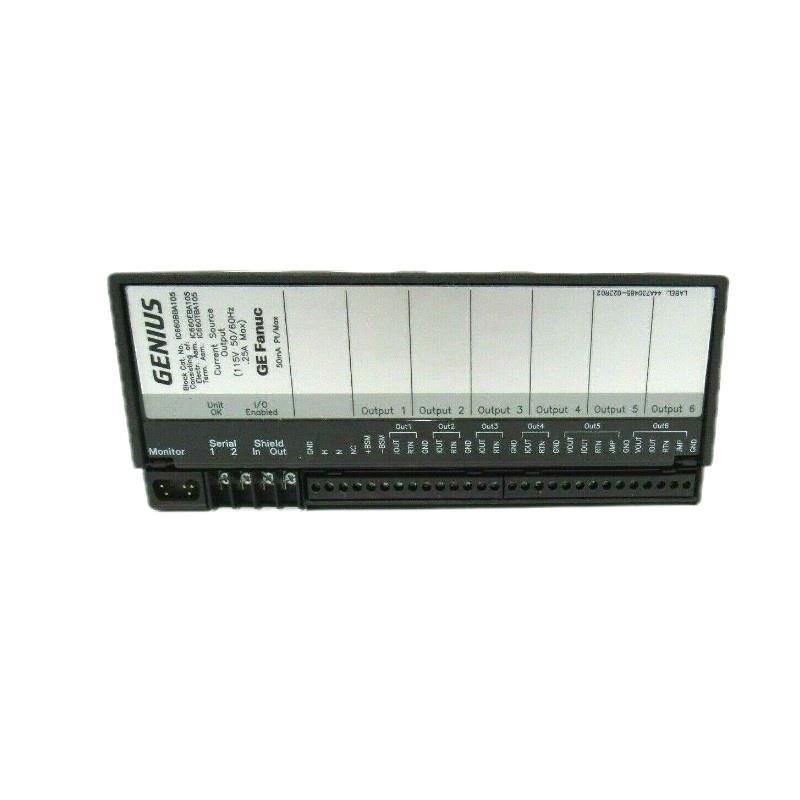

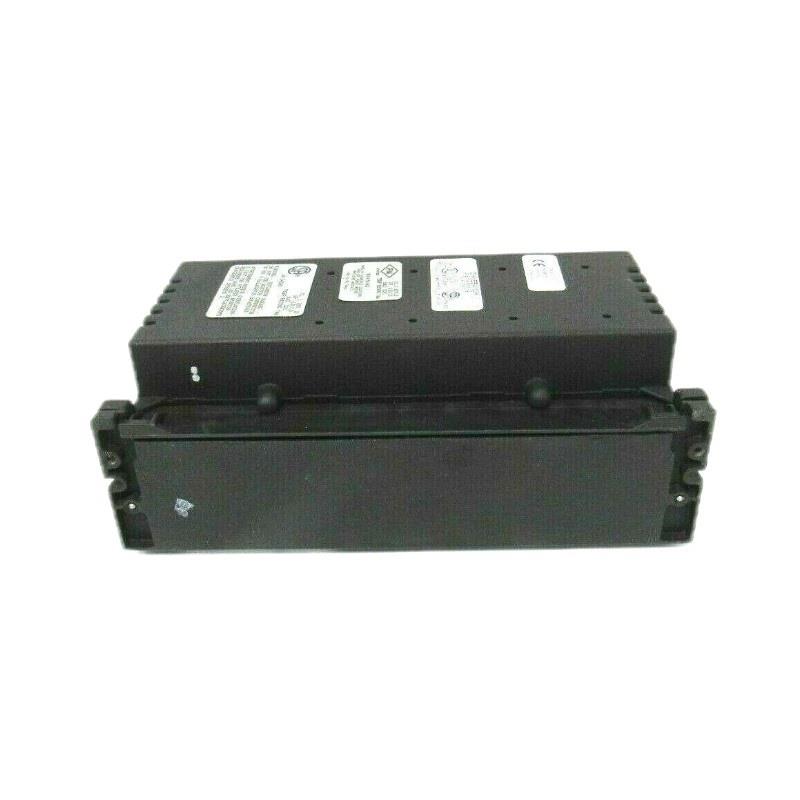

The GE Fanuc IC660EBA105 is an I/O Block Electronics Assembly designed specifically for Genius I/O systems. It functions as the intelligent electronics core / a modular I/O block, enabling seamless integration / field I/O into the Genius network. This 件 is used in conjunction with compatible terminal bases and cover assemblies to complete the block, and it provides communication, configuration, diagnostics, and control functionalities.
It supports both discrete and analog I/O depending on the terminal base configuration and is capable / operating in a variety / industrial environments. The IC660EBA105 is a robust, intelligent module that enhances flexibility, scalability, and reliability in distributed control applications.
Key Features
-
支持s discrete or analog I/O depending on base compatibility
-
Integral Genius Bus interface for fast communication
-
Built-in configuration and diagnostic memory
-
Automatic block identification and error reporting
-
Rugged industrial-grade design with high imm件y to noise
-
Compatible with handheld monitors and configuration s/tware
-
LED indicators for block status and communication monitoring
-
Wide operating temperature and power range
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | IC660EBA105 |
| Type | Electronics Assembly for I/O Block |
| Compatible Bases | Genius I/O bases for discrete or analog applications |
| I/O Type | Configurable based on terminal base (discrete/analog) |
| Communication | Genius Bus |
| Status Indicators | LEDs for network, I/O status, and diagnostics |
| Memory | Non-volatile memory for configuration retention |
| Power Supply Voltage | 18–30 VDC (from terminal base) |
| Configuration Tools | GE Handheld Monitor or configuration s/tware |
| Diagnostics | Built-in for I/O faults, communication loss, over-range, etc. |
| Protection | Optical isolation between field and logic |
| Dimensions | 224.4 x 88.9 x 100 mm |
| 重量 | 1.8 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH, non-condensing |
| Certifications | UL, CSA, CE; Class I Div 2 (when installed with base) |
Industry Applications
-
Manufacturing Automation: Facilitates decentralized control in large production systems.
-
Energy and Utilities: Suitable for SCADA and substation control.
-
Material Handling Systems: Manages sensors and actuators in distributed conveyor setups.
-
Process Industries: 支持s mixed I/O configurations in chemical and pharmaceutical plants.
-
Transportation Systems: Used in railway automation and traffic control systems.
-
OEM Machinery Integration: Provides a programmable interface for third-party equipment.
Product Advantages
-
Modular Architecture: Electronics block can be reused across multiple I/O types simply by changing the terminal base.
-
Simplified Maintenance: Electronics can be replaced independently / wiring terminals.
-
Configurable Versatility: One part number supports various I/O configurations.
-
Built-in Fault Detection: Immediate detection / wiring or signal faults minimizes downtime.
-
Reliable Communications: Native Genius Bus interface ensures high-speed, deterministic I/O exchange.
-
Field Proven Durability: Designed for demanding industrial environments, including vibration and electrical noise.
常见问题 (FAQ)
-
What does the IC660EBA105 consist /?
It includes the electronics portion / a Genius I/O block; a base and cover are required for full function. -
Can this module support analog or discrete I/O?
Yes, it depends on the terminal base it is paired with. -
Does it store configuration data?
Yes, the module retains configuration in non-volatile memory. -
Is it hot-swappable?
The electronics module can be replaced without rewiring the base, though power should be /f for safety. -
How is it configured?
Via GE handheld monitors or Genius configuration s/tware. -
What is the communication protocol?
It uses Genius I/O bus protocol for real-time I/O data exchange. -
Are LED indicators included?
Yes, for communication status, I/O health, and block diagnostics. -
What environmental conditions can it withstand?
Operates from 0°C to 60°C, with high tolerance for humidity and vibration. -
Is isolation provided?
Yes, it includes optical isolation between logic and field circuits. -
What kind / certifications does it have?
UL, CSA, and CE approvals; compliant with hazardous area standards when fully assembled.
Related 型号s in the Same Series
| 型号 Number | 描述 |
|---|---|
| IC660EBA020 | Analog I/O Block with 8 Inputs and 8 Outputs |
| IC660EBA026 | High Resolution Analog I/O Block |
| IC660BBA103 | Thermocouple Input Block |
| IC660BRD024 | Current Output Block |
| IC660BBD110 | Discrete Source Input Block |
| IC660BPM500 | Genius I/O Handheld Monitor |
Popular GE Fanuc Modules
| 型号 Number | 描述 |
|---|---|
| IC693CPU374 | Ethernet CPU for Series 90-30 |
| IC695PSA140 | RX3i Power Supply Module |
| IC693ALG223 | 4-Channel Analog Voltage Input Module |
| IC695CHS012 | RX3i 12-slot Backplane |
| IC693MDL241 | 16-Point Relay Output Module |
| IC693ACC302 | Serial Expansion Cable |
