Overview – Architectural Design Perspective

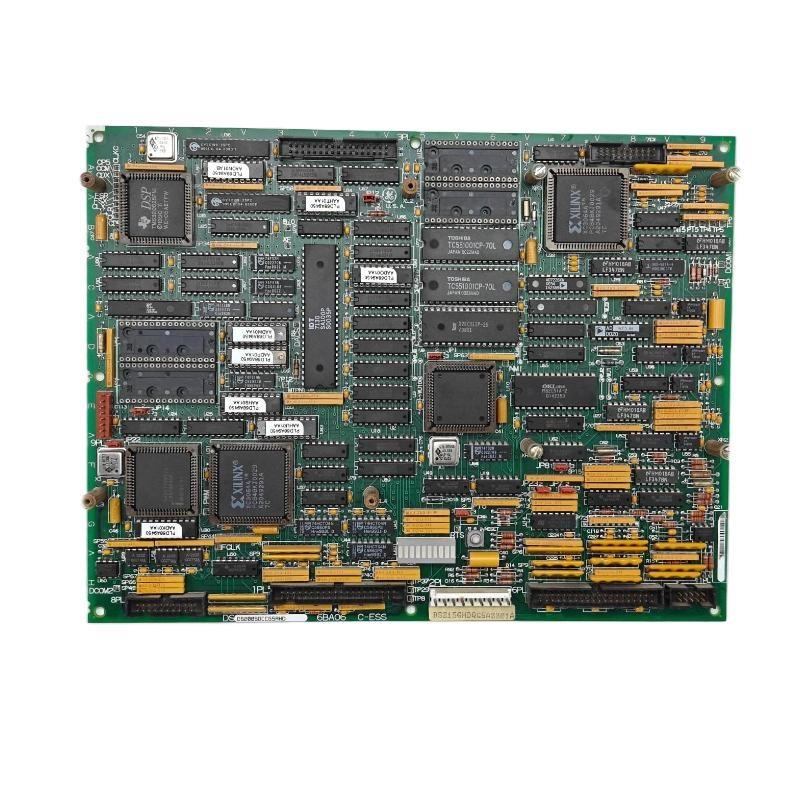

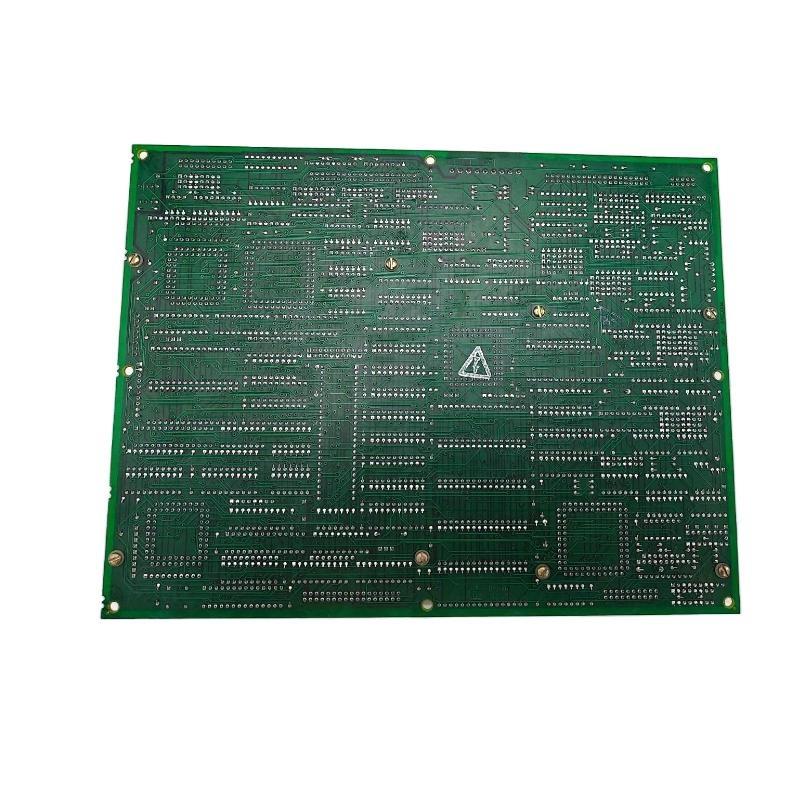

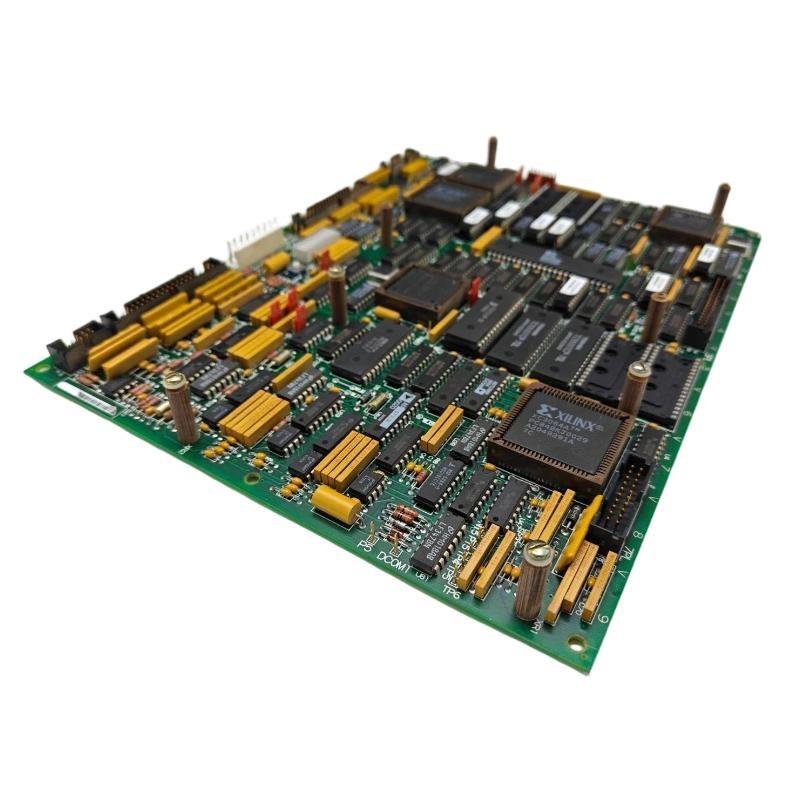

The DS215GHDQG5AZZ01 is a high-density gate driver module engineered by GE for medium-to-high power industrial drive systems. From a design standpoint, this board serves as the intermediary layer between the system’s control processor and the power semiconductor stages. It ensures accurate switching, stable gate charge delivery, and robust protection during high-current transitions.
What distinguishes this module is its emphasis on synchronized gate triggering, noise-immune pathways, and multiple layers / diagnostic feedback. Within GE’s drive architecture, the module plays a pivotal role in aligning control logic timing with power electronics performance—a critical aspect in inverter, rectifier, and converter applications.
Technical Specifications (Engineering-Level Details)
| Parameter | 描述 |
|---|---|
| Module Type | High-Density Gate Driver Board |
| System Platform | GE Industrial AC Drives & Power Conversion Systems |
| Primary Function | Gate triggering, switching protection, fault signaling |
| Gate Output Channels | Multi-channel architecture for IGBT/thyristor stages |
| Protection Logic | Desaturation detection, overcurrent response, gate-disable logic |
| Signal Isolation | High-voltage isolation between logic and power stages |
| Control Interface | Backplane digital command bus |
| Status Indicators | Multi-point gate status and fault LEDs |
| Power Requirements | +5 VDC logic, auxiliary low-voltage rails |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Dimensions | 320 × 135 × 35 mm |
| 重量 | approx. 1.05 kg |
| Construction | Multilayer PCB with reinforced creepage/clearance paths |
Application Scope
-
Inverter and converter power stage gating
-
IGBT / SCR control in industrial drive systems
-
High-power rectifier switching
-
Turbine auxiliary power electronics
-
Regenerative drive systems
-
Precision motor control applications requiring synchronized switching
Advantages – Based on System Architecture Evaluation
-
High isolation integrity, ensuring safe operation across high-voltage boundaries
-
Synchronized gate timing, enabling smooth and efficient switching transitions
-
Advanced protection layers, significantly reducing risk / semiconductor stress
-
Signal conditioning optimized for EMI-heavy environments
-
Integrated diagnostics, simplifying system-level troubleshooting
-
Compact high-density footprint, ideal for modular power converter designs
