产品介绍

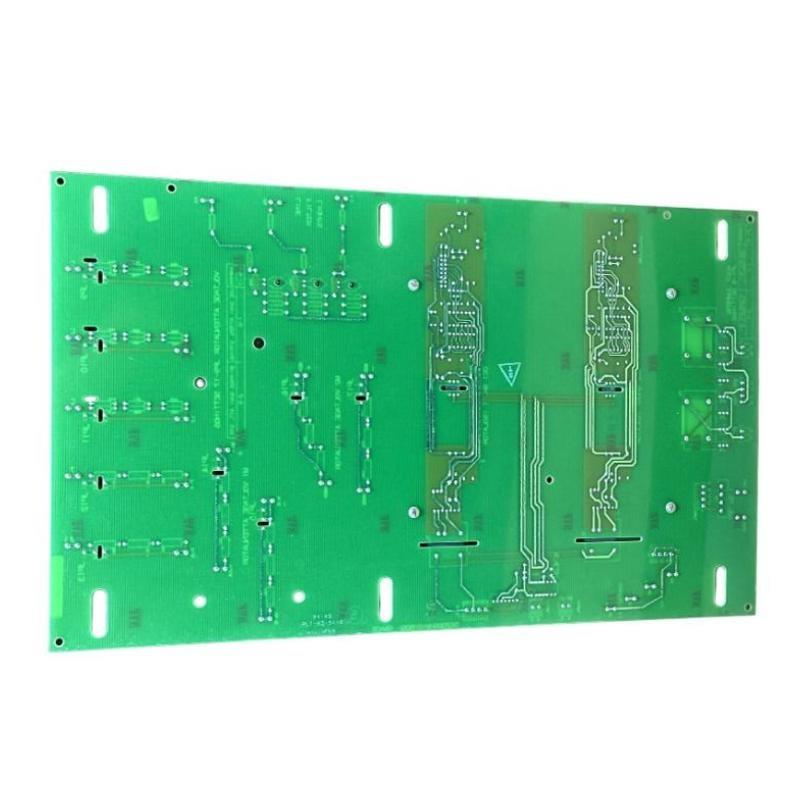

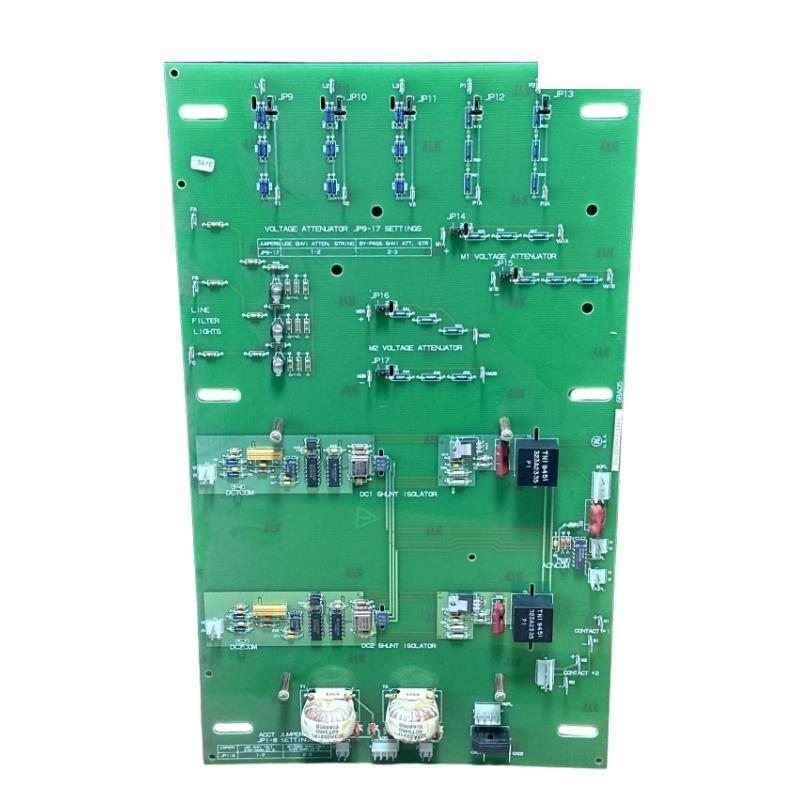

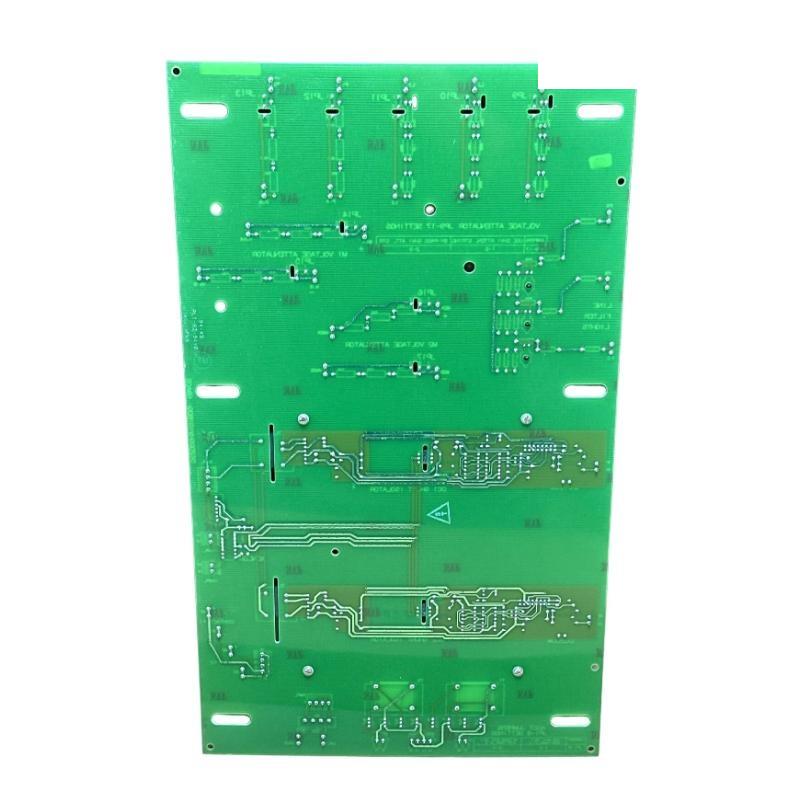

The GE DS200SHVIG1BFC is a high-voltage SCR interface board, designed to provide a reliable connection and control interface between industrial control systems and high-voltage SCR modules. It ensures accurate triggering, signal conditioning, and isolation, which is essential for stable operation / power electronics in industrial and process applications.
This board is engineered for high-voltage industrial environments, /fering robust performance for SCR power converters, motor drives, and energy management systems. Its compact design allows easy integration into control assemblies while providing enhanced signal integrity and protection.
产品规格
| Parameter | 描述 |
|---|---|
| Product Name | GE DS200SHVIG1BFC |
| Product Type | SCR High Voltage Interface Board |
| Device Function | Interface and trigger for SCR power modules |
| Input Signal Type | Control voltage (logic-level) |
| Output Signal Type | SCR trigger pulses |
| Mounting Method | Panel or assembly integration |
| Insulation Voltage | High-voltage isolation for safe operation |
| Ambient Temperature Range | -20 °C to 55 °C |
| Relative Humidity | Up to 95% non-condensing |
| Dimensions | 230 × 110 × 40 mm |
| 重量 | 0.907 kg |
Applications
• Industrial SCR power control, providing precise triggering for high-voltage SCRs.
• Motor drive systems, enabling controlled operation / AC and DC drives.
• High-voltage power converters, ensuring safe interface between control circuits and SCR modules.
• Process control systems, supporting heating, power regulation, and industrial automation.
• Energy management and distribution, for modular switching and load regulation in industrial setups.
Advantages
• High-voltage isolation, protecting operators and sensitive control circuits.
• Accurate SCR triggering, improving timing and repeatability for power devices.
• Enhanced signal integrity, reducing misfiring and electrical noise issues.
• Compact form factor, simplifying integration into control panels and assemblies.
• Industrial-grade reliability, suitable for standard ambient conditions and high-voltage applications.
