产品介绍

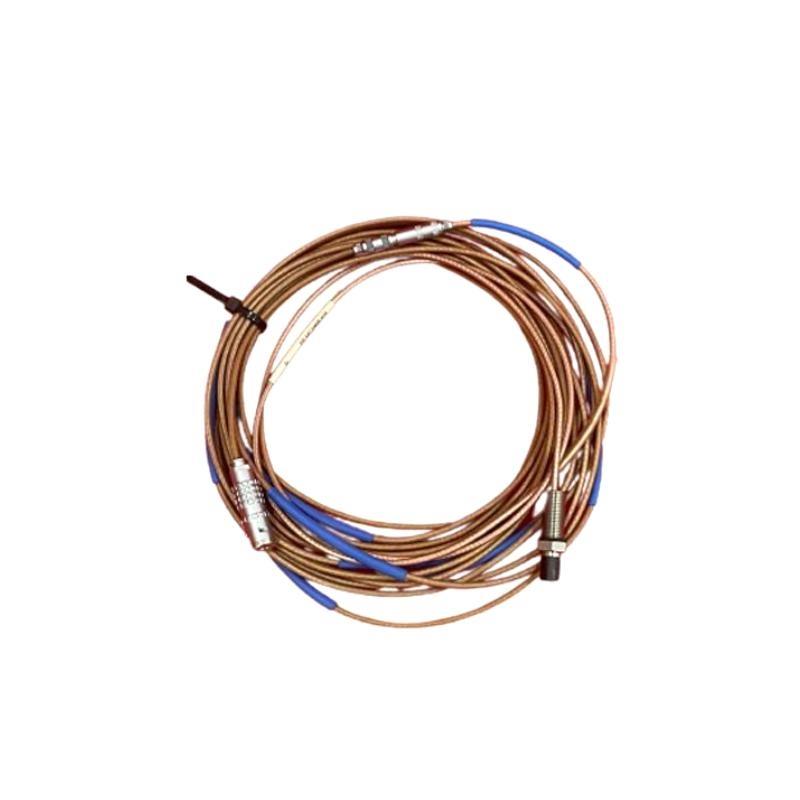

The Epro PR6424/111-121 is a 16mm eddy current sensor designed to provide precise, non-contact measurement / displacement, vibration, and position. This high-performance sensor is based on eddy current technology, where an oscillating magnetic field induces eddy currents in the target material. The sensor detects variations in these currents, which are proportional to the distance between the sensor and the target, allowing for highly accurate measurements / position or displacement.
Ideal for condition monitoring, vibration analysis, displacement measurement, and position sensing, the PR6424/111-121 is commonly used in industries such as automotive, aerospace, power generation, and manufacturing. Its robust design and non-contact measurement capabilities make it perfect for high-speed and high-precision applications where traditional contact-based sensors are not viable.
产品规格
| Feature | Specification |
|---|---|
| Sensor Type | Eddy Current Sensor |
| Sensing Head Diameter | 16 mm |
| 重量 | 0.2 kg |
| Measurement Range | Up to 10 mm |
| Output Type | Analog or Digital (depending on model) |
| Temperature Range | -20°C to +80°C |
| Operating Frequency | High-frequency response |
| Power Supply | 15–30V DC |
| Accuracy | ±0.1% / full scale |
| Resolution | 0.01 mm |
| Material | Stainless steel, corrosion-resistant |
Applications
The Epro PR6424/111-121 eddy current sensor is used in a wide variety / industrial applications where precise, non-contact measurements are necessary. These applications include:
-
状态 Monitoring: Used for monitoring the condition / machinery and equipment in real-time, detecting early signs / wear, misalignment, and imbalance in components such as motors, bearings, and turbines.
-
Vibration Measurement: Ideal for measuring displacement and vibration in rotating equipment, such as compressors, generators, and pumps, helping prevent failure by detecting abnormal vibrations.
-
Position and Displacement Sensing: Commonly used in automated systems to monitor the position / actuators, sliders, and pistons in manufacturing and automation processes.
-
Non-联系我们 Measurement: Perfect for high-speed or hazardous environments where traditional contact sensors cannot be used due to mechanical wear or safety concerns.
-
Power Generation: Used for monitoring turbines, pumps, and other rotating machinery in power plants to ensure stable and efficient operation.
-
Aerospace and Automotive: Applied in the testing and inspection / components during the manufacturing process to ensure accurate positioning and alignment.
Product Advantages
-
Non-联系我们 Measurement: The PR6424/111-121 uses eddy current technology, allowing for non-contact measurements which prevent wear and damage, especially in high-speed or sensitive applications.
-
High Accuracy: With an accuracy / ±0.1% / full scale, the sensor provides precise readings, ensuring that even the smallest variations in displacement are detected.
-
Robust and Durable: Designed with corrosion-resistant stainless steel, the sensor is built to withstand harsh environments, making it ideal for use in industrial applications.
-
High-Frequency Response: The sensor’s high-frequency response allows for dynamic measurements, making it suitable for vibration monitoring and rotational speed measurement in real-time.
-
Versatile Output Options: The PR6424/111-121 /fers both analog and digital outputs, allowing for easy integration with a variety / control systems and data acquisition platforms.
-
Compact Design: With a 16mm diameter sensing head, the sensor is compact and can be used in tight spaces where other sensors may not fit.
-
Wide Temperature Range: The sensor operates efficiently in a broad temperature range from -20°C to +80°C, making it suitable for various operating environments.
-
Easy Integration: It is easily integrable with data acquisition systems, signal conditioners, and monitoring equipment.
-
Long-Term Reliability: Known for its long-term stability, the sensor provides consistent performance over extended periods, reducing the need for maintenance and replacements.
-
Energy-Efficient: Operating on a 15-30V DC power supply, the sensor is energy-efficient, helping reduce operational costs.
FAQ
1. How does the Epro PR6424/111-121 sensor work?
The PR6424/111-121 works on the eddy current principle, where the sensor’s magnetic field induces eddy currents in the target material. Changes in the eddy currents are detected and used to measure displacement or vibration.
2. What types / outputs does the sensor provide?
The sensor /fers both analog and digital outputs, providing flexibility for integration with different control systems and data acquisition systems.
3. Can the Epro PR6424/111-121 sensor be used for vibration measurement?
Yes, the PR6424/111-121 is highly effective for measuring vibration in rotating machinery such as motors, turbines, and pumps.
4. What is the maximum measurement range / the sensor?
The sensor can measure displacement up to 10 mm from the target material.
5. Can the sensor be used in high-speed applications?
Yes, the PR6424/111-121 features a high-frequency response, making it ideal for dynamic and high-speed applications like vibration monitoring in rotating equipment.
6. What is the accuracy / the sensor?
The sensor provides an accuracy / ±0.1% / full scale, ensuring precise and reliable measurements in various industrial applications.
7. What materials can the sensor measure?
The sensor is effective for measuring displacement or vibration in metallic and conductive materials, such as steel, aluminum, and copper.
8. What temperature range can the sensor operate in?
The PR6424/111-121 can operate in temperatures ranging from -20°C to +80°C, making it suitable for both extreme cold and high-temperature environments.
9. Is the sensor suitable for non-contact applications?
Yes, the sensor’s eddy current technology allows for non-contact measurements, making it ideal for applications where traditional contact sensors would wear out or be unsuitable.
10. Can the sensor be integrated into existing control systems?
Yes, the PR6424/111-121 can be easily integrated with data acquisition systems, signal conditioners, and various monitoring platforms using its versatile output options.
Recommended Related 型号s
| 型号 | 描述 |
|---|---|
| PR6424/110-000 | High-accuracy eddy current sensor for industrial applications. |
| PR6424/112-000 | 16mm eddy current sensor with longer measurement range. |
| PR6424/113-000 | 16mm eddy current sensor with enhanced frequency response. |
| PR6424/114-000 | Compact eddy current sensor for tight spaces and precision measurements. |
| PR6424/115-000 | High-sensitivity sensor for vibration and displacement monitoring. |
| PR6424/116-000 | Robust eddy current sensor for extreme environmental conditions. |
Popular Epro 型号s
| 型号 | 描述 |
|---|---|
| PR6424/101-000 | Compact, high-resolution eddy current sensor. |
| PR6424/102-000 | High-precision displacement sensor for industrial machinery. |
| PR6424/103-000 | Long-range eddy current sensor for large equipment. |
| PR6424/104-000 | Heavy-duty eddy current sensor for vibration analysis. |
| PR6424/105-000 | 16mm eddy current sensor for precise condition monitoring. |
| PR6424/106-000 | Temperature-resistant eddy current sensor for harsh environments. |
