产品介绍

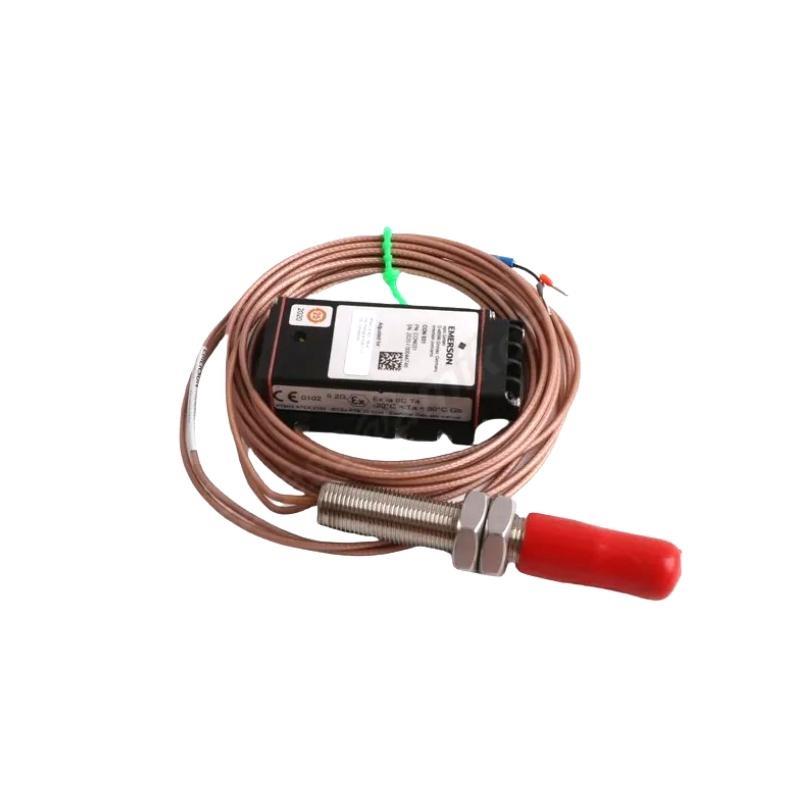

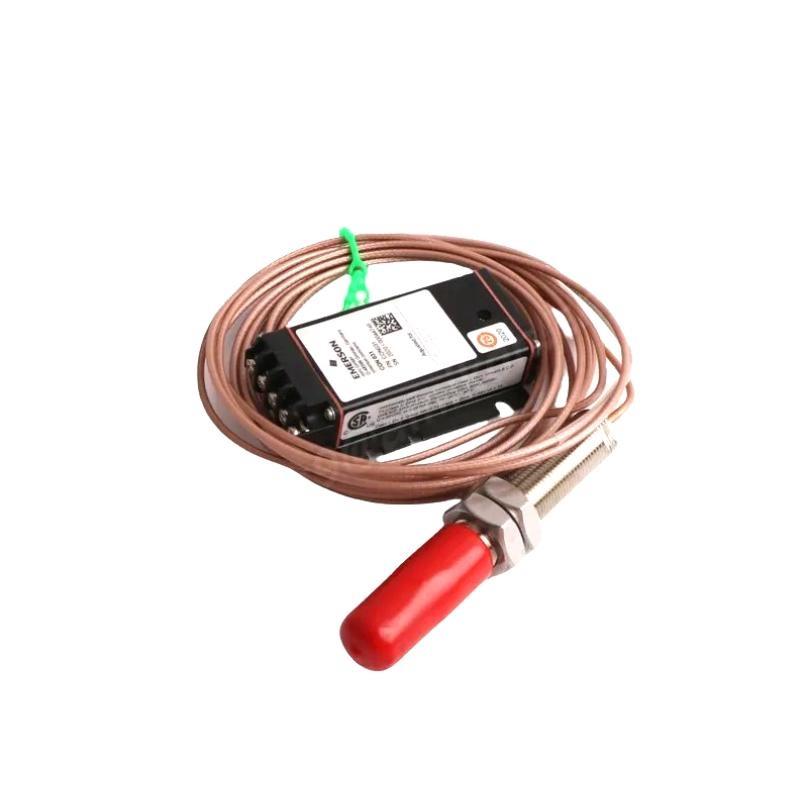

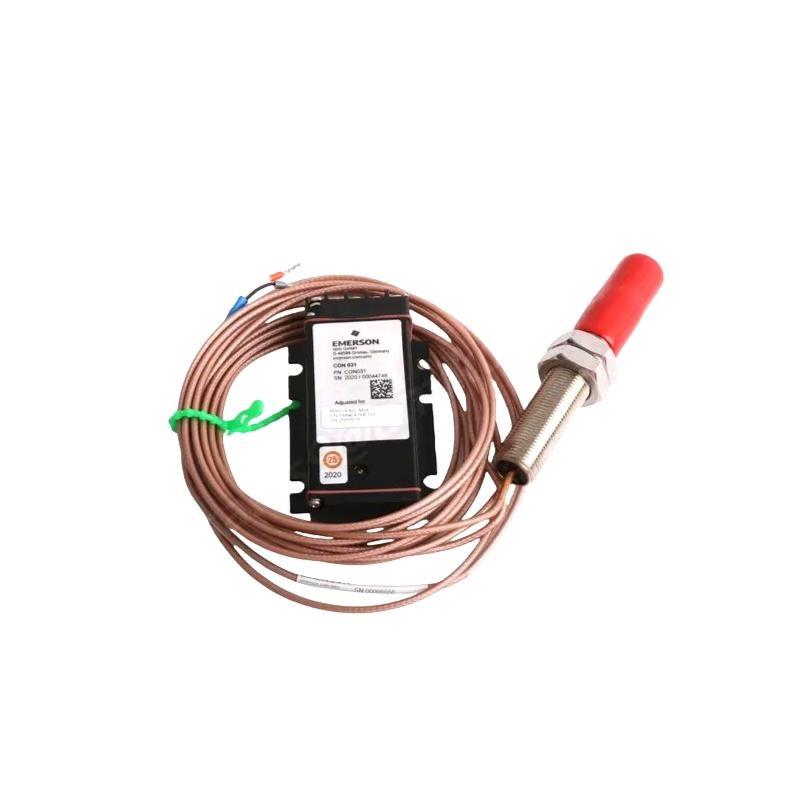

Epro PR6424/000-130+CON021 Eddy Current Sensor is a high-performance non-contact displacement sensor designed for precision vibration and position monitoring / rotating machinery. This sensor is commonly used in critical machinery monitoring applications such as turbines, compressors, pumps, and motors, especially in petrochemical and power generation industries. It operates on the eddy current principle, enabling it to provide accurate and reliable proximity and displacement measurements, even in harsh industrial environments.
The PR6424/000-130 variant is specifically designed with a 16mm probe tip, optimized for larger shaft diameters and applications requiring a greater sensing range. Paired with the CON021 connection module, it forms a complete measurement chain, ensuring accurate signal transmission and system integration.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | PR6424/000-130+CON021 |
| Sensor Type | Eddy Current Proximity Sensor |
| Sensing Range | Up to 4 mm (depending on target material) |
| Sensor Head Diameter | 16 mm |
| Thread Type | M14x1.5 |
| Probe Material | Stainless Steel |
| Cable Length | Customizable (typically 5m, 7m, 9m, or 10m) |
| Frequency Range | 0 to 10 kHz |
| Operating Temperature Range | -35°C to +180°C (probe), -35°C to +90°C (CON021) |
| Output Signal | Voltage proportional to the gap distance |
| Sensitivity | Typically 7.87 mV/μm |
| Linearity Error | ≤ ±1% over full range |
| Power Supply | 24 VDC (via CON021 converter) |
| Electrical Isolation | Galvanic isolation from signal ground |
| Mounting | Threaded mount with locknut |
| Environmental Protection | IP65 or higher |
| Compliance | CE, RoHS |
| 重量 | 0.32 kg |
Product Applications
-
Turbomachinery Monitoring: Suitable for steam turbines, gas turbines, and centrifugal compressors to monitor rotor shaft displacement and vibration.
-
状态 Monitoring Systems: Integrates easily with Epro MMS system or similar vibration monitoring platforms.
-
Power Generation Plants: Ensures reliable operation / generators, reducing unplanned downtime.
-
Petrochemical Industry: Effective for machinery in hazardous and high-temperature zones.
-
Pumps and Motors: Helps in early detection / misalignment, shaft wear, or imbalance.
-
Rotating Equipment: Ideal for fans, blowers, and gearboxes in industrial automation.
Product Advantages
-
High Accuracy: Provides precise displacement and vibration readings even under harsh conditions.
-
Robust Construction: Stainless steel housing ensures durability in high-temperature and corrosive environments.
-
Non-联系我们 Measurement: Minimizes wear and enables maintenance-free operation over long periods.
-
Wide Compatibility: Seamlessly works with Epro systems and compatible with many third-party monitoring systems.
-
Temperature Resistant: Designed to perform in extreme operational temperatures.
-
Modular Configuration: Allows customized installation with different cable lengths and connector options.
-
Reliable Signal Output: Maintains stable and interference-resistant signal transmission through CON021 module.
-
Long Operational Life: Engineered for long-term usage with minimal calibration or adjustments.
-
Safety Compliant: Meets industry certifications for electrical safety and environmental standards.
-
Versatile Mounting Options: Can be installed in various orientations, /fering flexible integration into existing systems.
常见问题 (FAQ)
-
What is the measuring principle / the PR6424/000-130 sensor?
It uses the eddy current principle to detect the distance between the probe tip and a conductive target surface. -
Can the sensor operate in high-temperature environments?
Yes, the sensor can operate in temperatures up to 180°C, making it ideal for demanding applications. -
What is the purpose / the CON021 module?
The CON021 acts as a signal converter and power interface, ensuring reliable data output and compatibility with monitoring systems. -
Is the cable length customizable?
Yes, the sensor is available with different cable lengths such as 5m, 7m, 9m, or 10m based on customer requirements. -
What materials are compatible with this sensor for displacement measurement?
The sensor is optimized for use with ferromagnetic and conductive materials, especially metals like steel. -
Can I use this sensor in explosion-pro/ environments?
Certain variants / the PR6424 series may be available with explosion-pro/ certifications. Always verify with the supplier. -
Does the sensor require frequent calibration?
No, it is factory-calibrated and designed for long-term operation without frequent recalibration. -
What is the output signal / the sensor?
The sensor provides an analog voltage output that is directly proportional to the gap between the sensor and the target. -
Is this model compatible with Bently Nevada monitoring systems?
With proper configuration and interface modules, it can work with Bently Nevada and other industrial monitoring systems. -
What are common failure modes for this sensor?
Failures are rare but may include cable damage, extreme environmental exposure, or connector wear over time.
Related 型号s from Same Series
| 型号 | 描述 | Tip Diameter | Thread Type | Operating Temp |
|---|---|---|---|---|
| PR6424/010-010 | Standard 8mm tip sensor with CON021 module | 8 mm | M10x1 | -35°C to +180°C |
| PR6424/014-040 | Long range version for wider displacement sensing | 8 mm | M14x1.5 | -35°C to +180°C |
| PR6424/01CS | Coated sensor for corrosive environments | 8 mm | M10x1 | -35°C to +180°C |
| PR6424/005-010 | Compact design for limited space applications | 5 mm | M8x0.75 | -35°C to +180°C |
| PR6424/003-030 | Ultra-small tip version for precision sensing | 3 mm | M6x0.5 | -35°C to +180°C |
| PR6424/006-030 | Mid-range probe for standard machinery monitoring | 6 mm | M8x1 | -35°C to +180°C |
Popular Epro 型号s
| 型号 | Function | Type | Application Area |
|---|---|---|---|
| MMS6312 | Dual-channel vibration monitoring module | Vibration Monitor Module | Machinery Protection |
| MMS3120/022-100 | Proximity measurement module | Signal 状态ing Module | Displacement Monitoring |
| MMS6410 | Four-channel vibration analysis system | Diagnostic Module | 状态 Monitoring |
| PR6423/005-010 | Eddy current probe with compact design | Eddy Current Sensor | Turbine Vibration Monitoring |
| CON041 | Signal converter for PR6423/PR6424 sensors | Interface Converter | Industrial Sensors |
| CON021 | Signal converter for PR6424 series | Interface Converter | Measurement Systems |
