Product Overview

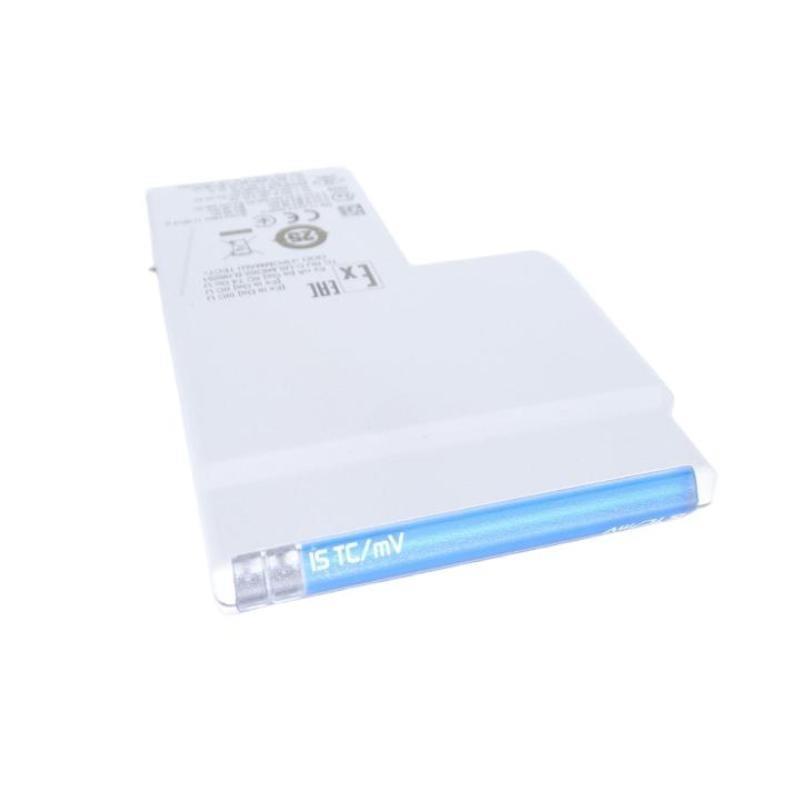

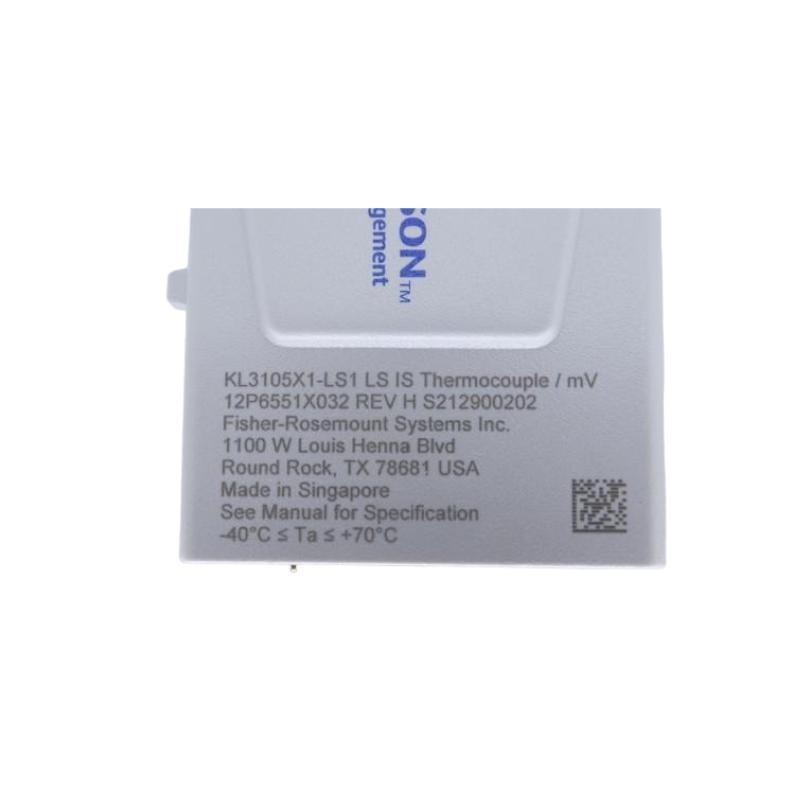

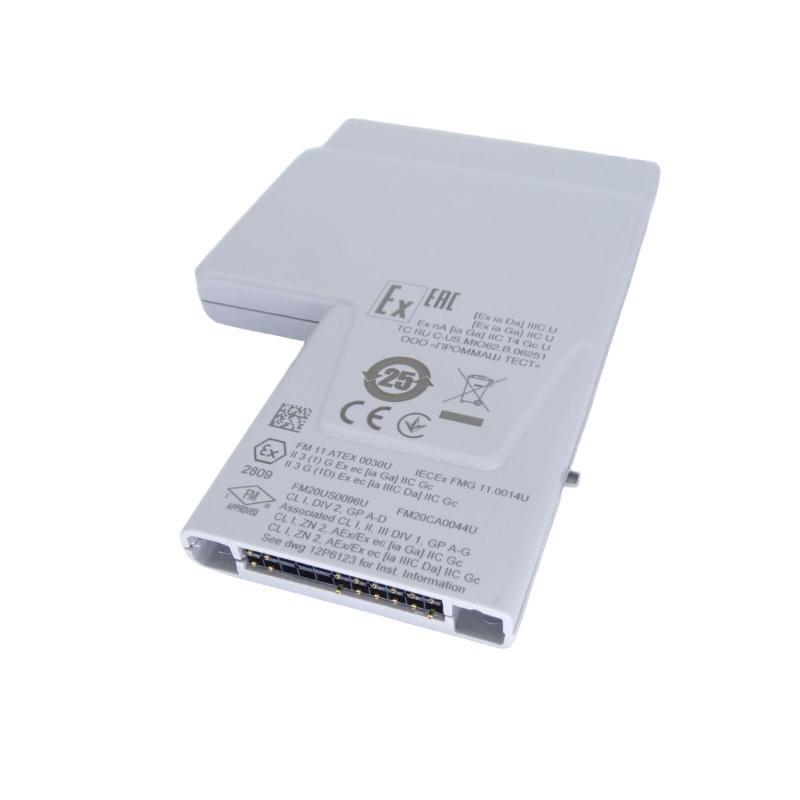

The Emerson KL3105X1-LS1 is an IS Thermocouple/mV CHARM (Communication Head and Readout Module) designed for industrial applications that require precise temperature measurements using thermocouples or millivolt signals. It is part / Emerson’s CHARM series, which /fers a modular solution for connecting various sensors to control systems. This module is specifically designed to support intrinsically safe (IS) thermocouple inputs, providing accurate readings in hazardous environments while maintaining safety standards.
The KL3105X1-LS1 module interfaces with a wide range / thermocouples, including J, K, T, E, R, S, and B types, as well as millivolt (mV) signals, making it highly versatile for various temperature measurement applications. The module ensures reliable performance in high-risk industrial settings, including chemical plants, oil and gas operations, and other environments where temperature monitoring is critical for safety and operational efficiency.
Key Features
-
Wide Thermocouple Compatibility: 支持s multiple thermocouple types, including J, K, T, E, R, S, and B.
-
mV Signal 支持: Can process millivolt signals, making it suitable for a variety / temperature sensors.
-
Intrinsically Safe Design: Meets intrinsic safety standards for use in hazardous environments, reducing the risk / sparks or electrical hazards.
-
Modular Design: The CHARM design allows for flexible expansion and integration with other Emerson CHARM modules.
-
High Precision: Provides high-accuracy temperature measurements to ensure the efficiency and safety / industrial processes.
-
Seamless Integration: Easily integrates with Emerson’s DeltaV and Ovation control systems for streamlined operation and monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 | KL3105X1-LS1 |
| Type | IS Thermocouple/mV CHARM |
| Dimensions | 150 × 100 × 35 mm |
| 重量 | 0.113 kg |
| Input Types | Thermocouple (J, K, T, E, R, S, B), mV signals |
| Communication Interface | Emerson CHARM system |
| Input Voltage | Compatible with thermocouple voltages and millivolt signals |
| Mounting Type | Modular (DIN Rail) |
| Operating Temperature | -20°C to +60°C |
| Environmental Protection | IP20 |
| Power Consumption | Low power consumption |
| Signal Isolation | Galvanic isolation for protection from electrical noise |
| Intrinsically Safe | Yes (meets intrinsic safety standards for hazardous environments) |
| Accuracy | High-precision temperature measurement |
Applications
The KL3105X1-LS1 IS Thermocouple/mV CHARM module is widely used in industries where accurate temperature control and monitoring are essential. Its compatibility with various thermocouple types and mV signals makes it highly versatile for a range / applications:
-
Chemical and Petrochemical Plants: For precise monitoring / temperature in reactors, distillation columns, and other critical equipment.
-
Oil & Gas: Used in pipelines, wellheads, and storage tanks to monitor temperature variations in hazardous environments.
-
Pharmaceutical Manufacturing: Ensures precise temperature regulation in controlled environments, such as during the production and storage / sensitive materials.
-
Food & Beverage Processing: Used in processes like pasteurization, sterilization, and fermentation where maintaining accurate temperature is crucial.
-
Power Generation: Used in power plants to monitor steam and gas temperatures in turbines and other equipment.
-
HVAC Systems: For controlling and monitoring temperatures in heating, ventilation, and air conditioning systems in industrial settings.
Advantages
-
High Flexibility: 支持s multiple thermocouple types and mV sensors, making it adaptable to a wide range / temperature measurement needs.
-
Intrinsically Safe for Hazardous Areas: Designed to operate in hazardous locations while ensuring the safety / personnel and equipment.
-
Seamless Integration: The CHARM design allows for easy integration with Emerson’s DeltaV and Ovation control systems, enhancing operational efficiency.
-
Accurate Temperature Monitoring: Provides precise and reliable temperature readings, ensuring optimal process control in critical applications.
-
Compact and Modular: Its compact size and modular design allow for easy expansion and customization / control systems.
-
Reduced Installation Complexity: Simplifies installation and reduces wiring complexity by using a modular approach to I/O integration.
FAQ
-
What types / sensors are supported by the KL3105X1-LS1?
Answer: The module supports multiple thermocouple types (J, K, T, E, R, S, B) and millivolt signals. -
Can this module be used in hazardous environments?
Answer: Yes, the KL3105X1-LS1 is intrinsically safe, making it suitable for use in hazardous environments where spark risks need to be minimized. -
What is the accuracy / the KL3105X1-LS1 module?
Answer: The module provides high-precision temperature measurements for reliable and accurate temperature control. -
How does the KL3105X1-LS1 handle electrical noise?
Answer: The module includes galvanic isolation to protect against electrical noise, ensuring stable and accurate signal processing. -
What communication systems are compatible with the KL3105X1-LS1?
Answer: The module integrates seamlessly with Emerson’s CHARM system, which works with DeltaV and Ovation control systems. -
Can I connect multiple sensors to this module?
Answer: Yes, the module can handle multiple sensors depending on the configuration and system requirements. -
What is the input voltage range for the KL3105X1-LS1?
Answer: The module is compatible with the voltages typically generated by thermocouples and millivolt signals. -
Is the module suitable for temperature measurements in industrial processes?
Answer: Yes, it is ideal for industrial temperature monitoring in processes like chemical manufacturing, oil & gas, power generation, and more. -
How is the module mounted?
Answer: The KL3105X1-LS1 uses a modular DIN rail mounting system, making it easy to integrate into control panels. -
Can the KL3105X1-LS1 handle temperature measurements from all thermocouple types?
Answer: Yes, it supports a wide variety / thermocouple types, including J, K, T, E, R, S, and B, providing versatility in sensor selection.
Related / Same-Series 型号 Recommendations
| 型号 | 描述 |
|---|---|
| KL3101X1-LS1 | Similar module supporting additional temperature sensor types, with enhanced data acquisition capabilities. |
| KL3102X1-LS1 | Designed for high-precision temperature monitoring in extreme industrial conditions. |
| KL3103X1-LS1 | A higher-capacity version with additional channels for complex systems with multiple sensor inputs. |
| KL3104X1-LS1 | Offers faster data processing and is designed for systems with high-speed temperature fluctuations. |
| KL3106X1-LS1 | Suitable for energy management systems, focusing on precise temperature monitoring / power generation equipment. |
| KL3107X1-LS1 | Features integrated diagnostics for troubleshooting and performance optimization in high-demand systems. |
