Product Overview

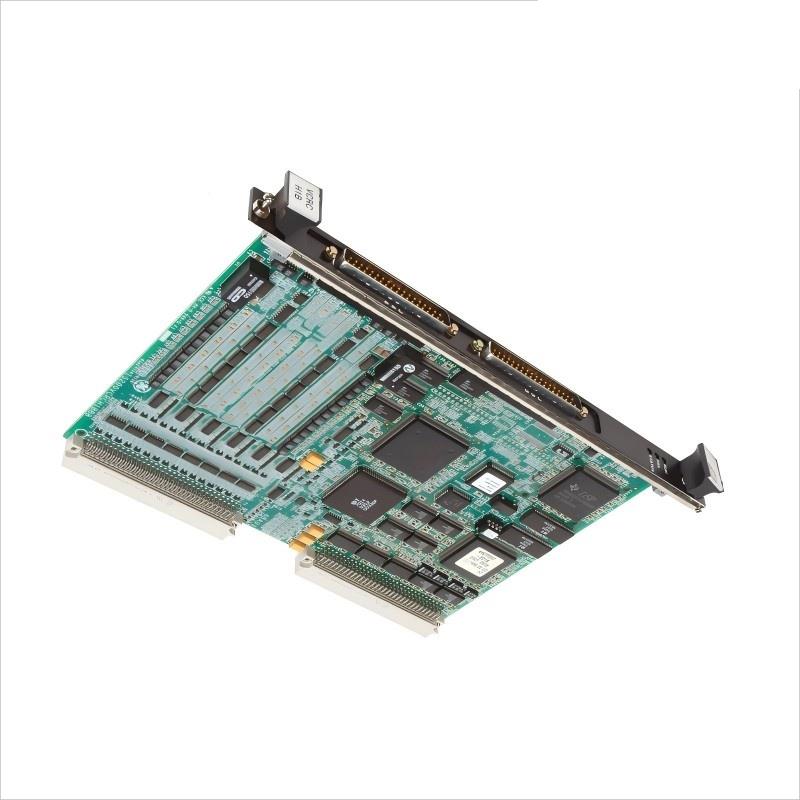

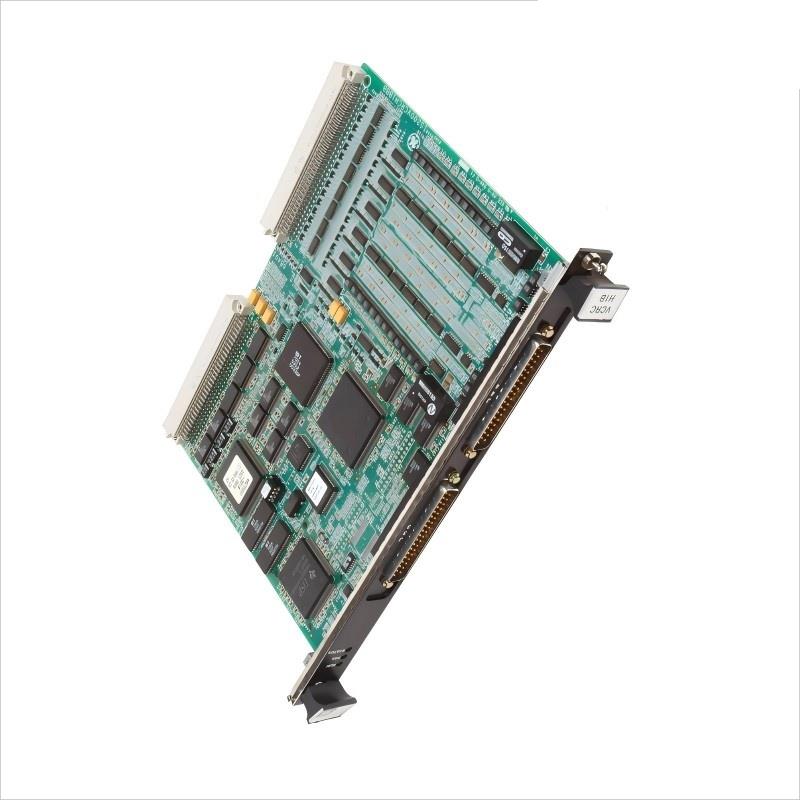

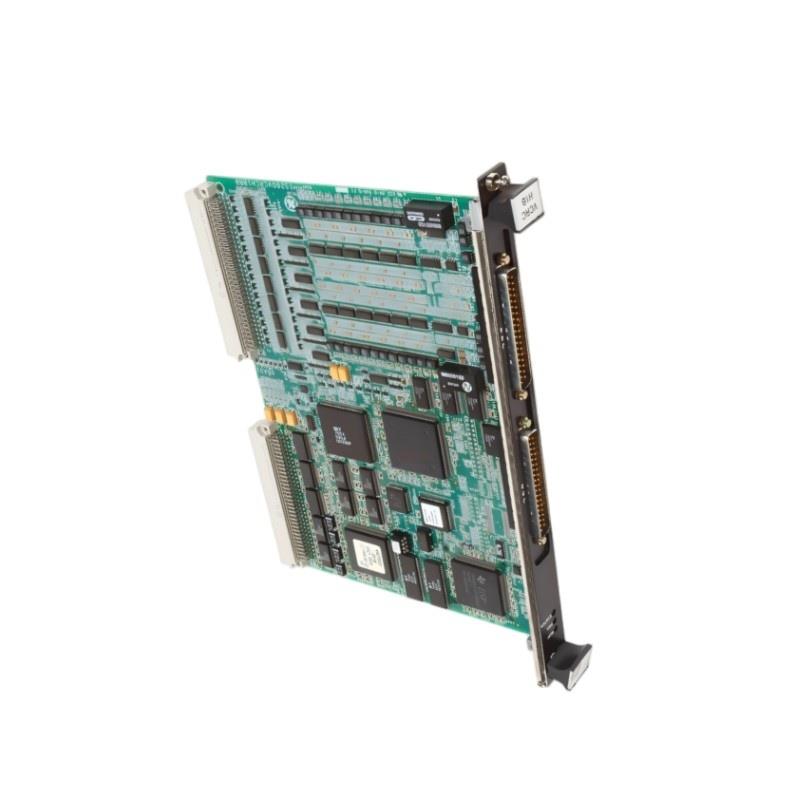

The IS200VSPAH1ACC is a monitoring card assembly developed by GE for use in the Mark VI Turbine Control System. Designed for robust industrial environments, this module /fers reliable system diagnostics and communication interfaces, ideal for gas and steam turbine applications.
Technical Specifications
| Parameter | 描述 |
|---|---|
| Product Name | IS200VSPAH1ACC |
| System Compatibility | GE Mark VI Control System |
| Configuration | Simplex or TMR (Triple Modular Redundant) |
| LED Indicators | 3 front-panel status LEDs |
| Connectors (Front) | 2 D-shell connectors |
| Backplane Connections | 2 dedicated connectors |
| FPGA | XILINX field-programmable gate array |
| Mounting | Rack-mounted with faceplate screws |
| Power Supply | 120/240 V AC or 125 V DC via control rack |
| Communication | UDH (Ethernet), IONet (I/O network) |
| I/O 支持 | Local and Remote |
| Dimensions (W x D x H) | 178 × 330.2 × 43 mm |
| 重量 | 0.25 kg |
Applications
-
Gas and steam turbine monitoring
-
Real-time diagnostics in turbine control systems
-
Interface between control modules and I/O components
-
High-speed data acquisition and analysis
-
Industrial automation within power generation systems
Advantages
-
Direct Turbine Interface: Eliminates interposing devices, increasing system reliability.
-
Flexible Integration: 支持s both simplex and TMR setups.
-
Enhanced Communication: Integrates with UDH and IONet for high-speed data exchange.
-
Stable Power Supply: Converts input to 125 V DC for consistent module operation.
-
Secure Rack Mounting: Dual screws and connectors for vibration-resistant installation.
FAQ – 常见问题
Q1: What system is IS200VSPAH1ACC used in?
A1: It is used in the GE Mark VI control system for turbine control.
Q2: Is the module compatible with both simplex and TMR configurations?
A2: Yes, it supports both control configurations.
Q3: What type / network does it use for I/O communication?
A3: It uses the high-speed IONet for I/O connections.
Q4: What indicators are present on the module?
A4: It features three LED status indicators on the front panel.
Q5: Can this card be used with remote I/O?
A5: Yes, it supports both local and remote I/O configurations.
Q6: Does the board use fiber-optic communication?
A6: Yes, fiber-optic communication is supported through UDH.
Q7: What type / FPGA is used on the board?
A7: The board includes a XILINX FPGA for flexible signal processing.
Q8: How is the board secured in the rack?
A8: It is secured with a faceplate and two set screws.
Q9: Can the UDH network be redundant?
A9: Yes, redundant cable operation is optional for UDH.
Q10: What are the power requirements / the board?
A10: It requires power converted to 125 V DC from either 120/240 V AC or 125 V DC input.
Related 型号s in the Same Series
| 型号 Number | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| IS200DSPXH1DAB | Digital Signal Processor Module | 178 x 330.2 x 43 | 0.3 kg |
| IS200STCIH2AED | Thermocouple Input Module | 178 x 330.2 x 43 | 0.28 kg |
| IS200TBAIH1CBB | Analog Input Terminal Board | 178 x 330.2 x 43 | 0.35 kg |
| IS200TRLYH1BBC | Relay Output Module | 178 x 330.2 x 43 | 0.32 kg |
| IS200TBTCH1CBB | RTD Terminal Board | 178 x 330.2 x 43 | 0.34 kg |
| IS200BPPBH2BR1 | Backplane Power Board | 178 x 330.2 x 43 | 0.4 kg |
Popular GE 型号s
| 型号 Number | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| DS200TCQAG1B | Analog I/O Board for Mark V | 229 x 203 x 20 | 0.5 kg |
| DS200SDCCG5A | Drive Control Board | 305 x 152 x 25 | 0.45 kg |
| IS215VCMIH2C | VME Communication Interface Card | 178 x 330.2 x 43 | 0.4 kg |
| DS200LDCCH1A | LAN Communication Board | 254 x 203 x 25 | 0.42 kg |
| DS200TCCAG1B | Common Data Processor Board | 254 x 203 x 25 | 0.5 kg |
| IS210AEAAH1B | Analog I/O Module for EX2100 | 178 x 330.2 x 43 | 0.35 kg |
