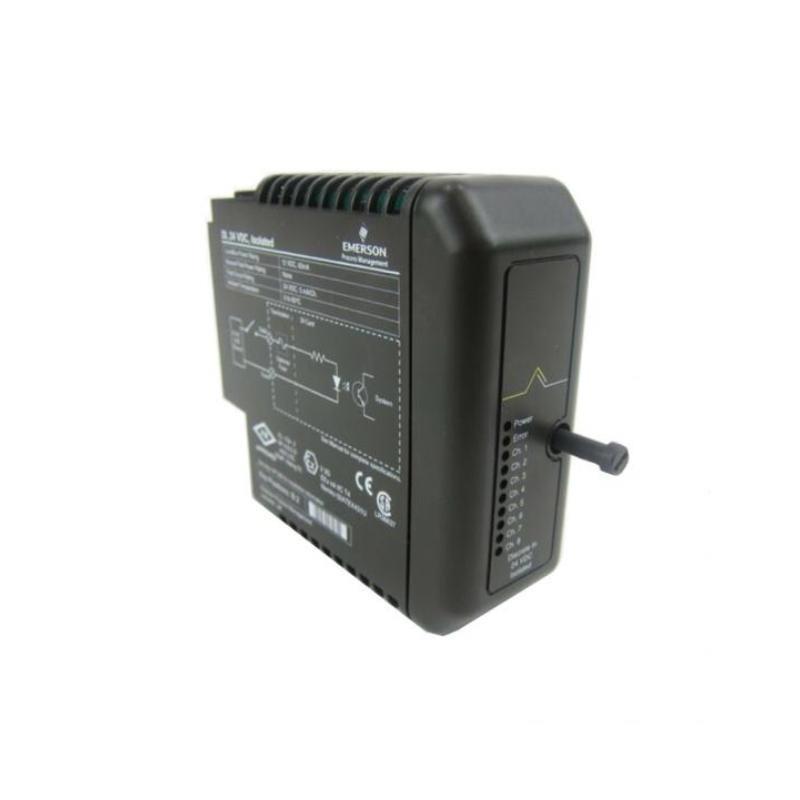

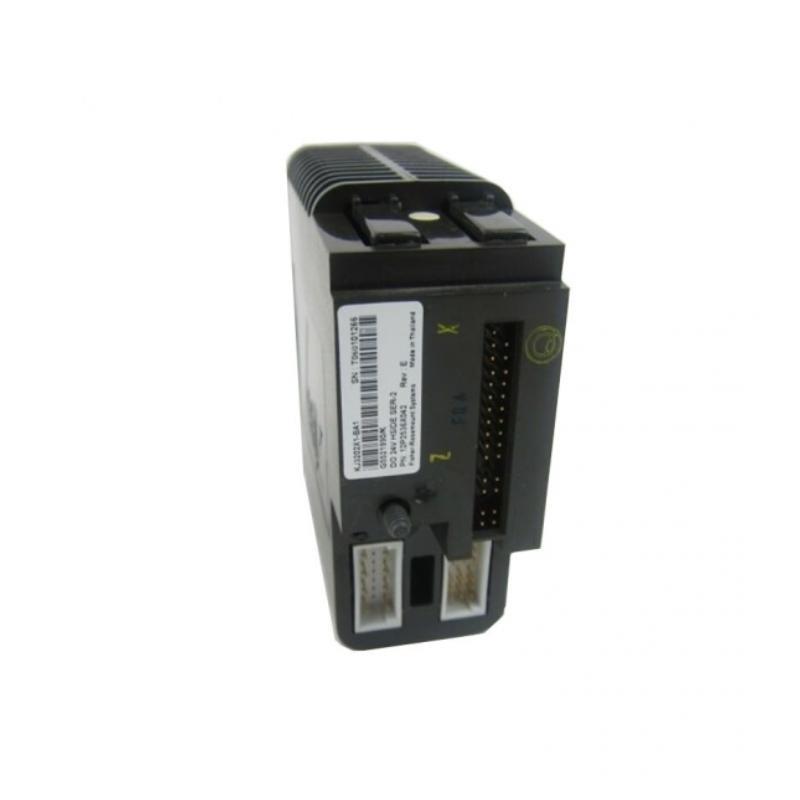

Product Overview
The Emerson KJ3005X1-BA1 Serial Interface Card is a robust and reliable communication module designed for integration within Emerson’s DeltaV™ control systems. It enables the connection / serial field devices using standard serial protocols, supporting communication with both legacy and modern instrumentation. The module is ideal for applications requiring Modbus or other serial protocols, /fering high-speed data transmission, configurable settings, and ease / installation.
Key Features
-
支持s RS-232, RS-422, and RS-485 serial communication
-
Compatible with Modbus RTU and ASCII protocols
-
Two independently configurable serial ports
-
Hot-swappable for live system maintenance
-
Built-in optical isolation for reliable signal integrity
-
LED indicators for communication and status diagnostics
-
Easy integration into DeltaV systems via standard carriers
-
Compact and durable for industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Serial Interface Card |
| Communication Protocols | Modbus RTU, Modbus ASCII |
| Serial Standards 支持ed | RS-232, RS-422, RS-485 |
| Number / Ports | 2 serial ports |
| Baud Rate | 300 bps to 115.2 kbps (configurable) |
| Data Bits | 7 or 8 |
| Parity | None, Even, Odd (configurable) |
| Stop Bits | 1 or 2 |
| Isolation | Optical isolation between ports and system |
| LED Indicators | Port status and communication activity |
| Hot-Swappable | Yes |
| Dimensions | 120 x 25 x 90 mm |
| 重量 | 0.18 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Mounting | DeltaV I/O carrier or baseplate |
| Certifications | CE, UL, CSA, RoHS |
Industry Applications
-
Oil & Gas
-
Chemical Processing
-
Power Generation
-
Pharmaceutical Manufacturing
-
Water and Wastewater Treatment
-
Food and Beverage
-
Pulp and Paper
Product Advantages
-
Seamless connection to serial field devices
-
Enhanced flexibility with dual-port configuration
-
Reliable performance with noise-immune optical isolation
-
Enables legacy device integration in modern control systems
-
Real-time diagnostics via LED indicators
-
Easy configuration and maintenance
常见问题 (FAQ)
-
What communication protocols are supported?
Modbus RTU and Modbus ASCII. -
Does the module support multiple serial ports?
Yes, it features two independently configurable ports. -
Is the module hot-swappable?
Yes, it can be replaced without shutting down the system. -
What serial standards are compatible?
RS-232, RS-422, and RS-485. -
What is the maximum baud rate?
Up to 115.2 kbps. -
How is the module mounted?
It is installed on a DeltaV I/O baseplate or carrier. -
What type / isolation is used?
Optical isolation to prevent signal interference. -
Are communication diagnostics available?
Yes, via LED status indicators for each port. -
Can it be configured for different parity settings?
Yes—None, Even, and Odd are supported. -
What industries use this module?
Common in oil & gas, chemicals, pharma, and utilities.
