产品介绍

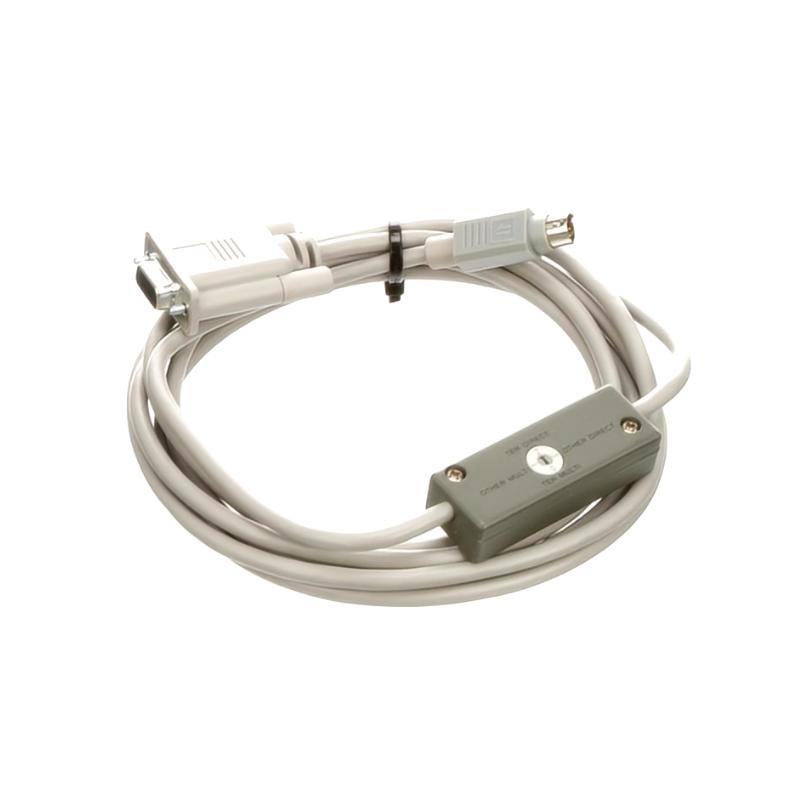

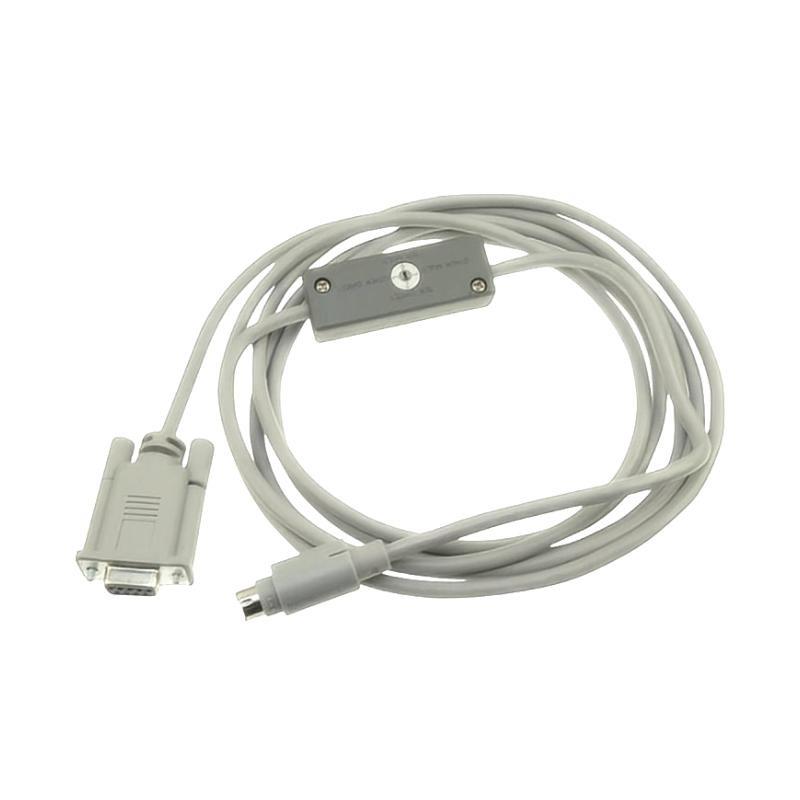

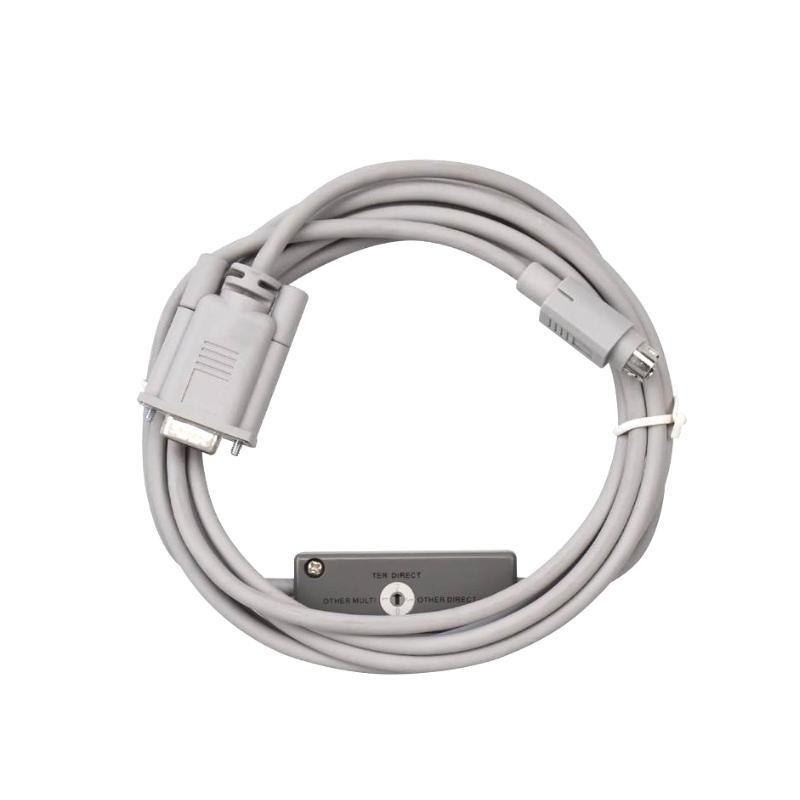

The Schneider TSXPCX1031-C is a dedicated RS232 connecting cable specifically designed for interfacing between a computer (DTE — Data Terminal Equipment) and Schneider Electric PLC terminals. This high-quality cable ensures reliable communication between automation devices and programming stations, enabling engineers to easily program, configure, and monitor 施耐德 systems.
Optimized for use with Schneider’s Modicon TSX Micro, TSX Nano, and Twido series PLCs, the TSXPCX1031-C provides a robust and interference-resistant connection for field maintenance or on-site programming. The cable is constructed with durable materials and designed to withstand harsh industrial environments, /fering flexibility, long service life, and superior signal integrity.
产品规格
| Parameter | Specification |
|---|---|
| Product 型号 | TSXPCX1031-C |
| Type | RS232 Serial Communication Cable |
| 支持ed Interface | RS232 (DTE Terminal Port) |
| Connector Type | DB9 (RS232) to Mini-DIN 8-pin (PLC side) |
| Cable Length | 2.5 meters |
| Compatible PLCs | Schneider TSX Nano, TSX Micro, Twido Series |
| Transfer Speed | Up to 115.2 Kbps |
| Insulation Material | Industrial-grade PVC |
| Shielding | Double shielded for noise imm件y |
| Operating Temperature Range | -10°C to +60°C (14°F to 140°F) |
| Storage Temperature Range | -20°C to +75°C (-4°F to 167°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certifications | CE, RoHS Compliant |
| 重量 | 0.17 kg |
Applications
The Schneider TSXPCX1031-C RS232 cable is widely used in the following applications:
-
PLC Programming and Configuration: Connects a PC to 施耐德 terminals for uploading/downloading programs and setting system parameters.
-
System Diagnostics: Enables real-time monitoring, troubleshooting, and maintenance.
-
Field Commissioning: Allows engineers to program or adjust PLCs on-site during installation and commissioning.
-
Testing and Simulation: Useful for laboratory and development environments to test control logic.
-
Data Logging: Facilitates connection / the PLC to third-party data acquisition s/tware for historical data analysis.
-
Maintenance Operations: Provides a reliable interface for periodic system checks and upgrades.
Advantages and Key Features
-
Reliable Communication: Provides high-quality RS232 signal transmission with excellent noise imm件y.
-
Industrial Durability: Designed for tough factory environments with flexible and durable PVC insulation.
-
Ease / Use: Plug-and-play interface with 施耐德s—no external power supply required.
-
Wide Compatibility: 支持s Schneider TSX Nano, Micro, and Twido PLC families.
-
Optimized Length: 2.5 meters cable length ideal for both field use and workstation connections.
-
Stable Connection: Double-shielded design ensures stable and secure data transmission.
-
Certifications: CE and RoHS compliant, ensuring adherence to international safety standards.
-
Compact and Portable: Lightweight and easy to transport for field engineers.
-
支持s High Baud Rates: Communication speeds up to 115.2 Kbps.
-
Cost-Effective: Affordable solution for reliable RS232-PLC connectivity.
常见问题 (FAQ)
-
What PLC models is the TSXPCX1031-C compatible with?
It supports Schneider TSX Nano, TSX Micro, and Twido series PLCs. -
What is the length / the cable?
The TSXPCX1031-C cable is 2.5 meters long. -
Does this cable support high-speed data transmission?
Yes, it supports speeds up to 115.2 Kbps. -
Is the cable plug-and-play?
Yes, no external power is required. It connects directly between the PC and the PLC. -
Can this cable be used in industrial environments?
Yes, it is built with industrial-grade PVC insulation and shielding for factory conditions. -
What connectors are used on this cable?
DB9 (PC side) to Mini-DIN 8-pin (PLC side). -
Does this cable require special drivers?
No special drivers are required beyond standard serial port configuration. -
Can the cable be used with Windows-based programming s/tware?
Yes, it is compatible with Schneider programming tools like PL7, TwidoSuite, and 单位y Pro. -
What certifications does this cable have?
It is CE marked and RoHS compliant. -
What is the weight / the cable?
It weighs 0.17 kg.
Recommended Related 型号s (Same Series / Similar 型号s)
| 型号 | 描述 | Notes |
|---|---|---|
| TSXPCX3030-C | USB to RS485 cable | Alternative for USB port usage |
| TSXPCX1031 | RS232 connecting cable (standard version) | Without “-C” designation |
| TSXPCX1131 | RS232 interface cable for older TSX Micro PLCs | Legacy equipment compatibility |
| TSXCUSB485 | USB to RS485 isolated cable | 支持s newer PLCs |
| VW3A8306 | Serial communication cable for Altivar drives | For drive communication |
| TSXPCX3030 | USB-to-RS232/RS485 multi-protocol cable | Versatile for multiple 施耐德s |
Popular Schneider Electric Automation 型号s (Same 品牌)
| 型号 | 描述 | Typical Use |
|---|---|---|
| TSXPCX1031-C | RS232 DTE Terminal Port Connecting Cable | PLC programming and diagnostics |
| TSXP572634M | Premium PLC CPU module | Advanced PLC applications |
| BMXP341000 | Modicon M340 PLC CPU | Compact, powerful mid-range controller |
| TM221CE24R | Modicon M221 logic controller | Entry-level machine control |
| TSXDMZ28DR | I/O expansion module for Modicon PLCs | Digital I/O expansion |
| ATV630D55N4 | Altivar 630 variable speed drive | Advanced motor control applications |
