产品介绍

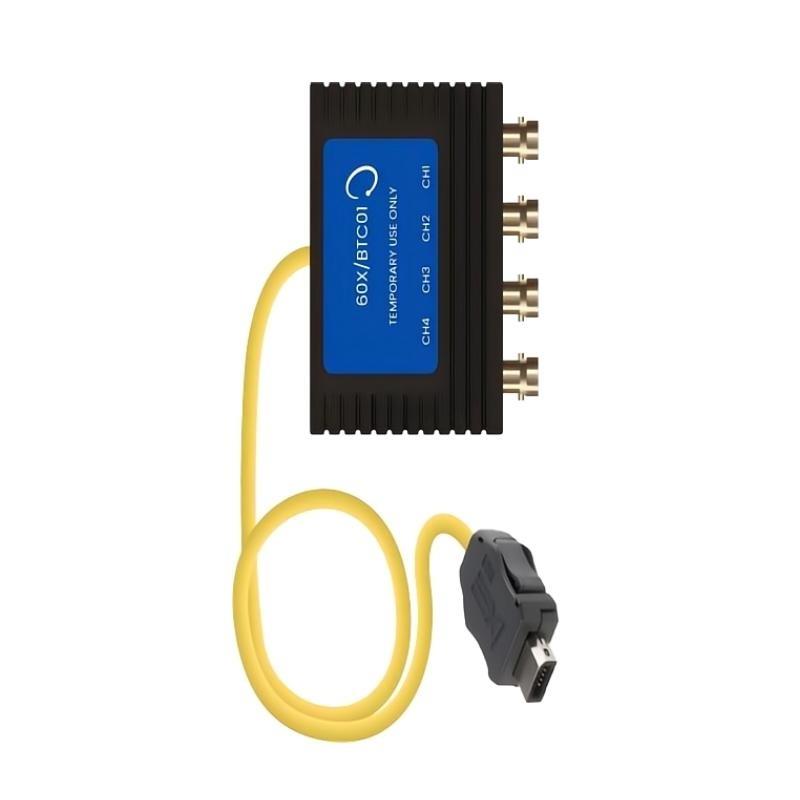

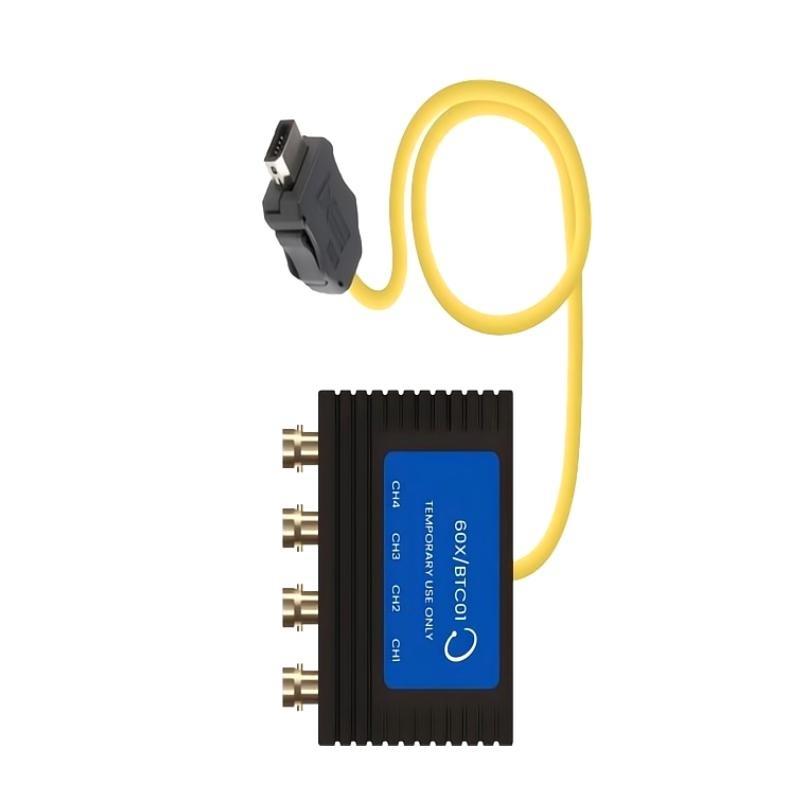

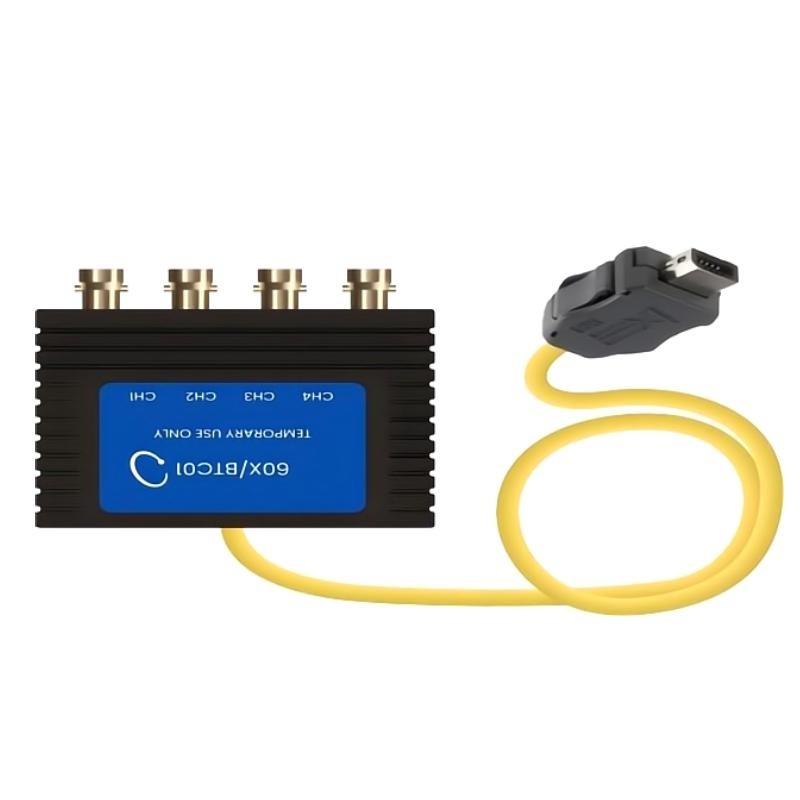

The Bently Nevada 60X/BTC01 Buffered Transducer Breakout Kit is a specialized accessory engineered to provide quick, non-intrusive access to critical vibration and proximity probe signals in rotating machinery monitoring systems. Designed as part / the Bently Nevada 60X series, it enables technicians to capture accurate real-time data for diagnostics, calibration, and condition-based maintenance without disrupting the primary protection circuitry. This kit serves as an indispensable tool for industrial applications such as turbines, compressors, pumps, and other high-value equipment where continuous monitoring and rapid troubleshooting are essential. Its robust construction and reliable signal buffering make it ideal for harsh plant environments and demanding field conditions.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 | 60X/BTC01 |
| Primary Function | Buffered breakout / transducer signals for testing and diagnostics |
| 支持ed Inputs | Proximity probes, velocity sensors, and other compatible vibration transducers |
| Output Interface | Standard BNC connectors for oscilloscope or data collector |
| Input Signal Range | ±20 V peak |
| Power Supply | 24 V DC nominal |
| Operating Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Humidity Range | 5 % to 95 % non-condensing |
| Mounting Options | Panel or DIN-rail |
| Dimensions (W × H × D) | 150 × 110 × 60 mm |
| 重量 | 0.9 kg |
| Compliance | CE, RoHS, and industrial EMC standards |
Applications
-
Vibration Monitoring: Enables direct measurement / probe signals on turbines, compressors, and critical rotating equipment.
-
Field Calibration & Diagnostics: Allows accurate verification / probe outputs without interrupting protection systems.
-
Predictive Maintenance: Integrates seamlessly with portable analyzers for bearing condition and shaft alignment analysis.
-
Commissioning and Start-Up: Facilitates validation / probe installation and vibration thresholds during plant commissioning.
-
Research & Development: 支持s laboratory testing and high-frequency signal verification for prototype equipment.
Advantages
-
Non-Intrusive Signal Access: Provides buffered outputs so measurements can be made without disturbing control or protection loops.
-
High Signal Fidelity: Maintains the original waveform and frequency response for precise analysis.
-
Rugged Design: Built for reliability in industrial environments with wide operating temperature tolerance.
-
Easy Integration: Standard BNC connectors and DIN-rail compatibility simplify installation and maintenance.
-
Broad Compatibility: Works with a wide range / Bently Nevada and third-party vibration transducers.
-
Reduced Downtime: Rapid troubleshooting reduces machinery shutdown periods.
-
Isolated Channels: Galvanic isolation minimizes noise and eliminates ground loops.
FAQ
-
How many input channels does the 60X/BTC01 support?
It provides up to four buffered input channels for proximity or velocity sensors. -
Can this kit work with third-party vibration probes?
Yes, as long as the probes meet the voltage and impedance requirements. -
What is the recommended maximum cable length between the transducer and the kit?
Up to 100 m (328 ft) with low-noise coaxial cable is recommended. -
What is the required power supply specification?
A nominal 24 V DC power supply is required for operation. -
Does the 件 include any internal signal filtering?
No, it provides buffered but unfiltered signals to preserve the original waveform. -
Can the kit be installed inside an enclosed control cabinet?
Yes, it supports both panel and DIN-rail mounting for flexible installations. -
What is the typical output impedance / each buffered channel?
Typically less than 50 Ω to ensure minimal signal loss. -
Is galvanic isolation provided for each channel?
Yes, every channel is galvanically isolated to prevent ground loop interference. -
Is the kit suitable for high-frequency turbine monitoring applications?
Yes, it maintains full bandwidth to support high-speed machinery analysis. -
What type / connectors are available for external measuring equipment?
Standard BNC connectors are provided for direct connection to oscilloscopes or analyzers.
Related 型号s in the Same Series
| 型号 | 描述 |
|---|---|
| 60X/BTC02 | Buffered transducer breakout with extended frequency response |
| 60X/RTC01 | Relay terminal card for advanced monitoring integration |
| 60X/IOC01 | Input/output controller module for 60X platform |
| 60X/PMC01 | Multi-channel proximity monitor card |
| 60X/PTC01 | Proximity transducer conditioning card |
| 60X/ACM01 | Auxiliary communications module for system expansion |
Popular Bently Nevada 型号s
| 型号 | 描述 |
|---|---|
| 3500/22M | Keyphasor® module for speed and phase reference |
| 3500/42M | Proximitor®/Seismic monitor for vibration measurements |
| 3300 XL 8 mm | Proximity probe for standard machinery monitoring |
| 330104-00-08-05-02-00 | Proximitor® sensor for general-purpose vibration detection |
| 3500/32M | 4-channel relay module for shutdown logic |
| 3701/46 | ESD (Emergency Shutdown) monitor for critical protection systems |
