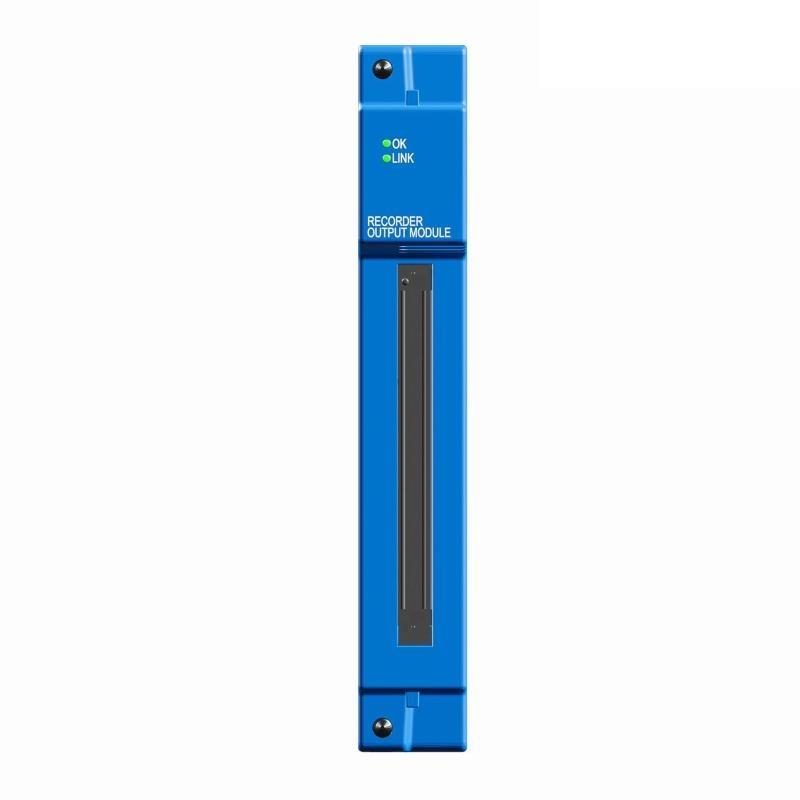

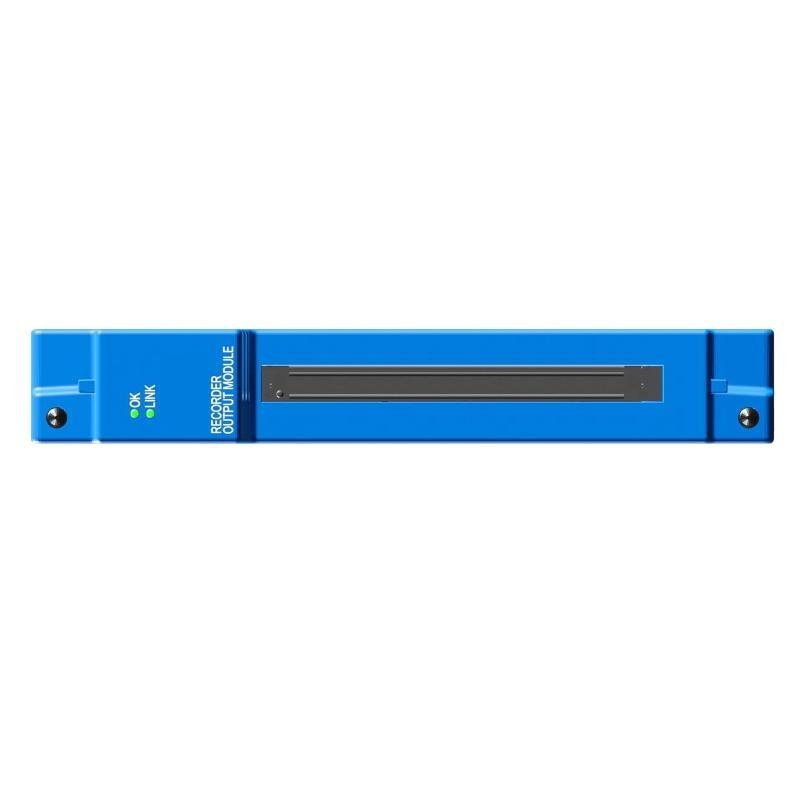

The Bently Nevada 60R/REC01-00-0 Recorder Output Module is a high-performance data output interface designed for the 60R Series condition monitoring system. It enables accurate and continuous recording / vibration, proximity, and process signals for real-time analysis, trending, and historical review. By converting critical machine condition data into standard recorder-compatible outputs, this module supports both digital and analog monitoring applications. It is suitable for installations with country-specific compliance codes and SIL-certified options, making it ideal for global deployment in power generation, petrochemical, and heavy industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Recorder Output Module |
| 型号 Number | 60R/REC01-00-0 |
| System Platform | Bently Nevada 60R Series |
| Input Signals | Dynamic vibration, proximity, velocity, process inputs |

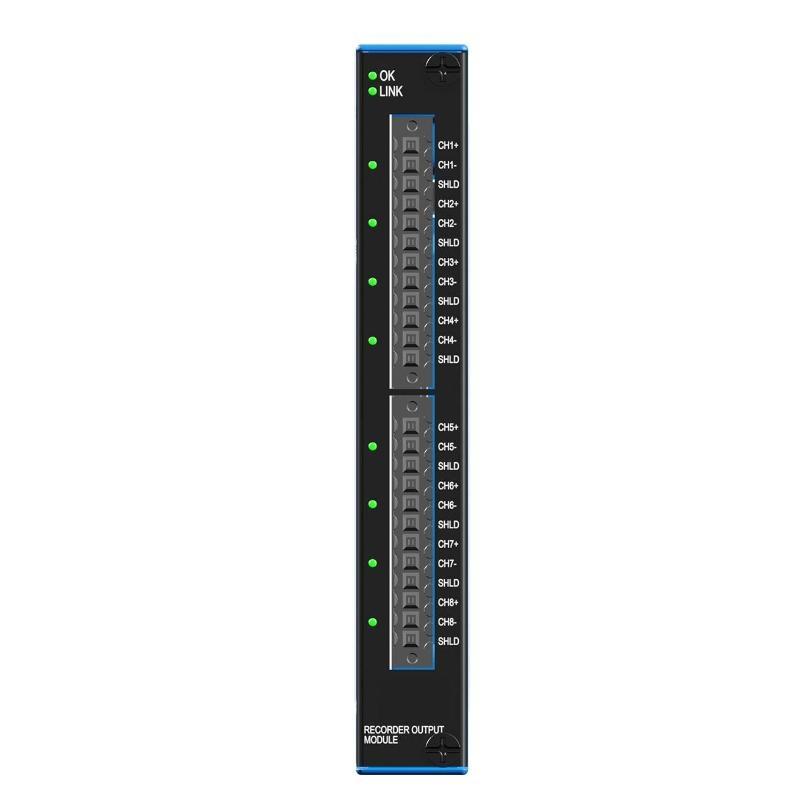

| Output Channels | 8 analog output channels (configurable) |
| Output Types | 4–20 mA, 0–10 V, ±10 V |
| Sampling Rate | Up to 20 kHz per channel |
| Signal Processing | Peak, RMS, average, filtered outputs |
| Communication Interfaces | Ethernet TCP/IP, Modbus TCP, OPC UA |
| Alarm/Trip Integration | 支持s relay outputs for external alarming |
| Power Supply | 24 VDC nominal (18–36 VDC range) |
| Operating Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Humidity | 5%–95% non-condensing |
| Vibration Resistance | 5 g, 5–2000 Hz |
| Shock Resistance | 30 g, 11 ms half-sine |
| SIL Certification Options | SIL 1 or SIL 2 compliant (order-specific) |
| Country-Specific Codes | Options for North America, EU, and Asia-Pacific standards |
| Dimensions (W × H × D) | 132.1 x 20.3 x 245.6 mm |
| 重量 | 1.2 kg |
| Compliance | CE, UL, RoHS |
Applications
-
Real-Time Data Recording: Converts monitored vibration, proximity, and process signals into analog outputs for recorders or SCADA systems.
-
Trend Analysis: Facilitates long-term performance analysis / rotating machinery such as turbines, compressors, and pumps.
-
Process Optimization: Enables engineers to evaluate machine performance and adjust operational parameters.
-
Machine Protection Systems: Interfaces with external alarm and trip systems for advanced protection.
-
Power Generation Facilities: Provides precise signal output for plant monitoring and historical analysis.
-
Industrial Automation: Integrates into DCS or SCADA systems to ensure consistent machine condition tracking.
-
Offshore and Marine Platforms: Designed for reliable operation under harsh environmental conditions.
Advantages
-
Flexible Output Configuration: 支持s multiple analog output types including 4–20 mA and ±10 V for broad compatibility.
-
High-Fidelity Signal Transmission: Up to 20 kHz sampling rate ensures accurate reproduction / high-frequency vibrations.
-
Integration with Control Systems: Ethernet, Modbus TCP, and OPC UA interfaces simplify SCADA/DCS integration.
-
Alarm 支持: Capable / linking to relay outputs for external trip or alert notifications.
-
SIL Certification Options: Provides functional safety compliance with SIL 1 or SIL 2 certifications.
-
Compact Form Factor: 3U design allows easy installation within the 60R series rack.
-
Rugged and Reliable: Engineered for harsh industrial environments with high vibration and shock tolerance.
-
Global Compliance: Country-specific code options facilitate worldwide installations.
-
Comprehensive Signal Processing: Built-in peak, RMS, and filtered output ensures high-quality data.
-
Scalable Design: Multiple recorder modules can be installed to expand system capability for larger installations.
FAQ
-
What types / signals can the 60R/REC01-00-0 module output?
It provides 8 configurable analog channels for dynamic vibration, proximity, velocity, and process input signals in formats such as 4–20 mA, 0–10 V, and ±10 V. -
What is the maximum sampling rate for each output channel?
Each channel can sample and update signals up to 20 kHz, supporting high-speed machine monitoring and recording. -
Can the module interface with SCADA or DCS systems?
Yes, the module supports Ethernet TCP/IP, Modbus TCP, and OPC UA for seamless integration with supervisory control systems. -
Is it possible to use this module for alarm or trip signaling?
Yes, the recorder output module can connect to relay outputs to trigger alarms or protective actions. -
Does the module support SIL-certified operation?
Yes, the 60R/REC01-00-0 can be ordered with SIL 1 or SIL 2 certification for functional safety compliance. -
How are high-frequency vibrations handled in the output?
With a 20 kHz sampling rate and built-in filtering, the module ensures high-fidelity reproduction / high-frequency signals. -
Can multiple recorder modules be used together?
Yes, multiple REC01-00-0 modules can be installed within a 60R chassis to provide additional output channels and support larger systems. -
What type / signal processing is applied before output?
The module provides real-time peak, RMS, and filtered signal processing for accurate analog output. -
Is the module compatible with global standards?
Yes, it /fers country-specific compliance code options for North America, EU, and Asia-Pacific installations. -
Can it operate in harsh industrial environments?
Absolutely, it is engineered to withstand 5 g vibration, 30 g shock, and a wide operating temperature range / –20 °C to +70 °C.
Related 型号s (Same Series)
| 型号 Number | 描述 | Key Feature |
|---|---|---|
| 60R/CMM01-00 | 状态 Monitoring Module | High-speed vibration and process analysis |
| 60R/INP01-00-0 | Prox/Accel/Velom Input Module | Multi-sensor vibration and position inputs |
| 60R/PIM01-00-0 | 3U Power Input Module | Dual-input redundant power supply |
| 60R/PPM01-00-0 | Protection Processing Module | Real-time trip and shutdown logic |
| 60R/CHA02-00-0 | 3U Chassis Panel | Houses multiple 60R modules |
| 60R/IOM01-00 | Input/Output Expansion Module | Adds additional I/O capacity |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Application Focus |
|---|---|---|
| 3500/42M | Proximitor Monitoring Module | Multi-channel vibration/position monitoring |
| 3500/40M | Vibration Monitor | Machine protection with four-channel input |
| 3500/22M | Transient Data Interface Module | High-resolution transient data acquisition |
| 330104-00-20-10-02-05 | Proximity Probe | Precision shaft vibration measurement |
| 330180-51-05 | Velocity Sensor | Seismic and structural vibration detection |
| 330130-040-00 | Extension Cable | Low-noise signal transmission for probes |
