Product Overview

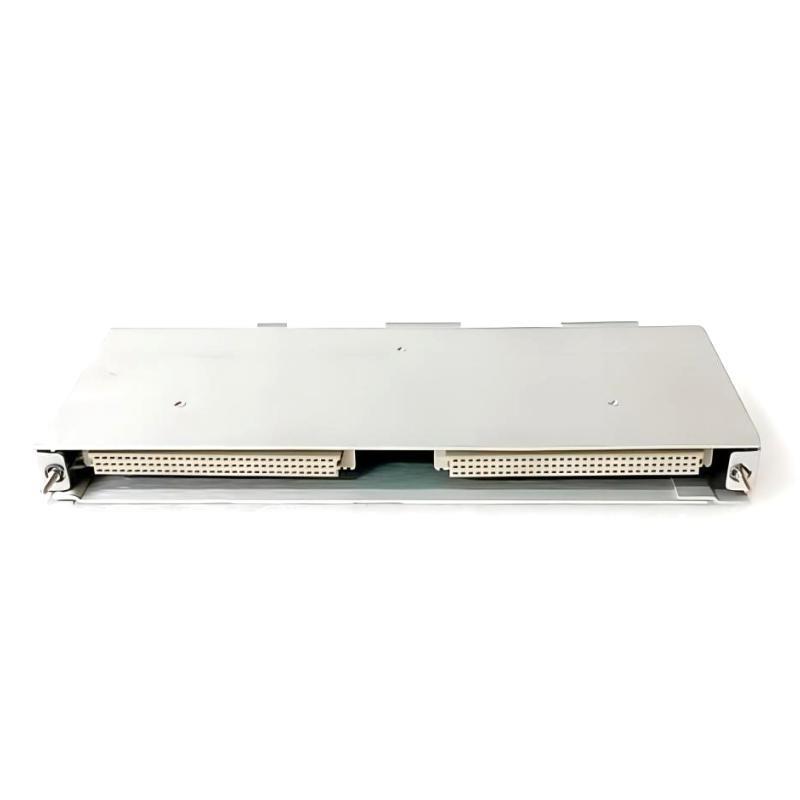

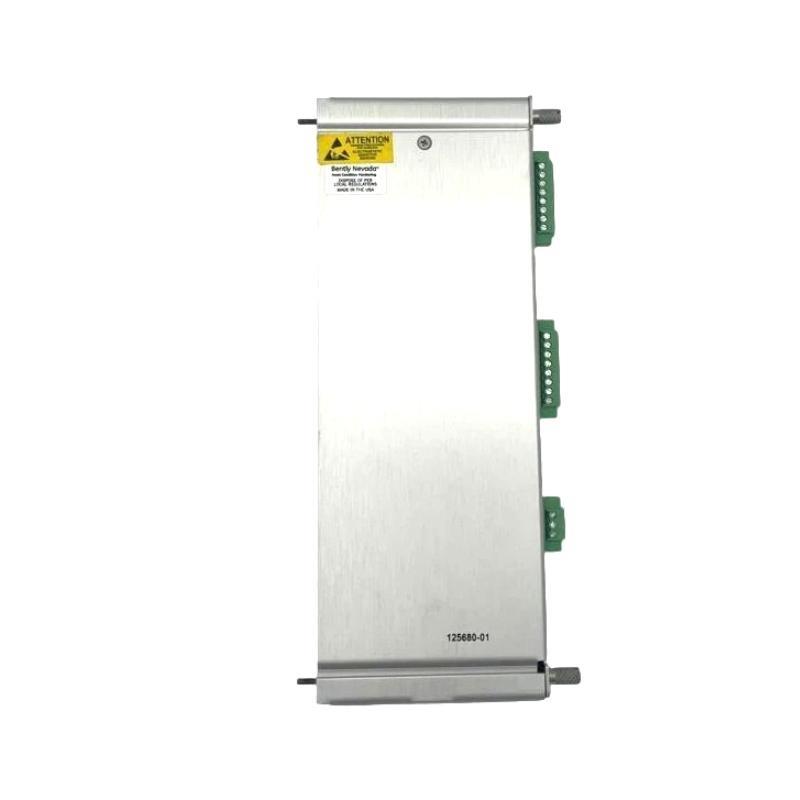

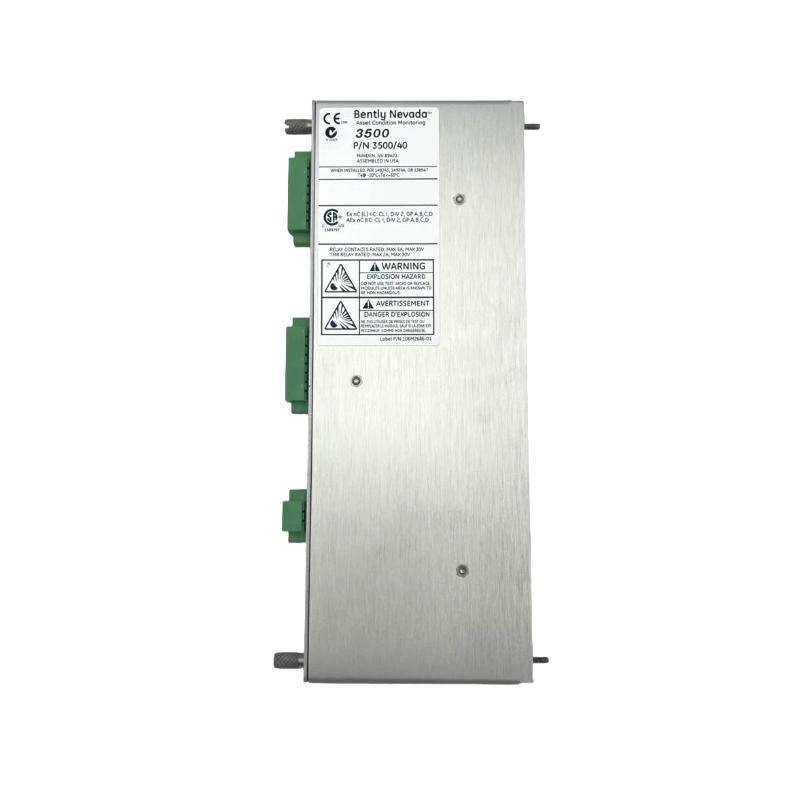

The Bently Nevada 3500/40M 125680-01 Proximitor I/O Module is part / the 3500 Machinery Protection System, designed to interface with proximity transducers to monitor critical machine parameters such as radial vibration, thrust position, eccentricity, REBAM, and differential expansion. It processes and conditions the incoming signals, provides programmable alarm setpoints, and outputs essential operational and maintenance data for machinery protection and diagnostics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Compatible Sensors | 1 to 4 proximity transducer signals |
| Power Consumption | 7.7 W typical |
| Input Impedance | 10 kΩ |
| Sensitivity | Radial Vibration: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil) |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 VDC |
| Alarm Setpoints | User-configurable (0–100% / full scale) |
| Alarm Time Delay | 1–60 s (Alert), 0.1–60 s (Danger) |
| Operating Temperature | -30°C to +65°C (w/o internal barrier) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (I/O Module, non-barrier) | 241.3 x 24.4 x 99.1 mm |
| 重量 (I/O Module, non-barrier) | 0.20 kg |
Applications
-
Continuous monitoring / critical machinery parameters in industrial environments
-
Protection / rotating equipment such as turbines, compressors, and pumps
-
Measurement / shaft vibration, position, and mechanical expansion
-
Integration with 3500 Rack Configuration S/tware for custom monitoring setups
-
Use in hazardous area classified zones with appropriate I/O module configurations
Advantages
-
High Versatility: 支持s multiple monitoring functions including vibration, thrust, and REBAM in one module.
-
Configurable Channels: Allows programming / channel pairs for different functions.
-
Precision Monitoring: High accuracy / ±0.33% full scale typical.
-
Flexible Alarm Management: Programmable alert and danger levels with delay settings.
-
Durable Design: Suitable for harsh industrial environments and hazardous zones.
-
Seamless Integration: Compatible with the full Bently Nevada 3500 series platform.
FAQ
Q1: What is the main function / the 3500/40M 125680-01?
A1: It interfaces with proximity transducers to monitor machinery vibration, position, and other parameters while providing alarm functions.
Q2: How many channels does it support?
A2: It supports 4 channels, configured in pairs for up to two monitoring functions.
Q3: What sensors are compatible with this module?
A3: It is compatible with Bently Nevada proximity transducers.
Q4: Can it operate in hazardous environments?
A4: Yes, when used with specific I/O module options, it meets ATEX/IECEx/CSA approvals for hazardous areas.
Q5: What is the power consumption / the module?
A5: It consumes approximately 7.7 watts.
Q6: What is the physical size and weight?
A6: 241.3 x 24.4 x 99.1 mm and 0.20 kg.
Q7: Does it support buffered transducer outputs?
A7: Yes, it provides short-circuit-protected coaxial connectors for each channel.
Q8: What is the accuracy / its measurements?
A8: Typically ±0.33% / full scale, maximum ±1%.
Q9: How are alarm delays configured?
A9: Alarm delays are set through the 3500 Rack Configuration S/tware.
Q10: What are its primary industrial applications?
A10: It is mainly used for protection and monitoring / rotating machinery in industries such as power generation, oil and gas, and petrochemical.
Related 型号s (Same Series or Function)
| 型号 | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 3500/40M-01 | Proximitor I/O Module Internal Termination | 241.3 x 24.4 x 99.1 | 0.20 |
| 3500/40M-02 | Proximitor I/O Module External Termination | 241.3 x 24.4 x 99.1 | 0.20 |
| 3500/40M-03 | Proximitor I/O Module Internal Barriers | 241.3 x 24.4 x 163.1 | 0.46 |
| 176449-01 | 3500/40M Proximitor Monitor | 241.3 x 24.4 x 241.8 | 0.91 |
| 126615-01 | Proximitor I/O Module External Termination | 241.3 x 24.4 x 99.1 | 0.20 |
| 135489-04 | Proximitor I/O Module with Barriers | 241.3 x 24.4 x 163.1 | 0.46 |
Popular 型号s from Bently Nevada
| 型号 | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 3500/42M | Proximitor Seismic Monitor | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/44M | Aeroderivative GT Vibration Monitor | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/22M | Transient Data Interface Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/32M | Relay Module | 241.3 x 24.4 x 99.1 | 0.20 |
| 3500/50M | Tachometer Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/92 | Communication Gateway Module | 241.3 x 24.4 x 99.1 | 0.20 |
