产品介绍

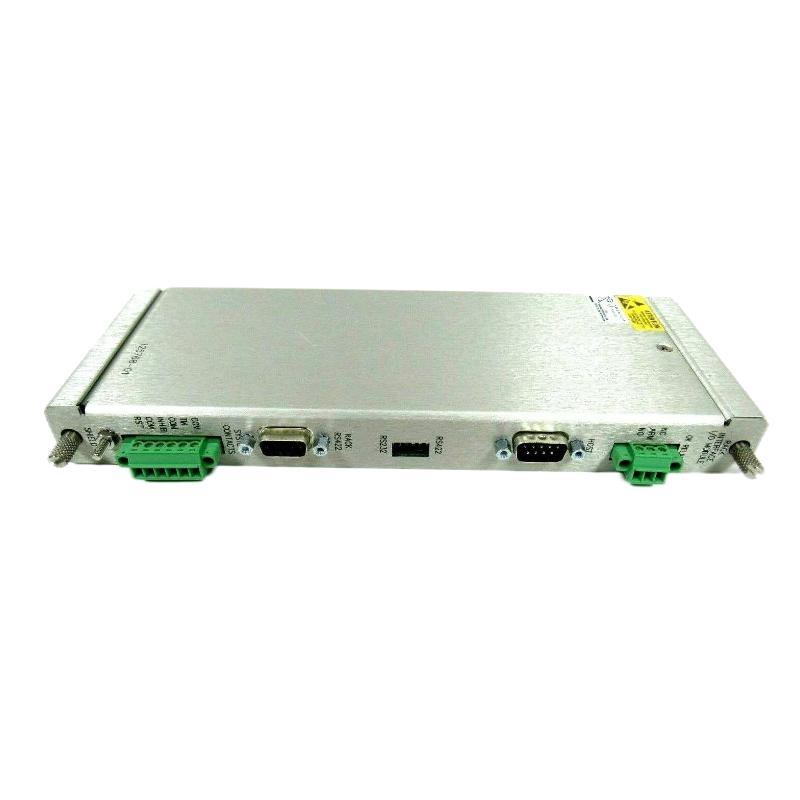

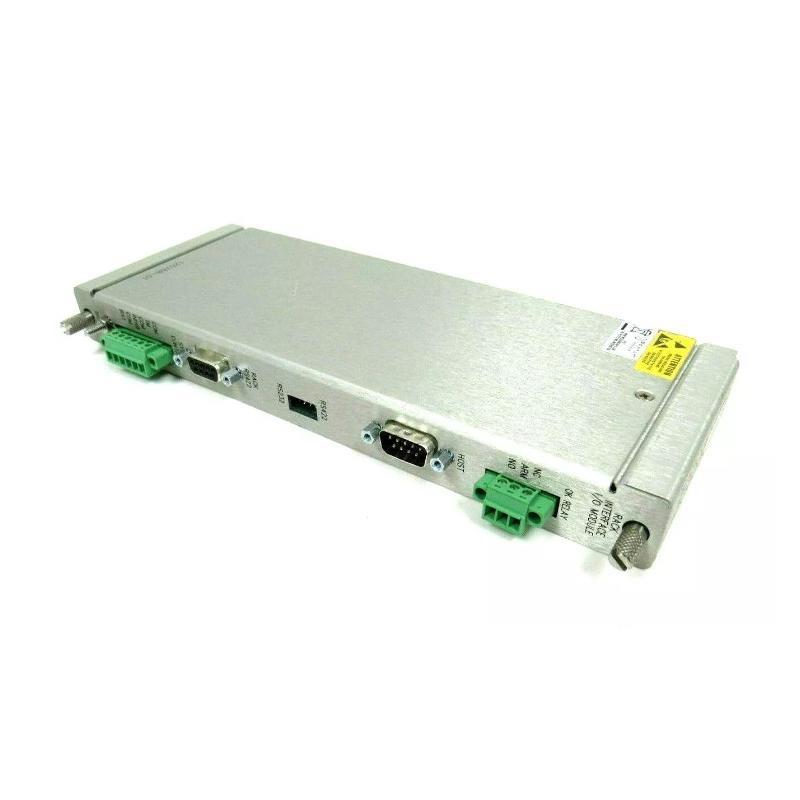

The Bently Nevada 3500/20-01-02-00 Rack Interface Module (RIM), part number 125768-01, plays a central role in the Bently Nevada 3500 Series Machinery Protection System. It acts as the interface between the 3500 monitoring rack and external communication devices such as System 1® condition monitoring s/tware, distributed control systems (DCS), or programmable logic controllers (PLC). This module also performs various rack-level functions, including the management / configuration data and communication status.
The 3500/20 RIM is vital for system integrity, supporting configuration uploads/downloads, real-time alarm transmission, and system diagnostics. It is /ten installed in the leftmost slot (slot 1) / the 3500 rack and is essential for operating the system’s configuration and communication capabilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Rack Interface Module |
| 零件号 | 125768-01 |
| 型号 Number | 3500/20-01-02-00 |
| Series | Bently Nevada 3500 Series |
| Function | Communication and configuration management module |
| Communication Ports | 1 RS-232 serial port, 1 RS-422/485 port, 1 Ethernet (optional in other variants) |
| Input Voltage | Supplied via the 3500 backplane from the Power Supply Module |
| Mounting Location | Slot 1 (leftmost slot in the rack) |
| Configuration Interface | Via 3500 Configuration S/tware or front-panel DIP switches |
| Status Indicators | OK, TX/RX, CONFIG, COMM, LED-based |
| Operating Temperature | –30°C to +65°C (–22°F to +149°F) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Humidity Range | 0–95% RH, non-condensing |
| Shock Resistance | 10 g, 11 ms half-sine |
| Vibration Resistance | 0.5 g at 10–500 Hz |
| Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
Applications
The 3500/20-01-02-00 Rack Interface Module is a core component / the Bently Nevada 3500 Series and is used in a variety / critical monitoring and protection environments:
-
Gas and Steam Turbine Monitoring Systems
-
Compressor Health Management
-
Rotating Equipment in Refineries and Petrochemical Plants
-
Large Industrial Motor and Generator Monitoring
-
Power Generation Control Systems
-
Remote Asset Monitoring via System 1®
This module allows the 3500 rack to integrate with plant-wide control and asset management systems, enhancing visibility, reliability, and diagnostic capabilities.
Product Advantages
-
Centralized Rack Communication Control
Acts as the nerve center / the 3500 monitoring rack, managing all system-wide configuration and communication functions. -
Reliable and Redundant Monitoring
Enables the use / dual RIMs in redundant configurations, providing continuous system operation even if one module fails. -
Diagnostic and Status Monitoring
Provides real-time LED status indicators and health monitoring for effective troubleshooting. -
Versatile Connectivity
支持s multiple communication protocols (RS-232, RS-422/485), with variants supporting Ethernet or TDI (Transient Data Interface). -
High Compatibility
Seamlessly works with all modules in the 3500 series and integrates with System 1® s/tware. -
Modular Design
Easily replaceable and hot-swappable without powering down the rack.
常见问题 (FAQ)
-
What is the main function / the 3500/20 Rack Interface Module?
It manages communication between the rack and external systems while also handling system configuration. -
Where is the RIM installed in the rack?
It is always installed in slot 1, the leftmost slot / the 3500 rack. -
Can I use two RIMs for redundancy?
Yes, the 3500 Series allows dual RIMs to provide backup in case / a primary failure. -
Is Ethernet supported in this module?
This specific model supports RS-232 and RS-422/485; Ethernet support is available in other RIM variants. -
How is the module configured?
Configuration is done via 3500 Configuration S/tware or front-panel DIP switches. -
What s/tware is required to communicate with the RIM?
Typically, Bently Nevada’s System 1® condition monitoring s/tware is used. -
What happens if the RIM fails?
In non-redundant systems, rack communication is lost. In redundant setups, the backup RIM takes over. -
Is the module hot-swappable?
Yes, it can be removed and replaced without shutting down the system. -
Does the RIM store configuration data?
Yes, it stores system configuration and facilitates upload/download operations. -
Is this module required for the rack to operate?
Yes, the 3500 rack cannot function properly without at least one RIM installed.
Related 型号s (Same Series or Function Group)
| 型号 Number | 描述 | Key Feature | Slot Location |
|---|---|---|---|
| 3500/20-01-00-00 | Rack Interface Module (Base Variant) | RS-232 only | Slot 1 |
| 3500/22M | Transient Data Interface | Ethernet and 状态 Monitoring | Slot 1 |
| 3500/15 | Power Supply Module | Powers entire 3500 rack | Designated slots |
| 3500/25 | Keyphasor Module | Shaft phase reference | Any slot |
| 3500/32M | 4-Channel Relay Module | Programmable relay outputs | Any slot |
| 3500/42M | Proximitor®/Seismic Monitor | 4-channel vibration monitoring | Any slot |
Popular Bently Nevada 型号s (其他 Lines)
| 型号 Number | Product Type | Application | Mounting Style |
|---|---|---|---|
| 330104-00-05-10-01 | 3300 XL 8 mm Proximity Probe | Shaft vibration monitoring | Threaded sensor |
| 330180-91-05 | Extension Cable (5 m) | Signal transmission from probe to sensor | Coaxial cable |
| 3701/40 | Machinery Monitor | Standalone machine condition monitoring | DIN-rail mounted |
| 190501-00-00 | Velomitor® Velocity Sensor | Seismic vibration monitoring | Industrial sensor |
| 3500/05 | System Rack | Houses 3500 modules | 19-inch rack-mount |
| 3500/53 | Overspeed Detection Module | Detects turbine overspeed | Rack-mount |
