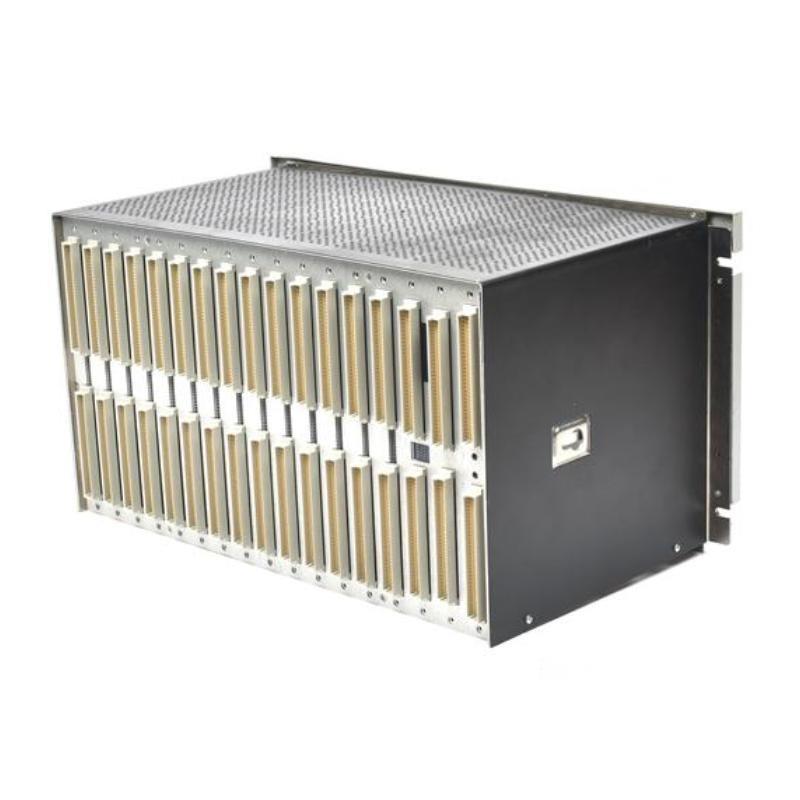

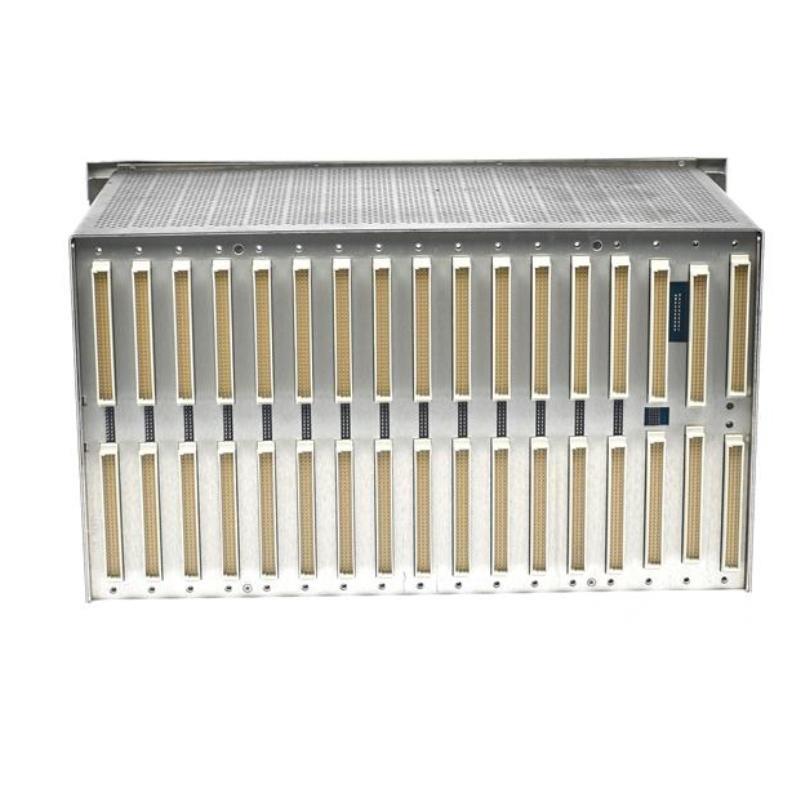

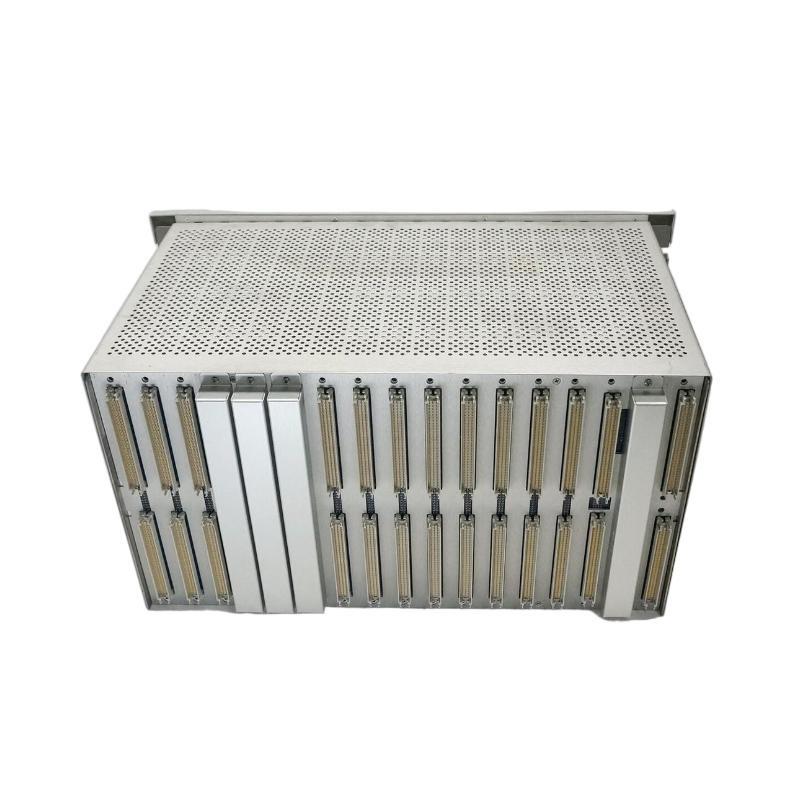

Bently Nevada 3500/05-02-04-00-00-00 System Rack
产品介绍
The Bently Nevada 3500/05-02-04-00-00-00 is an industrial-grade system rack engineered as part / the Bently Nevada 3500 Series Machinery Protection System. Designed to house and interconnect the full range / 3500 modules, this model /fers high reliability, modularity, and scalability, enabling robust monitoring / critical rotating machinery across various industries. It acts as the physical and electrical foundation / the 3500 system, accommodating up to 14 modules including power supplies, communication interfaces, and monitoring modules.
With an integrated backplane design, the 3500/05-02-04-00-00-00 facilitates seamless signal transmission and reliable communication between system components. It is particularly suited for deployment in high-availability environments such as petrochemical plants, power generation facilities, and /fshore platforms, where real-time monitoring and fast response to anomalies are mission-critical.
Product Advantages
-
High Capacity Modular Design: Accommodates up to 14 slots for various monitoring, communication, and power modules.
-
Flexible Mounting: Standard 19-inch rack-mount design ensures compatibility with control room and field installations.
-
Enhanced System Integrity: Backplane-based connectivity minimizes wiring complexity and improves signal integrity.
-
Redundant Power Supply 支持: Offers dual power input capability for enhanced system uptime.
-
Part / a Complete Ecosystem: Seamless integration with all 3500 Series modules ensures complete system cohesion and operational safety.
-
Designed for Harsh Environments: Robust metal construction ensures durability under demanding industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 3500/05-02-04-00-00-00 |
| Product Type | System Rack |
| Rack Type | Full-Size 19” EIA Rack Mount |
| Mounting | Panel Mount / Rack Mount (Standard 19-inch rack) |
| Power Supply Compatibility | Single or Dual Redundant Power Modules |
| Material | Anodized Aluminum |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 95% non-condensing |
| Shock and Vibration Resistance | Compliant with IEC 60068-2-6 and 60068-2-27 |
| Rack Size | 12-inch (7 module slots) |
| 重量 | 4.5 kg |
| Communication Options | TDI (Transient Data Interface), RIM, etc. |
| Certifications | CE, CSA, ATEX, IECEx, and others depending on configuration |
Applications
-
Petrochemical and Refining Facilities: For continuous vibration monitoring / turbines, compressors, and pumps.
-
Power Generation Plants: Applied in steam turbines and gas turbine machinery protection systems.
-
Oil & Gas Platforms: Offshore platforms and drilling systems utilize 3500 racks for reliable monitoring in extreme environments.
-
Industrial Manufacturing: High-speed rotating equipment in steel, cement, and paper mills.
-
Water Treatment Facilities: Monitoring / pumps and motor-driven assets.
-
Aerospace Ground Equipment: Applied in testing stations for turbines and engines.
Installation Guidelines
-
Mounting: Secure the rack in a standard 19-inch cabinet or control panel using appropriate screws.
-
Power Configuration: Install single or dual power supply modules (leftmost slot). Confirm voltage input settings as per site requirement.
-
Communication Modules: Install a TDI module in the designated communication slot to handle configuration and data interface.
-
Monitoring Modules: Install vibration, temperature, or other input modules in the available monitoring slots (up to 11).
-
Wiring: Use shielded twisted-pair cables for sensor inputs and BNC connectors where needed.
-
Grounding: Ensure proper chassis grounding in accordance with the site grounding policy.
-
Verification: Perform system self-check through the configuration s/tware (e.g., System 1) after assembly.
FAQ (常见问题)
Q1: What is the maximum number / monitoring modules the 3500/05-02-04-00-00-00 rack can support?
A1: It supports up to 11 monitoring modules, with additional slots for power and communication modules.
Q2: Does this rack support redundant power supply configuration?
A2: Yes, it supports dual power modules for redundancy, increasing system reliability.
Q3: Can I install the rack in a non-standard enclosure?
A3: While possible, it is highly recommended to use standard 19-inch enclosures for optimal fit and airflow.
Q4: What s/tware is required to configure modules within this rack?
A4: Bently Nevada’s System 1 s/tware is used for configuration and diagnostics.
Q5: Is this rack backward compatible with older 3300 series modules?
A5: No, the 3500 system is not backward compatible with the older 3300 series.
Q6: What environmental certifications does the rack comply with?
A6: It complies with CE, CSA, ATEX, and IECEx standards depending on system configuration.
Q7: How is signal integrity maintained across modules?
A7: The system uses a backplane design for interconnection, which enhances reliability and signal clarity.
Q8: Can the system be remotely monitored?
A8: Yes, with TDI modules and appropriate network configuration, remote monitoring is fully supported.
Q9: How /ten should the system rack be inspected?
A9: Visual inspection should be done quarterly, with full system diagnostics semi-annually.
Q10: Is this rack compatible with condition-based maintenance (CBM) systems?
A10: Yes, it integrates seamlessly with CBM platforms via System 1 and OPC data connections.
6 Recommended 型号s from the Same Series
| 型号 Number | 描述 |
|---|---|
| 3500/05-01-01-00-00-01 | Full-size rack with standard mounting |
| 3500/05-02-04-00-00-01 | Enhanced rack with rear I/O connectors |
| 3500/15-05-01-00 | Power Supply Module (AC) |
| 3500/15-01-01-00 | Power Supply Module (DC) |
| 3500/22M-01-01-00 | TDI Module with Ethernet Interface |
| 3500/42M-01-00 | Proximitor / Seismic Monitor Module |
6 Popular Bently Nevada 型号s
| 型号 Number | 描述 | Dimensions (mm) | 重量 (kg) | Voltage |
|---|---|---|---|---|
| 3500/22M-01-01-00 | Transient Data Interface (TDI) Module | 241 x 24 x 190 | 0.45 | 24 VDC |
| 3500/15-01-01-00 | Power Supply Module (DC) | 241 x 24 x 190 | 0.50 | 24 VDC |
| 3500/32M-01-00 | 4-20 mA Output Module | 241 x 24 x 190 | 0.42 | 24 VDC |
| 3500/42M-01-00 | Vibration/Position Monitor | 241 x 24 x 190 | 0.43 | 24 VDC |
| 330104-00-20-10-02-00 | Proximitor Sensor | 76 x 22 x 22 | 0.13 | Passive |
| 3500/93-01-00-02 | Display Interface Module | 241 x 24 x 190 | 0.48 | 24 VDC |
