Product Introduction

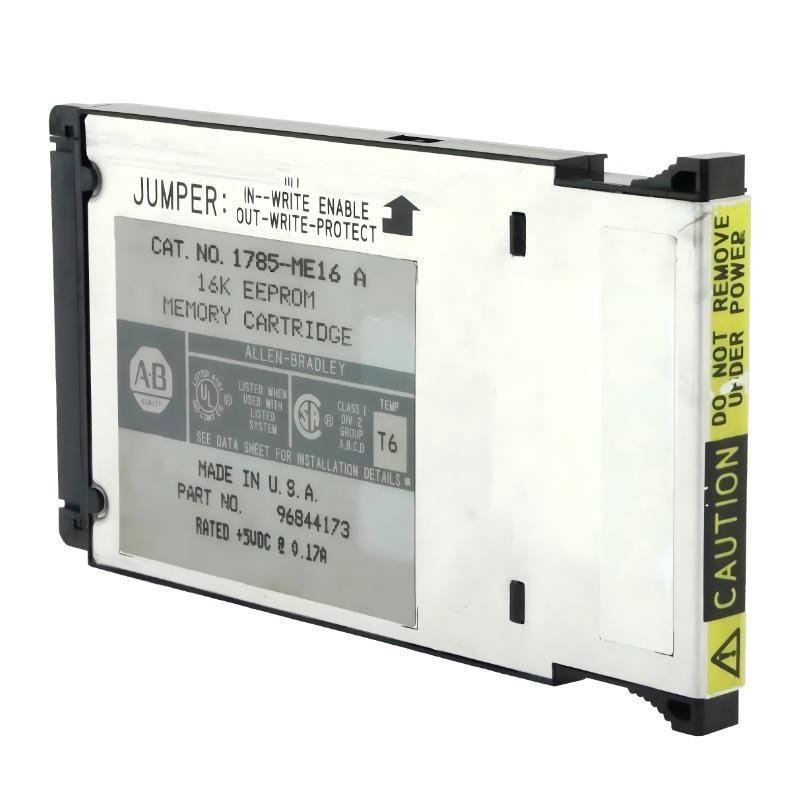

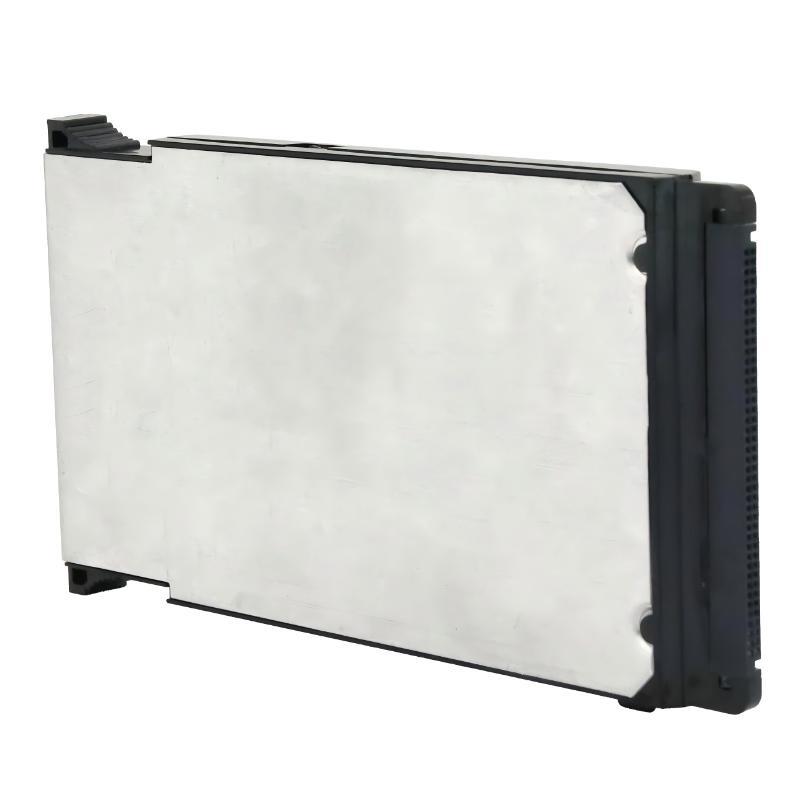

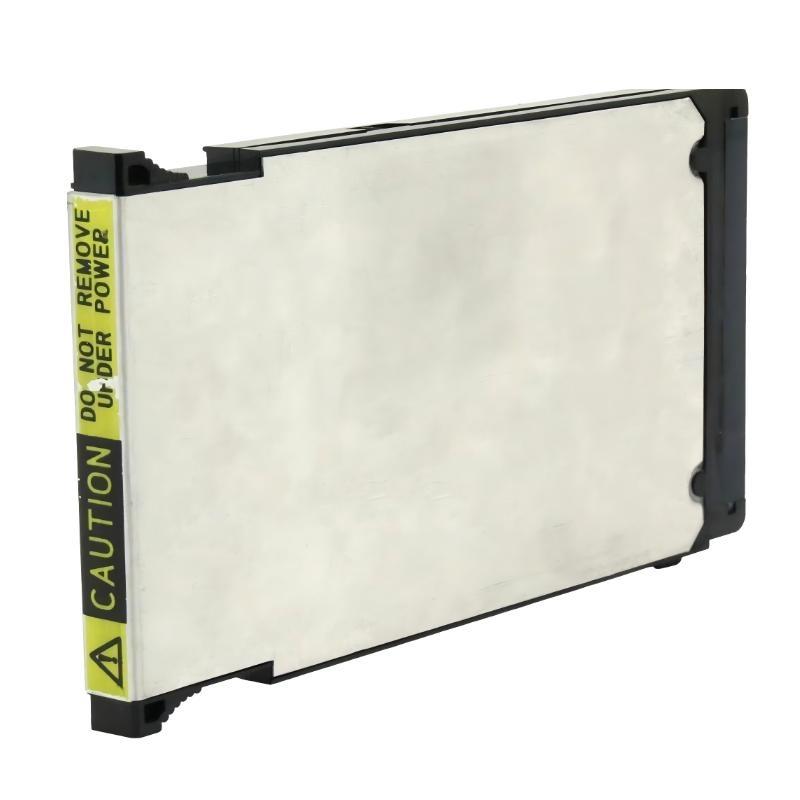

The Allen Bradley 1785-ME16 EEPROM Backup Memory Cartridge is a non-volatile memory module designed for the PLC-5 series programmable logic controllers. It provides a reliable method for storing and preserving control programs, configuration data, and system parameters when power is removed from the controller.
With a 16 K word EEPROM storage capacity, the module allows users to back up the processor memory and automatically restore the control program during system startup. This function is particularly important in industrial environments where system recovery and fast restart are critical for maintaining continuous production.
The 1785-ME16 memory cartridge installs directly into compatible PLC-5 processors and operates within standard industrial temperature and humidity ranges. Its rugged design ensures stable performance even in environments subject to vibration or electrical disturbances, making it a dependable solution for protecting PLC program data in automation systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | EEPROM Backup Memory Cartridge |
| 制造商 | Allen Bradley |
| 型号 Number | 1785-ME16 |
| Controller Compatibility | PLC-5 Series |
| Memory Type | EEPROM Non-Volatile Memory |
| Memory Capacity | 16 K Words |
| Installation Type | Processor-mounted memory cartridge |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | –40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 5 to 95% non-condensing |
| Shock, Operating | 15 g peak, 11 ms |
| Shock, Non-operating | 3 g peak, 11 ms |
| Backplane Power Requirement | 2.5 A at 5 V DC |
| Application | PLC program backup and automatic recovery |
| Dimensions | 110 × 20 × 80 mm |
| 重量 | 0.11 kg |
Applications
● PLC Program Backup
Stores control logic programs so they can be restored after power loss or processor replacement.
● Industrial Automation Systems
Used in manufacturing plants where PLC programs must be preserved for reliable system operation.
● System Recovery and Restart
Allows the PLC processor to reload the stored program quickly during startup or maintenance.
● Machine Control Systems
Protects machine automation programs from accidental loss during power interruptions.
● Distributed Control Installations
Ensures program consistency across multiple PLC systems in networked environments.
● Maintenance and System Upgrades
Provides a convenient method for backing up programs before performing system modifications.
Advantages
● Non-Volatile Memory Protection
EEPROM technology ensures that stored programs remain intact even when power is removed.
● Automatic Program Restoration
Allows the PLC-5 processor to reload the stored control logic automatically during system startup.
● Reliable Industrial Operation
Designed to operate across a wide temperature range and high humidity industrial environments.
● Compact Cartridge Design
Small and lightweight structure enables quick installation into compatible PLC processors.
● Improved System Reliability
Prevents data loss and reduces downtime by ensuring that control programs remain available.
● Durable Construction
Resistant to shock and environmental conditions commonly found in industrial automation systems.
