The Bently Nevada 33500/22M Transient Data Interface Module (TDI), part numbers 146031-01 and 288055-01, is a high-performance communication and data interface 件 designed for integration within the 3500 Machinery Protection System. This TDI version combines enhanced hardware capability with advanced transient data collection, supporting seamless communication with System 1® condition monitoring s/tware.
Functioning as the system’s Rack Interface Module (RIM), it captures both steady-state and transient vibration or position data during machinery events such as startups, shutdowns, or malfunctions. With dual part numbers, this configuration includes both the core TDI module and associated terminal components for optimized installation and data transfer.
Installed exclusively in Slot 1 / the rack, the 33500/22M ensures centralized control, simplified configuration management, and high-resolution data communication for real-time diagnostics and predictive maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Transient Data Interface Module (TDI) |
| 型号 Number | 33500/22M |
| 零件号s | 146031-01 + 288055-01 |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Function | Rack interface, configuration control, transient data collection |
| Mounting Location | Slot 1 / 3500 rack |
| Communication Ports | 10/100 Mbps Ethernet, RS-232, RS-422/485 |
| 支持ed Protocols | Modbus TCP/IP, Bently proprietary protocols, System 1® |
| System S/tware | System 1® 状态 Monitoring Platform |
| Redundant Configuration | 支持s dual TDI setup |
| LED Indicators | OK, TX/RX, CONFIG, COMM, NETWORK |
| Hot Swappable | Yes |
| Power Source | Supplied through 3500 rack backplane |
| Operating Temperature | –30°C to +65°C (–22°F to +149°F) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Humidity Range | 0–95% RH (non-condensing) |
| Shock Resistance | 10 g (11 ms half-sine) |
| Vibration Resistance | 0.5 g (10–500 Hz) |
| Dimensions (H × W × D) | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
Applications
The Bently Nevada 33500/22M TDI module is engineered for demanding industrial environments that require advanced vibration diagnostics and real-time performance data. Its key applications include:
-
Steam and Gas Turbines
For transient and continuous vibration monitoring during rapid operational changes. -
Compressors and Blowers
Tracks equipment health during high-speed rotation and mechanical shifts. -
Large Industrial Motors
Useful in monitoring imbalance, misalignment, and bearing wear. -
Refineries & Petrochemical Plants
Mission-critical asset monitoring for rotating machinery under hazardous conditions. -
Power Generation 单位s
Enables predictive maintenance and integration into control networks. -
Oil & Gas Platforms
Real-time diagnostics and early fault detection in high-risk /fshore environments.
Product Advantages
-
Unified Interface Functionality
Replaces older RIM 件s by combining configuration control and transient data capture into one compact module. -
High-Speed Communication
Ethernet support provides reliable and fast data transmission to plant-wide networks and SCADA systems. -
Advanced Transient Monitoring
Captures high-resolution data during key machine events, improving diagnostics and downtime prevention. -
Redundancy 支持
Compatible with dual installation for improved fault tolerance and uninterrupted system communication. -
Seamless System 1® Integration
Directly links to System 1® for centralized asset condition monitoring and trend visualization. -
Field-Replaceable Design
Hot-swappable module can be replaced without powering down the rack, minimizing disruption. -

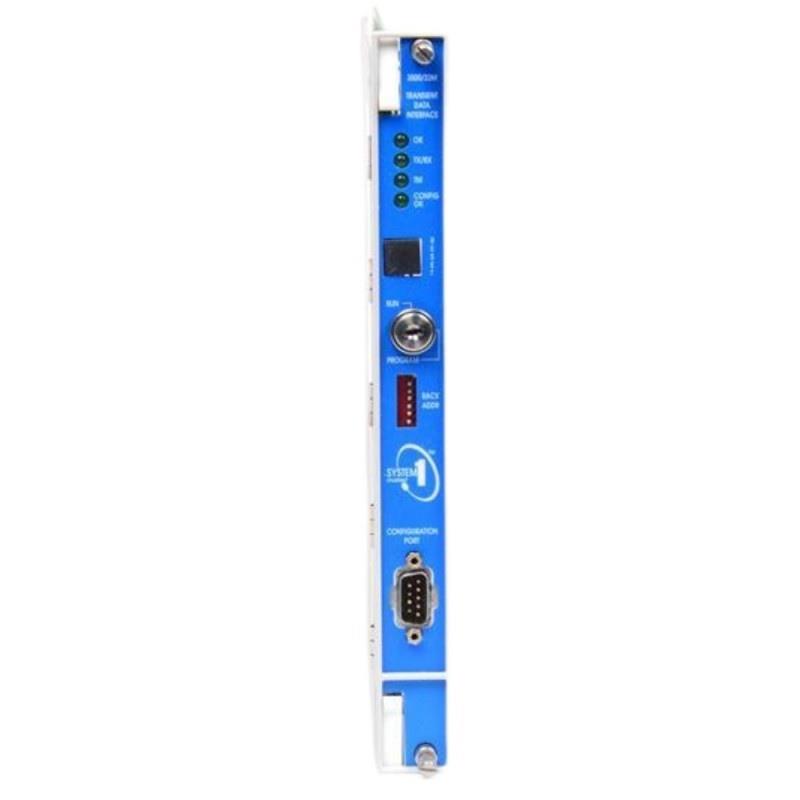

LED Diagnostics
Front-panel indicators provide quick status information for communication and module health.
常见问题 (FAQ)
-
What is the main role / the 33500/22M TDI module?
It serves as a communication and configuration hub, managing data flow between the rack and System 1®. -
What do the part numbers 146031-01 and 288055-01 refer to?
These refer to the module and associated connector hardware needed for full operation. -
Can the module be installed in any rack slot?
No, it must be installed in Slot 1 only. -
Is this module compatible with older 3500 systems?
Yes, it is fully backward-compatible with other 3500 modules. -
How is transient data collected and used?
It captures detailed data during machine events and sends it to System 1® for analysis. -
What happens if the TDI fails during operation?
A redundant TDI (if configured) will automatically take over to maintain communication. -
Can this module be replaced without shutting down the system?
Yes, it supports hot-swapping for field maintenance. -
What types / communication ports are available?
Ethernet, RS-232, and RS-422/485 are included for flexible integration. -
How is the module powered?
It is powered through the 3500 rack backplane, no external power source is required. -
Does it support condition monitoring s/tware?
Yes, it’s specifically designed to integrate with System 1® for real-time diagnostics.
Related 型号s – Same Series or Function
| 型号 Number | 描述 | Function | Rack Position |
|---|---|---|---|
| 3500/22 | Standard TDI Module | Communication and config | Slot 1 |
| 3500/22M (161580-01) | Enhanced TDI Module | Transient and steady-state data | Slot 1 |
| 3500/25 | Keyphasor® Module | Shaft reference signal input | Any slot |
| 3500/15 | Power Supply Module | Rack power supply | Left-side slot |
| 3500/42M | Proximitor® / Seismic Monitor | Vibration monitoring | Any slot |
| 3500/32M | 4-Channel Relay Module | Relay outputs | Any slot |
Popular Bently Nevada 型号s – 其他 Product Lines
| 型号 Number | Product Type | Application | Mounting Format |
|---|---|---|---|
| 330104-00-05-10-01 | 3300 XL 8 mm Proximity Probe | Shaft vibration monitoring | Threaded sensor |
| 330180-91-05 | XL Extension Cable (5 m) | Transmitting probe signal | Coaxial cable |
| 190501-00-00 | Velomitor® Velocity Sensor | Seismic monitoring | Stud mount |
| 3500/05 | 3500 System Rack | Houses 3500 modules | 19-inch rack |
| 3500/53 | Overspeed Detection Module | Turbine safety protection | Rack-mounted |
| 3701/40 | Machinery 状态 Monitor | Standalone monitoring 件 | DIN-rail mounted |
