Product Overview

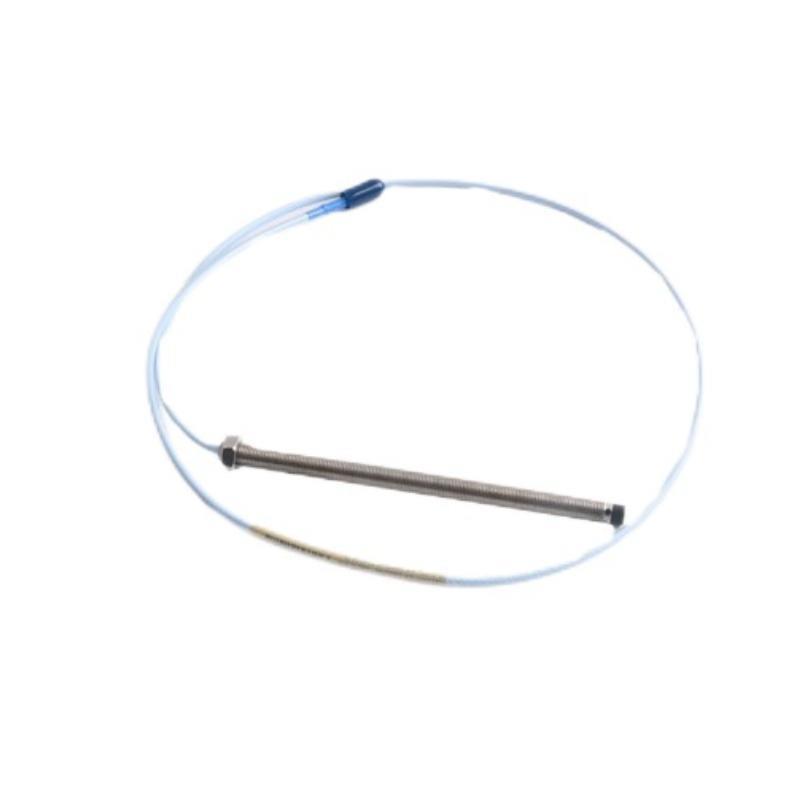

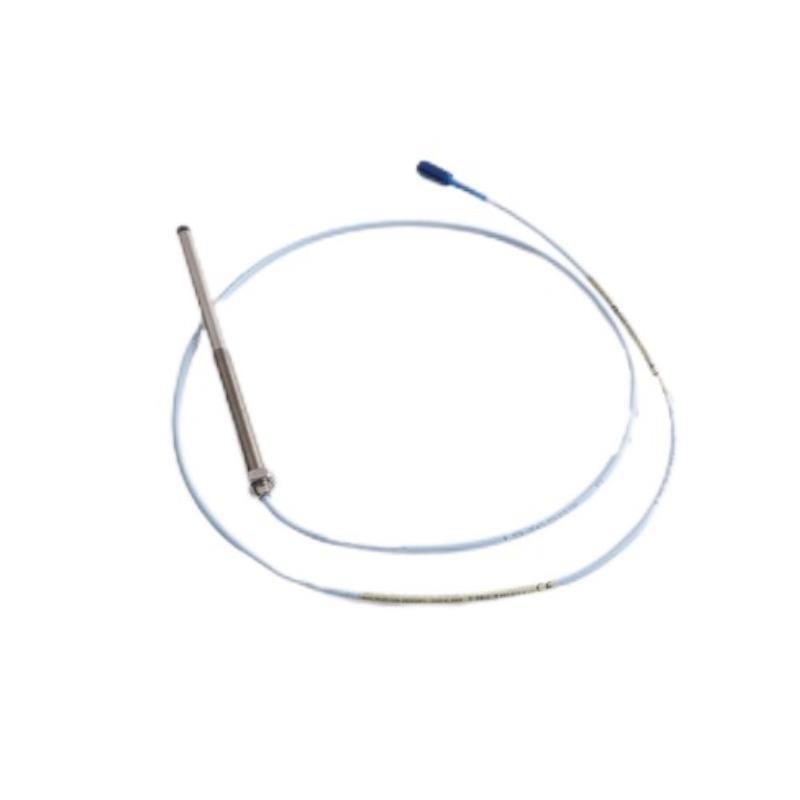

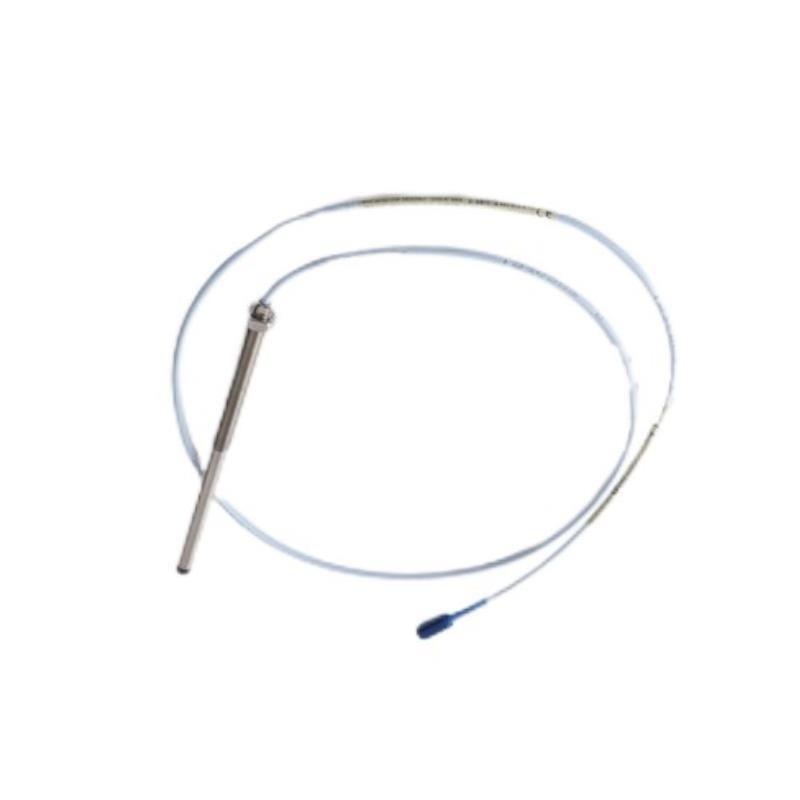

The Bently Nevada 330910-01-10-10-02-05 is a high-precision 3300 NSv Proximity Probe designed for monitoring shaft displacement and vibration in critical rotating machinery. It provides reliable and accurate measurements under harsh industrial conditions and is fully compatible with Bently Nevada 3300 XL and NSv monitoring systems.
Key Features
-
High-accuracy measurement / shaft displacement and vibration
-
Compatible with 3300 XL and NSv monitoring systems
-
Non-contact eddy-current sensing for reliable long-term performance
-
Industrial-grade construction resistant to shock, vibration, and temperature extremes
-
Suitable for turbines, compressors, generators, and other critical rotating equipment
Technical Specifications
| Specification | Details |
|---|---|
| 型号 | 330910-01-10-10-02-05 |
| Type | 3300 NSv Proximity Probe |
| Measurement Type | Shaft displacement / vibration |
| Sensor Principle | Eddy-current (non-contact) |
| Probe Tip Material | Stainless steel |
| Probe Cable | Shielded coaxial cable |
| Frequency Response | 0–10 kHz |
| Sensitivity | 50 mV/mil |
| Operating Temperature | –40 °C to +120 °C |
| Storage Temperature | –40 °C to +125 °C |
| Insulation Resistance | > 100 MΩ |
| Probe Shaft Diameter | 8 mm |
| Probe Length | 10 mm |
| Dimensions | Total Length : 1.0 meter |
| 重量 | 0.15 kg |
常见问题 (FAQ)
1. What is the primary function / the 330910-01-10-10-02-05 probe?
It measures shaft displacement and vibration for critical rotating machinery.
2. Is this probe compatible with 3300 XL systems?
Yes, it works fully with Bently Nevada 3300 XL and NSv monitoring systems.
3. What is the probe tip made /?
The probe tip is made from durable stainless steel.
4. What type / sensing technology does it use?
It uses non-contact eddy-current sensing for precise measurement.
5. What is the frequency response range?
The probe responds from 0 to 10 kHz.
6. Can it operate in extreme temperatures?
Yes, the operating range is –40 °C to +120 °C, and storage up to +125 °C.
7. What is the insulation resistance / the probe?
The insulation resistance is greater than 100 MΩ.
8. How is the probe connected to the monitoring system?
It connects via a shielded coaxial cable with a gold-plated connector for stable signal transmission.
Related Bently Nevada 型号s
| 型号 | 描述 |
|---|---|
| 330910-01-10-10-02-00 | 3300 NSv Proximity Probe |
| 330910-00-06-10-02-00 | 3300 NSv Proximity Probe |
| 330910-00-07-05-02-00 | 3300 NSv Proximity Probe |
| 330909-00-25-10-02-00 | 3300 NSv Proximity Probe |
| 330908-21-35-10-02-00 | 3300 NSv Proximity Probe |
| 330904-00-03-10-02-00 | 3300 NSv Proximity Probe |
Popular Bently Nevada 型号s
| 型号 | 描述 |
|---|---|
| 330104-01-05-50-02-00 | 3300 XL 8 mm Proximity Probe |
| 330104-00-11-50-02-00 | 3300 XL 8 mm Proximity Probe |
| 330104-01-05-05-02-05 | 3300 XL 8 mm Proximity Probe |
| 330104-00-12-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330104-00-18-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330708-00-20-50-02-05 | 3300 XL 11 mm Proximity Probe |
