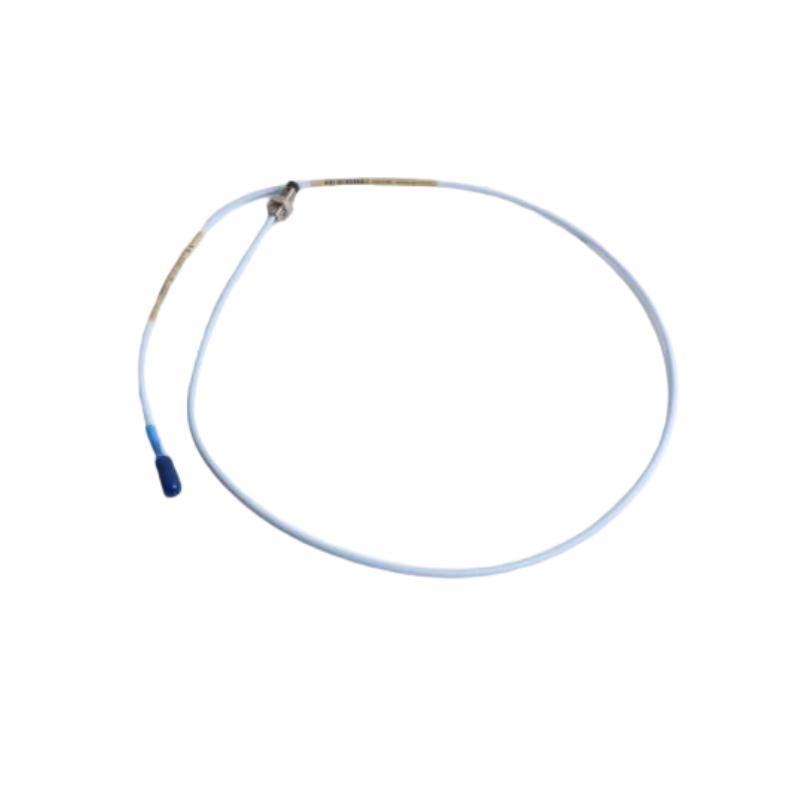

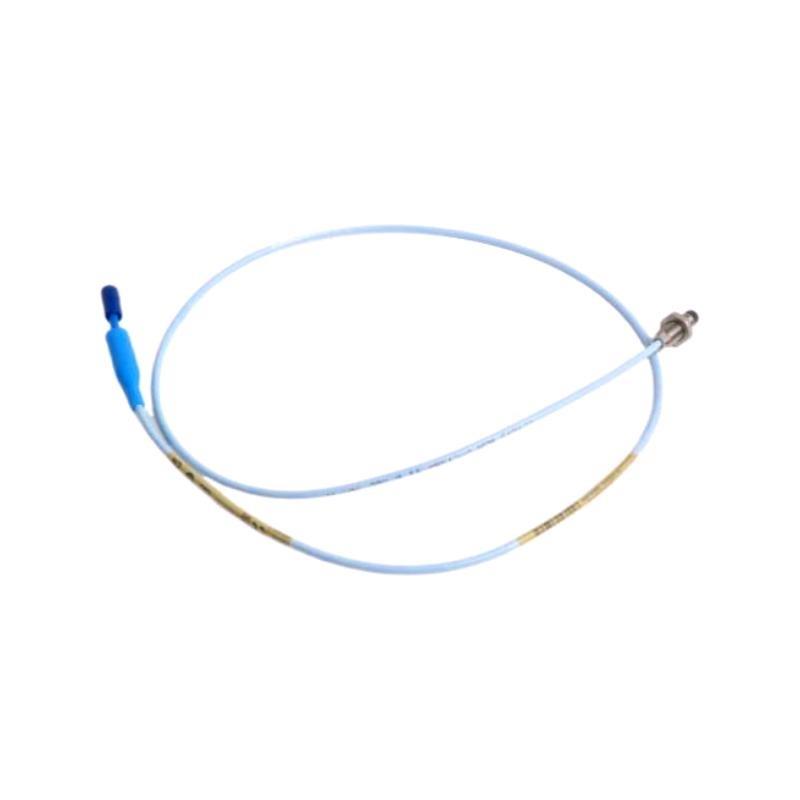

The Bently Nevada 330901-11-43-05-02-00 | 3300 NSv Proximity Probe is part / the 3300 NSv (Narrow Side-view) series designed specifically for applications where probe mounting space is limited and a compact solution is required. It /fers precise, reliable, and stable measurement / shaft vibration and position in machinery, ensuring continuous monitoring and protection / rotating assets.
This probe is typically used in conjunction with extension cables and Proximitor® sensors to provide a complete proximity measurement system. It is fully compatible with Bently Nevada monitoring systems, making it a trusted choice in industrial machinery protection.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | 330901-11-43-05-02-00 |
| Series | 3300 NSv Proximity Probe |
| Sensing Principle | Eddy current proximity measurement |
| Target Material | Typically 4140 steel or equivalent conductive material |
| Frequency Response | DC to 10 kHz |
| Total Length | 0.5 m |
| 重量 | 3 kg |
| Operating Temperature Range | -35 °C to +175 °C (-31 °F to +347 °F) |
| Compatible Sensor | Bently Nevada 3300 NSv Proximitor |
| Mounting Thread | M8 × 1 |
| Electrical Output | Proportional voltage signal (mV/µm) |
Product Applications
-
Monitoring shaft vibration in turbines, compressors, and pumps.
-
Measuring axial displacement in rotating machines.
-
Detecting shaft-to-stator rubs and misalignment.
-
Protection / small and medium-sized machines where space is limited.
-
Integration into API 670 compliant machinery protection systems.
-
Continuous online monitoring in power generation, petrochemical, and refining industries.
Product Advantages
-
Compact Design: Narrow side-view construction ideal for tight mounting locations.
-
High Accuracy: Provides stable and precise eddy current measurements for shaft vibration and position.
-
Wide Temperature Range: Capable / operating in harsh industrial environments.
-
Compatibility: Fully integrates with Bently Nevada 3300 NSv system components.
-
Robust Construction: Resistant to oil, dust, and mechanical stress for long-term reliability.
-
Standardization: Meets international standards for machine monitoring and API 670 compliance.
FAQ
Q1: What is the primary sensing technology used in this probe?
A1: The probe uses eddy current technology to measure the distance between the probe tip and the conductive target surface.
Q2: Is this probe compatible with standard Bently Nevada Proximitor sensors?
A2: Yes, it is designed to work specifically with the 3300 NSv Proximitor sensors for accurate signal conditioning.
Q3: What is the linear measurement range / this probe?
A3: The typical linear range is up to 1.0 mm (39 mils), depending on the installation and material / the target.
Q4: Can this probe be used in high-temperature environments?
A4: Yes, it operates reliably between -35 °C and +175 °C.
Q5: How is the probe connected to the monitoring system?
A5: The probe is connected via an extension cable to the Proximitor sensor, which conditions the signal and outputs it to the monitoring system.
Q6: What type / output signal does this probe provide?
A6: It provides a voltage output proportional to the shaft displacement in mV/µm.
Q7: Is the probe resistant to oil and contamination in machinery environments?
A7: Yes, the probe is designed with robust sealing to resist oil, dust, and contamination.
Q8: Can this probe be used in compliance with API 670 standards?
A8: Yes, it is fully suitable for API 670 machine protection system requirements.
Q9: What is the recommended target material for calibration accuracy?
A9: Typically, 4140 steel or equivalent conductive materials are used as standard calibration targets.
Q10: How does this probe handle electromagnetic interference?
A10: The probe and cable are shielded to minimize EMI effects, ensuring reliable signal transmission.
