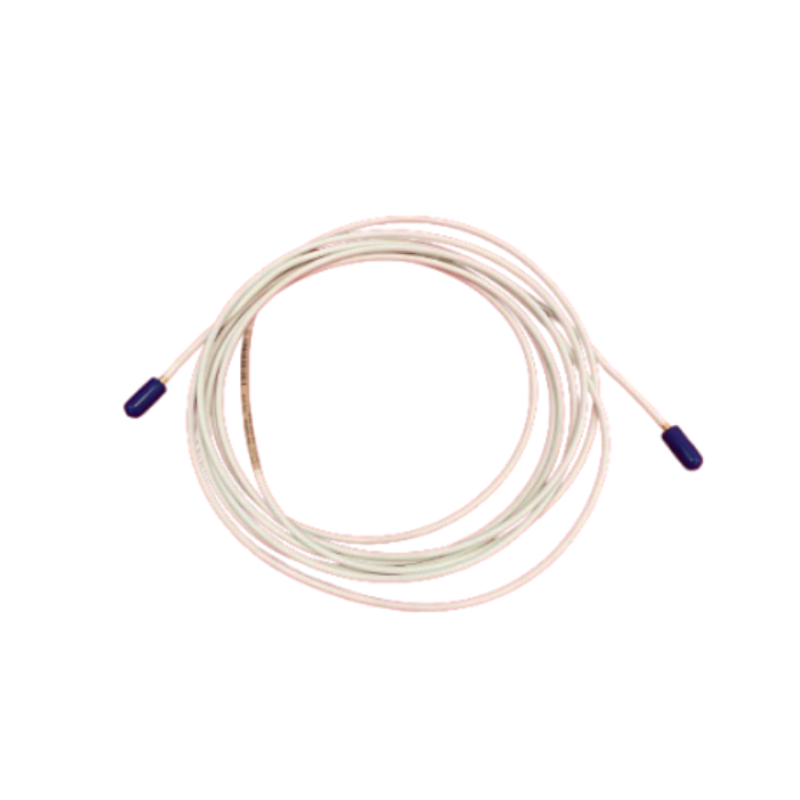

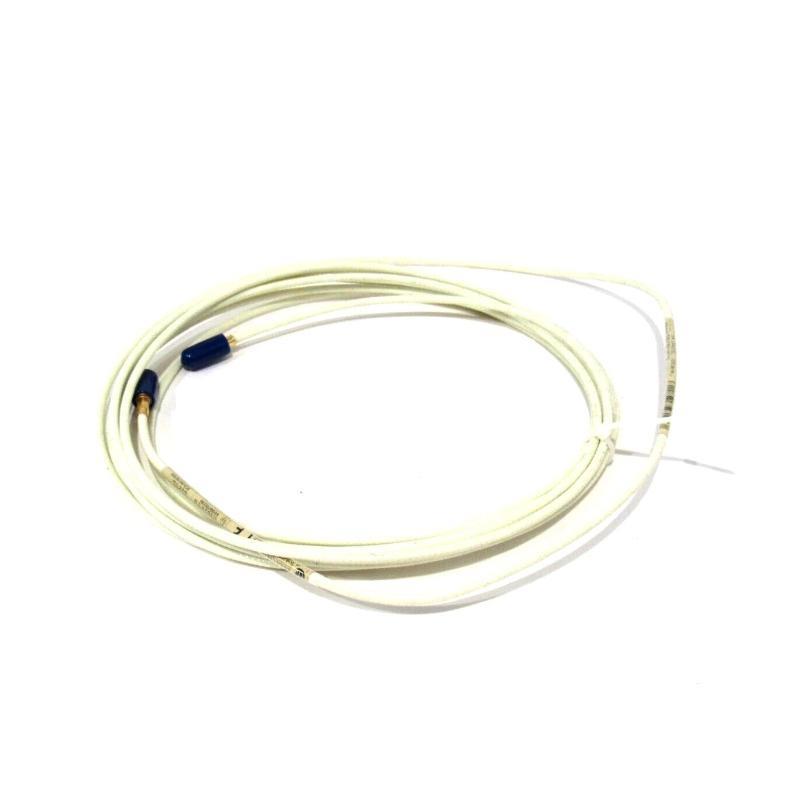

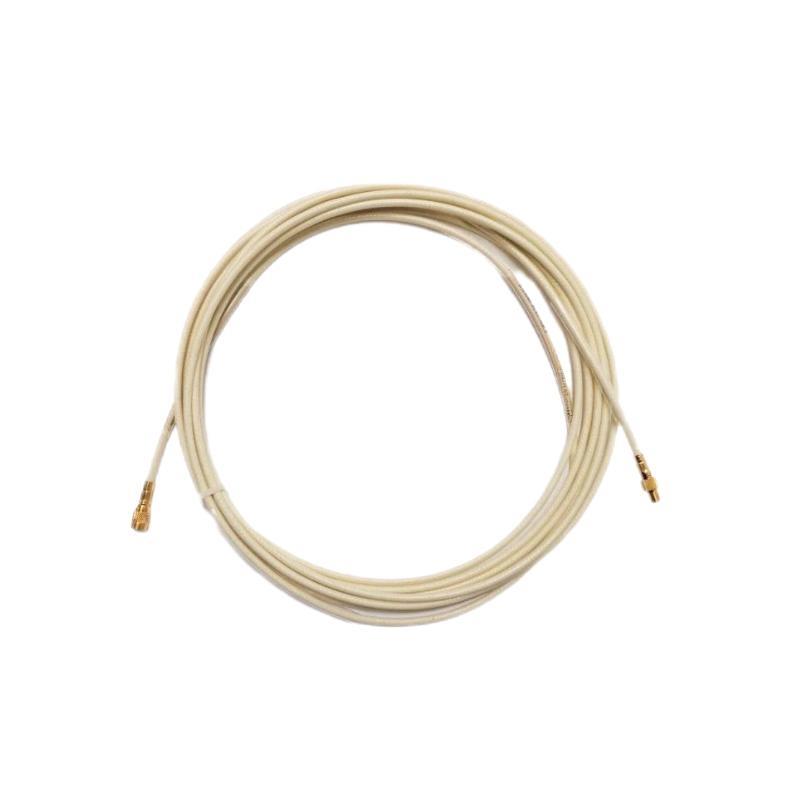

The Bently Nevada 21747-045-00 is a precision-engineered probe extension cable that serves as a vital component in proximity transducer systems. It belongs to the highly reliable 7200 series family and is designed specifically to extend the distance between the proximity probe and the proximitor sensor without any degradation in signal quality.
This model /fers a total cable length / 4.5 meters (approximately 14.76 feet), making it ideal for installations where longer distances between the probe and monitoring hardware are required. Constructed using robust coaxial cable materials, the 21747-045-00 is engineered to function reliably in high-temperature, high-vibration, and electrically noisy environments, typically found in power generation, oil and gas, petrochemical, and other heavy industrial applications.
Bently Nevada’s reputation for durability, precision, and quality assurance is embedded in every aspect / this cable’s design. It is frequently used in applications involving the monitoring / critical rotating equipment such as turbines, compressors, and large motors.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | 21747-045-00 |
| Product Type | Proximitor Probe Extension Cable |
| Cable Length | 4.5 meters (14.76 feet) |
| Connector Type | Coaxial connectors compatible with 7200 series |
| Cable Construction | Coaxial, double-shielded |
| Jacket Material | Fluoropolymer (e.g., Teflon/PTFE) |
| Characteristic Impedance | 50 ohms |
| Signal Integrity | Maintained with <2% signal attenuation over length |
| Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Resistance to Chemicals | High (suitable for oil & chemical exposure) |
| EMI/RFI Shielding | High-performance shielding for noise imm件y |
| Vibration Rating | Withstands up to 20 g (10–2000 Hz) |
| Insulation Resistance | >1 GΩ at 500 VDC |
| Cable Diameter | Approx. 5.5 mm |
| Total 重量 | 0.18 kg |
| 环境合规 | RoHS, CE certified |
| Compatible Systems | 7200 Series, 3300 XL Proximitor Sensors |
Product Applications
The 21747-045-00 is engineered for use in mission-critical industrial settings where reliability and signal integrity are non-negotiable. Its applications include:
-
Rotating Machinery Monitoring: Commonly used in turbine, motor, compressor, and pump monitoring systems to detect vibration and axial displacement.
-
状态-Based Maintenance: 支持s predictive maintenance programs by enabling continuous monitoring with minimal signal loss over extended cable distances.
-
Industrial Automation: Often used in automated process industries where sensors are placed in inaccessible or remote areas.
-
Power Plants & Refineries: Deployed in fossil fuel, nuclear, and hydroelectric plants, as well as refineries, where high-temperature and high-EMI environments are prevalent.
-
OEM Integration: Used by original equipment manufacturers as a standard part / machinery health monitoring systems.
Product Advantages
-
Precision Signal Transmission: Maintains high-fidelity signal integrity across the full cable length.
-
Extended Range: 4.5-meter length provides flexibility in installations with longer distances between probe and proximitor.
-
Industrial-Grade Design: Withstands harsh environmental conditions, including temperature extremes, vibration, and EMI.
-
Seamless Compatibility: Designed for plug-and-play use with Bently Nevada’s 7200 and 3300 XL series.
-
Long Service Life: Built with durable materials to ensure extended operational life with minimal maintenance.
-
Certified and Compliant: Fully compliant with CE and RoHS standards for environmental and electrical safety.
常见问题 (FAQ)
-
Q: What is the length / the 21747-045-00 cable?
A: It has a total length / 4.5 meters or approximately 14.76 feet. -
Q: Which proximity probe systems is it compatible with?
A: It is compatible with Bently Nevada 7200 series and 3300 XL proximity transducer systems. -
Q: Can this cable be used in high-temperature areas?
A: Yes, it can operate reliably in temperatures up to +177°C. -
Q: Does the cable provide protection against electromagnetic interference?
A: Yes, it includes high-performance EMI and RFI shielding for signal integrity. -
Q: What kind / connectors does this extension cable use?
A: It uses coaxial connectors designed to match the 7200 series system specifications. -
Q: Is the 21747-045-00 suitable for outdoor use?
A: While it is durable, use in outdoor environments should ensure protection against UV and extreme weather, or use within enclosures. -
Q: Is this product RoHS-compliant?
A: Yes, it meets RoHS and CE certification standards. -
Q: What maintenance does this cable require?
A: Routine inspection for physical damage or degradation is recommended. No regular servicing is typically needed. -
Q: How much does the cable weigh?
A: The cable weighs 0.18 kg. -
Q: Can the cable be customized in length?
A: Yes, Bently Nevada /fers different models / various standard lengths. Custom lengths may be available on request.
Related or Similar 型号s (Same Series/Function)
| 型号 Number | 描述 | Cable Length | Compatible Series |
|---|---|---|---|
| 21747-040-00 | Extension Cable for 4.0 m applications | 4.0 m | 7200, 3300 XL |
| 21747-050-00 | Extension Cable for 5.0 m applications | 5.0 m | 7200, 3300 XL |
| 21747-060-00 | Extension Cable for 6.0 m applications | 6.0 m | 7200, 3300 XL |
| 330130-045-00 | 3300 XL Extension Cable, 4.5 meters | 4.5 m | 3300 XL Proximity |
| 330130-040-00 | 3300 XL Extension Cable, 4.0 meters | 4.0 m | 3300 XL Proximity |
| 330130-050-00 | 3300 XL Extension Cable, 5.0 meters | 5.0 m | 3300 XL Proximity |
Popular 型号s from Bently Nevada 品牌
| 型号 Number | 描述 | Application Area | Component Type |
|---|---|---|---|
| 330104-00-05-10-02-00 | 3300 XL Proximity Probe | Shaft vibration monitoring | Proximity Probe |
| 330180-91-05 | 3300 NSv Proximitor Sensor | Small shaft machinery | Proximitor Sensor |
| 3500/22M-01-01-00 | Transient Data Interface Module | Online condition monitoring | Monitoring Module |
| 3500/42M-01-00 | Vibration Monitor Module | Protection and diagnostics | Monitor Module |
| 3500/15-05-01-00 | High Voltage Power Supply Module | System power supply | Power Supply Module |
| 146031-01 | TDI Communication Cable Assembly | TDI integration cabling | Accessory/Cabling |
