Product Overview

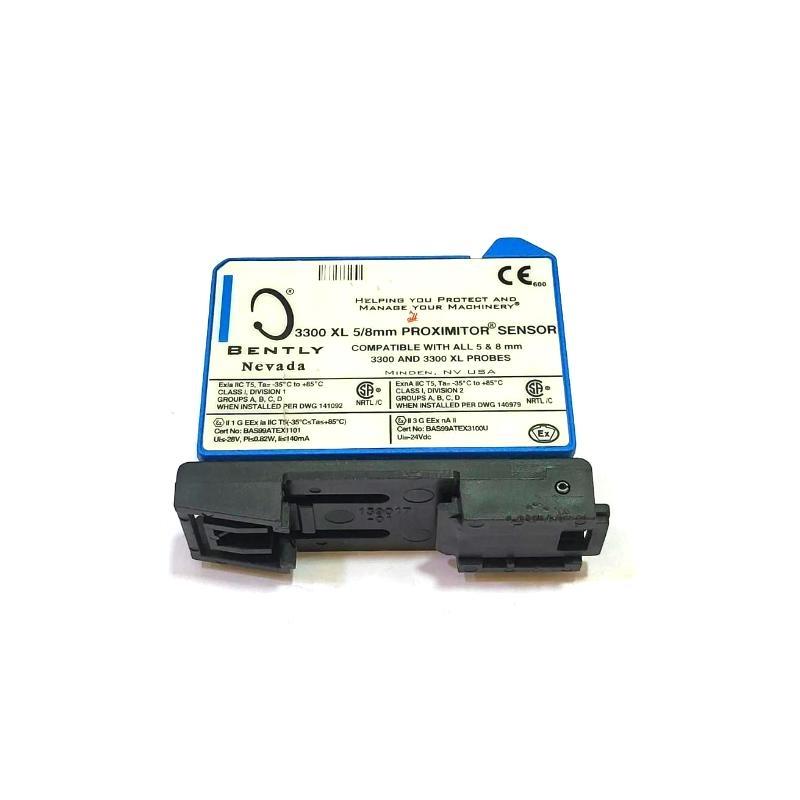

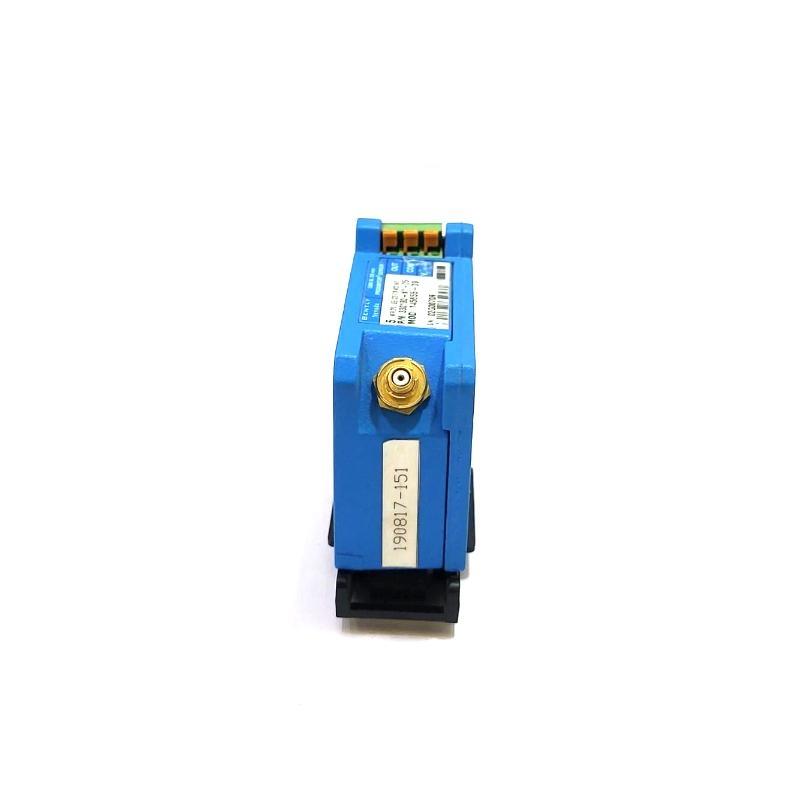

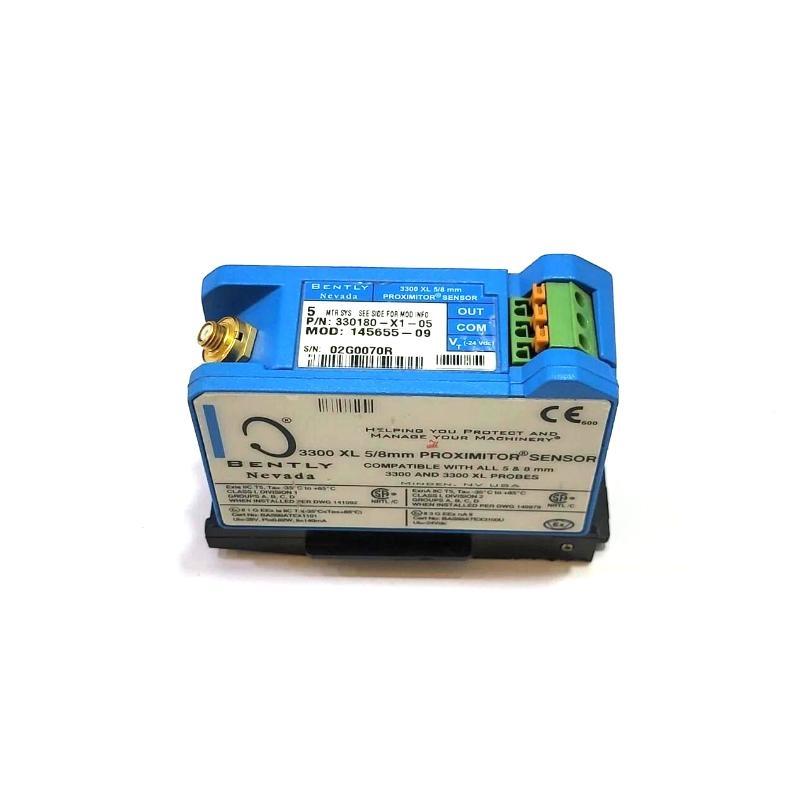

The Bently Nevada 330180-90-05 is a high-performance Proximitor Sensor, part / the 3300 XL 8 mm Proximity Transducer System. Designed for precise non-contact measurements / shaft position and vibration, it is widely used in monitoring critical machinery components. Its robust design ensures reliable operation in demanding industrial environments.
产品规格
| Parameter | Specification |
| 型号 Number | 330180-90-05 |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Mounting Option | Panel mount |
| Agency Approvals | CSA, ATEX, IECEx |
| Material | A308 aluminum |
| Operating Temperature | -51°C to +100°C (-60°F to +212°F) |
| Storage Temperature | -51°C to +105°C (-60°F to +221°F) |
| 重量 | 0.246 kg |
| Compatibility | Compatible with 3300 XL 5 mm, 8 mm, and standard 3300 series probes and cables |
| Output Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Frequency Response | 0 to 10 kHz |
| Power Supply | -24 VDC nominal |
| Mounting Footprint | Standard 4-hole pattern |
| EMI/RFI Imm件y | High imm件y, compliant with CE standards |
Applications
The 330180-90-05 Proximitor Sensor is suitable for a variety / industrial applications, including:
-
Monitoring shaft vibration and position in turbines, compressors, and pumps.
-
Detecting radial and axial displacement in rotating machinery.
-
Providing Keyphasor signals for phase reference in vibration analysis.
-
Measuring thrust position in axial compressors and turbines.
-
Monitoring machinery with fluid-film bearings.
Advantages
-
High Compatibility: Works seamlessly with both 3300 XL and standard 3300 series probes and extension cables.
-
Robust Design: Constructed from durable A308 aluminum, ensuring longevity in harsh environments.
-
Flexible Mounting: 支持s both panel and DIN-rail mounting, facilitating easy integration into existing systems.
-
Enhanced EMI/RFI Imm件y: Designed to operate reliably in environments with high electromagnetic interference.
-
Comprehensive Approvals: Certified for use in hazardous areas, meeting CSA, ATEX, and IECEx standards.
Recent News
As / November 21, 2024, the Bently Nevada 330180-90-05 Proximitor Sensor was announced as a new arrival by RMS-DCS.
常见问题 (FAQ)
-
What is the primary function / the 330180-90-05 Proximitor Sensor?
-
It measures shaft position and vibration in rotating machinery using non-contact eddy current technology.
-
-
Can it be used with both 5 mm and 8 mm probes?
-
Yes, it is compatible with 3300 XL 5 mm, 8 mm, and standard 3300 series probes.
-
-
What is the maximum operating temperature?
-
The sensor operates reliably up to +100°C (+212°F).
-
-
Is it suitable for hazardous environments?
-
Yes, it has CSA, ATEX, and IECEx approvals for use in hazardous areas.
-
-
What is the output sensitivity?
-
The sensor provides an output / 200 mV/mil (7.87 mV/μm).
-
-
Does it require special mounting hardware?
-
No, it uses a standard 4-hole mounting pattern compatible with existing setups.
-
-
What is the weight / the sensor?
-
0.246 kg.
-
-
Is it resistant to electromagnetic interference?
-
Yes, it has high EMI/RFI imm件y, compliant with CE standards.
-
-
Can it be mounted on a DIN rail?
-
Yes, it supports both panel and DIN-rail mounting options.
-
-
Where is the sensor manufactured?
-
It is manufactured in the 单位ed 状态s.
-
Recommended 型号s from the 3300 XL Series and Related 型号s:
| 型号 | 描述 | Application | Specifications |
| 3300 XL 8mm Proximitor Sensor | Bently Nevada 3300 XL Proximity Sensor with 8mm gap | Machinery vibration monitoring | 8mm gap, rugged design, high accuracy |
| 3300 XL 5mm Proximitor Sensor | 3300 XL Proximity Sensor with 5mm gap | Precision measurement for machinery | 5mm gap, high stability, fast response |
| 3300 XL 30mm Proximitor Sensor | High-performance proximity sensor with 30mm gap | Large machines, industrial equipment | 30mm gap, industrial-grade, accurate displacement |
| 3300 XL 8mm Accelerometer | Vibration sensor used for machinery monitoring | Vibration monitoring, condition monitoring | High frequency, low noise, robust build |
| 3300 XL Velocity Sensor | Bently Nevada 3300 XL velocity sensor | Machinery condition monitoring | Velocity output, high precision, stable performance |
| 3300 8mm Proximitor Sensor | Legacy 3300 series sensor with 8mm gap | General machinery vibration monitoring | 8mm gap, compatible with various vibration systems |
| 3300 XL 8mm Proximitor Sensor (Extended) | Enhanced 3300 XL proximitor sensor for harsh conditions | Industrial applications, harsh environments | Enhanced durability, extended operational range |
| 3300 XL 8mm Proximity Transducer | Advanced version / proximitor sensor | Vibration measurement, machinery protection | Higher durability, wide range / output options |
Popular Bently Nevada 型号s:
| 型号 | 描述 | Application | Specifications |
| 3300 5mm Proximitor Sensor | Compact 5mm proximitor sensor for precise measurements | Precision measurement, condition monitoring | 5mm gap, compact design, high accuracy |
| 3300 8mm Proximitor Sensor | Standard 8mm proximitor sensor for general applications | General machinery vibration monitoring | 8mm gap, general-purpose sensor, durable |
| 3300 30mm Proximitor Sensor | High-accuracy sensor for large equipment and machines | Large industrial machines | 30mm gap, durable construction, high accuracy |
| 3500/20 Vibration Monitor | Vibration monitor for critical machinery monitoring | Rotating machinery, turbines, pumps | Multi-channel, high stability, real-time monitoring |
| 3300 XL 25mm Proximitor Sensor | High-performance sensor for large rotating machinery | Industrial heavy equipment | 25mm gap, accurate measurements, rugged design |
| 3300 XL 8mm Accelerometer | Accelerometer sensor for dynamic condition monitoring | Vibration and shock monitoring | High-frequency sensitivity, compact, fast response |
| 3300 XL 8mm Velocity Sensor | Velocity sensor for machinery protection and analysis | 状态 monitoring, machinery protection | Stable velocity measurement, precise accuracy |
| 3500/42 Accelerometer | High-precision accelerometer for advanced vibration monitoring | Industrial machinery, rotating systems | High sensitivity, accurate measurement, low noise |
