产品介绍

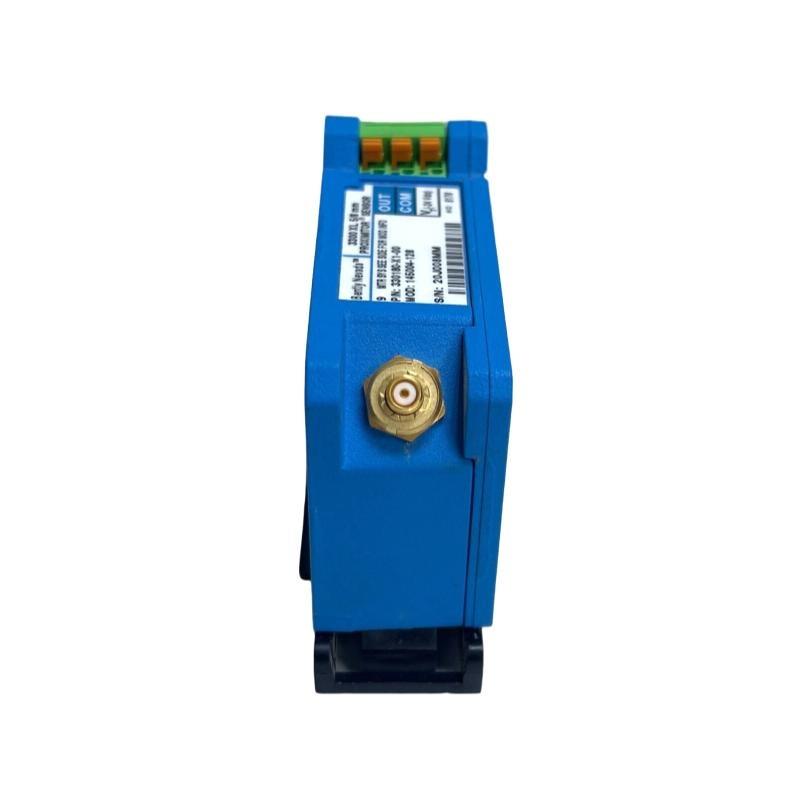

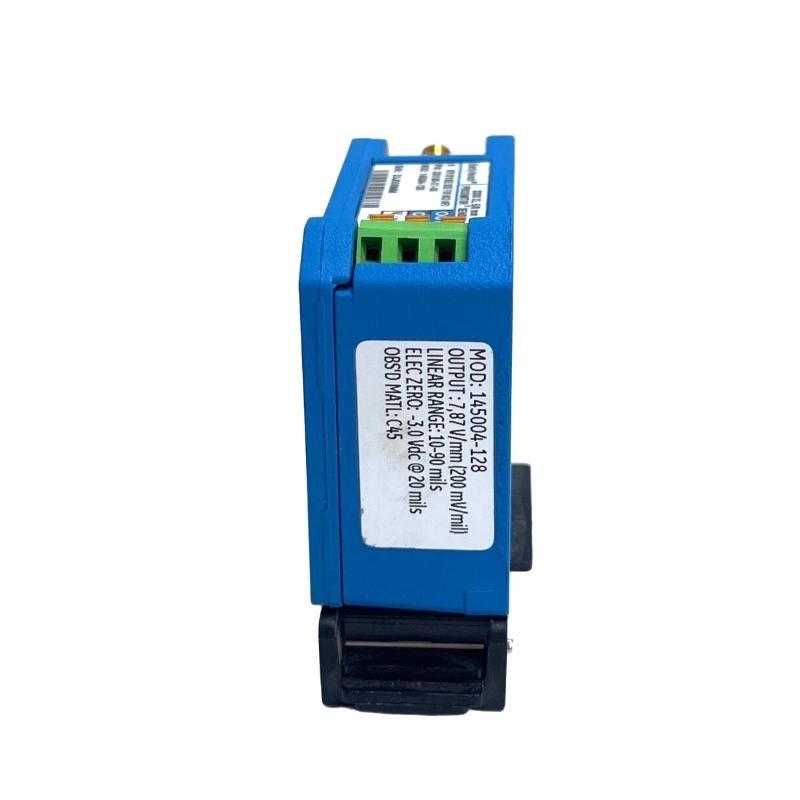

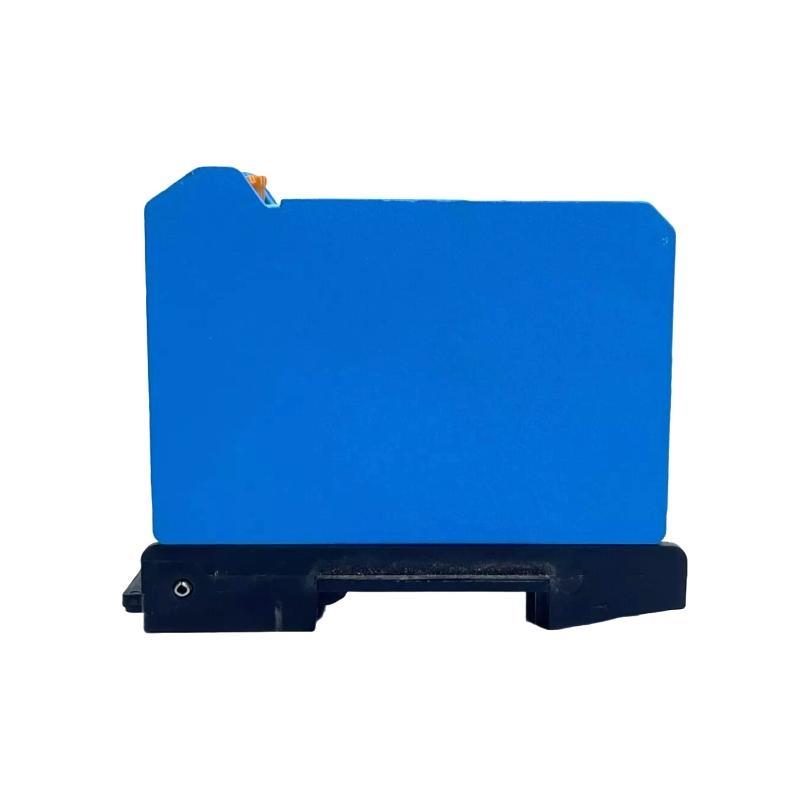

The Bently Nevada 330180-X1-00 145004-95 3300 XL 8mm Proximitor Sensor is an advanced displacement sensor designed for precision monitoring / shaft position and vibration in rotating machinery. Part / the established 3300 XL series, this sensor features an 8mm sensing range suitable for close clearance applications in turbines, compressors, pumps, and other critical industrial equipment. Engineered for robustness and accuracy, it delivers reliable, stable data in demanding environments. The sensor plays a vital role in machinery protection and condition monitoring systems, providing essential information to prevent mechanical failures and optimize maintenance strategies.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | 330180-X1-00 145004-95 |
| Series | 3300 XL Proximitor Sensor Series |
| Sensing Range | 8 mm (±4 mm from centerline) |
| Output Type | AC displacement voltage output |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -50°C to +130°C |
| Frequency Response | 0.5 Hz to 10 kHz |
| Excitation Voltage | Nominal 6 Vrms, minimum 3.5 Vrms |
| Mounting Style | Threaded stud or flange mounting |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| 重量 | 0.246 kg |
| Enclosure Rating | IP67, dust-tight and water-resistant |
| Connection Type | Shielded two-conductor cable |
Applications
This 3300 XL 8mm Proximitor Sensor finds application in:
-
Turbomachinery Monitoring: Measures shaft displacement and vibration in steam and gas turbines for enhanced operational safety.
-
Compressors and Pumps: Provides critical shaft position data for early fault detection.
-
Rotating Equipment Protection: Detects abnormal shaft movements to avoid mechanical damage.
-
Predictive Maintenance: 支持s data-driven maintenance approaches by supplying accurate shaft condition data.
-
Power Generation Plants: Continuous monitoring / essential rotating machinery.
-
Heavy Industrial Equipment: Enables real-time monitoring to optimize machinery performance and longevity.
Product Advantages
-
High-Precision Measurement: Detects fine shaft movements with an 8mm sensing range for accurate condition monitoring.
-
Robust and Durable: Engineered to function reliably in harsh industrial environments with temperature extremes and vibration.
-
Wide Frequency Response: Sensitive across a broad frequency band from 0.5 Hz to 10 kHz.
-
Versatile Mounting Options: 支持s both threaded stud and flange mounting for installation flexibility.
-
Consistent Output Signal: Provides a reliable AC displacement voltage signal.
-
System Compatibility: Easily integrates with Bently Nevada 3300 XL systems and compatible monitoring platforms.
-
Energy Efficient: Low power consumption for sustainable operation.
-
Electromagnetic Interference Protection: Shielded design minimizes EMI impact, ensuring signal integrity.
-
Proven Industrial Reliability: Widely trusted for critical machinery monitoring worldwide.
-
Low Maintenance: Factory calibrated with long-term stability reducing recalibration needs.
常见问题 (FAQ)
-
What measurement principle does the 3300 XL Proximitor sensor use?
It employs eddy current displacement technology for accurate shaft position measurement. -
Is the sensor designed to withstand high vibration environments?
Yes, it is specifically designed to maintain accuracy under significant vibration and shock. -
What excitation voltage does the sensor require?
The sensor operates with an AC excitation voltage nominally 6 Vrms, minimum 3.5 Vrms. -
What mounting options are supported?
Threaded stud and flange mounting methods are available. -
How does temperature influence the sensor’s accuracy?
The sensor operates accurately within a temperature range / -40°C to +120°C. -
What output signal type does the sensor provide?
It produces an AC displacement voltage proportional to shaft movement. -
Can this sensor be used with monitoring systems other than Bently Nevada?
While optimized for Bently Nevada 3300 XL systems, its standard output enables integration with other compatible systems. -
What materials are used for the sensor’s tip and housing?
The sensor tip is made from durable non-magnetic stainless steel; the housing is ruggedized for industrial applications. -
Is frequent calibration necessary for this sensor?
Factory calibration ensures long-term stability and minimizes the need for frequent recalibration. -
How is electromagnetic interference managed?
The sensor includes shielding and filtering to minimize EMI and maintain signal clarity.
Related and Similar 型号s
| 型号 Number | 描述 | Sensing Range | Notes |
|---|---|---|---|
| 330180-X0-00 | 3300 XL Proximitor 8mm Sensor | 8 mm | Standard 8mm sensing range |
| 330180-X1-00 | 3300 XL Proximitor 5mm Sensor | 5 mm | Smaller sensing range option |
| 330180-X2-00 | 3300 XL Proximitor 12mm Sensor | 12 mm | Extended sensing range |
| 330180-X3-00 | 3300 XL Proximitor 20mm Sensor | 20 mm | For larger clearance applications |
| 330190-X0-00 | 3300 XL Proximitor with integral connector | 8 mm | Connector style for easier wiring |
| 330200-X0-00 | 3300 XL Proximitor with armored cable | 8 mm | Enhanced cable protection |
Popular Bently Nevada 型号s (Same 品牌)
| 型号 Number | Application | Features |
|---|---|---|
| 330100-00-00 | 3300 XL 18mm Proximitor Sensor | Larger sensing range |
| 330110-00-00 | 3300 XL Proximitor with flange mount | Alternative mounting option |
| 330150-00-00 | 3300 XL Dual Proximitor Sensor | Dual channel displacement sensing |
| 330130-00-00 | 3300 XL Proximitor with integral amplifier | Built-in signal conditioning |
| 330250-00-00 | 3300 XL Velocity Sensor | Velocity-based vibration sensor |
| 330270-00-00 | 3300 XL Acceleration Sensor | High sensitivity vibration sensor |
