Product Overview

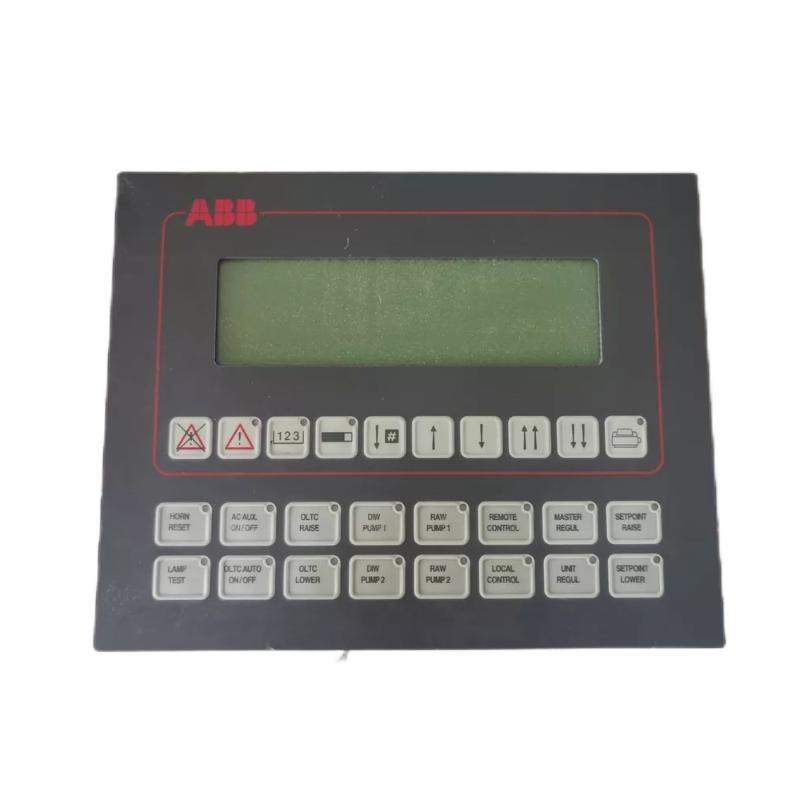

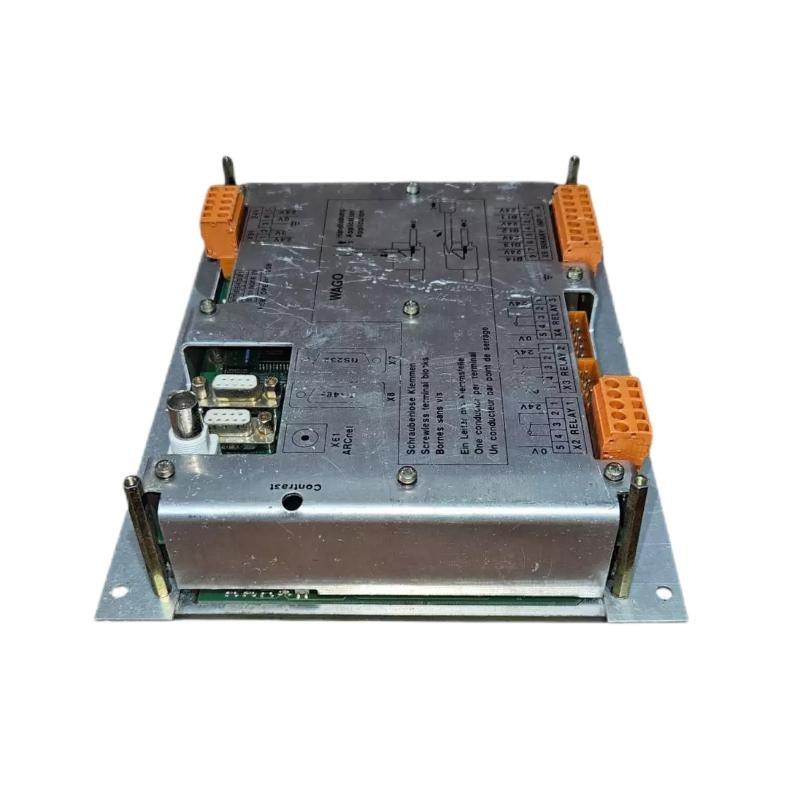

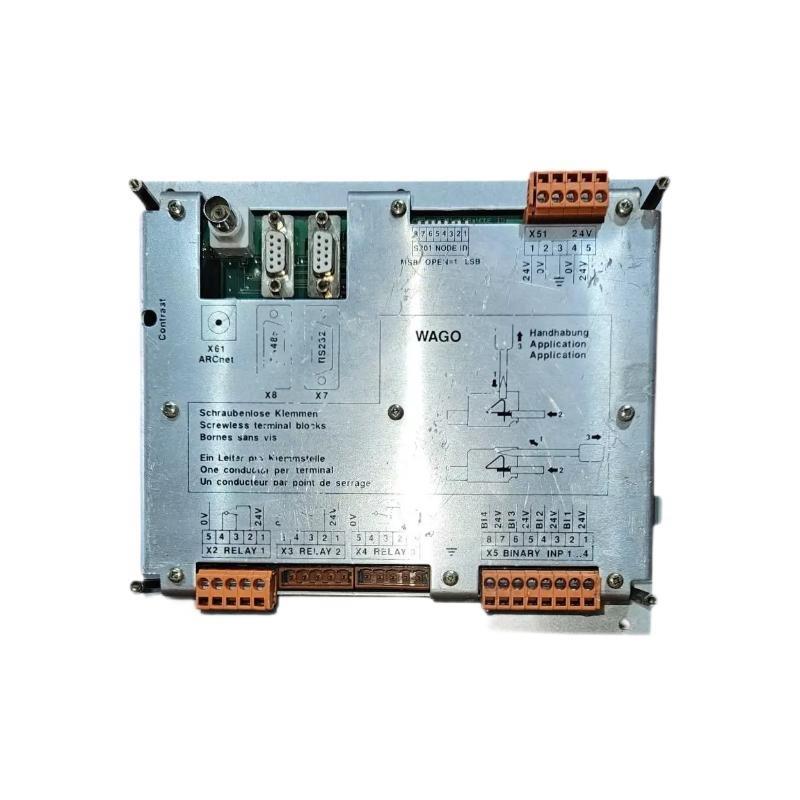

The ABB AF C094 AE01 HIEE200130R1 is a high-reliability ARCnet Control Panel engineered for use in industrial automation systems that demand deterministic communication and stable network interfaces. As part / ABB’s powerful range / communication modules, it acts as a critical hub in ARCnet-based networks, ensuring seamless, timely data exchange across multiple devices within complex industrial environments.
Designed with industrial durability and communication integrity in mind, this panel integrates easily into existing ABB infrastructures and supports long-term operations in electrically noisy and physically demanding settings. Its support for legacy systems and modern DCS architectures makes it highly adaptable for plant upgrades and expansions.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Code | AF C094 AE01 HIEE200130R1 |
| Communication Protocol | ARCnet (Attached Resource Computer NETwork) |
| Network Speed | Up to 2.5 Mbps |
| Data Transmission | Deterministic, Token-passing |
| Interface Ports | ARCnet BNC / RJ-45 connectors |
| Power Supply | 24 VDC (typical), 10 W consumption |
| Mounting Type | Panel Mount |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| EMI Protection | Yes (Industrial grade shielding) |
| Diagnostic LEDs | Power, Network Status, Activity |
| Dimensions | 200 x 130 x 50 mm |
| 重量 | 1.2 kg |
| Housing Material | Industrial-grade ABS with metal shielding |
| Certifications | CE, UL, RoHS |
Applications
The ABB AF C094 AE01 panel plays an essential role in applications where communication stability and real-time coordination are crucial. Common use cases include:
-
Power Plants and Utilities – Distributed control networks for generation and distribution.
-
Oil & Gas – Remote monitoring and control in /fshore and onshore processing 件s.
-
Industrial Manufacturing – Synchronization / PLCs, HMIs, and SCADA across a production floor.
-
Water and Wastewater Treatment – Supervisory control / pumps, sensors, and gate valves.
-
Transportation Systems – Networked control in railway automation and traffic control.
-
Food & Beverage Processing – Real-time production data tracking and line control.
Key Advantages
-
Robust ARCnet Integration: Provides secure and predictable communication across networked devices with token-passing architecture.
-
Compact and Durable: Small footprint with reinforced industrial-grade housing fits into tight control cabinets.
-
Universal Compatibility: Works seamlessly with both legacy ABB systems and modern ABB control platforms.
-
Diagnostic Transparency: LED indicators provide clear operational and fault status feedback.
-
Electromagnetic Imm件y: Designed to operate reliably in environments with high EMI levels.
-
Low Power Requirement: Operates efficiently with just 10 W at 24 VDC, reducing energy overhead.
-
Long Service Life: Built for demanding industrial cycles with minimal maintenance needs.
-
Flexible Network Topologies: 支持s bus, star, and hybrid configurations for network expansion.
常见问题 (FAQ)
-
What is the primary function / the AF C094 AE01 panel?
It acts as an ARCnet communication node, enabling data exchange between control and monitoring devices. -
Is this 件 compatible with older ABB systems?
Yes, the panel is backward compatible and ideal for system retr/its. -
What environmental conditions can it withstand?
It operates from -10°C to +60°C and stores safely down to -25°C and up to +85°C. -
How is this device mounted?
It’s designed for secure panel mounting within control enclosures. -
What type / ARCnet connectors are included?
The panel includes both BNC and RJ-45 connectors for flexible cabling. -
Does it support network diagnostics?
Yes, built-in LEDs indicate power, link, and network activity. -
Is the housing resistant to industrial hazards?
Yes, it features reinforced ABS and metal shielding for durability and EMI resistance. -
Can it operate in outdoor or humid environments?
It can operate in humid environments if housed in an appropriate enclosure, but it is not IP-rated. -
How /ten does it require maintenance?
Minimal; routine visual inspections / network connections and LEDs are sufficient. -
Can I use this with SCADA and DCS simultaneously?
Yes, it can bridge SCADA terminals and DCS controllers over ARCnet networks.
Recommended Related or Series 型号s
| 型号 | 描述 |
|---|---|
| AF C095 AE02 HIEE200140R1 | ARCnet control panel with enhanced diagnostics |
| AF C096 AE01 HIEE200150R1 | High-throughput ARCnet interface 件 |
| AF C093 AE01 HIEE200120R1 | Compact model with reduced power draw |
| AF C092 AE02 HIEE200110R1 | Legacy integration model with BNC interface |
| AF C091 AE01 HIEE200100R1 | Base ARCnet node for modular DCS |
| AF C097 AE01 HIEE200160R1 | Multi-node ARCnet controller with isolation |
Popular ABB 型号s
| 型号 | 描述 |
|---|---|
| ACU-01 | General-purpose control 件 module |
| ACU-01B | Enhanced version / the control 件 |
| AC-UCM-1C | Control and monitoring 件 with interface |
| ACU-02 | Dual-channel control 件 for redundancy |
| ACU-03 | High-performance control 件 with expansion |
| AC-UCM-2D | Control and communication 件 with diagnostics |
