Introduction / Technical Overview

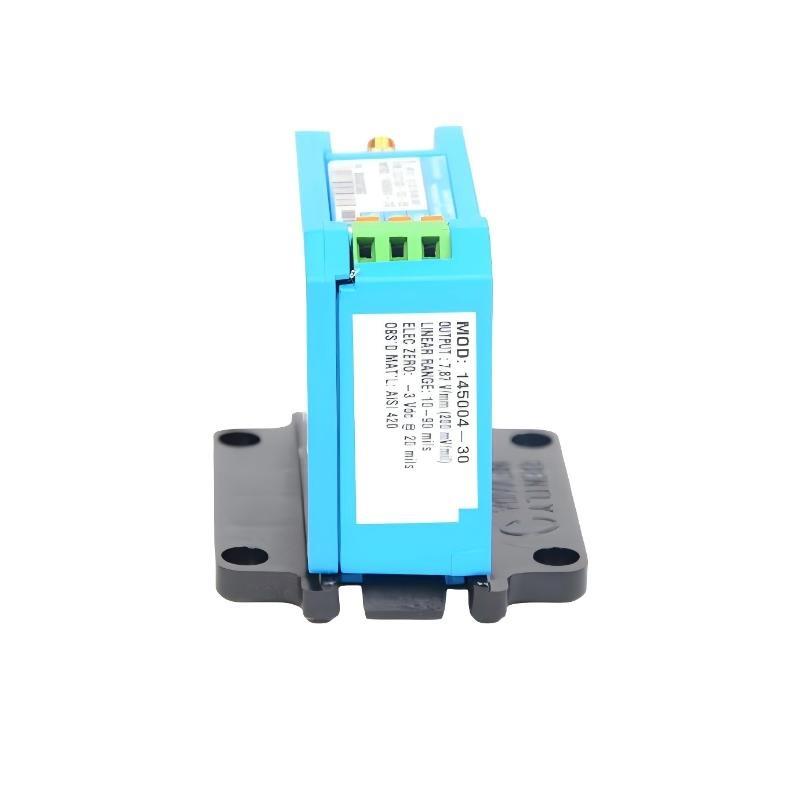

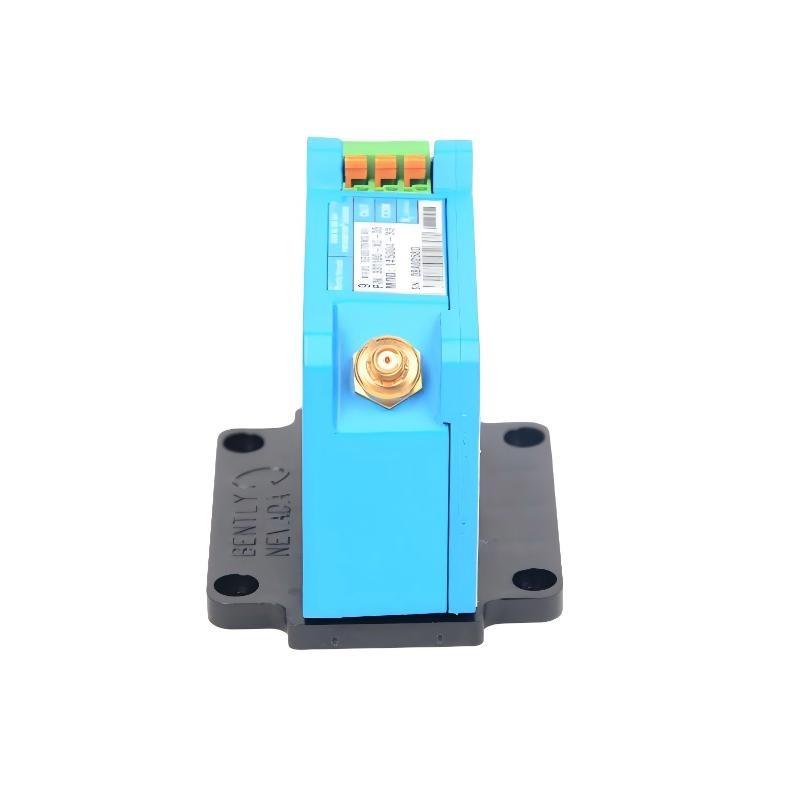

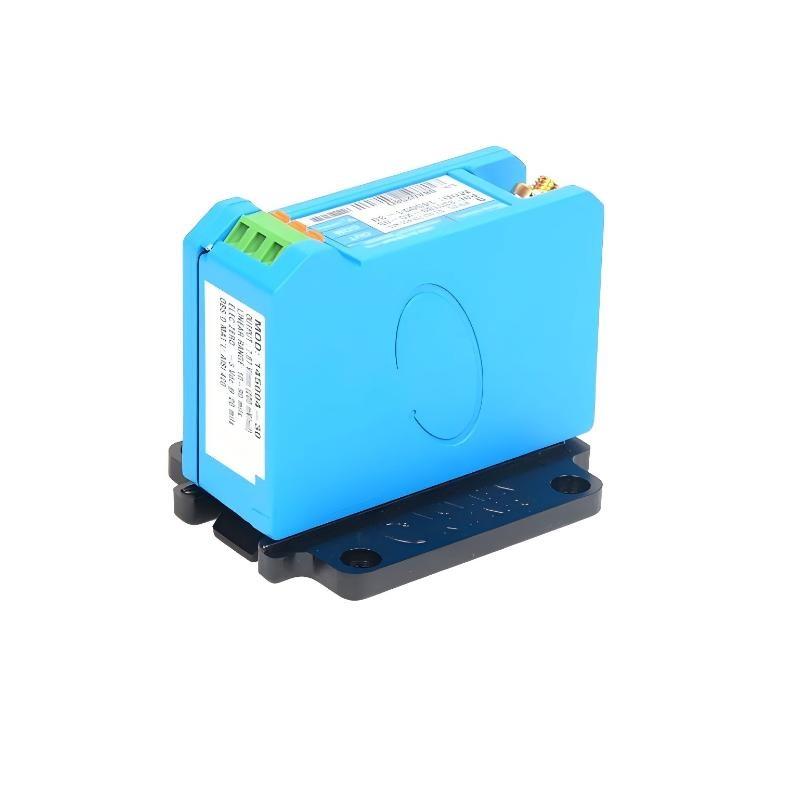

The Bently Nevada 330180-X0-05 Proximity Probe and 145004-04 Proximitor Module form a complementary pair for precise radial shaft displacement and vibration monitoring. The probe senses the gap between the rotating shaft and the bearing housing, while the proximitor converts this signal into a conditioned voltage compatible with Bently Nevada monitoring racks.
Together, these modules provide a reliable, industrial-grade solution for machinery protection, orbit analysis, and predictive maintenance in turbines, compressors, pumps, and generators. Their design emphasizes robust field performance, ease / integration, and stable, repeatable measurement under harsh operating conditions.
Technical Specifications
| Parameter | 330180-X0-05 Proximity Probe | 145004-04 Proximitor Module |
|---|---|---|
| Module Type | Proximity Probe | Proximitor Module |
| Probe Diameter / Interface | 8 mm | N/A |
| System Compatibility | 3300 / 3500 Series | 3300 / 3500 Series Racks |
| Output Signal | Analog voltage proportional to gap | 状态ed analog output for monitoring racks |
| Operating Temperature | -52 °C to +177 °C | 0 °C to +70 °C (standard) |
| Dimensions | 8 mm × 8 mm × 120 mm (probe body and tip) | 90 mm × 35 mm × 120 mm |
| 重量 | 0.3 kg | 0.35 kg |
| Connector Type | ClickLoc or extension cable variant | Standard proximitor connector |
| Calibration | Factory calibrated for AISI 4140 steel | Field calibration supported |
| Environmental Rating | Industrial protected installation | IP20 (cabinet-mounted) |
Applications / Use Scenarios
-
Installed in turbines, compressors, and pumps for radial shaft displacement monitoring.
-
Used in X-Y probe configurations for orbit analysis.
-
Integrated into machinery protection systems using 3300 or 3500 series racks.
-
Suitable for OEM machine builds or retr/it projects.
-
Enables condition-based monitoring and predictive maintenance for critical rotating machinery.
Advantages / Key Features
-
Integrated Measurement System: Probe and proximitor pair provides complete displacement monitoring.
-
Reliable Field Performance: Designed for harsh industrial environments with minimal drift.
-
Ease / Integration: Compatible with Bently Nevada 3300/3500 series racks and existing monitoring architectures.
-
Flexible Options: Multiple cable lengths and connector types allow adaptation to complex installations.
-
支持 for Diagnostics: Accurate displacement signals feed trend analysis, alarm logic, and fault detection.
-
Simplified Maintenance: Modular design allows easy replacement / individual components without affecting system integrity.
