产品介绍

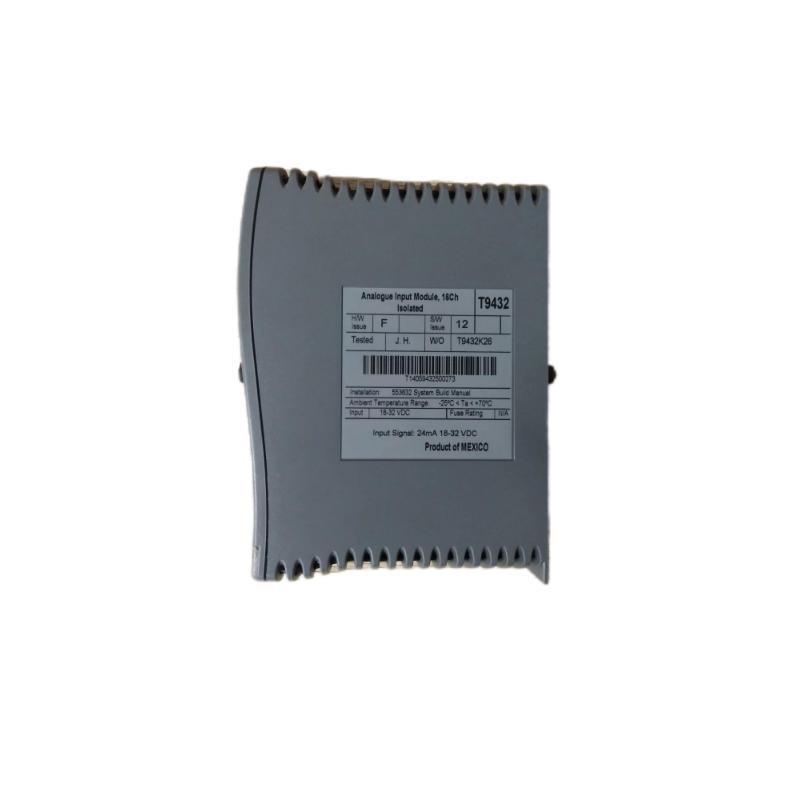

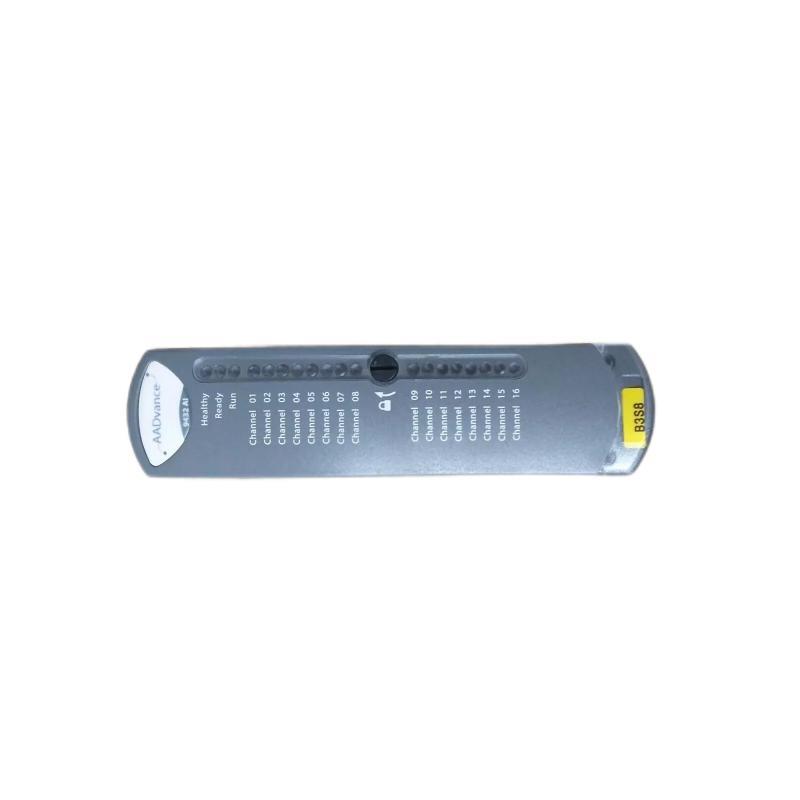

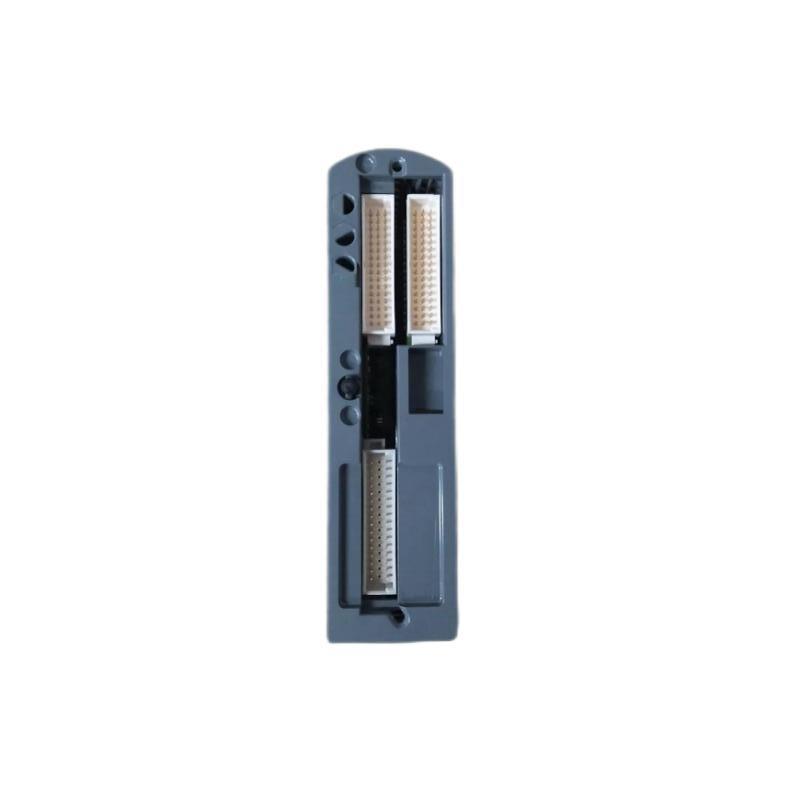

The ICS Triplex T9432 Analog Input Module is a high-reliability module designed for use in critical industrial automation systems requiring fault tolerance and high availability. As part / the Trusted TMR (Triple Modular Redundant) system, it ensures reliable signal processing and data accuracy in demanding applications. The T9432 module is specifically built for safety-critical environments where uninterrupted operation and precise analog signal measurement are crucial.
With 32 analog input channels, the T9432 supports multiple voltage and current signal types, making it versatile for various industrial applications, including oil & gas, power generation, chemical processing, and nuclear energy. This module is certified for SIL 3 (IEC 61508) applications, ensuring compliance with stringent safety standards.
产品规格
| Parameter | Details |
|---|---|
| 型号 Number | T9432 |
| 制造商 | ICS Triplex |
| Type | Analog Input Module |
| Number / Input Channels | 32 |
| Input Signal Type | Voltage & Current |
| Voltage Range | 0-10V DC |
| Current Range | 4-20mA |
| Resolution | 12-bit |
| Input Impedance | 250Ω (Current Mode) / 10MΩ (Voltage Mode) |
| Response Time | < 10 ms |
| Accuracy | ±0.1% / Full Scale |
| Communication Protocol | ICS Triplex Trusted TMR System |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 166 x 42 x 118 mm |
| 重量 | 0.34 kg |
| Power Supply | 24V DC |
| Safety Certification | SIL 3 (IEC 61508), ATEX, CE, UL |
| Mounting Type | Rack-Mounted (Trusted TMR System) |
Applications
The ICS Triplex T9432 Analog Input Module is widely used in industries where high reliability and safety compliance are required. Common applications include:
- Oil & Gas – Monitoring pressure, temperature, and flow sensors in /fshore and onshore facilities.
- Power Generation – Controlling turbine and generator systems for optimized performance.
- Chemical Processing – Ensuring accurate measurement and control / hazardous chemical reactions.
- Nuclear Energy – Providing precise monitoring in safety instrumented systems (SIS).
- Pharmaceutical Manufacturing – Maintaining strict environmental conditions for quality control.
- Water Treatment Plants – Measuring pH levels, turbidity, and chemical dosing.
- Aerospace & Defense – 支持ing mission-critical applications in defense and aviation systems.
- Factory Automation – Enhancing process control in industrial manufacturing systems.
Product Advantages
- Triple Modular Redundancy (TMR) Architecture – Provides fault-tolerant operation for critical applications.
- High Accuracy and Precision – ±0.1% full-scale accuracy ensures reliable data collection.
- Multiple Signal Input 支持 – Accepts both 0-10V DC and 4-20mA signals for diverse applications.
- Fast Response Time – Processes signals in less than 10 milliseconds, ensuring real-time control.
- Industrial-Grade Durability – Operates in extreme conditions, from -40°C to +70°C.
- Safety-Certified (SIL 3) – Meets IEC 61508 standards for functional safety applications.
- Remote Diagnostics – Advanced health monitoring for real-time system status checks.
- Long Lifecycle – Built with high-quality components to ensure long-term reliability.
- Scalable and Flexible – Seamlessly integrates with ICS Triplex Trusted TMR control systems.
- Robust EMC Protection – Ensures imm件y to electromagnetic interference (EMI).
Latest News Headlines
- ICS Triplex T9432 Enhances Analog Signal Processing in Nuclear Facilities
- T9432 Analog Input Module Expands Safety Capabilities for Industrial Automation
- ICS Triplex Introduces 下一页-Generation Redundant Input Modules for Critical Systems
- Oil & Gas Industry Adopts ICS Triplex T9432 for Hazardous Environments
- ICS Triplex T9432 Achieves New Certification for SIL 3 Safety Applications
- Enhancing Factory Automation with ICS Triplex Trusted TMR Analog Input Modules
- ICS Triplex Partners with Leading 制造商s for Smart Industry Solutions
- Power Plants Upgrade to T9432 Modules for Improved Efficiency and Reliability
常见问题 (FAQ)
-
What types / signals does the T9432 support?
- It supports 0-10V DC voltage signals and 4-20mA current signals.
-
How many analog input channels does the T9432 module have?
- It features 32 independent analog input channels.
-
Is the T9432 suitable for hazardous environments?
- Yes, it is ATEX-certified and meets SIL 3 (IEC 61508) safety standards.
-
What is the response time / the T9432 module?
- The response time is less than 10 milliseconds.
-
Can the T9432 be integrated with other ICS Triplex modules?
- Yes, it is fully compatible with the ICS Triplex Trusted TMR system.
-
What is the accuracy / the T9432 module?
- It has an accuracy / ±0.1% / full scale.
-
What are the dimensions and weight / the module?
- The module measures 166 x 42 x 118 mm and weighs 0.34 kg.
-
Is remote diagnostics supported?
- Yes, the module includes real-time health monitoring and fault detection.
-
What power supply is required for the T9432?
- It operates on 24V DC power supply.
-
What industries commonly use the T9432 module?
- It is used in oil & gas, power generation, nuclear energy, chemical processing, and factory automation.
