Product 描述

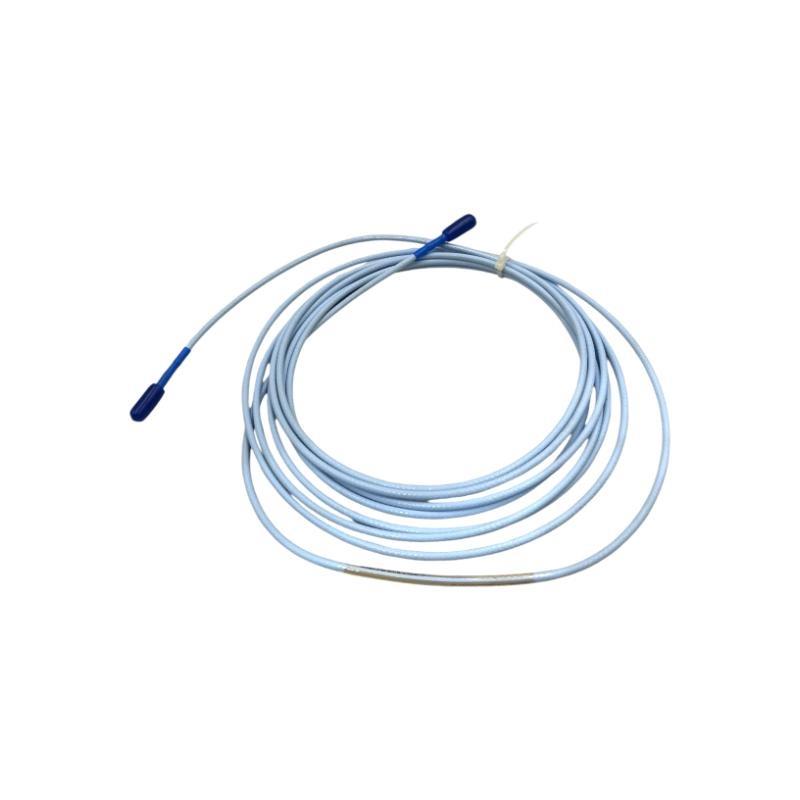

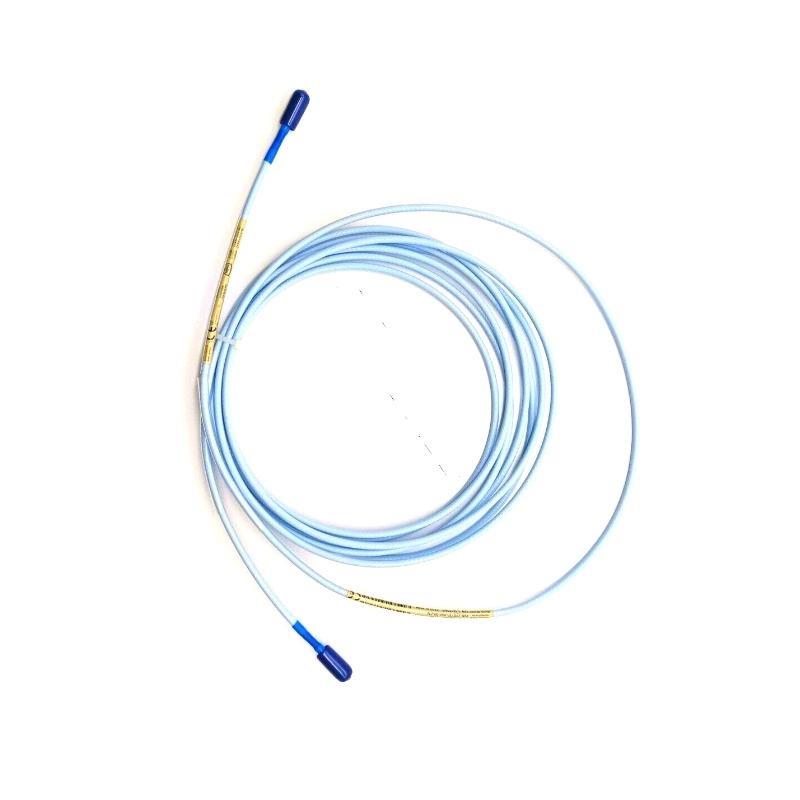

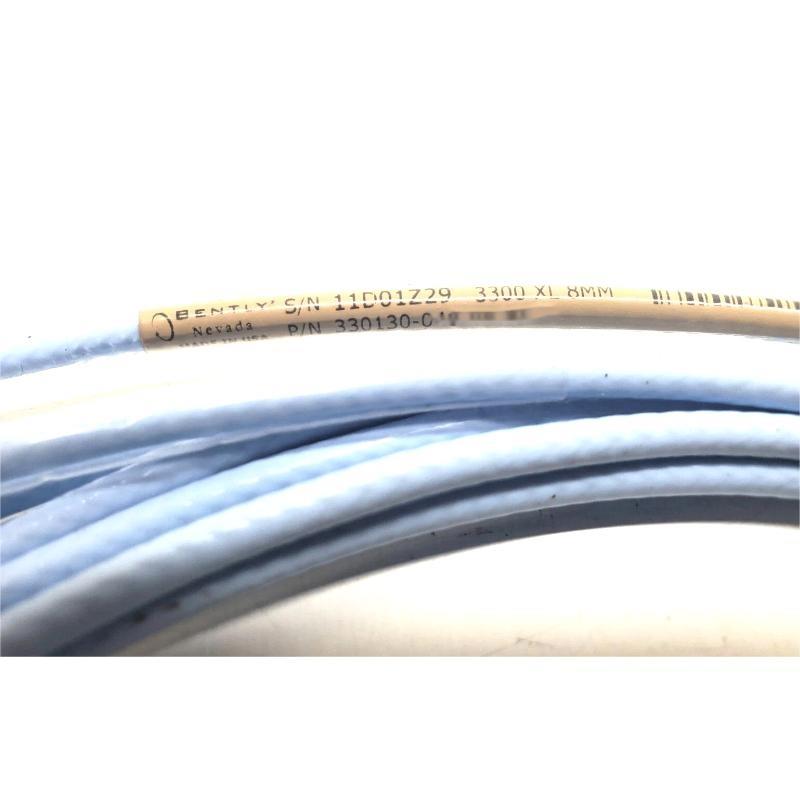

The Bently Nevada 330130-075-02-RU is a 7.5-meter standard extension cable used in the 3300 XL 8 mm Proximity Transducer System. It connects the proximity probe to the Proximitor sensor, enabling high-precision vibration and position measurements in rotating machinery such as turbines, compressors, and pumps. It features robust construction, excellent EMI/RFI resistance, and compatibility with standard and extended temperature range applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 330130-075-02-RU |
| Cable Type | Standard 75Ω triaxial, FEP insulated |
| Connector Type | ClickLoc, gold-plated, with protector |
| Cable Length | 7.5 meters |
| Cable Capacitance | 69.9 pF/m |
| Cable Resistance (Rcore) | 1.65 ± 0.25 Ω |
| Jacket Resistance (Rjacket) | 0.49 ± 0.10 Ω |
| Cable Bend Radius (min) | 25.4 mm (1.0 in) |
| 重量 | 0.255 kg |
| Operating Temperature | -52°C to +177°C (Standard Cable) |
| Storage Temperature | -52°C to +177°C |
| Environmental Rating | Suitable for industrial environments |
Applications
-
Vibration and position monitoring in rotating equipment
-
Fluid-film bearing machines
-
Turbines, compressors, motors, and pumps
-
Keyphasor and overspeed measurements
-
Harsh industrial environments requiring EMI-resistant connections
Product Advantages
-
Robust and Reliable: High tensile strength with patented CableLoc attachment
-
Easy Installation: ClickLoc connectors require no tools, just finger-tighten
-
Interchangeable: Compatible with all 3300 XL and most legacy systems
-
Extended Compatibility: Usable in standard and ETR setups
-
EMI/RFI Protection: 优秀 imm件y, even in fiberglass enclosures
-
Leak Prevention: Optional FluidLoc variant prevents fluid migration
常见问题 (FAQ)
Q1: What is the length / the 330130-075-02-RU extension cable?
A1: It is 7.5 meters (24.6 feet) long.
Q2: Is this cable compatible with 3300 XL Proximitor Sensors?
A2: Yes, it is fully compatible with all 3300 XL Proximitor Sensors.
Q3: What type / connector is used?
A3: It uses gold-plated ClickLoc connectors with finger-tight torque.
Q4: Can this cable be used in high-temperature applications?
A4: Yes, but for extreme temperatures, use the ETR version.
Q5: Does the cable require a connector protector?
A5: Connector protectors are recommended and can be pre-installed or added separately.
Q6: What is the minimum cable bend radius?
A6: The minimum bend radius is 25.4 mm (1.0 inch).
Q7: Is field calibration required when replacing this cable?
A7: 序号 All 3300 XL components are fully interchangeable with factory calibration.
Q8: What is the tensile strength / the cable connection?
A8: Up to 330 N (75 lbf) for secure installations.
Q9: What insulation is used on the cable?
A9: Fluoroethylene propylene (FEP) for standard versions.
Q10: Is this cable suitable for use in hazardous areas?
A10: Yes, with proper installation, it meets CSA, ATEX, and IECEx standards.
Related or Same-Series 型号s
| 型号 Number | 描述 | Cable Length | 重量 |
|---|---|---|---|
| 330130-070-00-00 | Standard Extension Cable, 7.0m | 7.0 m | 0.238 kg |
| 330130-060-00-00 | Standard Extension Cable, 6.0m | 6.0 m | 0.204 kg |
| 330130-045-00-00 | Standard Extension Cable, 4.5m | 4.5 m | 0.153 kg |
| 330130-040-00-00 | Standard Extension Cable, 4.0m | 4.0 m | 0.136 kg |
| 330130-030-00-00 | Standard Extension Cable, 3.0m | 3.0 m | 0.102 kg |
| 330190-075-00-00 | ETR Extension Cable, 7.5m | 7.5 m | 0.255 kg |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Application | 重量 |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Probe, armored, 6 mm tip | Radial vibration | 0.23 kg |
| 330180-90-00 | 3300 XL Proximitor Sensor, 9m system, panel mount | Probe signal processing | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Shaft vibration & position | 0.95 kg |
| 3500/22M | Transient Data Interface Module | System communication | 0.48 kg |
| 330101-00-08-10-02-00 | 3300 XL Probe, 8 mm, standard cable | General machine monitoring | 0.23 kg |
| 3500/15E | Power Supply Module | Power source for 3500 system | 0.65 kg |
