产品介绍:

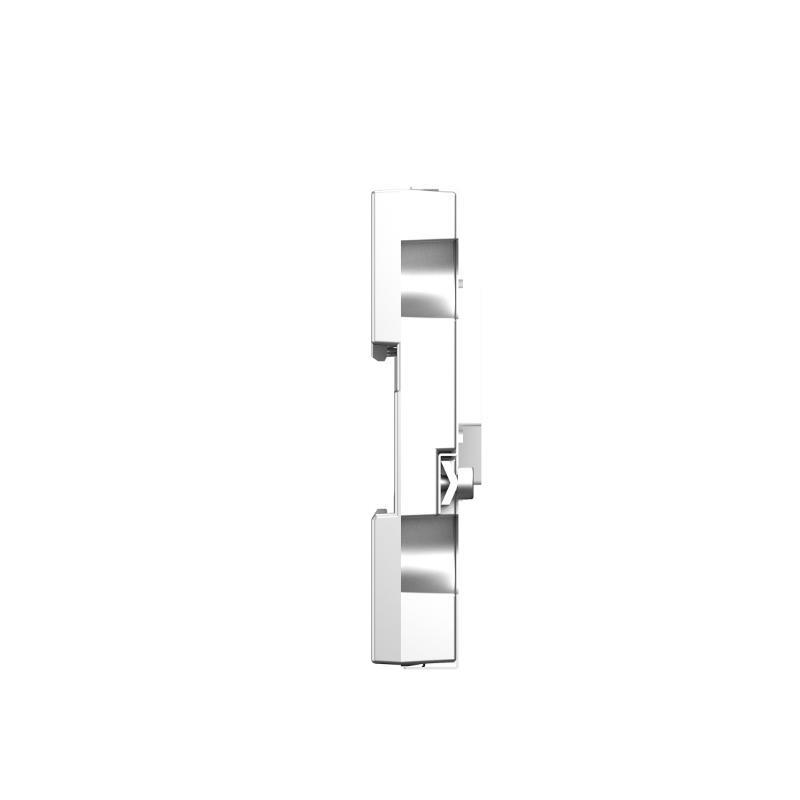

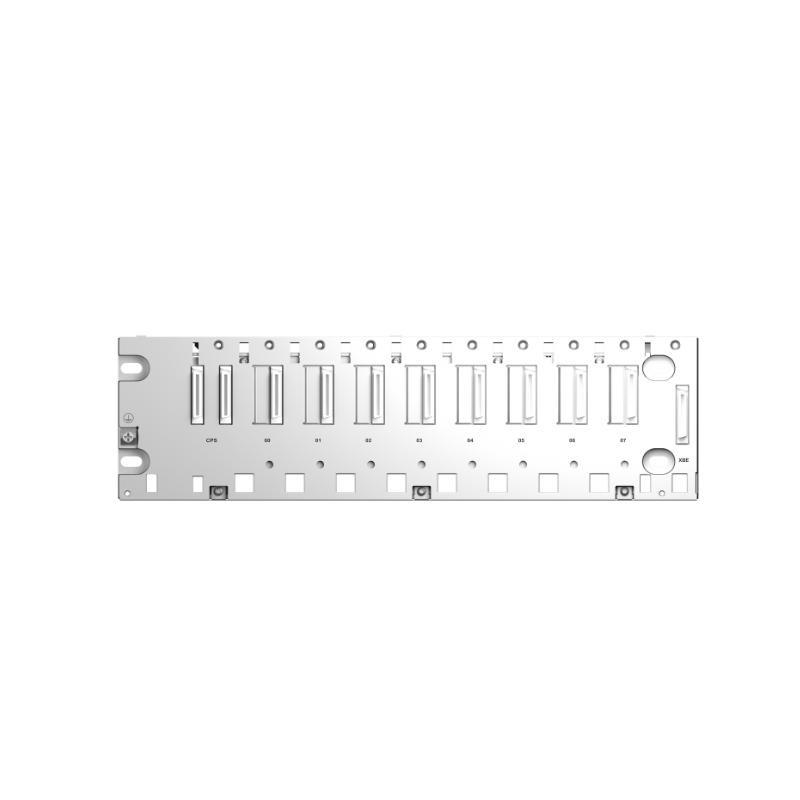

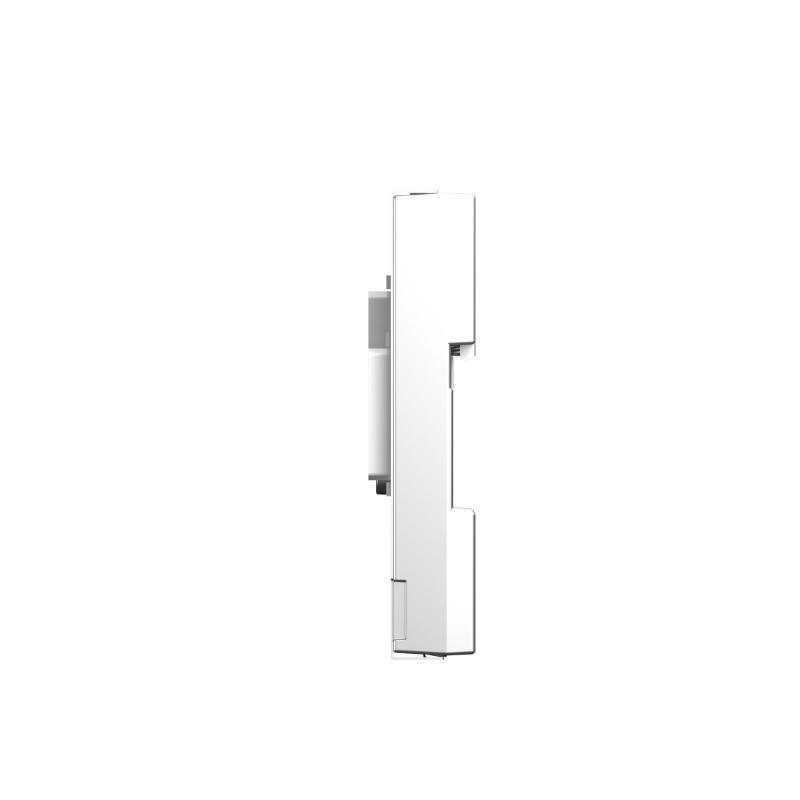

The Schneider Electric BMXXBP0800 is an 8-slot backplane rack that forms a key part / the Modicon M340 automation platform. As a passive component designed for high-performance industrial control systems, this rack facilitates the installation and connection / automation modules such as CPUs, power supplies, communication modules, and I/O modules. Its robust construction, compact form, and modular design make it an ideal choice for demanding automation environments across various industries.
Engineered with flexibility in mind, the BMXXBP0800 allows users to tailor their system configuration while ensuring stable and high-speed communication between all installed modules. It provides plug-and-play functionality and supports hot-swapping capabilities for easy maintenance and reduced downtime.
产品规格:
| Parameter | Details |
|---|---|
| Product Name | BMXXBP0800 |
| 制造商 | Schneider Electric |
| Series | Modicon M340 |
| Product Type | Passive Rack / Backplane |
| Number / Slots | 8 |
| 支持ed Modules | CPU, Power Supply, Communication, Discrete I/O, Analog I/O Modules |
| Mounting Type | DIN Rail or Panel Mount |
| Bus Type | X-bus for high-speed module communication |
| Hot-Swap 支持 | Yes |
| Backplane Current | Maximum 3 A |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Index | IP20 |
| Dimensions (W x H x D) | 103.7 x 307.6 x 19 mm |
| 重量 | 0.95 kg |
| Standards Compliance | CE, UL, CSA, ATEX (when integrated in certified configurations) |
| Material | Plastic enclosure with metal base |
Applications:
The BMXXBP0800 backplane is widely utilized across various sectors where automation, process control, and real-time data acquisition are essential. Typical application areas include:
-
Manufacturing Automation: Used to build scalable and flexible control systems on production lines.
-
Water and Wastewater Treatment: Facilitates robust control over pumps, valves, and treatment processes.
-
Building Automation: 支持s HVAC, lighting, and energy management systems.
-
Oil and Gas: Ensures safe, scalable remote monitoring and control in hazardous environments.
-
Power Generation and Distribution: Enables reliable control and monitoring / substations and power plants.
-
Food and Beverage: Controls packaging, bottling, and processing equipment with precision.
Product Advantages:
-
Modular Scalability: Allows seamless expansion with up to 8 modules, providing flexibility for varied project sizes.
-
High-Speed Communication: 支持s fast and reliable data transfer via the X-bus backplane interface.
-
Simplified Installation: Offers tool-free module installation and supports both DIN rail and panel mounting.
-
Hot-Swappable Design: Permits module replacement without system shutdown, minimizing production downtime.
-
Compact Footprint: Its small form factor is ideal for space-constrained installations.
-
Robust and Reliable: Built for industrial-grade durability and operates efficiently in harsh environments.
-
Wide Compatibility: Fully compatible with all modules in the M340 family, enhancing system integration.
-
Maintenance-Friendly: Simplified wiring and diagnostic access reduce service time and effort.
常见问题 (FAQ):
-
What types / modules can be installed in the BMXXBP0800 rack?
It supports CPU, power supply, communication, and both digital and analog I/O modules from the Modicon M340 series. -
Is the BMXXBP0800 hot-swappable?
Yes, modules can be inserted or replaced while the system is powered, which reduces downtime. -
Can this rack be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting for flexible installation. -
Does this backplane provide power to the modules?
No, it is a passive rack and requires a separate power supply module installed in one / the slots. -
How many slots are available for modules?
The BMXXBP0800 provides 8 slots for installing compatible M340 modules. -
Is the rack suitable for use in hazardous environments?
It can be used in ATEX-certified systems when integrated with properly certified components. -
What is the maximum current the backplane can support?
It supports up to 3 A / backplane current. -
Can this rack be used in high-vibration areas?
While not vibration-resistant itself, it can be used in such environments with proper panel enclosure and shock absorbers. -
Is there any firmware update required for the rack?
No, as a passive component, the BMXXBP0800 does not require firmware. -
What are the advantages / using Modicon M340 racks over other PLC platforms?
Modicon M340 /fers modularity, high-speed communication, scalability, and extensive diagnostics, making it ideal for modern automation needs.
Recommended 型号s (Same Series or Related):
| 型号 | 描述 | Slots | Key Use |
|---|---|---|---|
| BMXXBP0400 | 4-Slot Rack | 4 | Compact installations |
| BMXXBP0600 | 6-Slot Rack | 6 | Medium-sized control systems |
| BMXXBP1200 | 12-Slot Rack | 12 | Large-scale applications |
| BMXCPS2010 | Power Supply Module | N/A | Required for powering modules |
| BMXP342020 | M340 PLC CPU Module | N/A | Core processor for M340 system |
| BMXNOE0110 | Ethernet Communication Module | N/A | Network integration |
Popular Schneider Electric 型号s:
| 型号 | 描述 | Application Area |
|---|---|---|
| TM241CE40T | Modicon M221 Logic Controller, 40 I/O | Compact control solutions |
| TM258LF66DR | Modicon M258 PLC with built-in Ethernet | High-performance logic control |
| BMXAMI0410 | Analog Input Module, 4 Channels | Process monitoring |
| ATV630D75N4 | Altivar Process Drive, 75kW | Motor control |
| NSX100F | Compact Circuit Breaker, 100A | Power distribution |
| HMISTU855 | HMI Touchscreen 5.7”, Color TFT | Operator interface |
