产品介绍

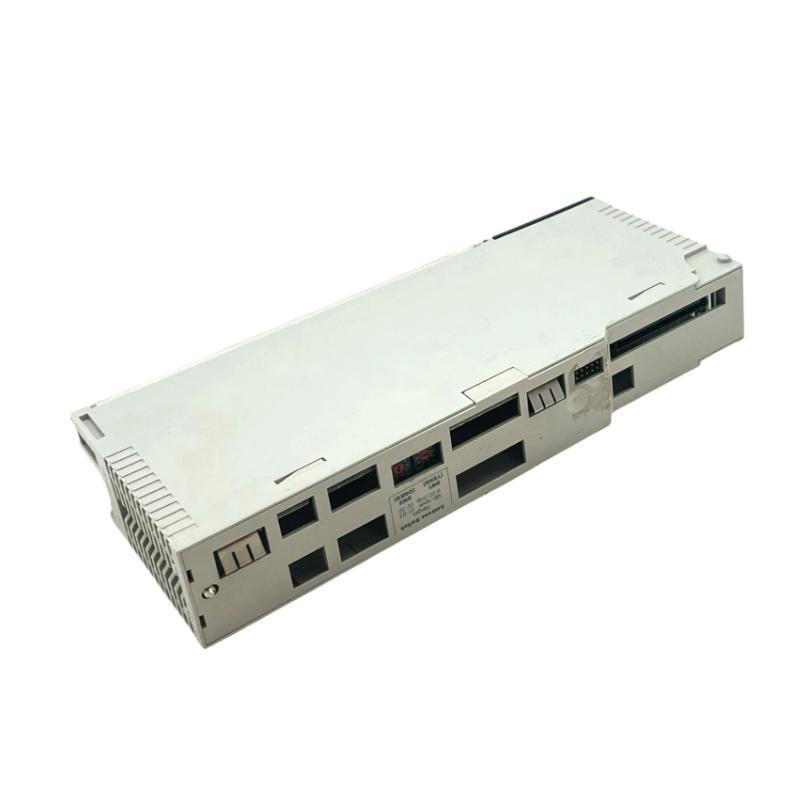

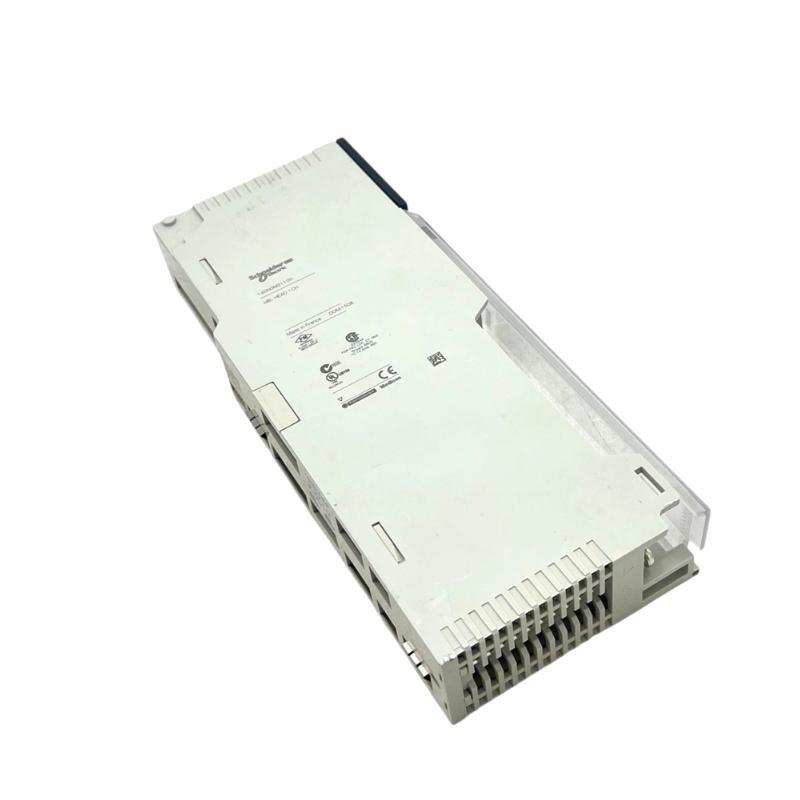

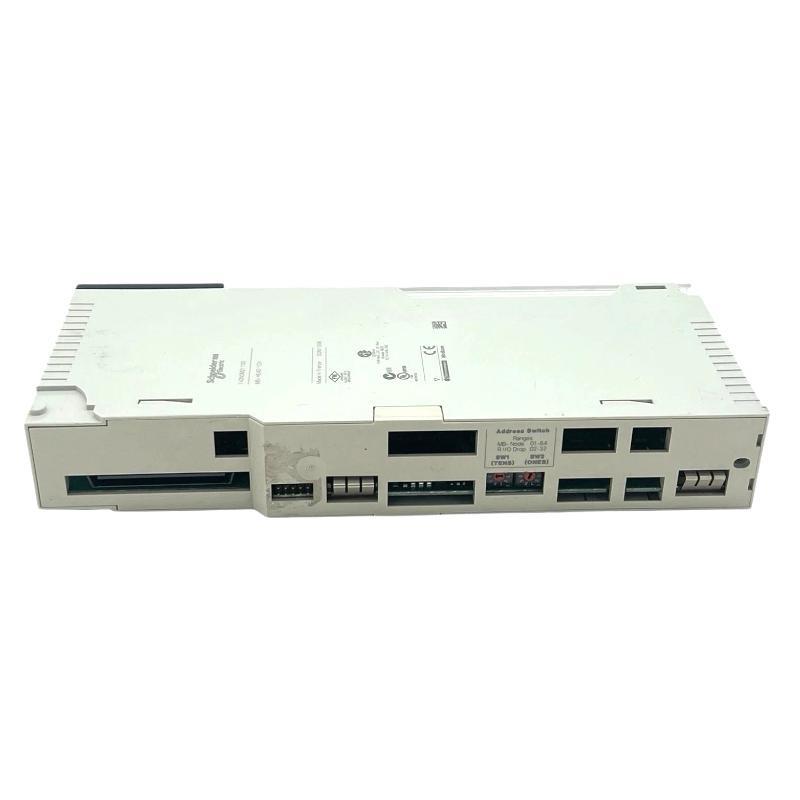

The Schneider 140EDK21100 Communication Processor Module is a high-performance module designed for industrial automation networks. It functions as a communication gateway between programmable logic controllers (PLCs) and various industrial communication protocols, enabling seamless data exchange and real-time monitoring across complex automation systems. This module is part / Schneider Electric’s Modicon Quantum and Premium series, providing robust and reliable communication for critical industrial processes. Its advanced processing capabilities ensure rapid data transfer, error detection, and efficient network management, making it ideal for manufacturing, process control, and energy management applications.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 | 140EDK21100 |
| Module Type | Communication Processor Module |
| 支持ed Protocols | Modbus, Modbus TCP/IP, Ethernet, Pr/ibus, CANopen |
| Processor | High-speed 32-bit processor |
| Memory | 2 MB program memory, 512 KB data memory |
| Communication Ports | 2 x RJ45 Ethernet, 1 x Serial port (RS-232/RS-485) |
| Power Supply | 24 V DC |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | 5% – 95% non-condensing |
| Diagnostics | LED indicators for status, communication, and errors |
| Mounting | DIN rail or panel mount |
| Dimensions (L × W × H) | 103.9 × 40.3 × 250 mm |
| 重量 | 0.3 kg |
| Compliance | CE, UL, RoHS |
Applications
The 140EDK21100 module is suitable for a wide range / industrial automation applications:
-
Factory Automation: Seamless communication between PLCs and HMI/SCADA systems.
-
Process Control: Reliable data transfer for chemical, pharmaceutical, and food & beverage plants.
-
Energy Management: Integration with power monitoring systems and distributed control networks.
-
Building Automation: Control / HVAC, lighting, and security systems in large facilities.
-
Infrastructure Projects: Communication for water treatment plants, transportation systems, and utility grids.
-
Network Expansion: Facilitates the addition / remote devices or new controllers to existing networks.
Advantages
-
High-Speed Communication: Ensures rapid data exchange with minimal latency across multiple protocols.
-
Multi-Protocol 支持: Compatible with various industrial networks, increasing flexibility.
-
Robust Diagnostics: Built-in LEDs and status indicators simplify monitoring and troubleshooting.
-
Scalable Integration: Easily integrates into existing Schneider Electric automation systems.
-
Reliable Operation: Designed for continuous operation in demanding industrial environments.
-
Flexible Installation: 支持s both DIN rail and panel mounting.
-
Future-Pro/: Firmware updates allow adaptation to evolving network requirements.
FAQ
-
Which communication protocols are supported by the 140EDK21100?
It supports Modbus, Modbus TCP/IP, Ethernet, Pr/ibus, and CANopen protocols. -
How is the module powered?
The module requires a 24 V DC power supply for operation. -
Can the module operate in harsh industrial environments?
Yes, it can operate between 0 °C and +60 °C with up to 95% non-condensing humidity. -
What type / communication ports does the module have?
It features 2 RJ45 Ethernet ports and 1 serial port (RS-232/RS-485). -
Is the module compatible with Schneider Modicon PLCs?
Yes, it is fully compatible with Modicon Quantum and Premium series PLCs. -
How is module status monitored?
Built-in LED indicators provide real-time feedback on communication status, errors, and operational health. -
Can the module be used for remote network expansion?
Yes, it allows adding remote devices or new controllers to existing networks. -
What is the memory capacity / the module?
It has 2 MB / program memory and 512 KB / data memory for configuration and communication tasks. -
Is firmware upgradeable?
Yes, the firmware can be updated to support new protocols or features. -
What mounting options are available?
The module supports DIN rail and panel mounting for flexible installation in control cabinets.
Related Schneider Communication Modules
| 型号 | 描述 |
|---|---|
| 140EDK21000 | Basic communication processor for Modbus/Ethernet |
| 140EDK21200 | Advanced module with additional serial ports |
| 140EDK21300 | Extended protocol support including DeviceNet |
| 140EDK21400 | High-speed Ethernet communication processor |
| 140EDK21500 | Processor module for redundant network architecture |
| 140EDK21600 | Integrated diagnostic and network monitoring module |
Popular Schneider Modules
| 型号 | Application Highlight |
|---|---|
| 140CPU65160 | Quantum CPU with integrated communication capabilities |
| 140DDO35300 | High-speed digital output module |
| 140ADI92200 | Analog input module for precise signal measurement |
| 140NOE77101 | Ethernet interface module for Quantum and Premium PLCs |
| 140CPS11400 | Power supply module for communication networks |
| 140DDI35300 | High-density digital input module |
