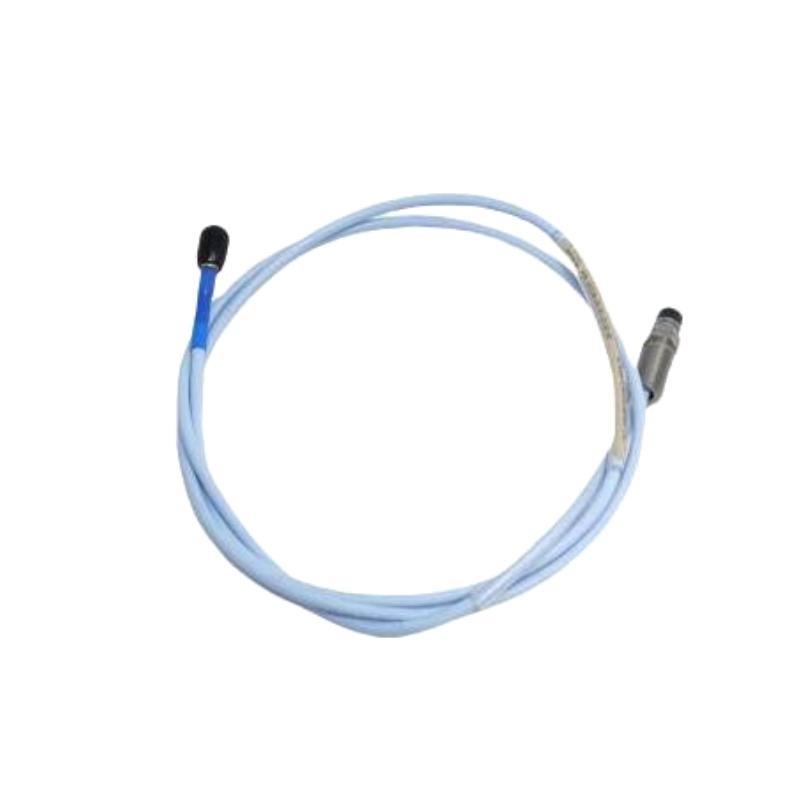

The Bently Nevada 330103-00-03-05-02 3300 XL 8mm Proximity Probe is a precision sensor specifically designed for monitoring shaft vibration and radial displacement in critical rotating machinery. Part / the renowned 3300 XL 8mm Proximity Probe series, it delivers accurate and reliable real-time measurements essential for predictive maintenance and machinery protection systems.
With a total cable length / 0.5 meters and a weight / 0.162 kg, this compact probe is ideal for installations where the Proximitor sensor is in close proximity to the measurement point. Utilizing eddy-current technology, it provides non-contact measurement / the shaft surface, ensuring high accuracy and rapid response even under high-speed rotation conditions.
Constructed with stainless steel and a PEEK-insulated coaxial cable, the probe /fers excellent mechanical and environmental durability. Its shielding protects against electromagnetic interference, maintaining signal integrity in electrically noisy industrial environments. Fully compatible with Bently Nevada 3300 XL Proximitor modules, it conforms to API 670 standards for critical machinery protection.
Product Parameters
| Parameter | Specification |
|---|---|
| 型号 Number | 330103-00-03-05-02 |
| Series | 3300 XL 8mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Linear Range | 2 mm (±1 mm from center) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | DC to 10 kHz |
| Power Supply | -24 V DC nominal via Proximitor module |
| Total Length | 0.5 meter |
| 重量 | 0.162 kg |
| Operating Temperature Range | -35°C to +177°C |
| Storage Temperature Range | -50°C to +200°C |
| Material | Stainless steel probe body, PEEK insulated coaxial cable |
| Mounting Thread | 3/8”-24 UNF or M10 x 1 depending on installation |
| System Compatibility | Compatible with Bently Nevada 3300 XL Proximitor Sensors |
Product Applications
The 330103-00-03-05-02 probe is suitable for various critical industrial applications:
-
Turbines and Generators: Real-time monitoring / shaft vibration and displacement to prevent catastrophic failures.
-
Compressors and Pumps: Detects misalignment, imbalance, and bearing issues.
-
Industrial Motors and Gearboxes: Provides continuous data for operational efficiency and predictive maintenance.
-
Oil & Gas Equipment: Monitors high-speed rotating machinery under harsh conditions.
-
Process Control Systems: 支持s API 670 compliant protection systems in chemical, petrochemical, and power generation facilities.
Product Advantages
-
High Accuracy: Measures shaft vibration and radial displacement with minimal error.
-
Compact Design: 0.5-meter cable allows for installation in tight spaces.
-
Durable Construction: Stainless steel housing and PEEK-insulated cable resist harsh industrial conditions.
-
EMI Resistant: Coaxial shielding ensures clean signal output in electrically noisy environments.
-
Seamless Integration: Fully compatible with 3300 XL Proximitor modules for continuous monitoring.
-
API 670 Compliance: Meets industrial standards for critical machinery protection.
-
Wide Frequency Response: Captures both low and high-frequency vibration events up to 10 kHz.
FAQ
-
How does this probe ensure accurate measurement over a short 0.5-meter cable?
It uses a coaxial, impedance-matched cable with shielding to minimize signal loss and maintain accuracy. -
What is the linear range / the 330103-00-03-05-02 probe?
The probe has a ±1 mm linear range, allowing precise measurement / shaft displacement. -
Can it measure both vibration and static shaft position simultaneously?
Yes, it provides outputs for both dynamic vibration and static displacement. -
How is the probe protected against electrical interference?
The PEEK-insulated coaxial cable and shielding reduce electromagnetic interference, ensuring stable readings. -
What is the frequency response range / this probe?
It operates from DC up to 10 kHz, suitable for most high-speed machinery monitoring. -
Is the probe compatible with all 3300 XL Proximitor modules?
Yes, it integrates seamlessly with 3300 XL Proximitor modules for condition monitoring. -
How does temperature affect probe performance?
Thermal compensation allows accurate readings from -35°C to +177°C. -
What is the recommended mounting method for optimal performance?
Mount the probe perpendicular to the shaft using a 3/8”-24 UNF or M10 x 1 threaded fitting. -
Can it detect high-frequency vibration events?
Yes, the 10 kHz frequency response enables detection / high-speed vibrations. -
Does it comply with industrial protection standards?
Yes, it meets API 670 standards for machinery protection systems.
Recommended Related 型号s (Same Series)
| 型号 Number | 描述 |
|---|---|
| 330103-00-00-03-10-02-R0 | 3300 XL 8mm Proximity Probe, 3 m cable |
| 330103-00-02-05-02-05 | 3300 XL 8mm Proximity Probe, 0.5 m cable |
| 330103-00-05-10-02-R0 | 3300 XL 8mm Proximity Probe, 5 m cable |
| 330102-60-90-10-02-05 | 3300 XL 8mm Proximity Probe, 9 m cable |
| 330102-4-12-90-02-05 | 3300 XL 8mm Proximity Probe, 9 m cable |
| 330102-38-82-10-02-05 | 3300 XL 8mm Proximity Probe, 2 m cable |
Popular Bently Nevada 型号s (Same 品牌)
| 型号 Number | 描述 |
|---|---|
| 330130-040-00 | Extension cable for 3300 XL proximity probes |
| 3500/22M | Transducer I/O module for 3500 series monitoring |
| 3500/42M | Proximitor/Seismic monitoring module |
| 3500/32M | Relay module for automated shutdown |
| 3500/93 | Display interface module for 3500 monitoring system |
| 330103-00-05-10-02 | 3300 XL 8mm Proximity Probe, 5 m cable |
