Product 描述

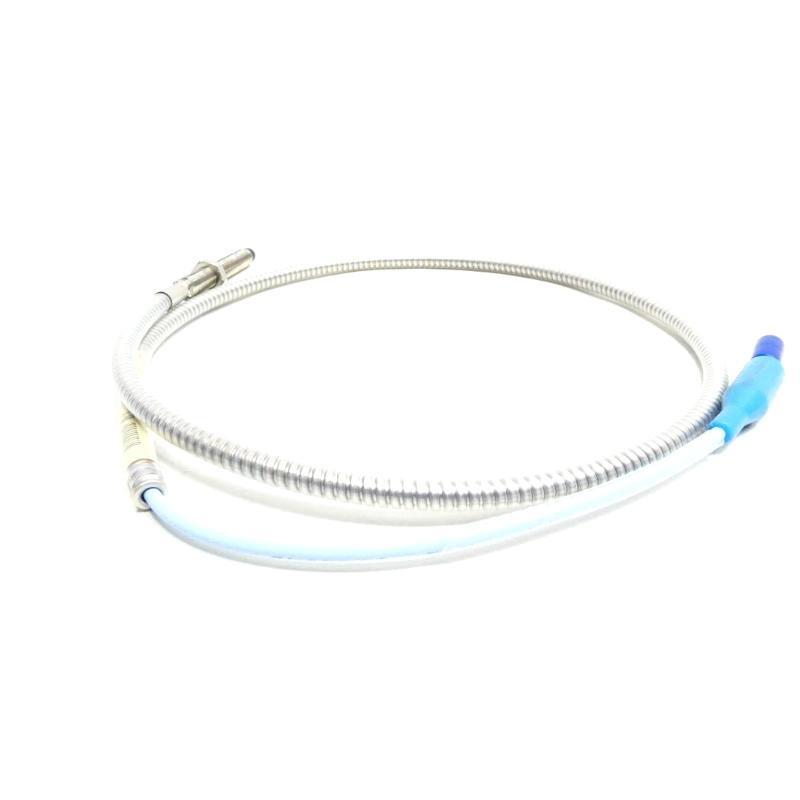

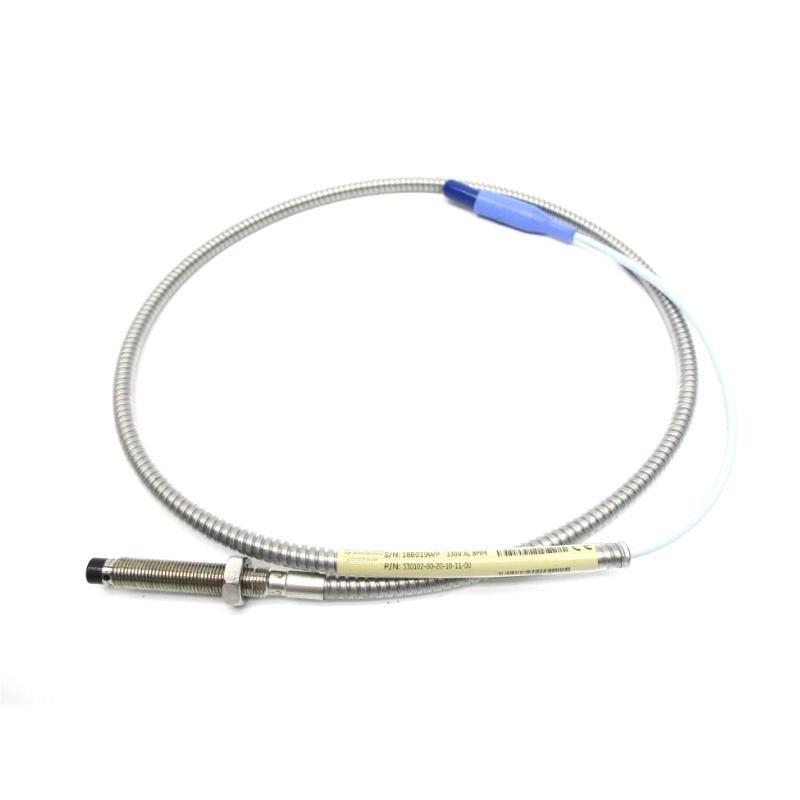

The Bently Nevada 330102-00-12-10-02 is part / the 3300 XL 8 mm Proximity Transducer System. It provides precise measurement / static position and dynamic vibration on rotating machinery. With its armored cable design, robust construction, and compliance with API 670 standards, it ensures reliability even in harsh environments. The probe /fers full interchangeability with other 3300 XL components and is backward-compatible with non-XL 3300 series.
Applications
-
Vibration monitoring / fluid-film bearing machines
-
Shaft position and displacement measurements
-
Keyphasor reference and overspeed protection systems
-
High-density installations requiring rugged design
Advantages
-
Meets API 670 standard requirements
-
Rugged, armored cable for enhanced protection
-
Backward-compatible and interchangeable with non-XL systems
-
优秀 temperature and RFI/EMI imm件y
-
Simplified installation with ClickLoc connectors
Technical Specifications
| Parameter | Value |
|---|---|
| 型号 | 330102-00-12-10-02 |
| Probe Diameter | 8 mm |
| Probe Thread | 3/8-24 UNF |
| Cable Type | Armored, standard |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Operating Temperature | -52°C to +177°C (probe) |
| Extended Temperature Option | Up to +218°C (probe tip) |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm diameter |
| Shaft Diameter Recommendation | ≥76.2 mm |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) ±5% |
FAQs
Q1: What is the main purpose / the 330102-00-12-10-02 probe?
A1: It measures vibration and position / rotating machinery in industrial applications.
Q2: Does this probe comply with API standards?
A2: Yes, it fully complies with API 670 standards.
Q3: Can the probe be used in high-temperature environments?
A3: Yes, the standard probe supports up to +177°C, and extended versions up to +218°C.
Q4: Is it interchangeable with non-XL 3300 series components?
A4: Yes, it is backward-compatible and interchangeable.
Q5: What is the recommended shaft diameter?
A5: A minimum shaft diameter / 76.2 mm is recommended for optimal accuracy.
Q6: How is the cable protected?
A6: The probe uses an armored cable for mechanical and environmental protection.
Q7: What type / connectors does it use?

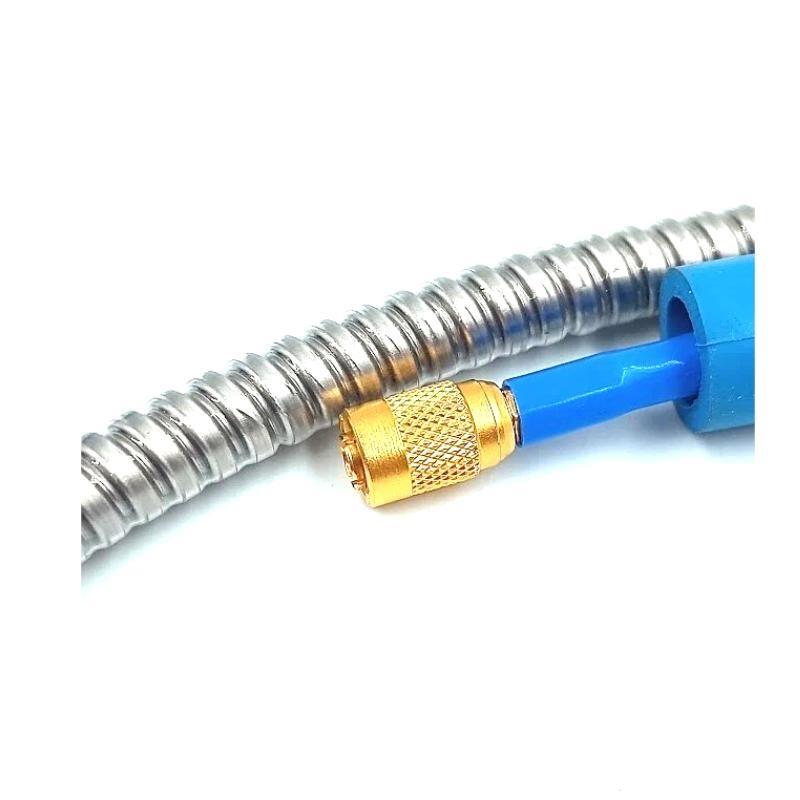

A7: It uses gold-plated ClickLoc connectors for secure and easy installation.
Q8: Does it require calibration with specific materials?
A8: Yes, it is factory-calibrated to AISI 4140 steel; other materials require recalibration.
Q9: What is the output sensitivity / the probe?
A9: The standard sensitivity is 200 mV/mil (7.87 V/mm).
Q10: Can it be installed without special tools?
A10: Yes, thanks to the ClickLoc connectors, no special tools are required.
Recommended Related 型号s (Same Series)
| 型号 | 描述 | Total Length | 重量 |
|---|---|---|---|
| 330101-00-12-10-02 | 3300 XL 8 mm Probe, no armor | 1.0 m | 0.280 kg |
| 330103-00-12-10-02 | 3300 XL 8 mm Probe, M10 thread, armor | 1.0 m | 0.323 kg |
| 330104-00-12-10-02 | 3300 XL 8 mm Probe, M10 thread, no armor | 1.0 m | 0.280 kg |
| 330105-02-12-10-02 | 3300 XL 8 mm Reverse Mount Probe, armor | 1.0 m | 0.323 kg |
| 330106-05-30-10-02 | 3300 XL 8 mm Reverse Mount Probe, M10, armor | 1.0 m | 0.323 kg |
| 330192-00-12-10-02 | 3300 XL 8 mm ETR Probe, 3/8-24, armor | 1.0 m | 0.323 kg |
Popular 型号s from Bently Nevada
| 型号 | 描述 | Total Length | 重量 |
|---|---|---|---|
| 330180-01-05 | 3300 XL Proximitor Sensor, panel mount | 1.0 m | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | N/A | N/A |
| 3500/44M-02-00 | Aeroderivative GT Vibration Monitor | N/A | N/A |
| 3500/25 | Keyphasor Module | N/A | N/A |
| 3500/05 | System Rack | N/A | N/A |
| 3500/22M | Transient Data Interface Module | N/A | N/A |
