Product 描述

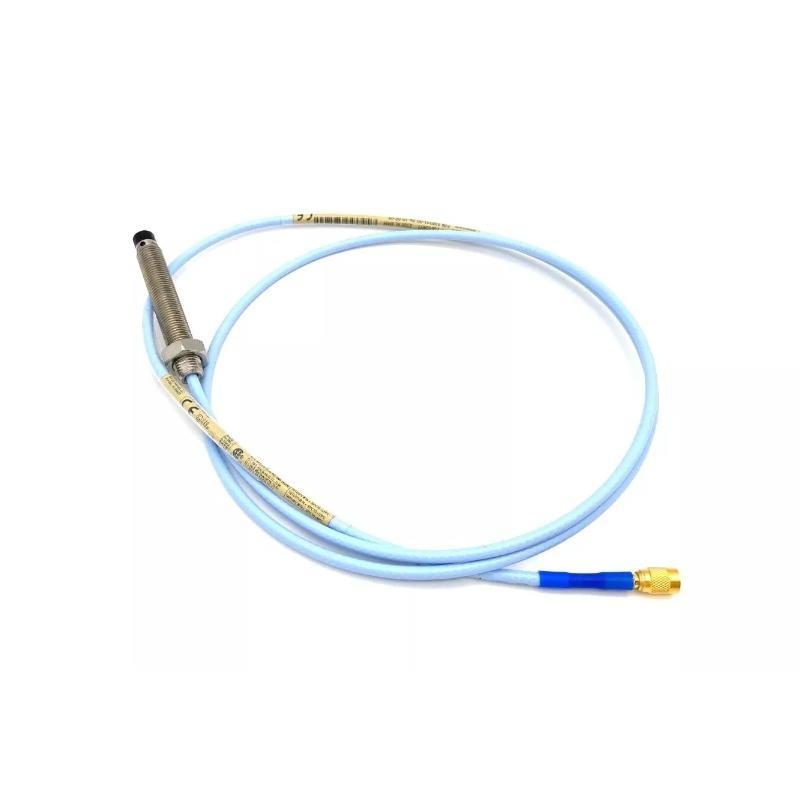

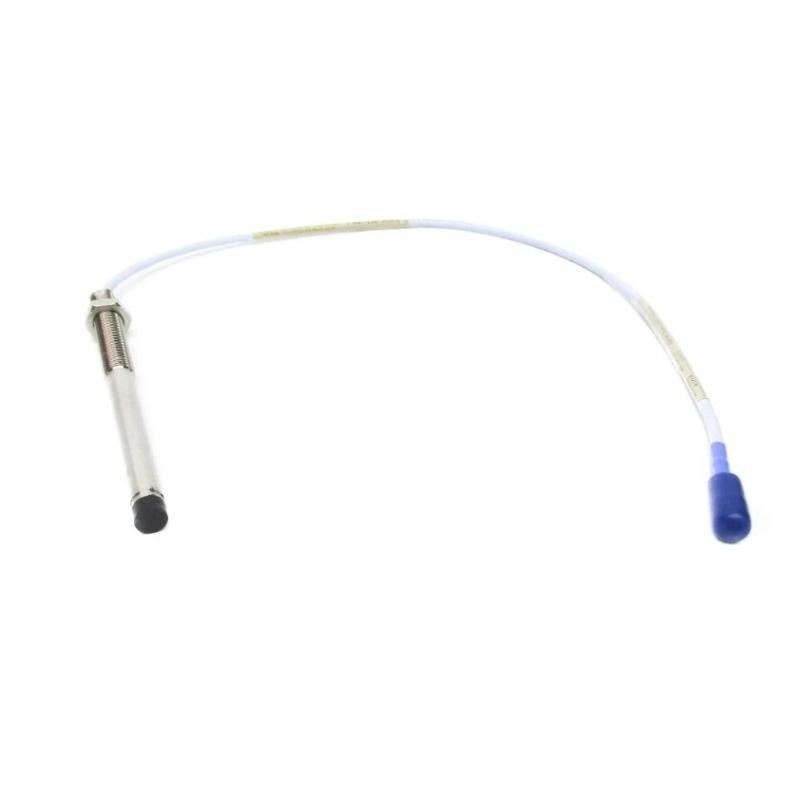

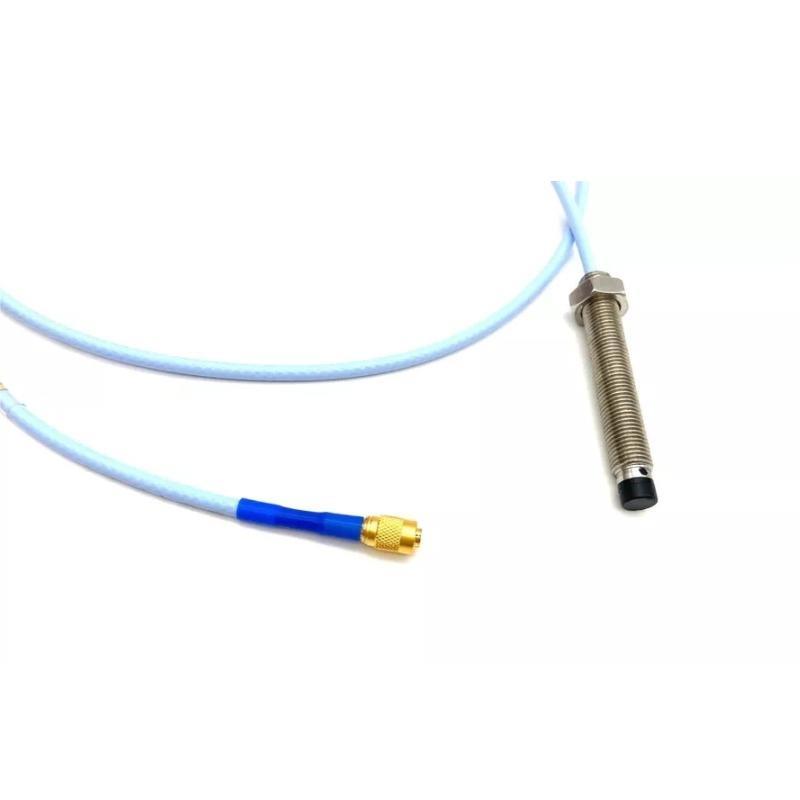

The Bently Nevada 330101-10-24-10-12-05 is a high-performance 8 mm proximity probe designed for precise non-contact vibration and position measurement / rotating machinery. As part / the 3300 XL series, it /fers robust reliability, superior environmental protection, and high linearity in demanding industrial environments.
Product Features
-
Non-contact vibration and displacement sensing
-
Enhanced durability and EMI resistance
-
Compatible with 3300 XL Proximitor systems
-
Sealed construction for harsh environments
-
Optimized for Bently Nevada monitoring systems
Technical Specifications
| Parameter | Value |
|---|---|
| 零件号 | 330101-10-24-10-12-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Sensing Tip Diameter | 8 mm |
| Probe Length | 1.0 meter (3.28 ft) |
| Connector Type | Miniature coaxial, 90° boot |
| Thread Size | 3/8-24 UNF-2A |
| Material | Stainless Steel |
| Operating Temperature | -35°C to +177°C |
| System Compatibility | 3300 XL Proximitor Sensor |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
Applications
-
Turbine shaft vibration monitoring
-
Motor and generator radial position measurement
-
Compressor and pump bearing health diagnostics
-
Industrial rotating equipment condition monitoring
-
Integration with Bently Nevada machinery protection systems
Advantages
-
Proven Reliability: Trusted in critical machinery worldwide
-
Robust Construction: 优秀 for extreme temperature and vibration environments
-
System Compatibility: Fully integrates with 3300 XL monitoring and protection systems
-
High Accuracy: Maintains precise gap and vibration measurements
-
Reduced Downtime: Enhances predictive maintenance capabilities
常见问题 (FAQ)
Q1: What is the sensing range / the 330101-10-24-10-12-05 probe?
A1: The sensing range is typically 2 mm (80 mils) for an 8 mm probe.
Q2: Is this probe compatible with other Bently Nevada Proximitor sensors?
A2: Yes, it is designed to work with 3300 XL Proximitor Sensors.
Q3: Can the probe operate in high-temperature environments?
A3: Yes, it can withstand temperatures from -35°C to +177°C.
Q4: What type / cable connector does it use?
A4: It uses a 90° booted miniature coaxial connector.
Q5: What’s the thread type on the probe?
A5: It features a 3/8-24 UNF-2A threaded case.
Q6: Can I use this probe for axial position measurement?
A6: Yes, it is suitable for both radial and axial position monitoring.
Q7: How is the durability in harsh environments?
A7: The stainless steel body and sealed design provide excellent environmental resistance.
Q8: What is the difference between this and the 330103 series?
A8: The 330103 series /fers different probe lengths and configurations; performance is similar.
Q9: How is the probe calibrated?
A9: It is factory-calibrated to match the 3300 XL Proximitor for accurate measurements.
Q10: Does it support dynamic signal monitoring?
A10: Yes, it captures dynamic vibration and static position signals.
Related 型号s in the Same Series
| 型号 Number | Probe Length | Connector Type | Thread Size | 重量 |
|---|---|---|---|---|
| 330101-00-05-10-02-00 | 0.5 meter | Straight | 3/8-24 UNF-2A | 0.280 kg |
| 330101-00-10-10-02-00 | 1.0 meter | Straight | 3/8-24 UNF-2A | 0.323 kg |
| 330101-00-15-10-02-00 | 1.5 meter | Straight | 3/8-24 UNF-2A | 0.360 kg |
| 330101-00-20-10-02-00 | 2.0 meter | Straight | 3/8-24 UNF-2A | 0.400 kg |
| 330104-00-06-10-11-00 | 1.0 meter | Reverse Mount | M10x1 | 0.325 kg |
| 330104-00-06-50-01-00 | 5.0 meter | Reverse Mount | M10x1 | 0.450 kg |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Probe Type | Cable Length | 重量 |
|---|---|---|---|---|
| 330104-00-05-10-02-00 | 3300 XL 8 mm Proximity Probe | Reverse Mount | 0.5 meter | 0.280 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | Proximitor | – | 0.150 kg |
| 330106-05-30-10-02-00 | 3300 XL 11 mm Proximity Probe | Oversize Probe | 3.0 meter | 0.480 kg |
| 330130-040-00-00 | Extension Cable for 3300 XL Series | Cable | 4.0 meter | 0.120 kg |
| 330103-00-10-10-02-00 | 3300 XL 8 mm Probe with straight connector | Probe | 1.0 meter | 0.323 kg |
| 330101-00-50-10-02-00 | 3300 XL 8 mm Proximity Probe | Probe | 5.0 meter | 0.470 kg |
