产品介绍

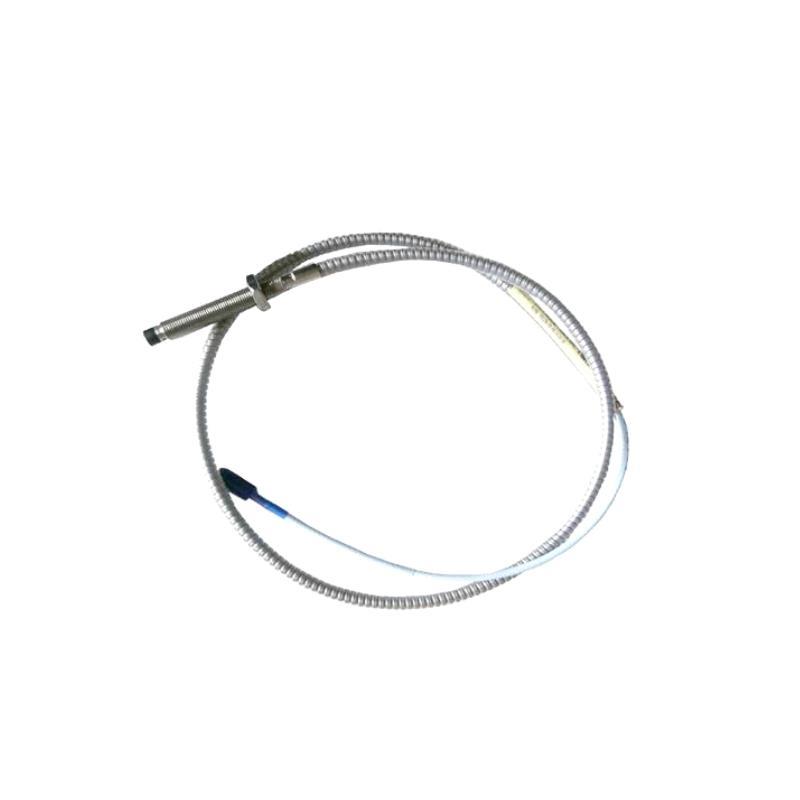

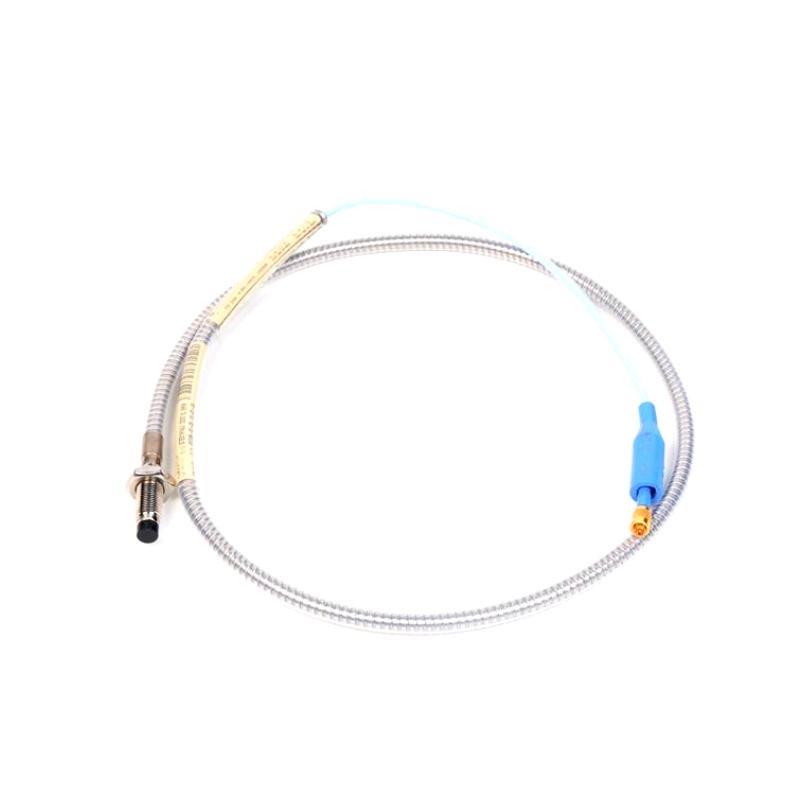

The Bently Nevada 330101-00-30-10-02-05 is part / the widely deployed 3300 XL 8mm Proximity Probe System, a flagship line in non-contact vibration and position sensing for rotating equipment. This model consists / a proximity probe designed to deliver consistent and accurate shaft displacement measurements in critical machinery. It is commonly used in conjunction with an extension cable and a Proximitor sensor, forming a complete eddy current proximity measurement system.
This specific part number (00-30-10-02-05) refers to a 30-foot probe assembly with a specific connector and armor configuration that enhances durability in industrial environments. The probe is designed for both OEM installation and retr/itting in machinery requiring high-performance condition monitoring solutions.
产品规格
| Parameter | Specification |
|---|---|
| 零件号 | 330101-00-30-10-02-05 |
| Series | 3300 XL |
| Sensor Type | Non-contact eddy current probe |
| Tip Diameter | 8 mm (0.31 inch) |
| Body Thread | 3/8-24 UNF-2A |
| Case Material | AISI 303 Stainless Steel |
| Total Length | 1.0 meter |
| Connector Type | Miniature coaxial with armor (Option Code 05) |
| Target Material | Calibrated for AISI 4140 steel |
| Linear Range | 2.0 mm (80 mils) |
| Non-Linearity | ≤ ±0.025 mm (±1 mil) |
| Frequency Response | DC to 10 kHz (typical) |
| Operating Temperature | −35°C to +177°C (−31°F to +350°F) |
| Storage Temperature | −51°C to +177°C |
| Insulation Resistance | >10 MΩ at 500 VDC |
| Ingress Protection | IP67 (with properly sealed connector) |
| 重量 | 0.323 kg |
| Cable Armor Material | Stainless steel flexible armor |
Product Applications
The Bently Nevada 3300 XL 8mm Proximity Probe is deployed across various industries to monitor the performance and safety / rotating assets. Common applications include:
-
Turbines (gas and steam)
-
Large electric motors
-
Compressors (centrifugal, axial, reciprocating)
-
Industrial fans and blowers
-
Gearboxes
-
Centrifugal pumps
Industries making use / this proximity probe include:
-
Power generation (thermal, hydro, nuclear)
-
Oil and gas (/fshore and onshore rigs, refineries)
-
Petrochemical and chemical processing
-
Steel and heavy manufacturing
-
Mining and materials handling
-
Pulp and paper production
Measurement functions include:
-
Radial shaft vibration
-
Axial thrust position
-
Shaft orbit and phase measurement
-
Runout and eccentricity analysis
Product Advantages
-
Exceptional Durability: The armored cable and stainless-steel construction make the probe suitable for extreme industrial environments.
-
Stable and Repeatable Measurements: Calibrated for high precision across the full linear range.
-
Broad Temperature Range: Designed to operate in high-heat zones like turbine enclosures and engine compartments.
-
Seamless System Integration: Fully compatible with Bently Nevada 3300 XL Proximitor sensors and extension cables.
-
Standardized Output: Provides 200 mV/mil output, widely supported across Bently Nevada monitoring platforms.
-
Field-Proven Reliability: Widely deployed in demanding applications worldwide with long operational lifespans.
-
Flexible Mounting: Threaded body and locknut system allow for secure and adjustable installation.
常见问题 (FAQ)
-
What does the part number 330101-00-30-10-02-05 specify?
It indicates a 3300 XL 8mm probe with a 1.0 meter cable, mini coaxial armored connector, and specific configuration options for rugged environments. -
What monitoring devices is this probe compatible with?
It works seamlessly with 3300 XL Proximitor sensors and can be used with Bently Nevada 3500 and 7200 monitoring systems. -
Can it be used for both vibration and position measurements?
Yes, the probe can measure both dynamic shaft vibration and static shaft position (thrust). -
Is the 8mm tip suitable for all shaft sizes?
It is optimized for medium to large shaft diameters. Smaller shafts may benefit from 5mm probes. -
Does the armor protect against EMI or just physical damage?
Primarily physical protection, although the coaxial cable construction helps reduce electromagnetic interference. -
How is the probe installed?
It uses a threaded body and is typically secured with jam nuts. The tip should be properly gapped to the shaft surface. -
What’s the recommended target material?
AISI 4140 steel is the calibration standard for accurate response. -
What is the minimum bend radius for the armored cable?
It is recommended not to exceed a bend radius / 76 mm (3 inches) to prevent cable damage. -
Can it be used in outdoor applications?
Yes, with proper sealing and installation, the probe’s IP67 rating allows outdoor or wash-down area deployment. -
Does the probe require recalibration?
No routine recalibration is needed under normal conditions, but periodic verification during maintenance is recommended.
Related 型号s (Same Series or Function)
| 型号 Number | Cable Length | Tip Size | Connector Type | Notes |
|---|---|---|---|---|
| 330101-00-05-10-02-05 | 5 ft | 8 mm | Armored mini coaxial | For tight-space or compact machine installations |
| 330101-00-10-10-02-05 | 10 ft | 8 mm | Armored mini coaxial | Mid-range applications |
| 330101-00-15-10-02-05 | 15 ft | 8 mm | Armored mini coaxial | Standard industrial applications |
| 330101-00-20-10-02-05 | 20 ft | 8 mm | Armored mini coaxial | For medium-distance monitoring points |
| 330103-00-10-10-02-05 | 10 ft | 5 mm | Armored mini coaxial | For small shaft diameters or limited clearance |
| 330104-00-10-10-02-05 | 10 ft | 11 mm | Armored mini coaxial | For high-displacement monitoring |
Popular 型号s from Bently Nevada
| 型号 Number | Device Type | Application | Highlights |
|---|---|---|---|
| 3500/22M | Data Interface Module | 3500 System data export | Real-time Ethernet output |
| 3500/42M | Proximitor Monitor | Vibration/position module for 3500 rack | 4-channel proximity inputs |
| 330400 | Velocity Transducer | General-purpose vibration monitoring | Self-generating sensor |
| 330103-00-10-10-02-00 | 5 mm Proximity Probe | Compact rotating machinery | For small radial clearances |
| 330104-00-10-10-02-00 | 11 mm Proximity Probe | High vibration applications | For large shaft displacement |
| 7200 Proximitor Series | Proximitor Sensor | Legacy system compatibility | Still in use with older systems |
