产品介绍

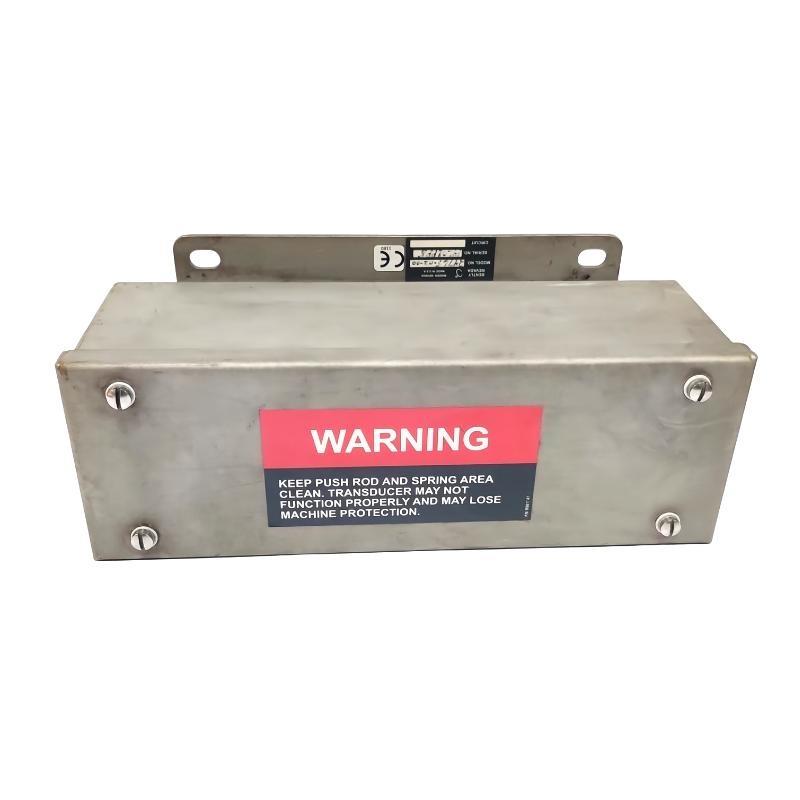

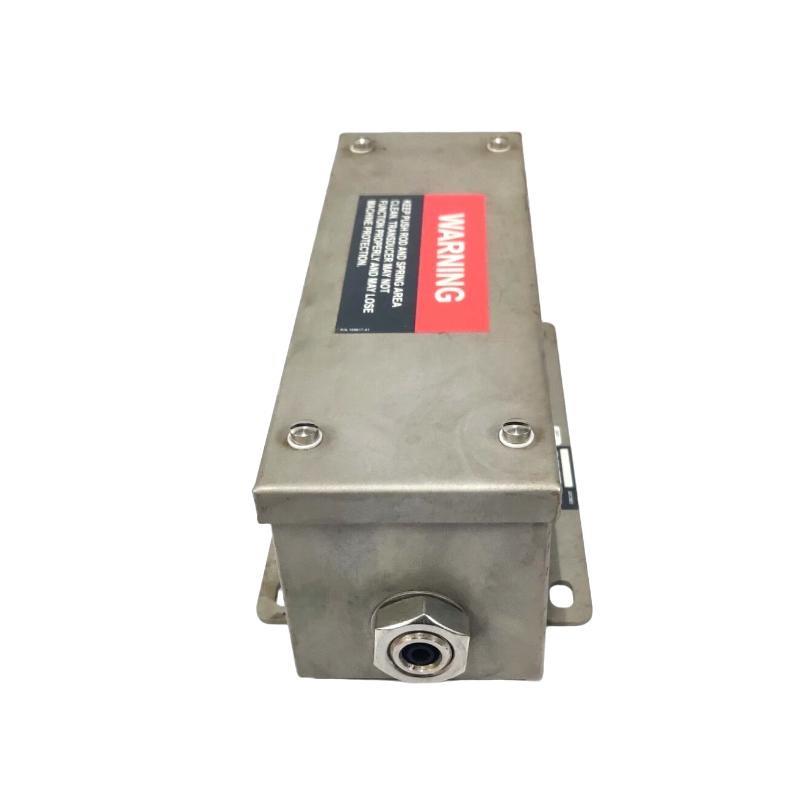

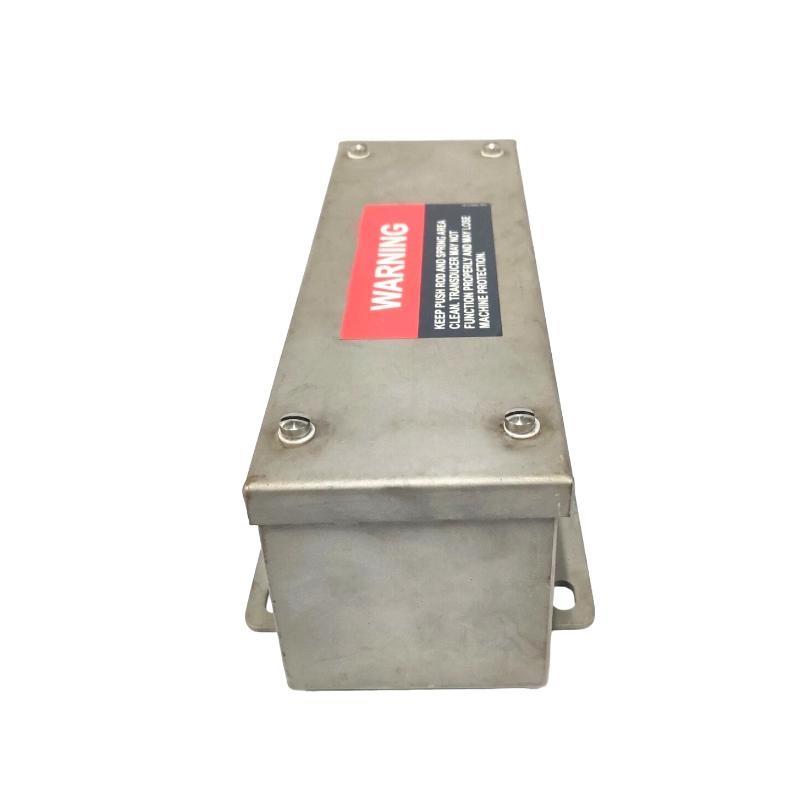

The Bently Nevada 24765-02-00 Case Expansion Transducer Assembly is a precision-engineered sensor designed for high-fidelity measurement / casing expansion in rotating machinery. It serves as a critical component in vibration monitoring and condition-based maintenance systems. This assembly converts mechanical expansion / the casing into an electrical signal, enabling continuous monitoring / rotor dynamics and ensuring the reliable operation / critical equipment.
Developed with industrial robustness in mind, the 24765-02-00 provides repeatable, accurate readings even under high temperatures, vibrations, and challenging environmental conditions. The assembly integrates seamlessly with Bently Nevada monitoring systems, making it an essential choice for turbines, compressors, and generators in power plants and other industrial facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 24765-02-00 |
| Sensor Type | Case Expansion Transducer |
| Measurement Range | ±0.010 in (±0.25 mm) |
| Output Type | Differential LVDT |
| Linearity | ±0.5% / full scale |
| Frequency Response | DC to 5 kHz |
| Operating Temperature | -40°C to 120°C |
| Mounting Type | Flanged / Surface Mount |
| Electrical Connection | 2- or 3-wire configuration |
| Housing Material | Stainless Steel |
| 重量 | 2.3 kg |
| Dimensions (L x W x H) | 88.9 x 117 x 241 mm |
| Environmental Rating | IP65 |
Applications
The 24765-02-00 Case Expansion Transducer Assembly is used in critical monitoring / rotating machinery, including:
-
Turbines in power generation plants
-
Centrifugal compressors in chemical and petrochemical industries
-
Large pumps in oil and gas applications
-
Generators and motors in industrial facilities
-
状态 monitoring systems for predictive maintenance
-
Any application requiring precise casing expansion measurement for rotor health assessment
By providing accurate, real-time data on machinery deformation and vibration, this transducer plays a pivotal role in reducing unplanned downtime and extending equipment life.
Advantages
-
High Accuracy: Offers precise measurement / casing expansion, critical for rotor dynamic analysis.
-
Rugged Design: Stainless steel housing ensures durability under harsh industrial conditions.
-
Wide Temperature Range: Operates effectively from -40°C to 120°C.
-
Seamless System Integration: Fully compatible with Bently Nevada 2300/3300 monitoring systems.
-
Low Maintenance: Solid-state design minimizes the need for recalibration or servicing.
-
High Frequency Response: Captures rapid changes in casing movement for accurate vibration analysis.
-
Compact and Lightweight: Easy to install without significantly altering existing machinery setups.
-
Reliable Output: Differential LVDT output provides stable and repeatable readings.
常见问题 (FAQ)
-
What is the response time / the transducer?
The device has a frequency response up to 5 kHz, allowing it to capture rapid casing movements in real-time. -
Can the sensor operate in high vibration environments?
Yes, the robust stainless steel housing and internal design allow stable operation in high-vibration settings. -
What type / signal conditioning is required?
The transducer outputs a differential LVDT signal that can be interfaced with standard Bently Nevada monitoring modules. -
Is the output linear across the full range?
Yes, linearity is ±0.5% / full scale. -
Can this transducer be used with non-Bently Nevada systems?
Technically yes, but compatibility must be verified for signal conditioning and voltage requirements. -
How resistant is the assembly to temperature variations?
It operates reliably from -40°C to 120°C without degradation in performance. -
What is the recommended mounting orientation?
Typically flanged or surface-mounted, aligned per the casing’s expansion axis. -
How does the sensor handle electrical noise?
Differential LVDT output minimizes susceptibility to electromagnetic interference. -
Can the transducer measure dynamic and static expansions simultaneously?
Yes, it captures both quasi-static casing changes and dynamic vibration effects. -
What calibration procedures are recommended?
Calibration should follow Bently Nevada’s standard LVDT calibration protocols using reference standards.
Related 型号s / Series Recommendations
| 型号 Number | 描述 |
|---|---|
| 24765-02-01 | Case Expansion Transducer with extended range |
| 24765-02-02 | High-temperature variant |
| 24765-03-00 | Flanged mounting LVDT assembly |
| 24765-04-00 | Compact housing for confined spaces |
| 24765-05-00 | Differential LVDT with enhanced linearity |
| 24765-06-00 | Integrated signal conditioning variant |
Popular 型号s from Bently Nevada
| 型号 Number | 描述 |
|---|---|
| 330130-00-00 | Proximity Probe Assembly |
| 330331-00-00 | Seismic Sensor |
| 3500/42 | Machinery Protection System |
| 2300/60 | Proximity Probe with Advanced Signal 状态ing |
| 18702-02-00 | Vibration Sensor Module |
| 119875-01-00 | Displacement Sensor Assembly |
