Product Overview

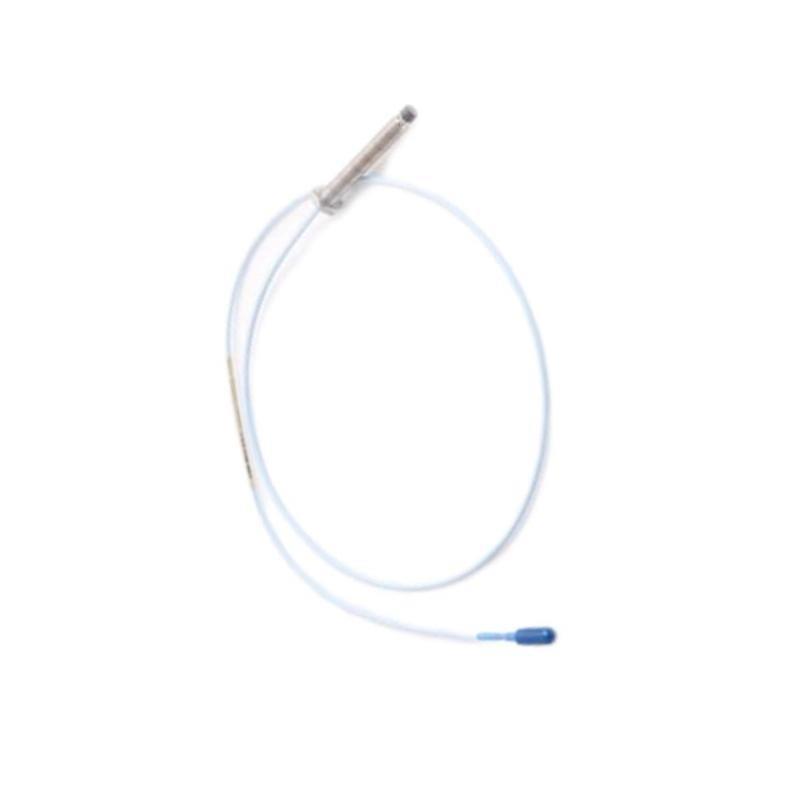

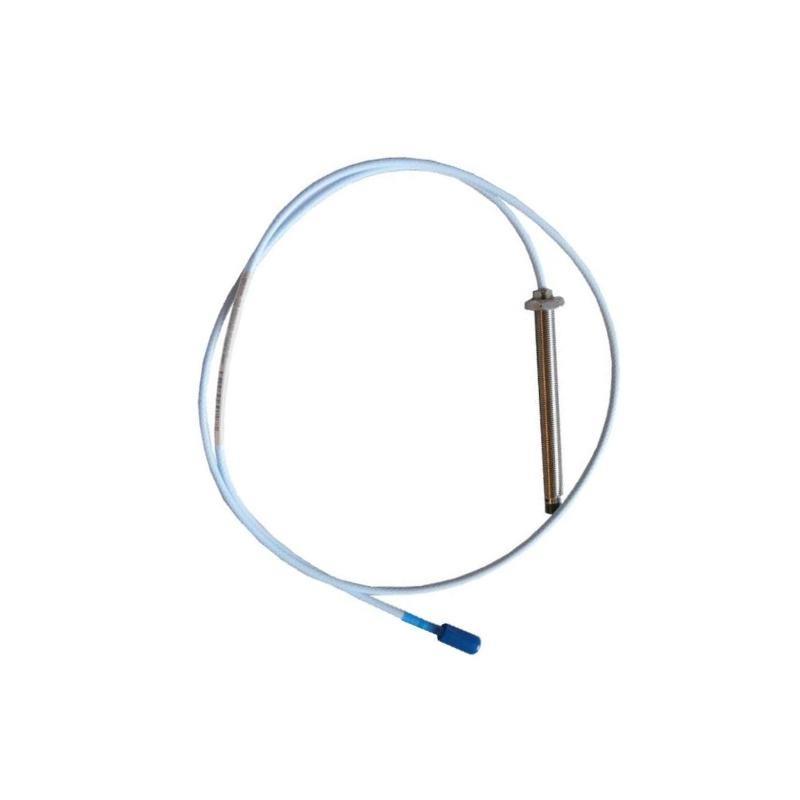

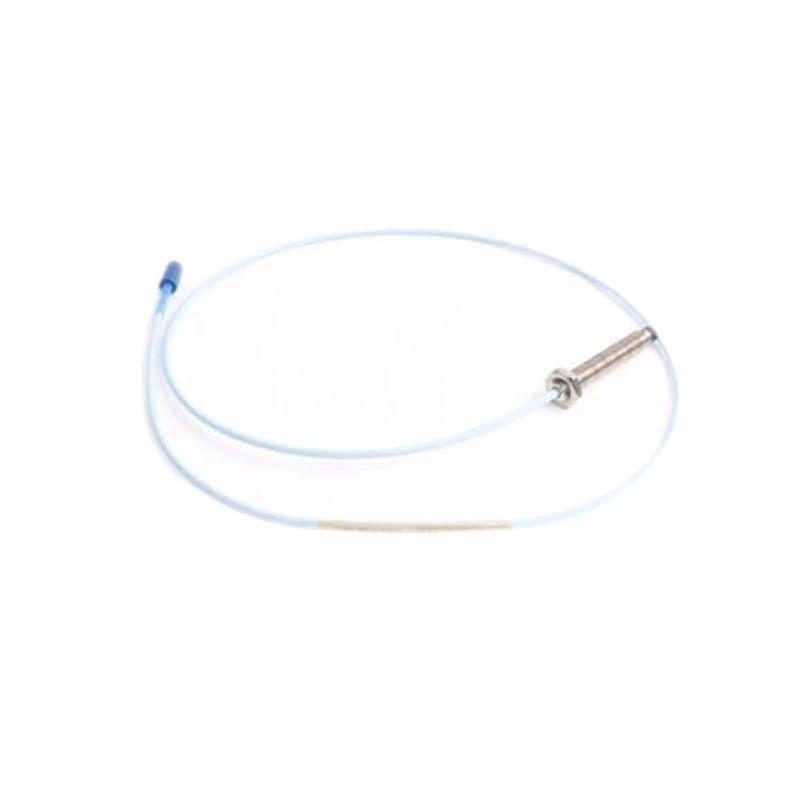

The Bently Nevada 330103-00-07-05-12-05 is a high-performance 8 mm proximity probe from the trusted 3300 XL series, designed for non-contact measurement / shaft vibration and axial position in rotating machinery. This model features a 7-meter integral cable with a ClickLoc connector and is equipped for challenging industrial conditions requiring robust, precise, and dependable monitoring.
Its compact design, enhanced durability, and compliance with API 670 standards make it ideal for critical applications in power generation, petrochemical, and heavy industries.
Key Features
-
Non-contact proximity sensing for vibration and position
-
8 mm probe tip diameter ensures broad measurement compatibility
-
7 m integral probe cable with ClickLoc keyed connector
-
Compliant with API 670 for machinery protection systems
-
Built-in ruggedization for harsh industrial environments
-
Designed to operate with 3300 XL Proximitor Sensors and Extension Cables
Technical Specifications
| Item | Specification |
|---|---|
| 型号 Number | 330103-00-07-05-12-05 |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Body Style | Straight |
| Thread Size | 1/4-28 UNF-2A |
| Cable Length | 7.0 meters |
| Connector Type | ClickLoc keyed connector (12 o’clock orientation) |
| Target Material | Ferromagnetic (e.g., steel shaft surfaces) |
| Sensitivity | 7.87 mV/μm (200 mV/mil), nominal |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | –51°C to +177°C (–60°F to +350°F) |
| System Compatibility | 3300 XL Extension Cable and Proximitor Sensor |
| Dimensions | Total Length : 0.5 meter |
| 重量 | 0.161 kg |
Industry Applications
-
Turbomachinery Monitoring
-
Petrochemical Processing Plants
-
Oil & Gas Pipeline Equipment
-
Power Generation Facilities
-
Compressors, Motors, and Pumps
-
Paper Mills and Steel Manufacturing
Product Advantages
-
Reliable Performance: Delivers accurate, linear readings across a wide temperature range.
-
Mechanical Robustness: Withstands contamination, vibration, and extreme industrial conditions.
-
ClickLoc Connector: Prevents loosening due to vibration; ensures secure field connections.
-
Easy Integration: Compatible with the full Bently Nevada 3300 XL proximity monitoring system.
-
Global Standard Compliance: Meets API 670 specifications for rotating machinery protection.
常见问题 (FAQ)
-
What is the sensing range / this probe?
The linear sensing range is 2 mm (80 mils). -
Is this probe suitable for use in high temperatures?
Yes, it supports continuous operation up to +177°C (350°F). -
What type / connector does this model use?
It uses a factory-installed ClickLoc connector in the 12 o’clock orientation. -
What cable length is integrated with this probe?
7 meters / integral coaxial cable. -
Is it compatible with 3300 XL Proximitor Sensors?
Yes, it is designed for use with Bently Nevada 3300 XL Proximitor Sensors and Extension Cables. -
What thread type is used for installation?
1/4-28 UNF-2A thread for mounting in standard brackets or housings. -
What industries typically use this model?
Power, petrochemical, refining, and heavy industry environments. -
What materials can the probe detect?
It is optimized for ferromagnetic targets like steel shafts. -
Does this model support ClickLoc connector locking?
Yes, the ClickLoc system ensures a vibration-resistant, keyed connection. -
How is this model different from the CN version?
This is the standard international version; CN versions are customized for regional (China) compliance.
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330103-00-05-10-02-00 | 5 m cable, standard connector |
| 330103-00-07-05-02-CN | 7 m cable, China-compliant version |
| 330103-00-08-10-02-00 | 8 m cable, straight body |
| 330103-00-06-10-02-05 | 6 m cable, ClickLoc connector |
| 330104-00-05-10-12-05 | High-temp 3300 XL probe, 5 m cable |
