产品介绍

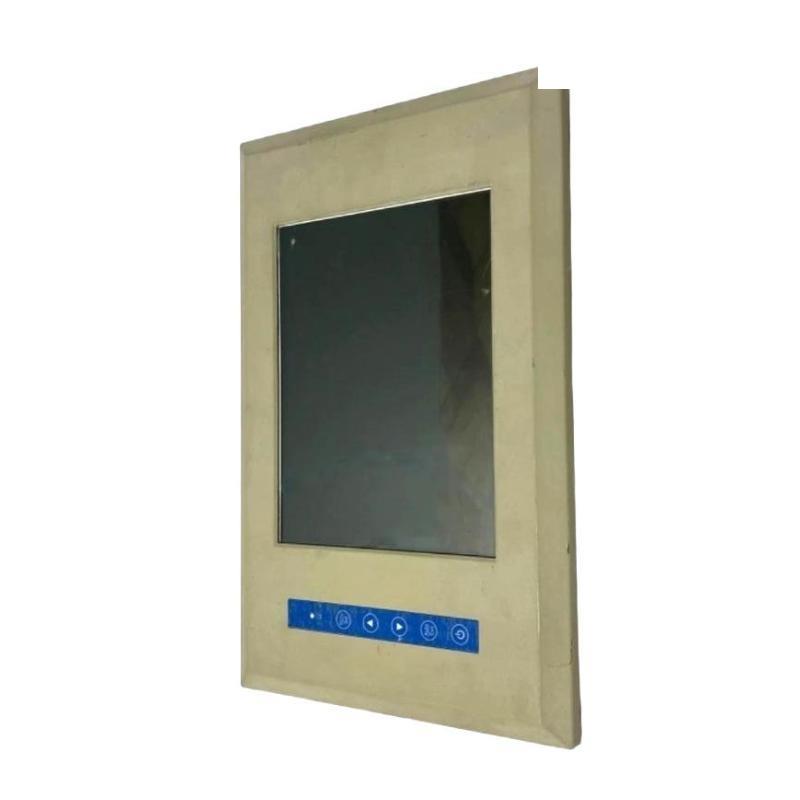

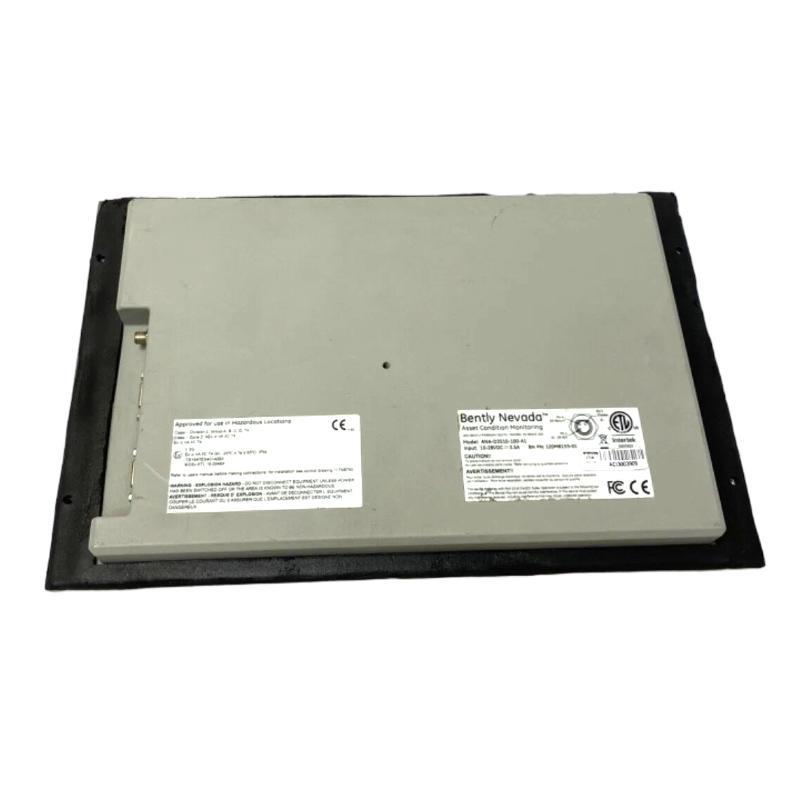

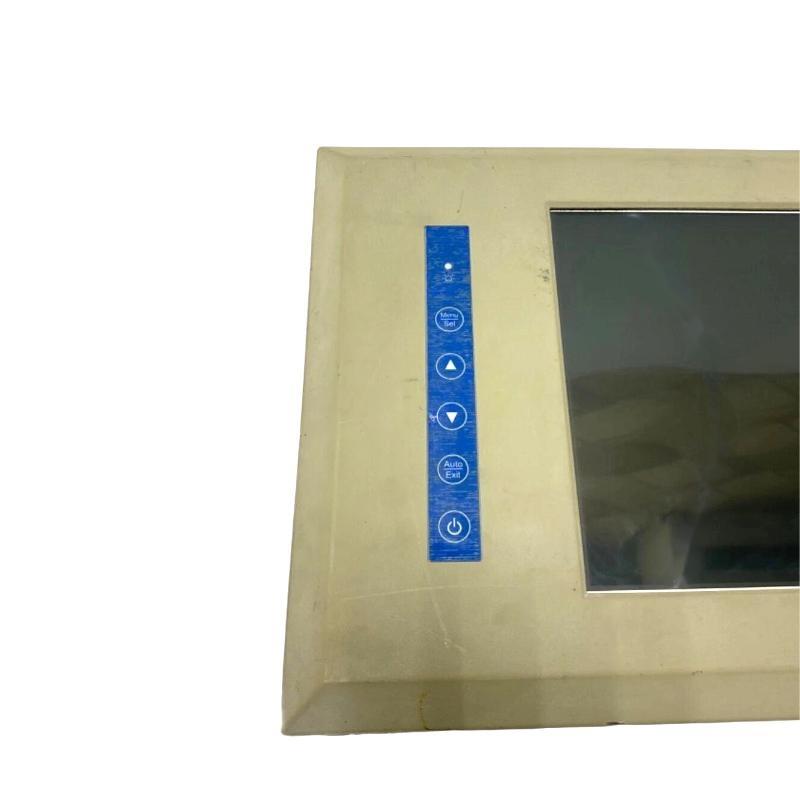

The Bently Nevada 120M8155-01 Touch Screen Display is a high-performance 10-inch industrial interface designed to provide operators with real-time monitoring, diagnostics, and configuration control for Bently Nevada machinery protection and condition monitoring systems. Engineered for rugged industrial environments, this display combines a responsive capacitive touch panel with a bright, high-resolution screen that remains clearly visible even under harsh lighting. Its robust enclosure and advanced electronics allow it to function reliably in power generation plants, petrochemical facilities, manufacturing floors, and other demanding industrial applications. The intuitive graphical interface simplifies interaction with complex machinery data, improving operational awareness and decision-making.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | Bently Nevada 120M8155-01 |
| Display Size | 10 inches (diagonal) |
| Display Type | Industrial-grade capacitive touch screen |
| Brightness | 450 cd/m² (typical) |
| Viewing Angle | 160° horizontal / 160° vertical |
| Input Voltage | 24 VDC nominal |
| Power Consumption | 20 W (typical) |
| Communication Interfaces | Ethernet (10/100 Mbps), RS-485, USB 2.0 |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +80 °C |
| Humidity Tolerance | 0–95% non-condensing |
| Enclosure Rating | IP65 front panel protection |
| Mounting Options | Panel mount, rack mount, or VESA mount |
| Dimensions (W x H x D) | 249 x 389 x 48 mm |
| 重量 | 4 kg |
| Certification | CE, UL, and RoHS compliant |
| Touch Technology | Multi-touch capacitive |
| Operating System 支持 | Embedded Linux or Windows IoT (configurable) |
Applications
The 120M8155-01 Touch Screen Display serves as a versatile human–machine interface (HMI) across a wide range / industries and processes:
-
Machinery 状态 Monitoring: Direct display / vibration, temperature, and operational data from Bently Nevada systems.
-
Power Generation: Real-time turbine and generator monitoring in control rooms.
-
Oil & Gas: Safe and reliable monitoring / compressors and pumps in onshore and /fshore environments.
-
Process Automation: Integration with SCADA or DCS systems for streamlined production control.
-
Manufacturing: Operator panels for assembly lines, robotic cells, and heavy equipment diagnostics.
-
Data Visualization: Graphical trending and alarm management for predictive maintenance programs.
Product Advantages
-
High-Resolution Display: Crisp 10-inch screen with excellent brightness for readability in all lighting conditions.
-
Durable Industrial Design: IP65-rated front panel and rugged construction withstand dust, moisture, and vibration.
-
Responsive Touch Interface: Multi-touch technology allows smooth, intuitive control and data navigation.
-
Flexible Connectivity: Ethernet, RS-485, and USB interfaces simplify integration with existing monitoring systems.
-
Wide Temperature Range: Reliable operation in harsh environments from -20 °C to +60 °C.
-
Low Power Consumption: Optimized electronics ensure efficient energy usage.
-
Easy Integration: Compatible with Bently Nevada 3500 series and other condition monitoring equipment.
-
Customizable Interface: 支持s various industrial s/tware platforms and visualization tools.
-
Reduced Downtime: Enables rapid fault detection and quick response to machinery alarms.
-
Long-Term Reliability: Designed for continuous operation in 24/7 industrial settings.
FAQ
-
Which Bently Nevada systems are compatible with the 120M8155-01 display?
It is designed for integration with the Bently Nevada 3500 Series and other condition monitoring platforms. -
What type / touch technology does the display use?
A multi-touch capacitive panel provides high responsiveness and accuracy. -
Does the display support Ethernet communication?
Yes, it includes a 10/100 Mbps Ethernet port for data transfer and remote access. -
Can it be mounted in a control panel?
Yes, the display supports panel, rack, and VESA mounting options. -
What operating temperature range is supported?
The 件 operates reliably from -20 °C to +60 °C. -
Is the front panel waterpro/?
The front panel carries an IP65 rating, protecting against dust and water jets. -
Which operating systems are supported?
It supports embedded Linux or Windows IoT, depending on configuration. -
What is the power supply requirement?
The display operates on a nominal 24 VDC power supply. -
Does it provide USB connectivity for data export?
Yes, it includes a USB 2.0 port for data transfer and peripheral connections. -
Can it display real-time vibration and temperature data?
Absolutely, it is optimized to display live condition monitoring data from Bently Nevada sensors and modules.
Recommended Related 型号s (Same Series or Similar)
| 型号 Number | 描述 | Key Feature |
|---|---|---|
| Bently Nevada 120M8155-02 | 12″ Touch Screen Display | Larger display area with higher resolution |
| Bently Nevada 120M8155-03 | 8″ Compact Touch Display | Space-saving design for smaller panels |
| Bently Nevada 120M8156-01 | Touch Display with extended temperature | Enhanced tolerance for extreme environments |
| Bently Nevada 120M8157-01 | Multi-protocol Touch HMI | Additional fieldbus communication support |
| Bently Nevada 120M8158-01 | Ruggedized Touch Screen | Extra shock and vibration resistance |
| Bently Nevada 120M8160-01 | Wide-screen 10.4″ Display | Widescreen format for broader data visualization |
Popular Bently Nevada 型号s (Same 品牌)
| 型号 Number | 描述 | Application Area |
|---|---|---|
| Bently Nevada 3500/22M | Machinery protection monitoring module | Vibration and condition monitoring |
| Bently Nevada 3300 XL | Proximity and vibration sensor series | Rotating equipment measurement |
| Bently Nevada 3500/94M | VGA Display and Communication Module | Local or remote visual data access |
| Bently Nevada 3500/42M | Dynamic Vibration Monitoring Module | High-speed data acquisition |
| Bently Nevada 2201 | Data acquisition and signal processing 件 | Centralized condition monitoring |
| Bently Nevada 990 VOT | Vibration and Overspeed Transmitter | Critical turbomachinery safety monitoring |
