产品介绍

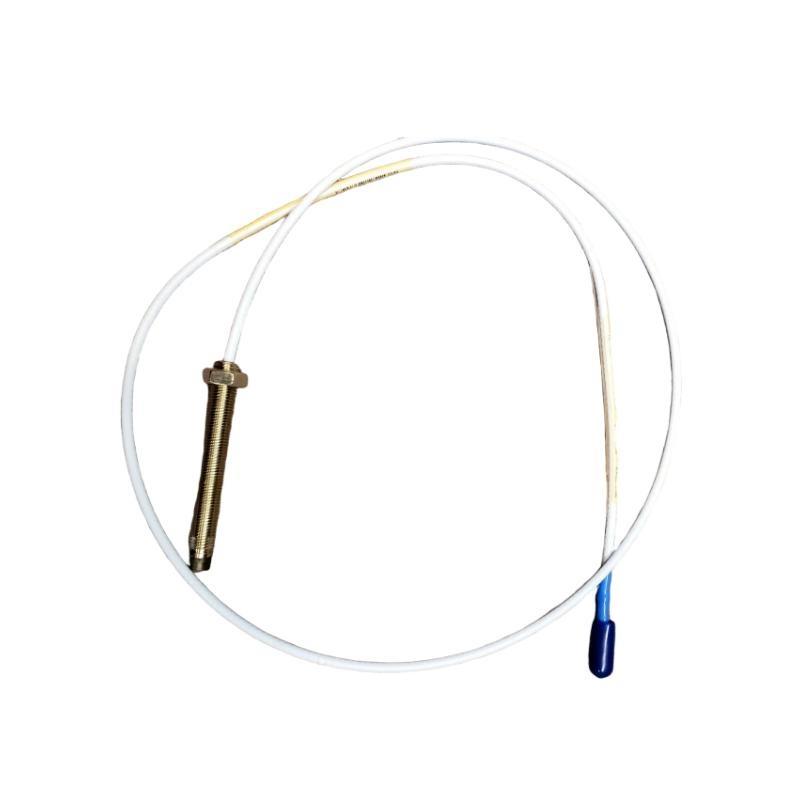

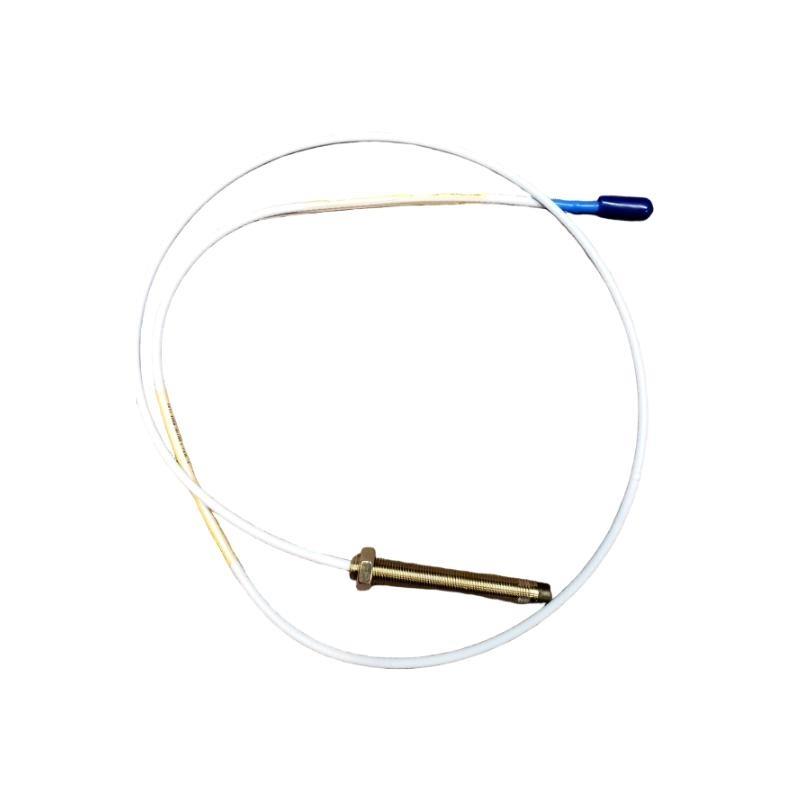

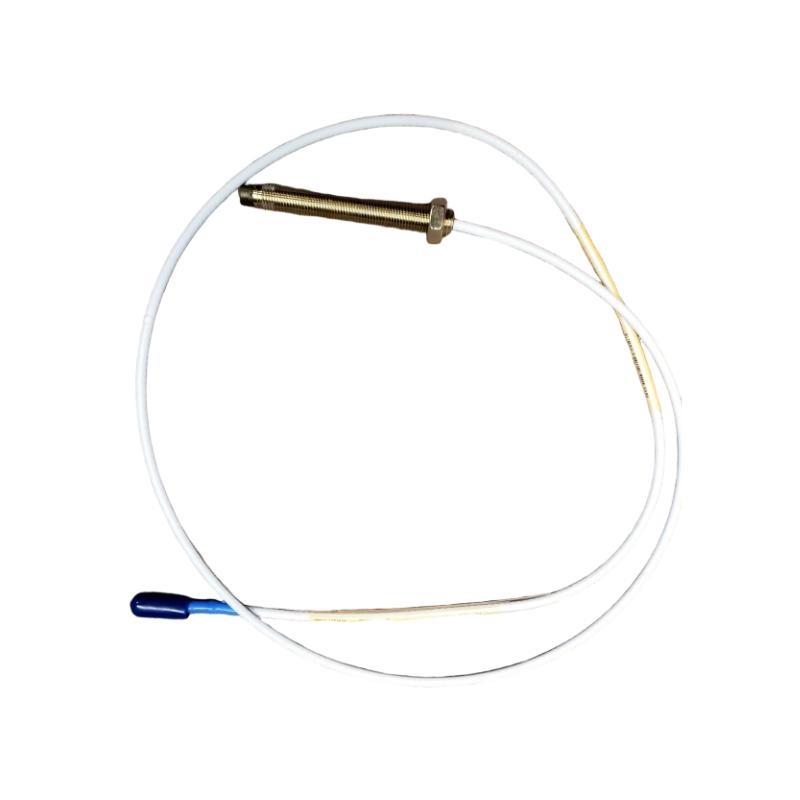

The Bently Nevada 102044-00-28-10-02 Proximity Sensor is a precision-engineered device designed for machinery condition monitoring, specifically for measuring shaft vibration and position in rotating equipment. Developed by Bently Nevada, a globally recognized brand under Baker Hughes, this proximity sensor is part / their trusted 3300 XL series.
The sensor utilizes eddy current technology to detect the distance between the sensor tip and the conductive target (usually a rotating shaft). It is primarily used in critical machinery protection systems and condition monitoring applications where accurate and real-time displacement measurements are vital.
产品规格
| Parameter | Value |
|---|---|
| 型号 Number | 102044-00-28-10-02 |
| Series | 3300 XL |
| Sensing Technology | Eddy Current |
| Cable Length | 1 meter |
| Connector Type | Miniature coaxial connector |
| Target Material | Conductive metals (usually steel) |
| Linear Range | 2 mm (±0.25 mm typical linearity within specified range) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| System Compatibility | Compatible with 3300 XL series proximitor modules |
| Operating Temperature | -35°C to +120°C (-31°F to +248°F) |
| Environmental Protection | Hermetically sealed, IP67 rated |
| 重量 | 0.689 kg |
Applications
The 102044-00-28-10-02 Proximity Sensor is widely used in industrial and energy sectors. Typical applications include:
-
Steam Turbines
-
Gas Turbines
-
Centrifugal Compressors
-
Motors and Generators
-
Pumps and Fans
-
Gearboxes and Critical Bearings
Product Advantages
-
High Precision & Sensitivity: Accurately measures shaft displacement and vibration, essential for avoiding costly unplanned downtimes.
-
Industry Standard Compliance: Designed to meet API 670 standards for machinery protection.
-
Rugged Design: Built to withstand harsh environments, with sealed stainless steel construction.
-
System Compatibility: Fully compatible with Bently Nevada’s 3300 XL monitoring systems, /fering plug-and-play integration.
-
Long Probe Length: Suitable for installations requiring deep sensor insertion or custom routing.
-
Reliable Output: Maintains consistent output even under temperature fluctuations and electrical noise.
常见问题 (FAQ)
-
What is the primary use / the Bently Nevada 102044-00-28-10-02 sensor?
It is used for proximity and vibration monitoring / rotating machinery shafts in critical systems. -
Is this sensor compatible with non-Bently Nevada monitoring systems?
It is optimized for use with Bently Nevada’s 3300 XL systems, but may be adaptable to third-party systems with proper configuration. -
What is the maximum temperature this sensor can handle?
The sensor is rated for operation from -35°C to +120°C. -
Can it be used in explosive environments?
While robust, its use in hazardous areas depends on installation configuration and certification. Refer to product documentation or seek certified alternatives. -
What is the sensing range / this proximity sensor?
The linear sensing range is approximately 2 mm, with a typical sensitivity / 200 mV/mil. -
Does it require calibration after installation?
Factory calibration is provided, but site calibration is recommended to ensure accuracy based on mounting and environmental factors. -
Is the cable detachable or integrated?
The cable is typically integral to ensure signal integrity, but models with detachable connectors are available. -
What type / output signal does it generate?
It outputs a voltage proportional to the shaft’s displacement, typically 7.87 mV/μm. -
How is the sensor installed?
It is mounted using a threaded sleeve or mounting bracket, with precise alignment toward the target shaft surface. -
Can this sensor monitor both vibration and position?
Yes, it can measure both dynamic (vibration) and static (position) parameters when integrated with a proximitor module.
Related 型号s (Same Series or Function)
| 型号 Number | Probe Length | Cable Length | 描述 |
|---|---|---|---|
| 102044-00-28-10-02 | 28 in | 10 ft | Standard 3300 XL proximity sensor |
| 330101-00-40-10-02 | 40 in | 10 ft | Extended probe length for deep installations |
| 330104-00-16-10-02 | 16 in | 10 ft | Medium-length proximity probe for limited space |
| 330105-02-12-10-02 | 12 in | 10 ft | Short probe, compact systems |
| 330130-040-00-00 | N/A | 4.0 m | 3300 XL NSv proximity cable for narrow spaces |
| 330180-91-00 | N/A | N/A | Extension cable compatible with 3300 XL series |
Popular Bently Nevada 型号s
| 型号 Number | Type | Function |
|---|---|---|
| 330104-00-05-10-02 | Proximity Probe | Standard proximity sensor with 5 in probe |
| 330130-040-00-00 | Extension Cable | Connects probe to proximitor |
| 3300/16-12-01-01-00-00 | Monitoring Module | Vibration monitor, DIN rail mount |
| 3500/22M | Communications Gateway | Interface module for 3500 monitoring systems |
| 3500/42M | Vibration Monitor Module | Four-channel monitor for radial vibration |
| 3500/05 | System Rack | Holds up to 14 modules for 3500 series |
