Product Overview

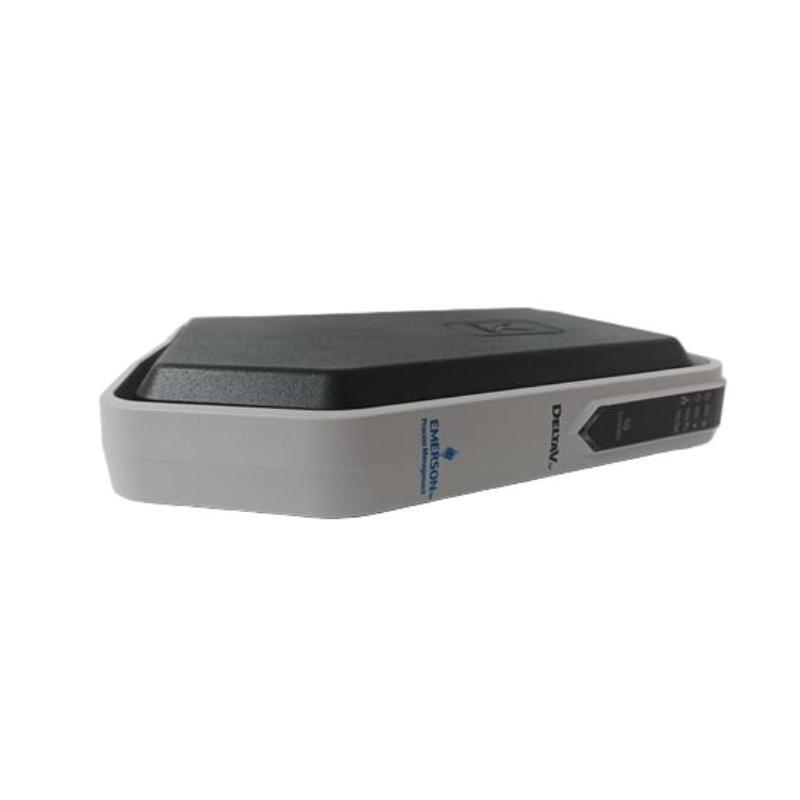

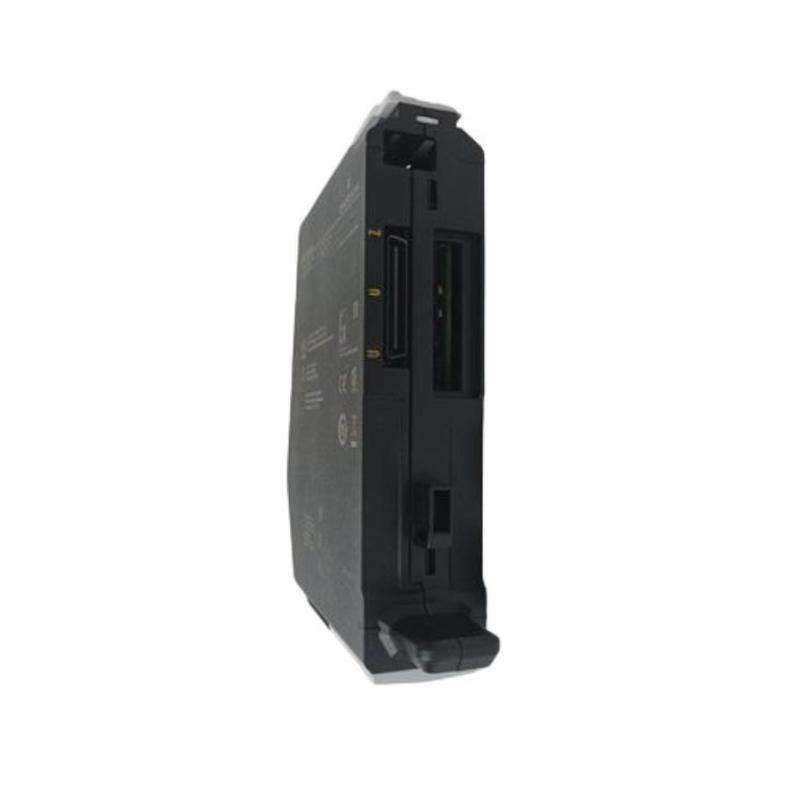

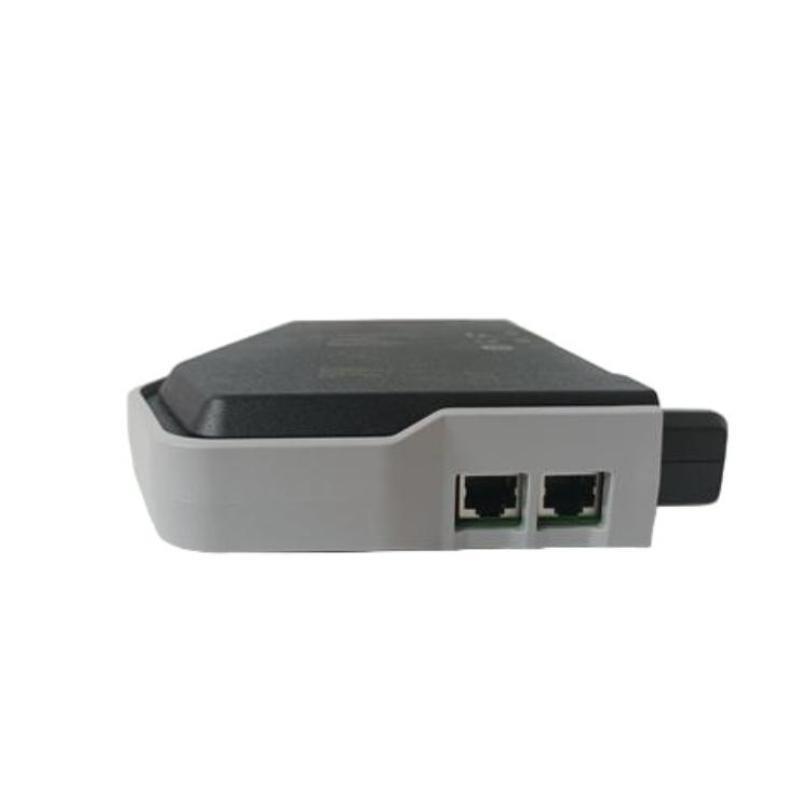

The Emerson KJ3242X1-BK1 Fieldbus H1 Card is a high-performance communication module designed for DeltaV distributed control systems (DCS). It provides H1 Foundation Fieldbus connectivity, enabling integration / smart field devices into the DeltaV control network. The card allows real-time communication, configuration, and monitoring / field instruments such as transmitters, actuators, and sensors. With built-in diagnostics, redundancy support, and hot-swappable functionality, it ensures reliable and uninterrupted process control in demanding industrial environments.
Key Features
-
支持s H1 Foundation Fieldbus communication for smart field devices
-
Enables real-time monitoring, configuration, and diagnostics
-
Compatible with DeltaV DCS and seamless integration with existing network
-
Hot-swappable for minimal downtime during maintenance
-
Built-in redundancy support for critical applications
-
LED indicators for communication status and fault detection
-
Rugged and compact design for industrial environments
-
Enhances process reliability and control system performance
Technical Specifications
| Item | Specification |
|---|---|
| 型号 Number | KJ3242X1-BK1 |
| 制造商 | Emerson |
| Product Type | Fieldbus Communication Module |
| System Compatibility | DeltaV Distributed Control System |
| Communication Protocol | H1 Foundation Fieldbus |
| Channels | 2 H1 fieldbus channels per card |
| Redundancy | 支持ed for high availability networks |
| Hot-Swap Capability | Yes |
| Diagnostics | Built-in module and network diagnostics |
| Indicators | Status, communication, and fault LEDs |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Dimensions | 130 × 40× 160 mm |
| 重量 | 0.5 kg |
| Mounting | DeltaV I/O rack or chassis |
| Compliance | CE, UL, RoHS, IEC standards |
Industry Applications
-
Oil & Gas – integration / smart field devices for process control
-
Petrochemical – real-time monitoring / transmitters, valves, and sensors
-
Power Generation – smart device connectivity for turbines and generators
-
Pharmaceuticals – precise control and monitoring / batch processes
-
Water & Wastewater – automation / pumps, motors, and treatment processes
Advantages
-
Facilitates seamless integration / smart field devices via H1 Foundation Fieldbus
-
Provides redundancy and hot-swap capabilities for high system availability
-
Built-in diagnostics improve reliability and reduce troubleshooting time
-
Compact design optimizes control cabinet space
-
Enhances control system accuracy, reliability, and operational efficiency
常见问题 (FAQ)
Q1: What is the primary function / the KJ3242X1-BK1?
It provides H1 Foundation Fieldbus connectivity for smart field devices in DeltaV systems.
Q2: How many fieldbus channels does it support?
It supports 2 H1 fieldbus channels per card.
Q3: Is the module hot-swappable?
Yes, it can be replaced without shutting down the control system.
Q4: Does it support redundancy?
Yes, it supports redundant network configurations for critical applications.
Q5: What type / diagnostics does it provide?
It includes module-level and network-level diagnostics for device status and communication integrity.
Q6: Which systems is it compatible with?
It is compatible with Emerson DeltaV Distributed Control Systems.
Q7: What is the operating temperature range?
0 °C to +60 °C.
Q8: How is it mounted?
It is installed in DeltaV I/O racks or chassis.
Q9: What types / devices can it connect to?
It can connect to H1 Foundation Fieldbus smart transmitters, actuators, and other field instruments.
Q10: What standards does it comply with?
It complies with CE, UL, RoHS, and IEC standards.
